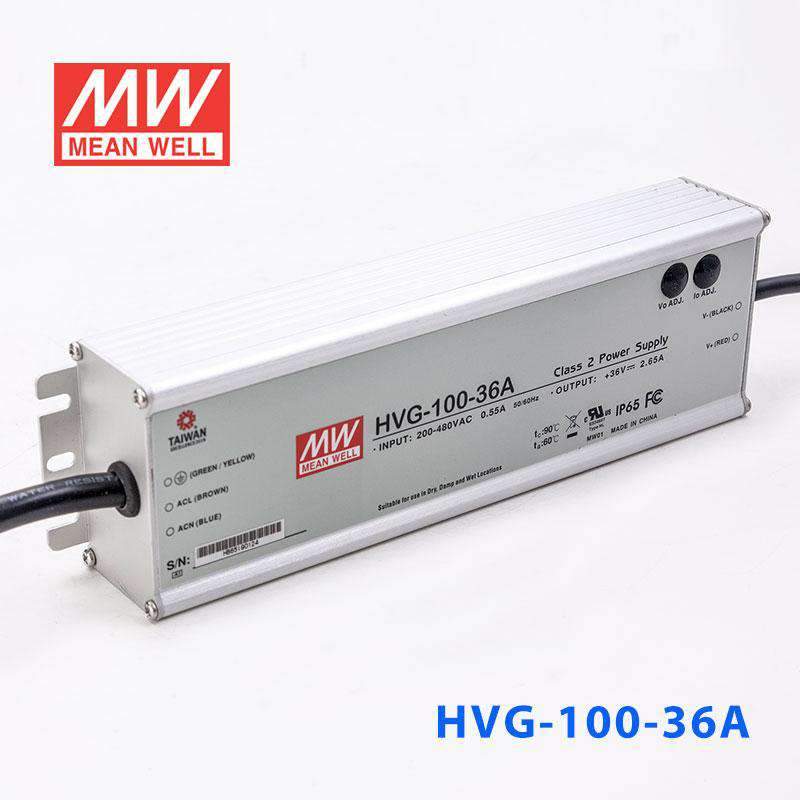

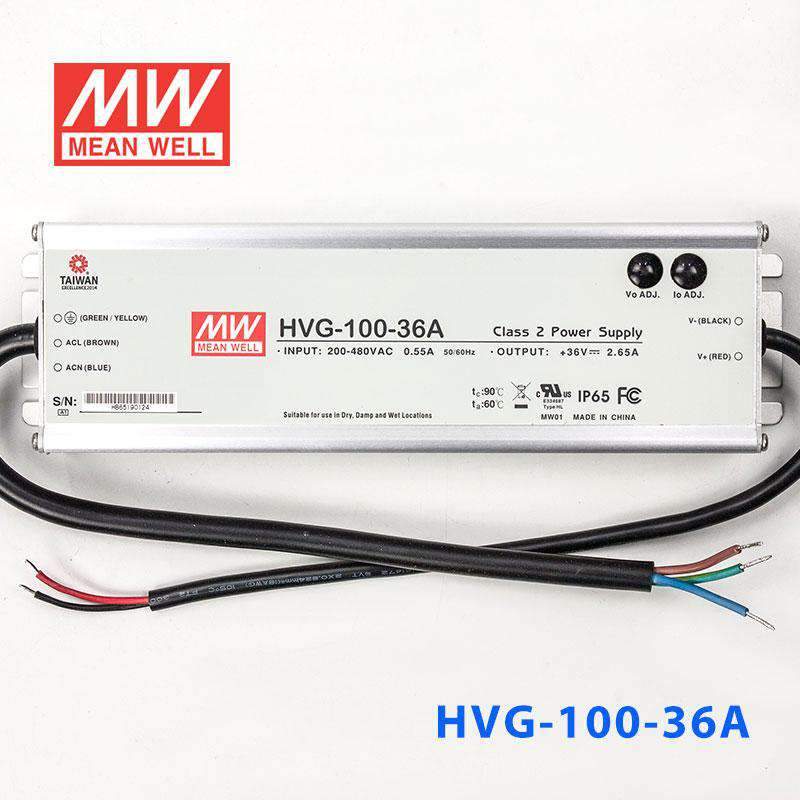

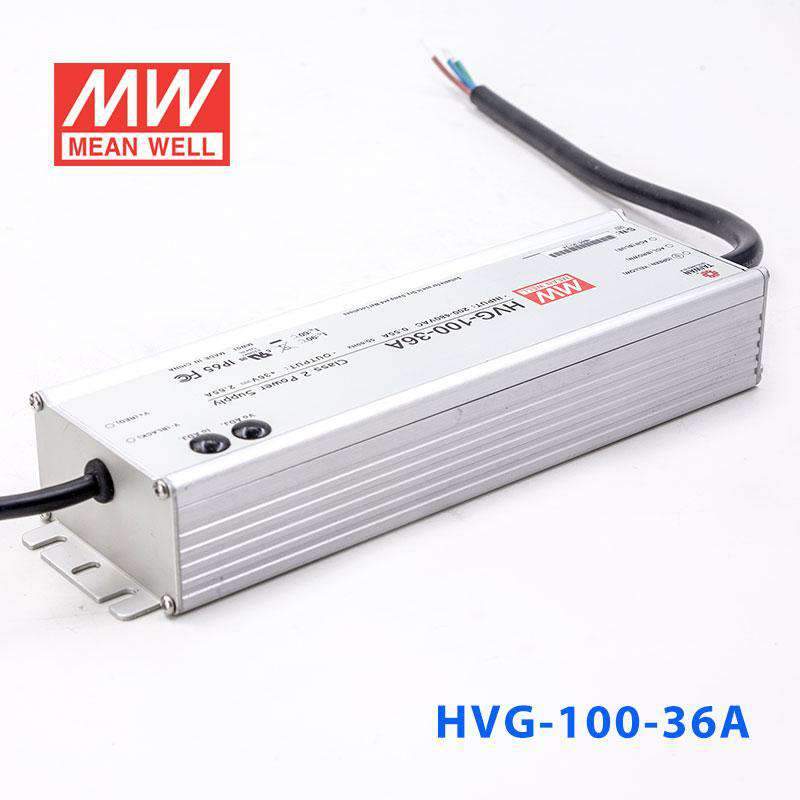

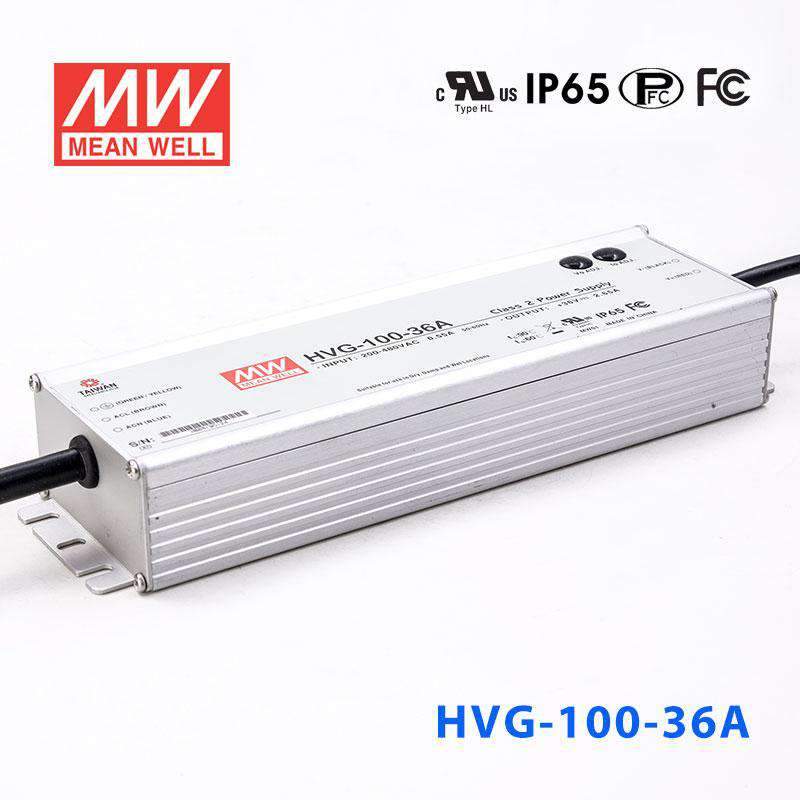

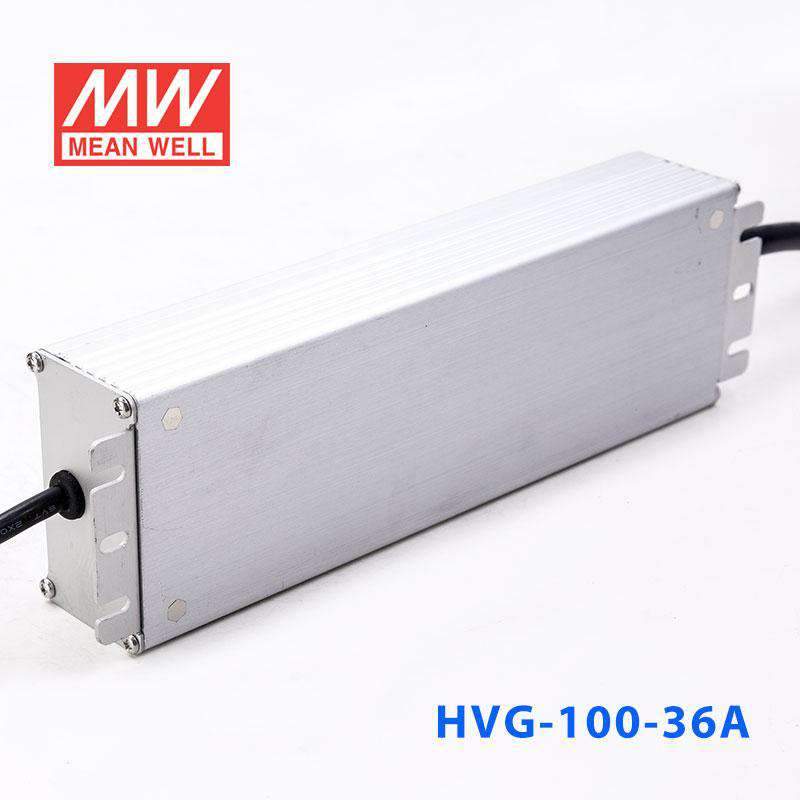

Mean Well HVG-100-36A Power Supply 100W 36V - Adjustable

Description

The HVG-100 is a 100W Mean Well power converter (input range: 180~528VAC).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

HVG Series
Power Rating

95.4 Watt
Output Voltage

36 Volt
Rated Current

2.65 Ampere
Input Voltage

180V~528V
Standards Met

EAC,FCC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

23.6 cm
Width

6.8 cm
Height

3.88 cm
Weight

1.18 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVG-100-36A for 36V LED signage lighting?

Yes, it can fit 36V LED signage loads that operate within its 18-36V constant-current range. Its maximum output is 95.4W at 36V and 2.65A, so the total sign load needs to stay within those limits.

Is the HVG-100-36A suitable for 36V architectural or cove lighting?

It is suitable for 36V constant-current architectural lighting products that match the 18-36V CC range. With 95.4W available and an operating temperature range of -40°C to +90°C, it is positioned for demanding lighting environments as long as the fixture matches the driver output.

Can this driver power a 36V LED strip lighting run?

It can be used for 36V LED strip lighting only if the strip is compatible with this driver's 36V constant-current output and 2.65A limit. The driver provides up to 95.4W total, so it is better suited to strip systems whose load stays within that wattage.

How much 36V LED strip can the HVG-100-36A support?

The maximum load is 95.4W total. To estimate strip length, use 95.4W divided by your strip's rated power per meter; check your strip rated power per meter and confirm the strip is compatible with a 36V constant-current driver.

Is the HVG-100-36A okay for outdoor or damp locations?

This model is rated IP65 water-resistant, so it is suited to outdoor or damp lighting locations where weather resistance is needed. Its operating temperature range is -40°C to +90°C, which also supports use in very cold and very hot conditions.

Model	Power	Voltage	Current	IP Rating
Mean Well HVG-100-24A Power Supply 100W 24V - Adjustable	96W	24V	4A	IP65	View
