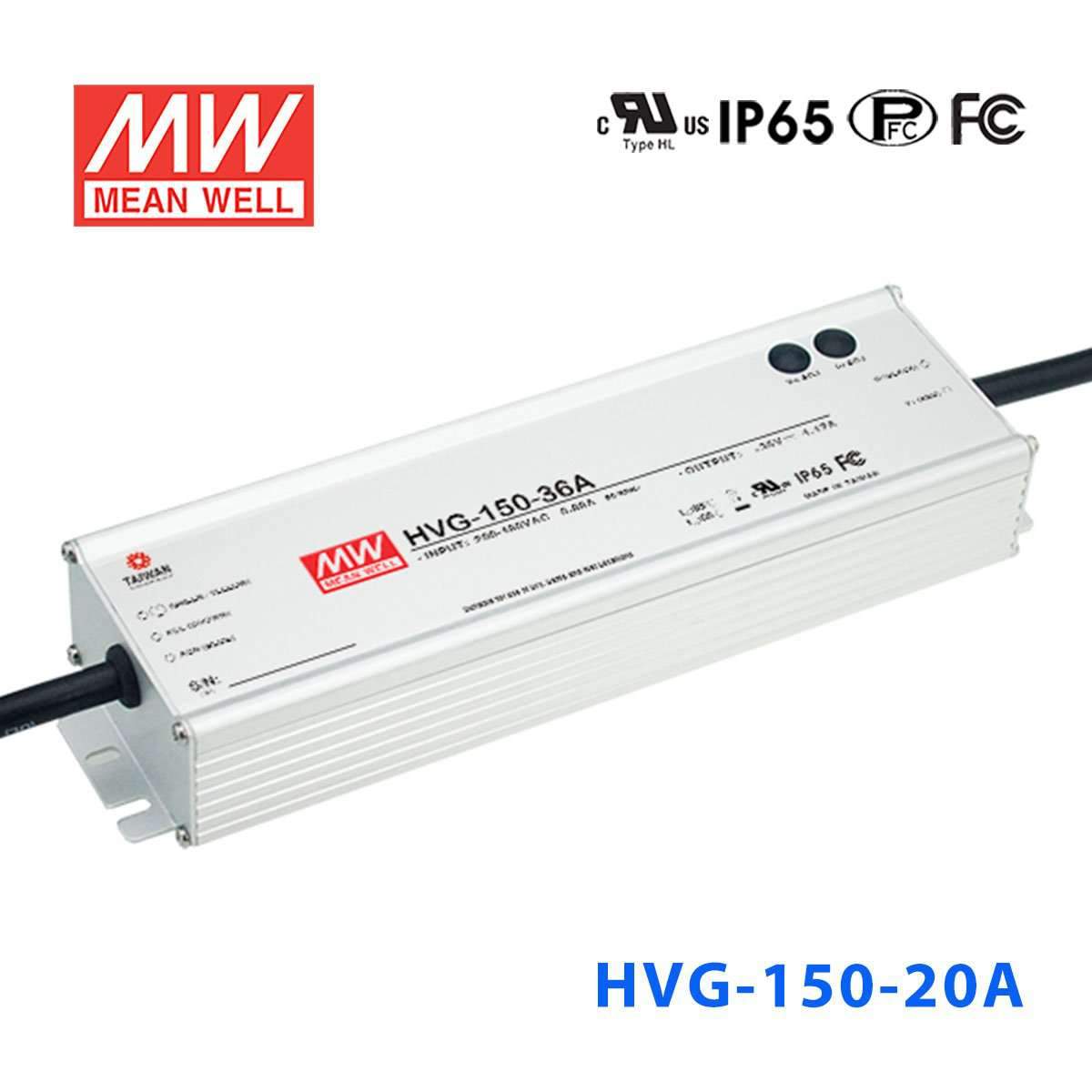

Mean Well HVG-150-20A Power Supply 150W 20V - Adjustable 7.5A

wide input range 180~528VACaluminium casing

SKU HVG-150-20A

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

HVG-150-20A

HVG-65-20A Adjustable Backorder

HVG-65-20B Dimmable Backorder

HVG-65-20AB Adjustable and Dimmable Backorder

HVG-100-20A Adjustable Backorder

HVG-100-20B Dimmable Backorder

HVG-100-20AB Adjustable and Dimmable Backorder

HVG-150-20A Adjustable Backorder

HVG-150-20B Dimmable Backorder

HVG-150-20AB Adjustable and Dimmable Backorder

Product variants

Available to order

Overview

HVG-150-20A is the 20V output model of this series: rated current 7.5A, rated power 150W, typical efficiency 90.5%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HVG-150 series is a 150W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. HVG-150 operates from 180~528 VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91.5%, with the fanless design, the series is able to operate from -40℃ through as high as +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifet ime>50000 hours
5 years warranty

Specifications

HVG-150-20ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 20V
CONSTANT CURRENT REGION^Note.4: 11~20V
RATED CURRENT: 7.5A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 17 ~ 22V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 4.13 ~ 7.5A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 500ms, 80ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 18ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 12V model]; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD) ” section)
EFFICIENCY (Typ.): 90.5%
INRUSH CURRENT (Typ.): COLD START 35A(twidth=790μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 23 ~ 27V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(-40 ~ +75℃ for 12V model, -40 ~ +80℃ for 15V model)(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃(+75℃ for 12V model, +80℃ for 15V model)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.7: UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧55% load,@ load≧60% only for 12V model ) ; EN61000-3-3, FCC Part 15 Subpart,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1796.5K hrs min. Telcordia SR-332(Bellcore) ; 158.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 245*68*38.8mm (L*W*H)
PACKING: 1.24Kg; 12pcs/15.9Kg/0.78CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A (this model): Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
12. For A/AB type need to consider build in using to comply with Type HL application.
13. This product is intended for North America lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVG-150-20A Block Diagram — Block Diagram

HVG-150-20A OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

HVG-150-20A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HVG-150-20A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HVG-150-20A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HVG-150-20A Dimensions (mm) — Dimensions (mm)

HVG-150-20A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
