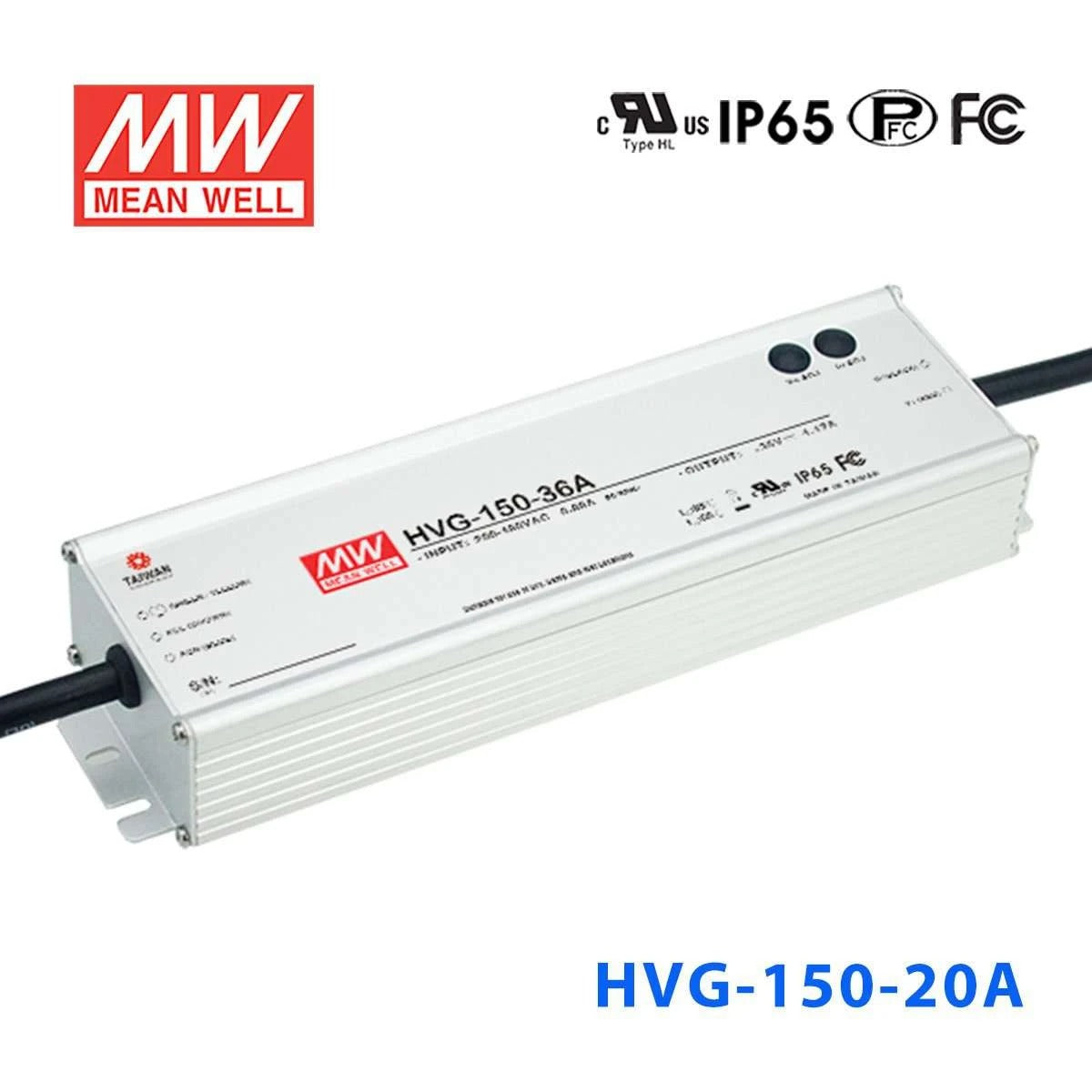

Mean Well HVG-150-20AB Power Supply 150W 20V - Adjustable and Dimmable 7.5A

Name: Mean Well HVG-150-20AB Power Supply 150W 20V - Adjustable and Dimmable 7.5A
Brand: Mean Well
SKU: HVG-150-20AB
Price: 259.33 NZD
Availability: InStock

wide input range 180~528VACaluminium casing

SKU HVG-150-20AB

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

HVG-150-20AB

HVG-65-20A Adjustable Backorder

HVG-65-20B Dimmable Backorder

HVG-65-20AB Adjustable and Dimmable Backorder

HVG-100-20A Adjustable Backorder

HVG-100-20B Dimmable Backorder

HVG-100-20AB Adjustable and Dimmable Backorder

HVG-150-20A Adjustable Backorder

HVG-150-20B Dimmable Backorder

HVG-150-20AB Adjustable and Dimmable Backorder

Product variants

Notify me when it's back in stock

HVG-150-20AB is the 20V output model of this series: rated current 7.5A, rated power 150W, typical efficiency 90.5%.

HVG-150 series is a 150W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. HVG-150 operates from 180~528 VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91.5%, with the fanless design, the series is able to operate from -40℃ through as high as +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming
Typical lifetime>50000 hours
5 years warranty

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.
