Mean Well HVG-150-48AB Power Supply 150W 48V - Adjustable IP67 LED Driver

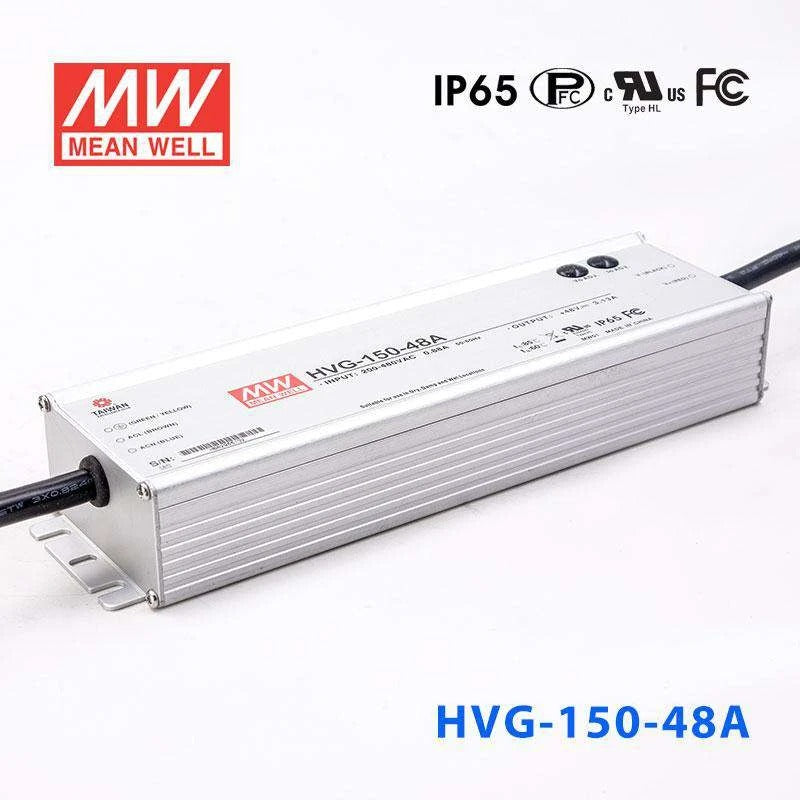

Name: Mean Well HVG-150-48AB Power Supply 150W 48V - Adjustable and Dimmable 3.13A
Brand: Mean Well
SKU: HVG-150-48AB
Price: 259.33 NZD
Availability: InStock

Overview

HVG-150-48AB is the 48V output model of this series: rated current 3.13A, rated power 150.24W, typical efficiency 91.5%.

HVG-150 series is a 150W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. HVG-150 operates from 180~528 VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91.5%, with the fanless design, the series is able to operate from -40℃ through as high as +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-150-48ABSpecifications from the official datasheet (2018-09-30 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.4: 26.4~48V
RATED CURRENT: 3.13A
RATED POWER: 150.24W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 43 ~ 53V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 1.72 ~ 3.13A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 18ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC [@ load≧60% only for 12V model]; @ load≧75%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD) ” section)
EFFICIENCY (Typ.): 91.5%
AC CURRENT (Typ.) 347VAC: 0.5A
AC CURRENT (Typ.) 480VAC: 0.38A
INRUSH CURRENT (Typ.): COLD START 35A(twidth=790μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 54 ~ 60V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(-40 ~ +75℃ for 12V model, -40 ~ +80℃ for 15V model)(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃(+75℃ for 12V model, +80℃ for 15V model)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.7: UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@ load≧55% load,@ load≧60% only for 12V model ) ; EN61000-3-3, FCC Part 15 Subpart,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) , EAC TP TC 020

OTHERS

MTBF: 158.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 245*68*38.8mm (L*W*H)
PACKING: 1.24Kg; 12pcs/15.9Kg/0.78CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to STATIC CHARACTERISTIC sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using.

Technical drawings

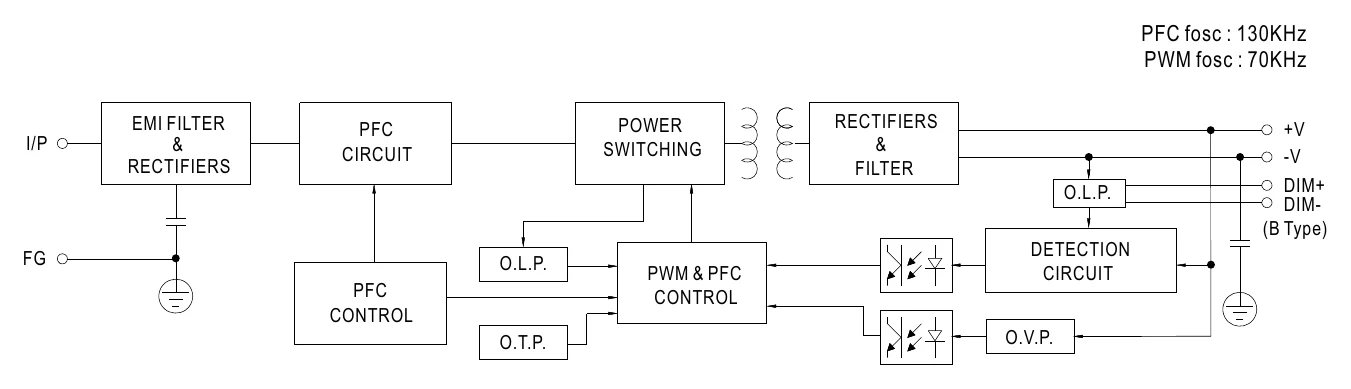

HVG-150-48AB Block Diagram — Block Diagram

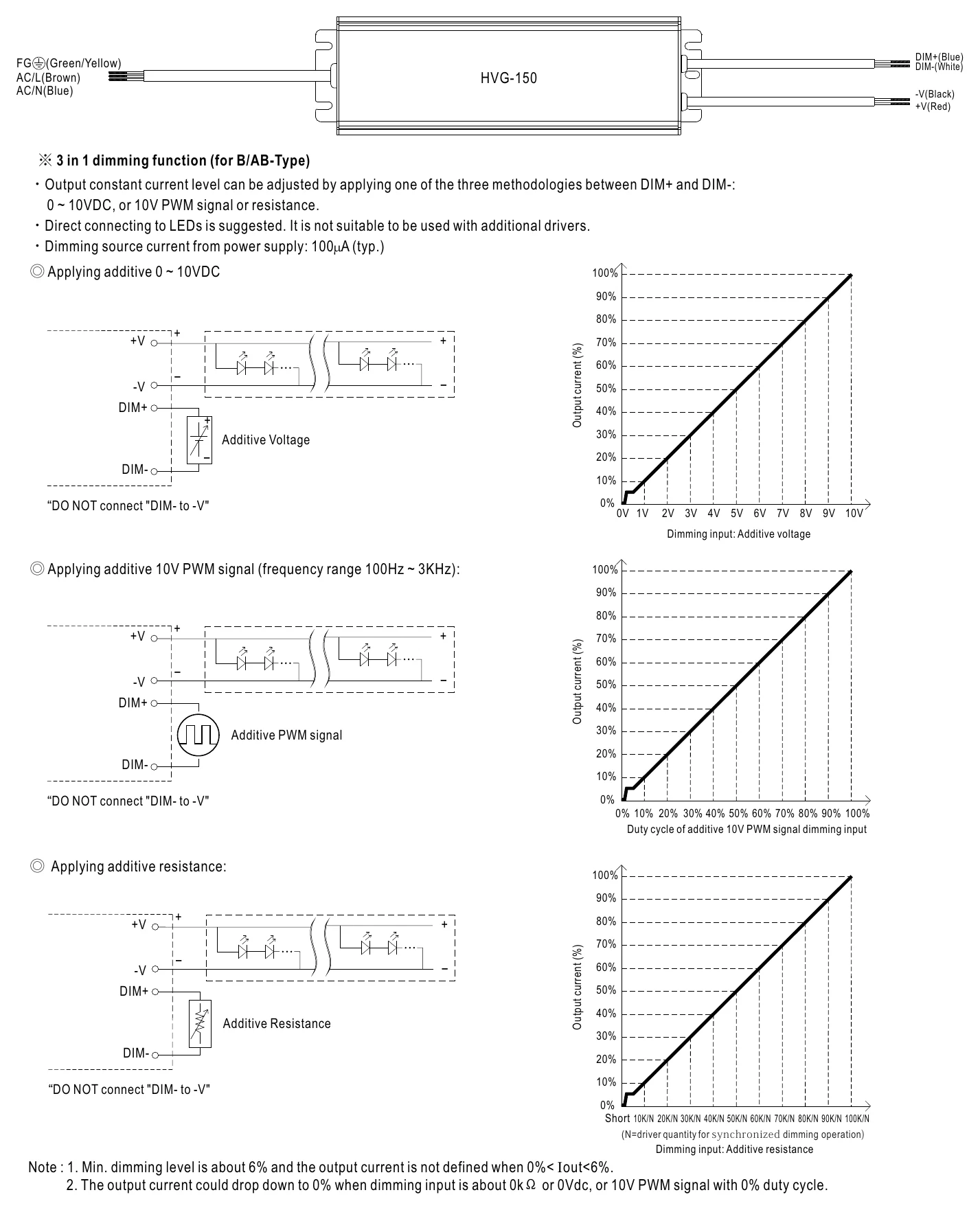

HVG-150-48AB DIMMING OPERATION — DIMMING OPERATION

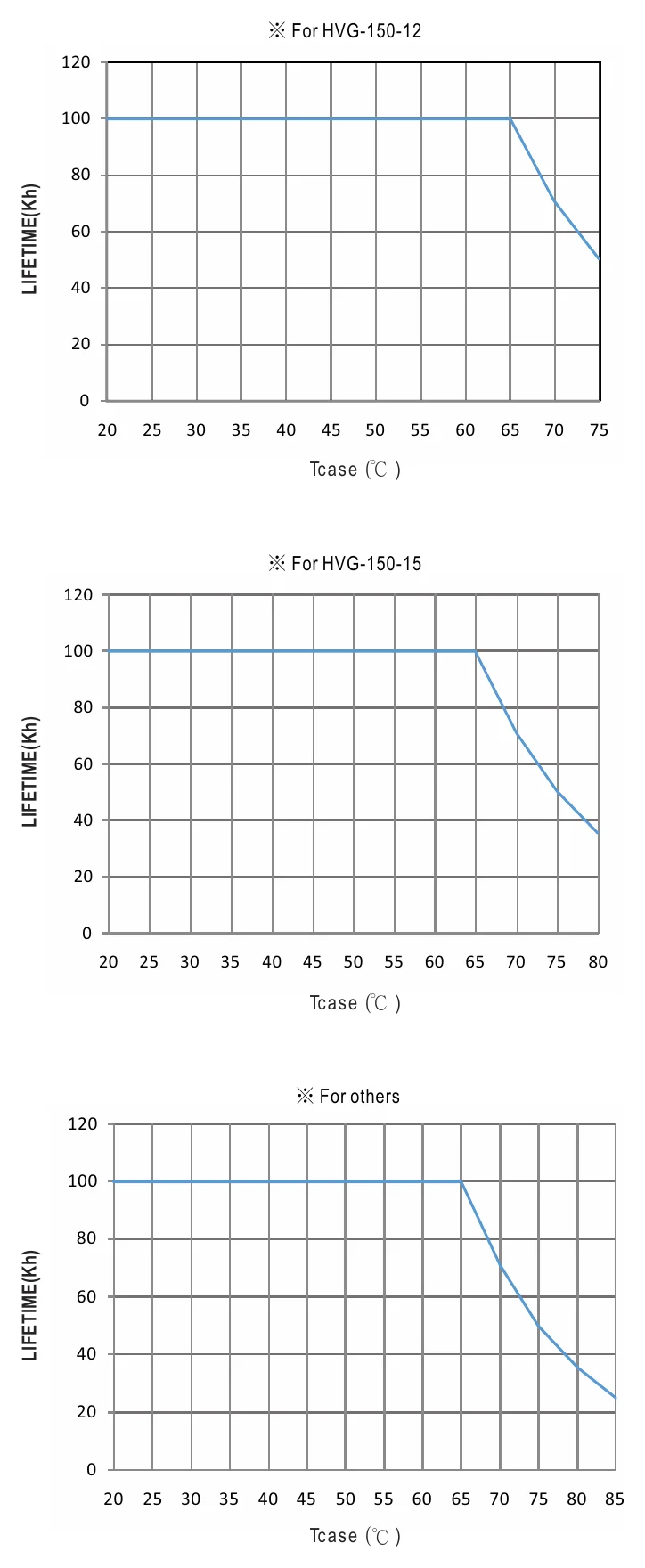

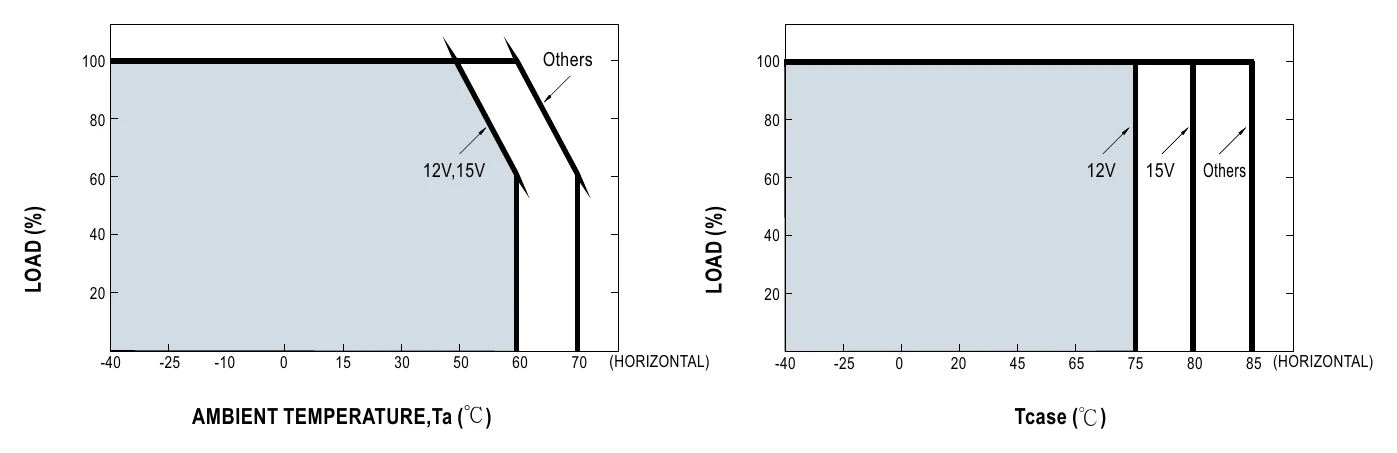

HVG-150-48AB OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

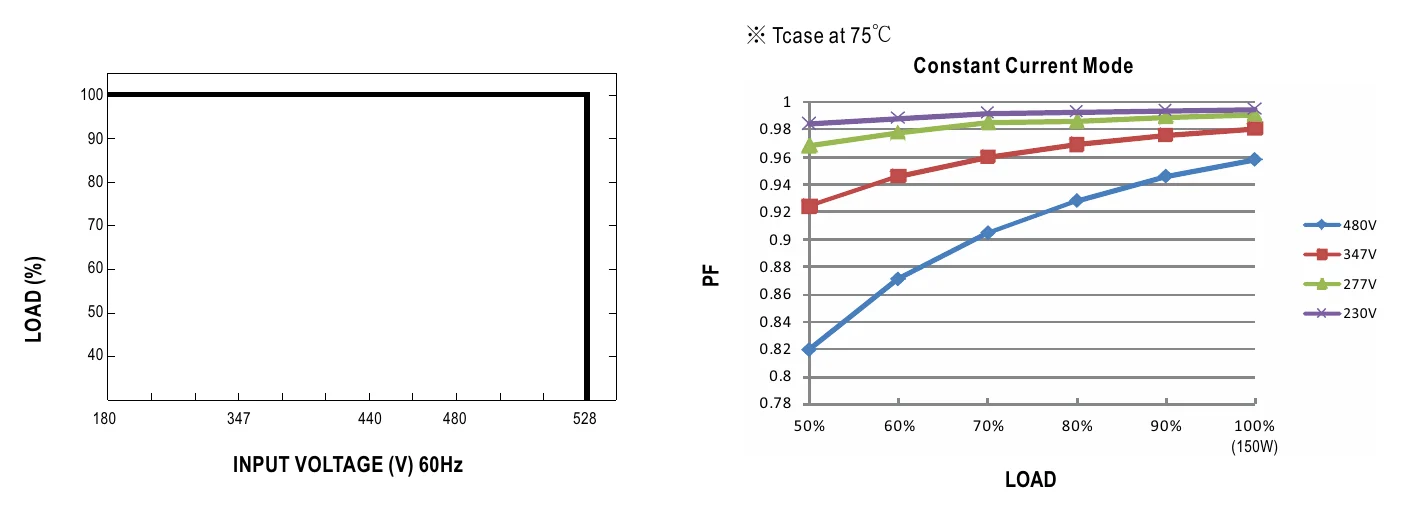

HVG-150-48AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

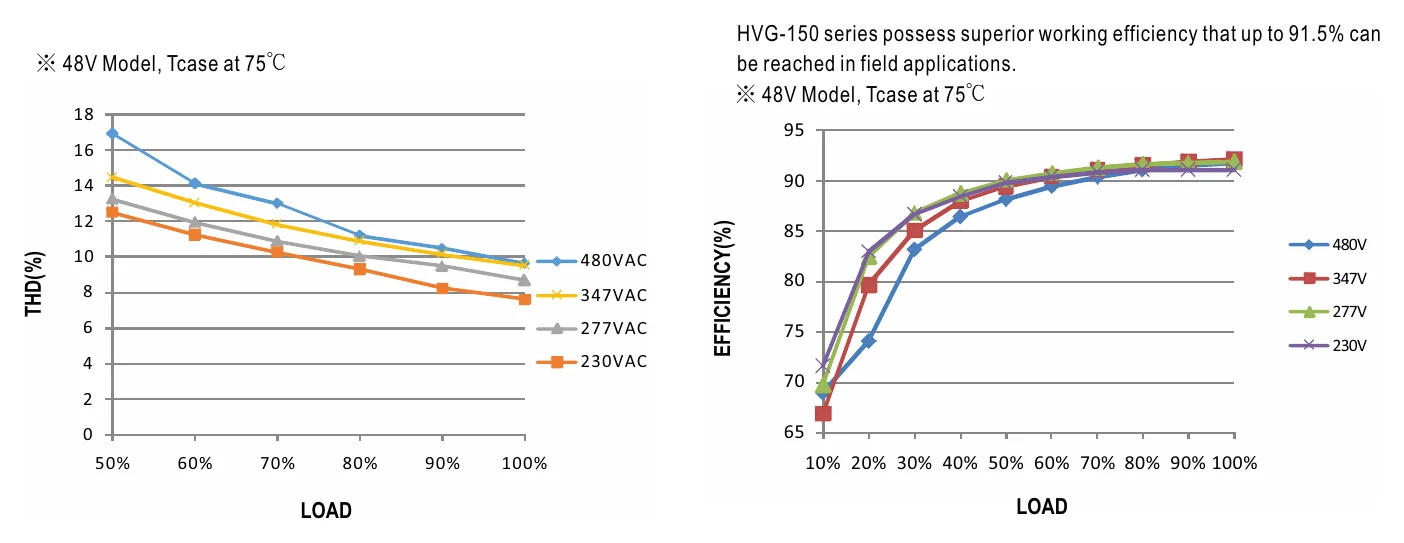

HVG-150-48AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

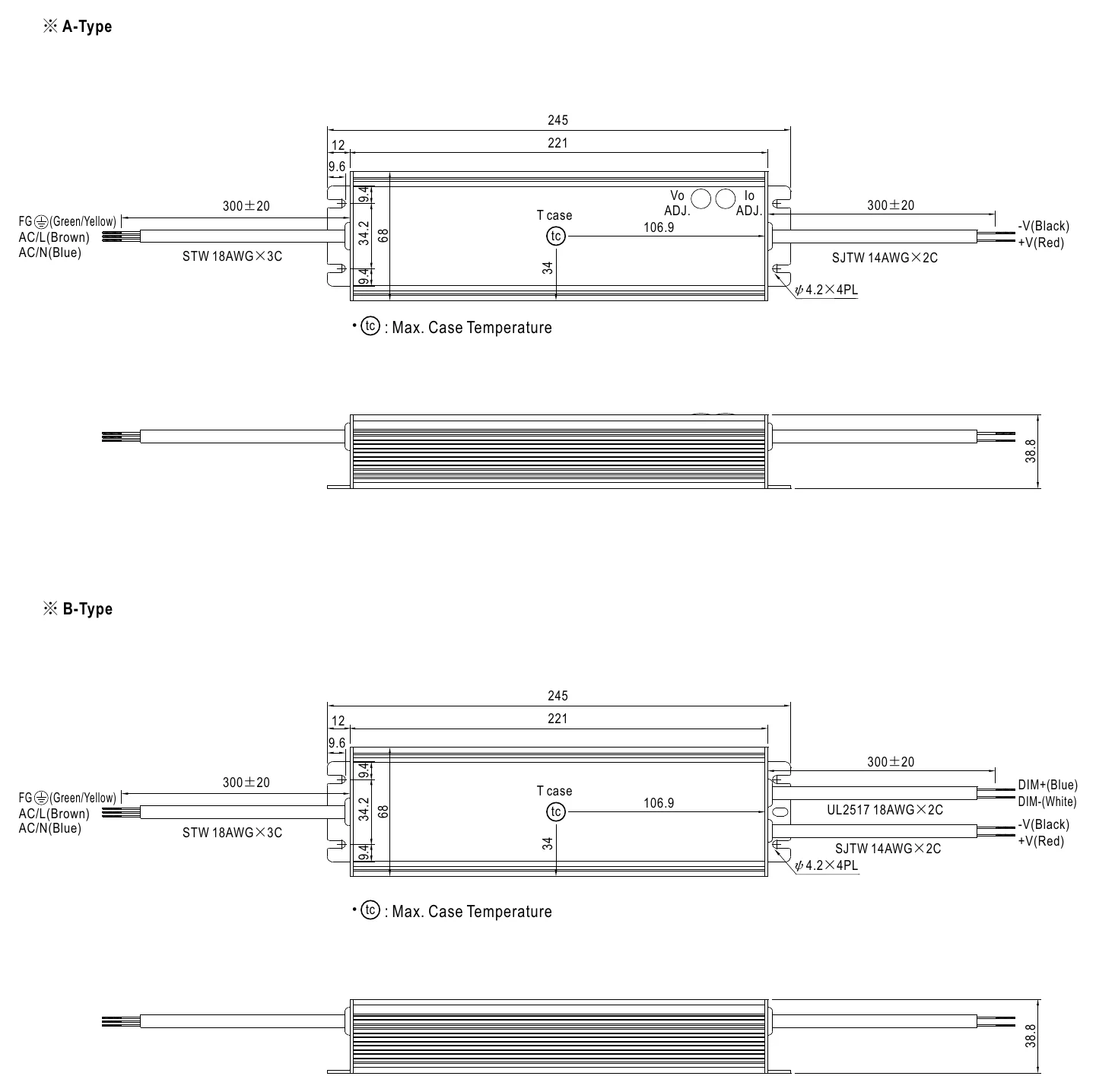

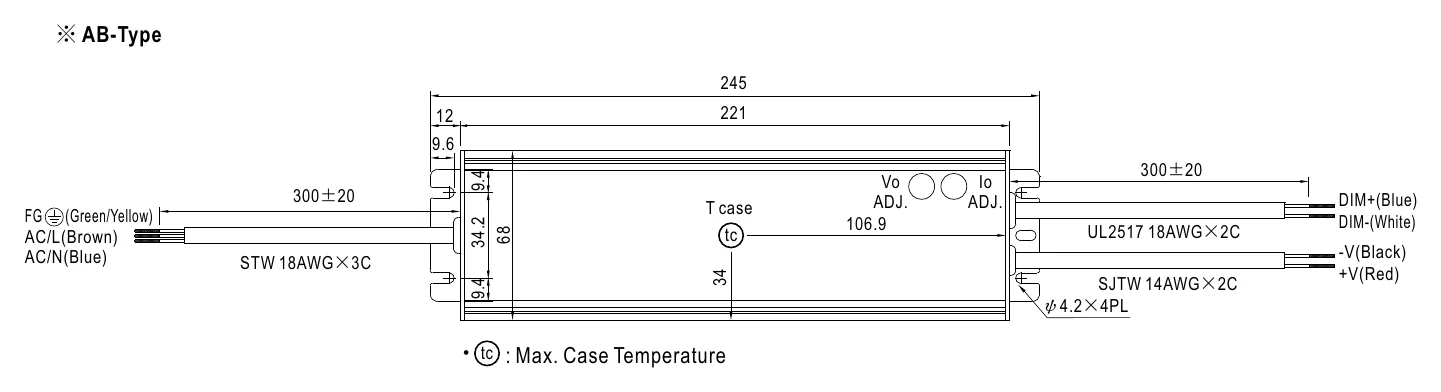

HVG-150-48AB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

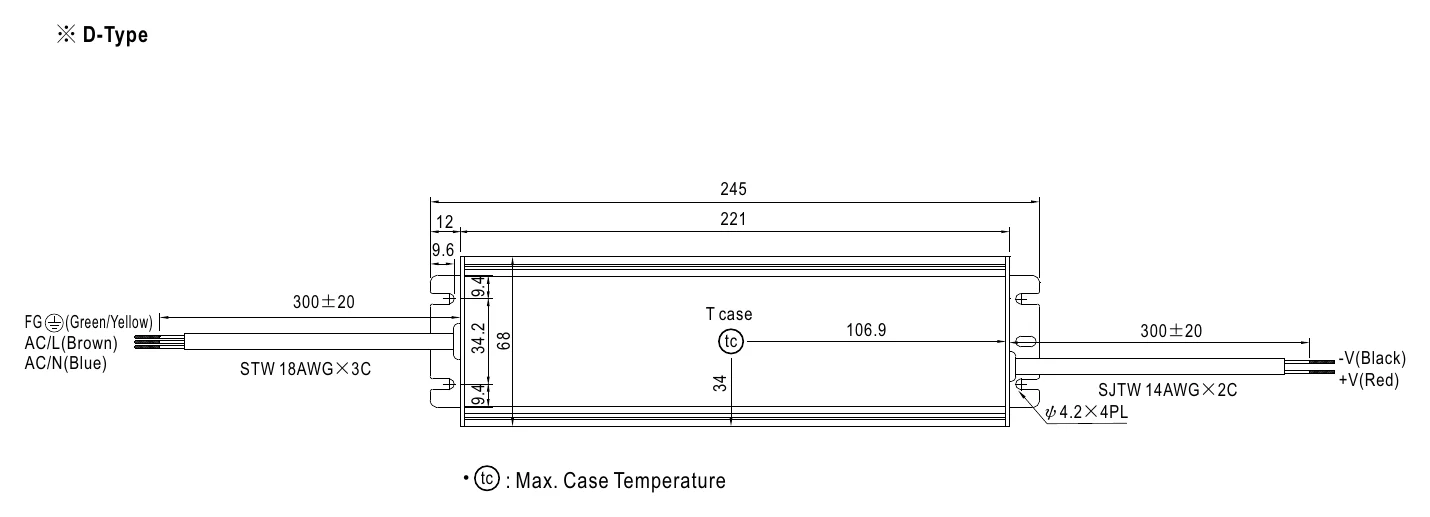

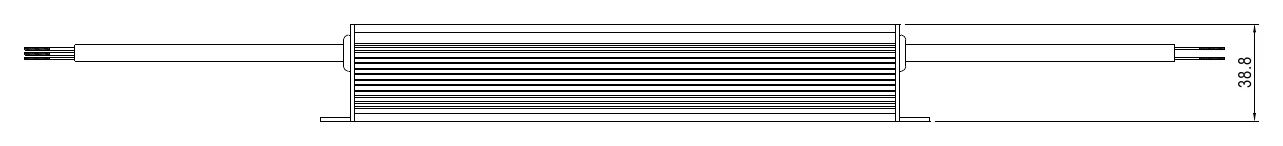

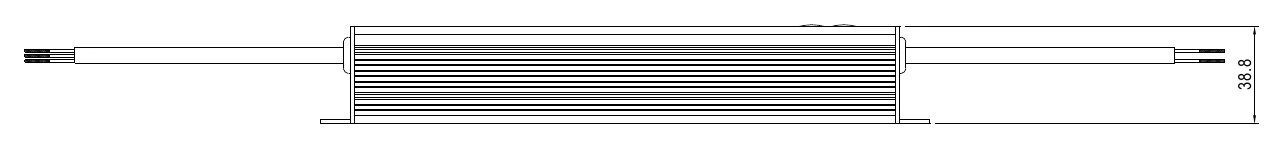

HVG-150-48AB Dimensions (mm) — Dimensions (mm)

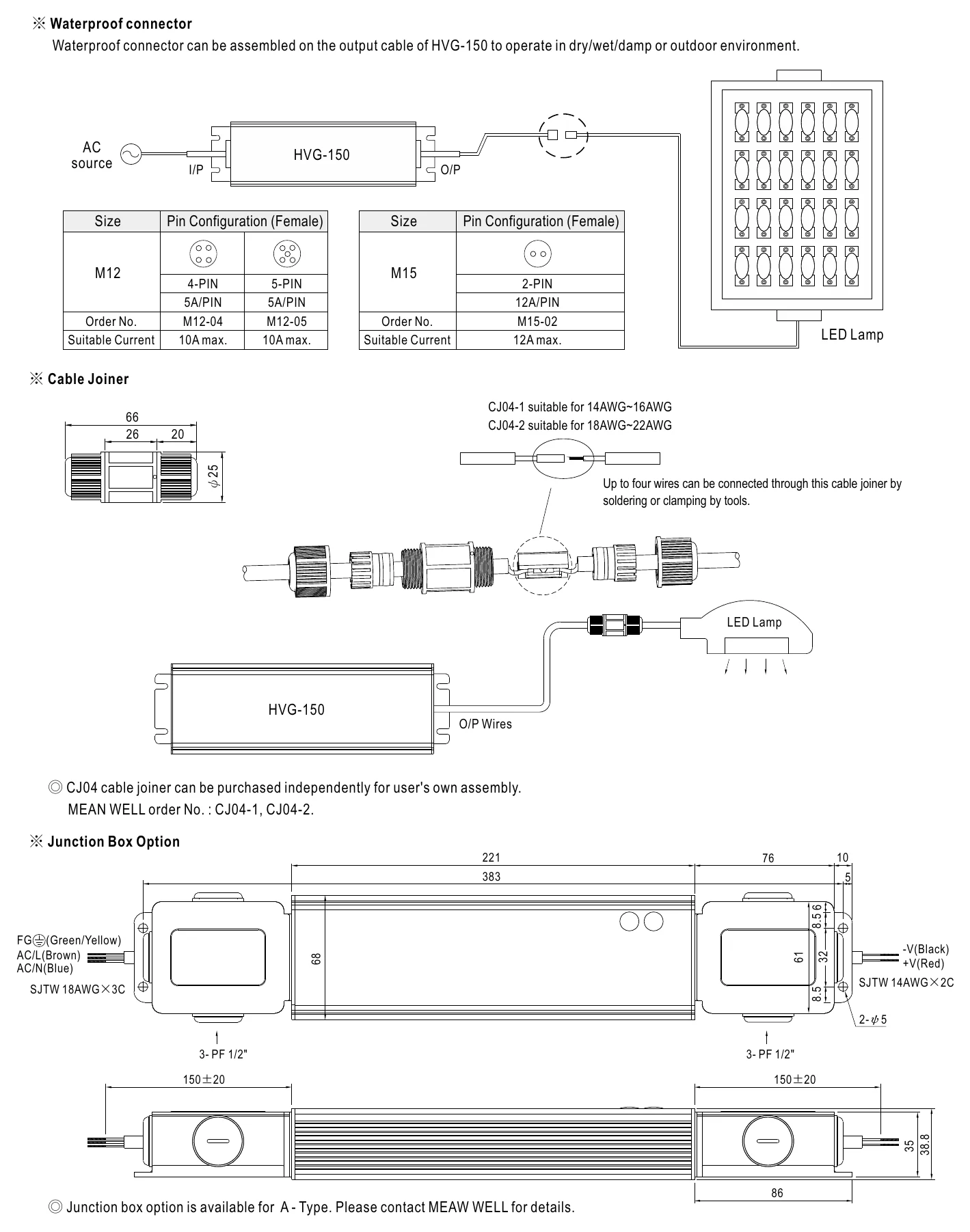

HVG-150-48AB WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVG-150-48AB datasheethvg_150_spec.pdf · 2018-09-30 edition PDF Download

Certificates2

UL Certificate(HVG-150)(EN) PDF Download

FCC Certificate(HVG-150)(EN) PDF Download

Test reports1

Test Report(HVG-150-48)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-150-48AB for dimmable 48V LED strip lighting?

Yes, if the lighting load is built for 48V constant current operation within the 26-48V range. This driver supports up to 150.24W and 3.13A, so the connected load must not exceed those ratings.

Is the HVG-150-48AB suitable for 48V illuminated signage?

It is suitable for 48V constant current signage and display lighting that stays within the driver's 26-48V CC range. The unit provides up to 150.24W, and its IP65 housing is intended for water-resistant environments.

Can this driver be used for commercial 48V linear fixtures?

Yes, for commercial linear fixtures that require constant current output from 26V to 48V. The 150.24W power rating, 3.13A output current, and operating temperature range of -40°C to +85°C support demanding lighting applications.

Is this driver appropriate for outdoor lighting enclosures?

The IP65 water-resistant rating makes it suitable for damp and outdoor lighting enclosures where protection from water exposure is needed. Its aluminium casing also supports use in tougher environments.

How much 48V LED strip can this 150.24W driver run?

Estimate strip length by dividing 150.24W by your strip's wattage per meter. If the strip is rated at 18W per meter, 150.24 ÷ 18 = 8.35 meters; check your strip rated power per meter and confirm it is compatible with 48V constant current output.

What are the main 48V HVG series options around this model?

This model is 150.24W, 48V, and 3.13A. The lower-power 48V siblings are HVG-65-48A/AB/B at 65.3W and 1.36A and HVG-100-48A/AB/B at 96W and 2A, while the higher-power options are HVG-240-48A/AB/B at 240W and 5A, HVG-320-48A/AB/B at 321.6W and 6.7A, and HVG-480-48A/AB/B at 480W and 10A.
