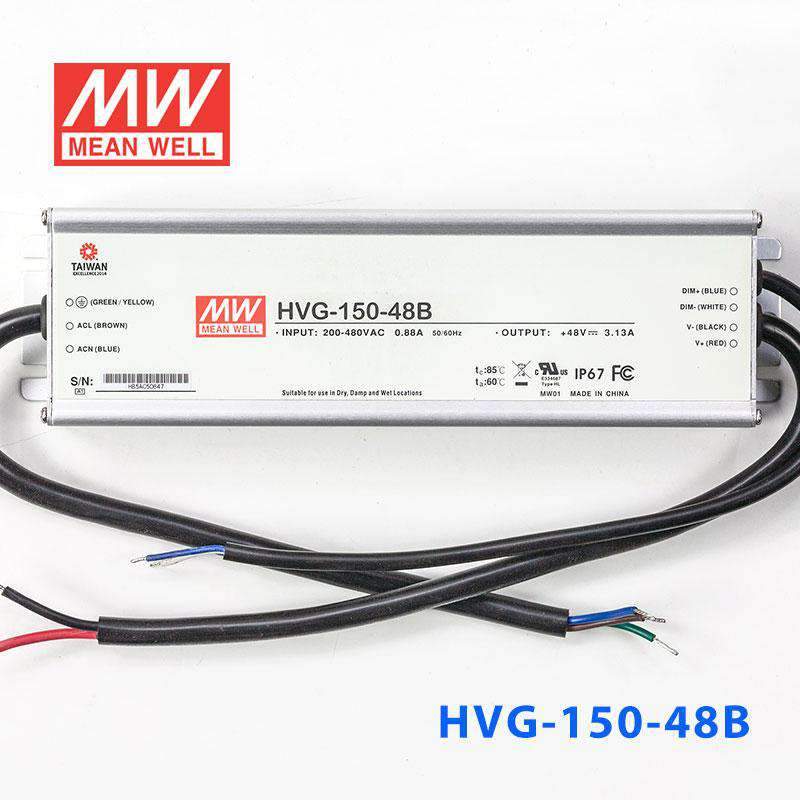

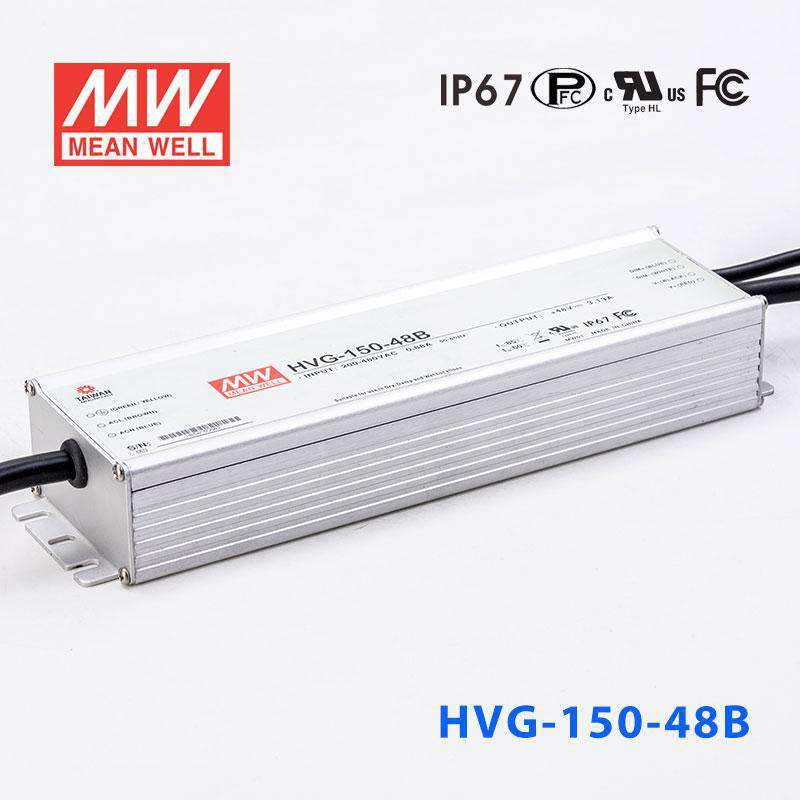

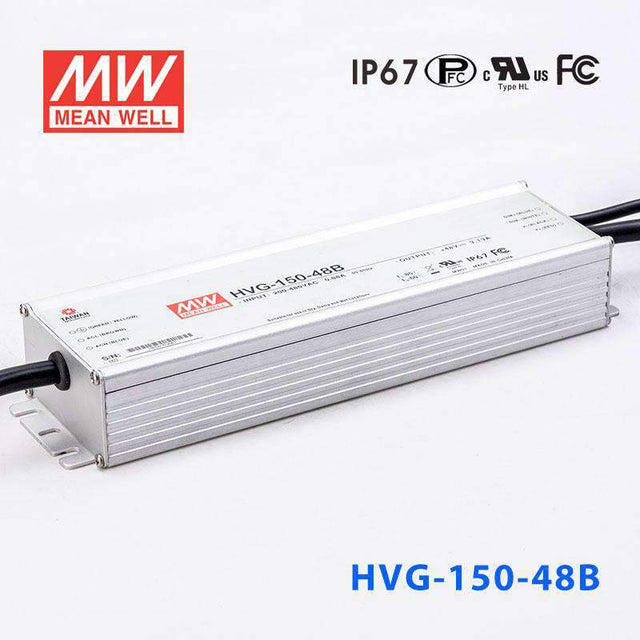

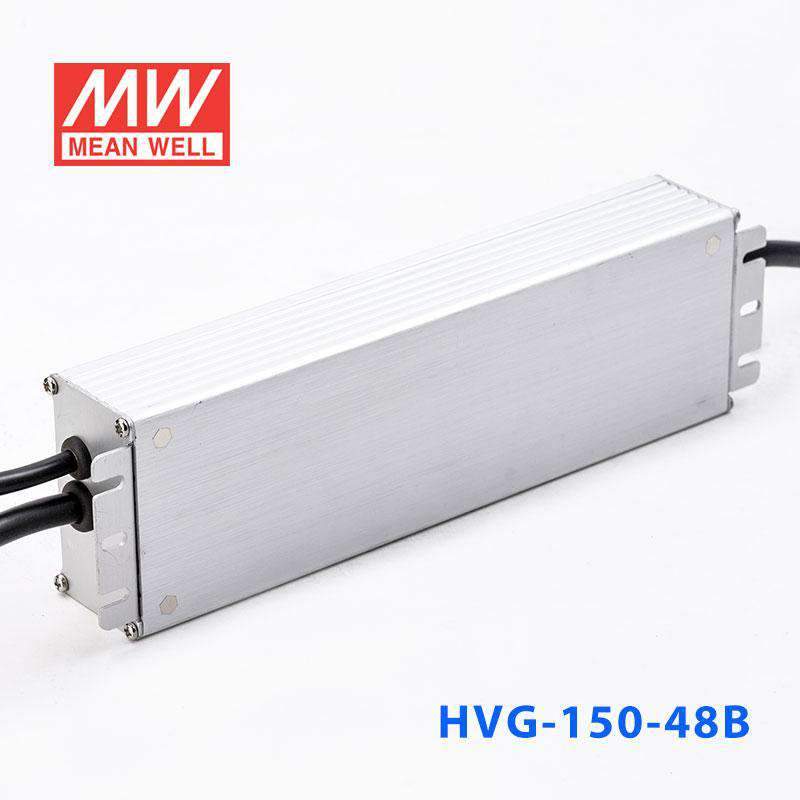

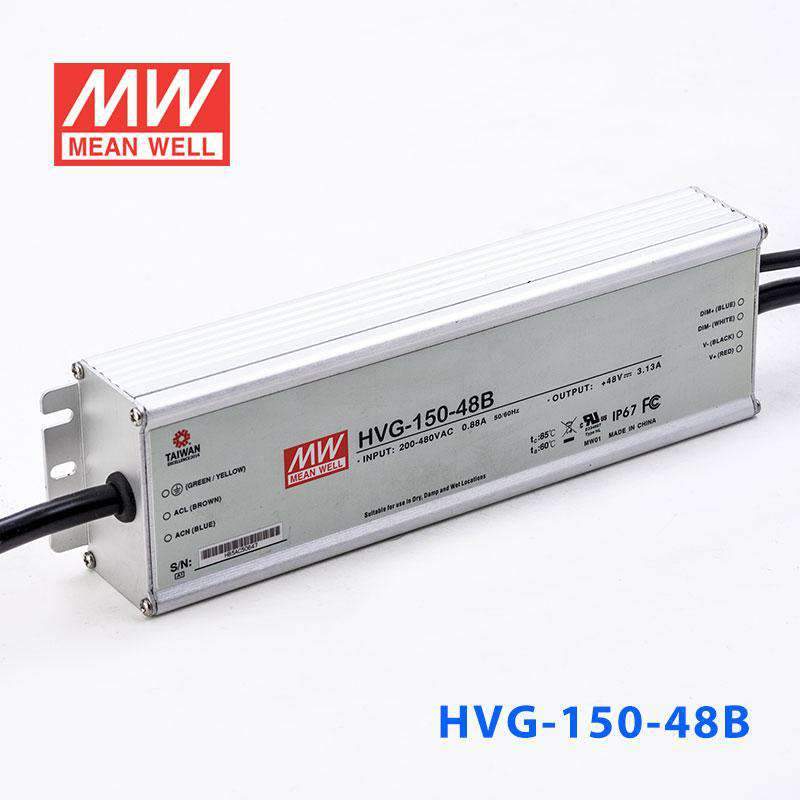

Mean Well HVG-150-48B Power Supply 150W 48V - Dimmable

wide input range 180~528VAC, aluminium casing
SKU:
HVG-150-48B

|

Description

Features

180~528VAC wide input range
IP67 / IP65 design
Built-in active PFC
Protections: Short circuit / Over current / Over voltage / Over temperature
C.V. +C.C. mode design
Class 2 power unit
High efficiency up to 91.5%
Cooling by free air convection
Suitable for dry, damp. and wet location
Suitable for LED lighting and street lighting applications
Output current adjustable through output cable or internal potentiometer
Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance) D-Type (option): IP67 rated. Timer dimming function, contact MEAN WELL for details
5 years warranty

General Specification

AC input voltage range 180~528VAC (single phase); 254~747VDC
AC inrush current (max.) Cold start, 35A at 480VAC
DC adjustment range ±10% rated output voltage
Current adjustment range 55%~100%
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 110%~140% rated output voltage
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL8750 approved
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type SJTW 14AWGx2C (30cm)
Connection Output B-Type SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm) 245x 68x 38.8

Specifications

  • Brand
    Mean Well
  • Series
    HVG Series
  • Power Rating
    150.24 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    3.13 Ampere
  • Input Voltage
    180V~528V
  • Standards Met
    EAC,FCC,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    24.5 cm
  • Width
    6.8 cm
  • Height
    3.88 cm
  • Weight
    1.24 kg
