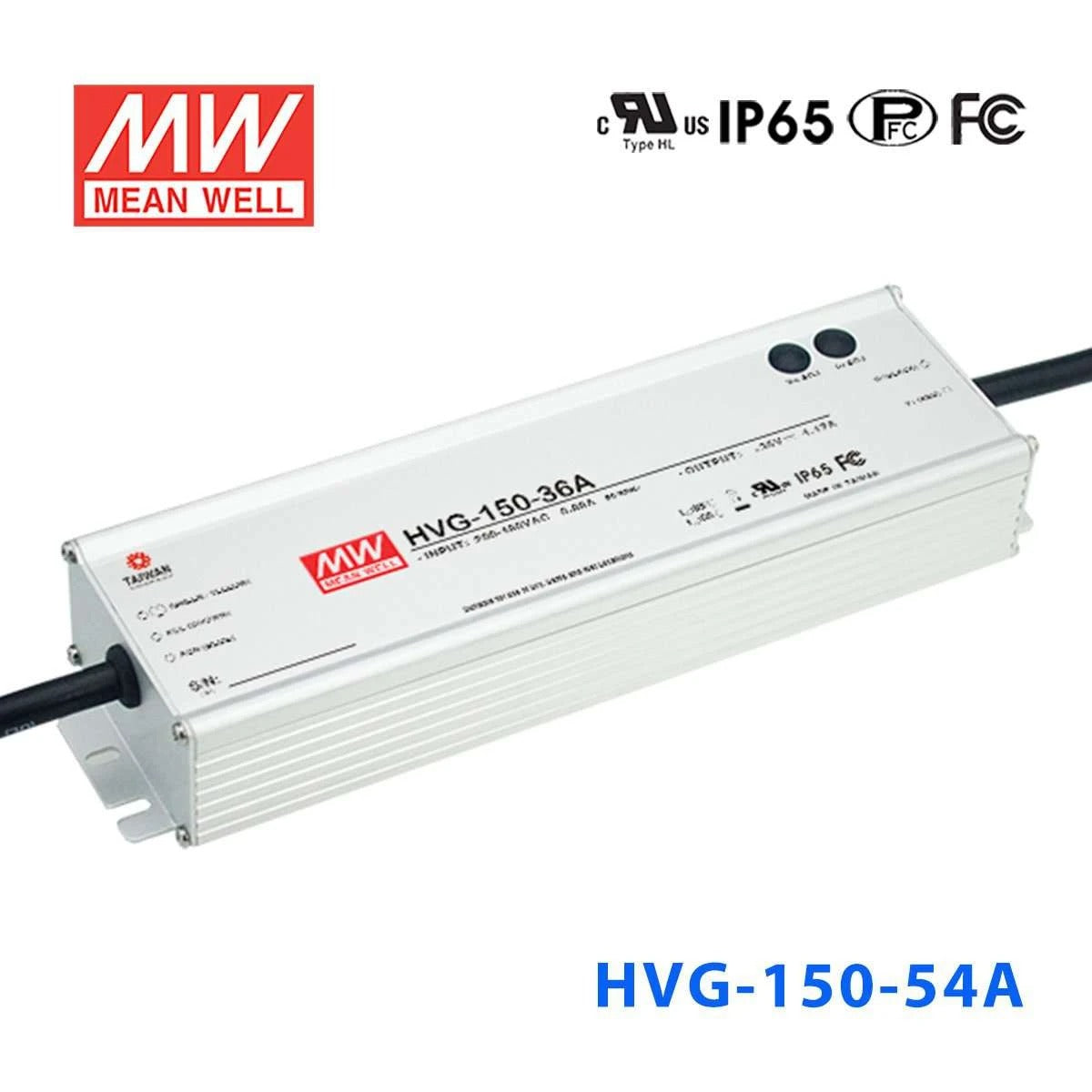

HVG-150-54AB Mean Well Power Supply - 150W 54V - Adjustable and Dimmable

The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).

Key Features

✓ Input voltage range: 180~528VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+85℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
✓ 3 years warranty

Frequently Asked Questions

Can I use the HVG-150-54AB for long 54V LED strip runs?

Yes, if the strip is designed for 54V and the full run stays within 150.12W. This model supplies up to 2.78A at 54V, which supports higher-voltage lighting systems with lower current than comparable lower-voltage drivers. Check your strip rated power per meter before calculating the maximum length.

Is this driver suitable for 54V signage lighting or illuminated display frames?

It can be used for 54V signage and display lighting loads that fit within its 150.12W rating. The constant-current operating range is 29-54V, so the connected LED load needs to be compatible with that range. Its IP65 water-resistant housing makes it better suited to protected outdoor or indoor commercial installations.

Can the HVG-150-54AB be used for architectural accent lighting?

It is suitable for 54V architectural LED lighting systems that need up to 150.12W and up to 2.78A output. The aluminium casing and -40°C to +85°C operating temperature range make it usable in demanding ambient conditions. Use it where an IP65 water-resistant enclosure is appropriate rather than where full IP67 waterproofing is required.

What LED strip length can I estimate from this 54V 150.12W driver?

Estimate strip length by dividing 150.12W by the strip's watts per meter. For example, a 54V strip rated at 20W/m would estimate to about 7.51m because 150.12 / 20 = 7.506. Check your strip rated power per meter and keep the total load within 150.12W and 2.78A.

Is the HVG-150-54AB suitable for wet outdoor areas?

It is rated IP65, so it is water-resistant and suited to outdoor locations where the driver is not subjected to full submersion-level exposure. That makes it appropriate for damp or sheltered exterior environments, but less sealed than an IP67 version. Its operating range of -40°C to +85°C supports hot and cold conditions.

What are the sibling options around the HVG-150-54AB?

Within the same 54V family, HVG-150-54A, HVG-150-54AB, and HVG-150-54B are all rated 150.12W, 54V, and 2.78A. The lower-power sibling is HVG-150-54D at 120W. If you need a smaller or larger 54V option, the series also includes 95.58W 54V 1.77A models in the 100 range and 243W 54V 4.5A or 324W 54V 6A models in the 240 and 320 ranges.
