Mean Well

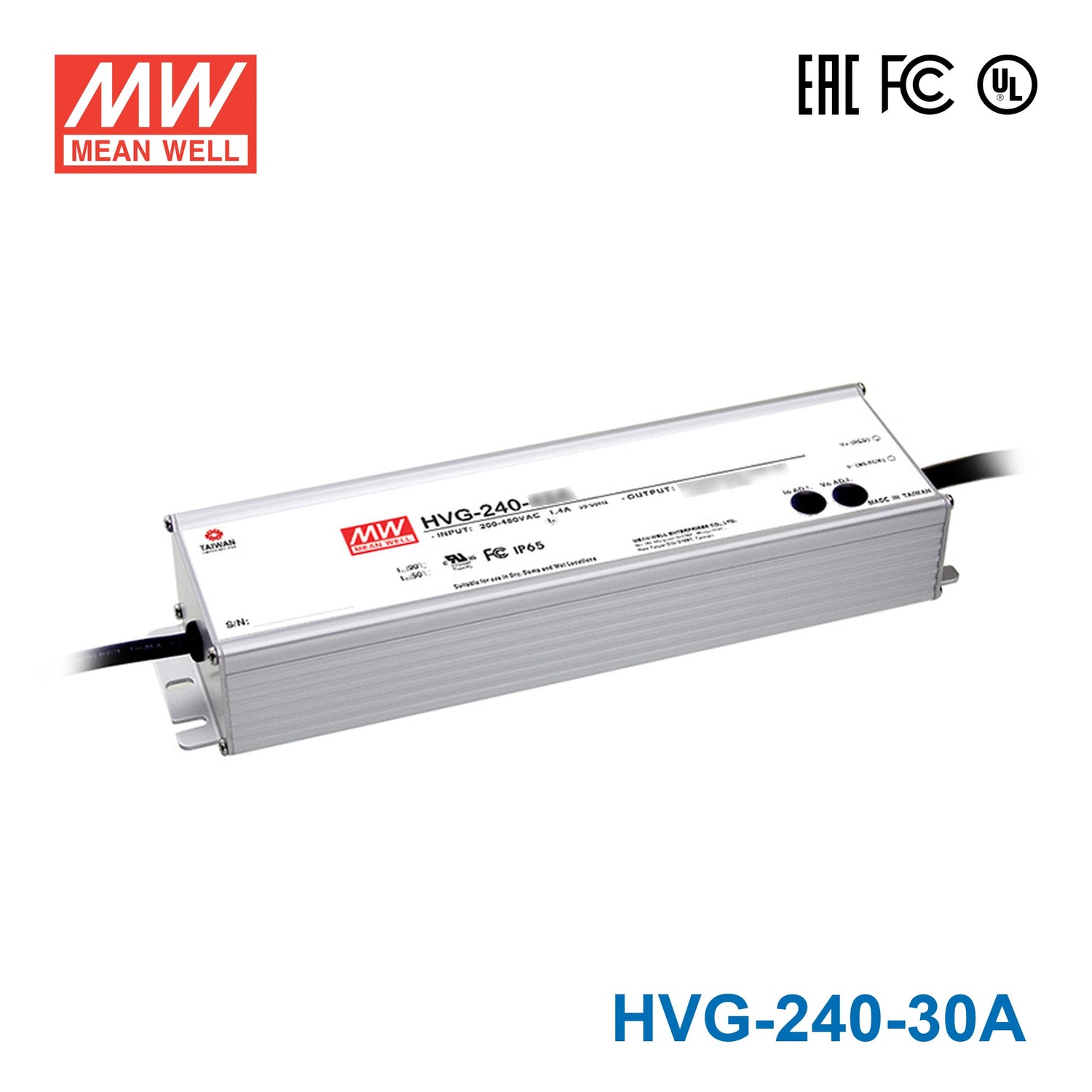

Mean Well HVG-240-30A Power Supply 240W 30V - Adjustable

wide input range 180~528VAC, aluminium casing
SKU:
HVG-240-30A
Model
Please for Pricing
|

Description

Features

180~528VAC wide input range
Constant Voltage + Constant Current mode output
Metal housing with Class I design
Built-in active PFC
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 180~528VAC; 254~747VDC
AC inrush current (max.) COLD START 50A(twidth=850 s measured at 50% I μ peak) at 480VAC; Per NEMA 410
DC adjustment range ±10% rated output voltage
Current adjustment range 55%~100%
Over current protection 95%~108% constant current limiting, auto-recovery
Over-voltage protection 110%~140% rated output voltage
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature -40~+90°C (refer to output derating curve)
Safety standards UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type SJTW 14AWGx2C (30cm)
Connection Output B-Type SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm) 254.2 x 68 x 38.8

Specifications
  • Brand
    Mean Well
  • Series
    HVG Series
  • Power Rating
    240 Watt
  • Output Voltage
    30 Volt
  • Rated Current
    8 Ampere
  • Input Voltage
    180V~528V
  • Standards Met
    EAC,FCC,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    25.42 cm
  • Width
    6.8 cm
  • Height
    3.88 cm
  • Weight
    1.31 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVG-240-30A for a 30V LED lighting system?

Yes, it is designed for a 30V output and can supply up to 240W or 8A. That makes it a candidate for 30V lighting loads that fit within its 15-30V constant current range. Check the fixture or strip requirements before pairing it with the driver.

Is this driver suitable for 30V illuminated signage?

It can be suitable for 30V sign lighting loads that do not exceed 240W total or 8A output. The 180-528VAC input range is useful where the available AC source falls anywhere in that span. Confirm the sign load matches the 30V output and 15-30V CC range.

Can the HVG-240-30A be used for 30V architectural lighting?

For 30V architectural lighting loads, this driver provides up to 240W at 30V with an 8A maximum output. Its IP65 water-resistant housing and aluminium casing make it suitable for more demanding lighting environments than an unrated indoor supply. The connected load still needs to be compatible with the driver's operating mode.

How much 30V LED strip can this driver handle?

Estimate strip length by dividing the driver's 240W rating by the strip wattage per meter. The formula is 240W / watts per meter = maximum meters, with an output limit of 8A at 30V. Check your strip rated power per meter and keep the total connected load within 240W.

Can the HVG-240-30A be used in outdoor or damp locations?

This model carries an IP65 water-resistant rating, so it is intended for locations where protection from dust and water spray matters. It is not the IP67 waterproof version of the 30V model family. The operating temperature range is -40°C to +90°C.

What is the difference between the HVG-240-30A, HVG-240-30AB, and HVG-240-30B?

All three 30V versions are rated at 240W and 8A. The HVG-240-30A is adjustable, the HVG-240-30AB is adjustable and dimmable, and the HVG-240-30B is dimmable. The A and AB versions are IP65, while the B version is IP67.

Other HVG-240 Models

1 other model
ModelPowerVoltageCurrentIP Rating

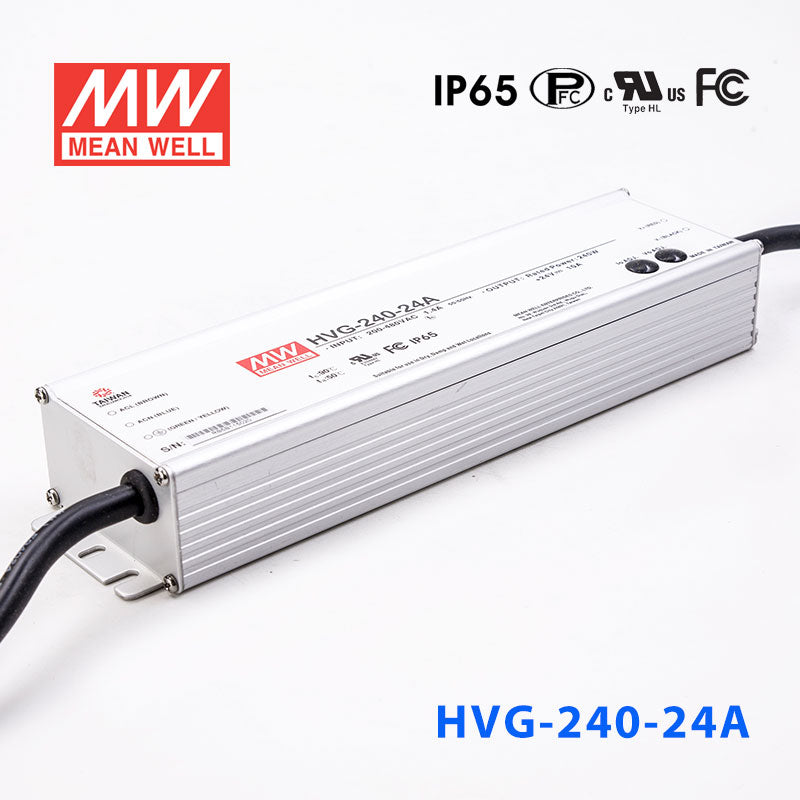

Mean Well HVG-240-24A Power Supply 240W 24V - Adjustable 240W 24V 10A IP65 View
View all 132 HVG Series models
