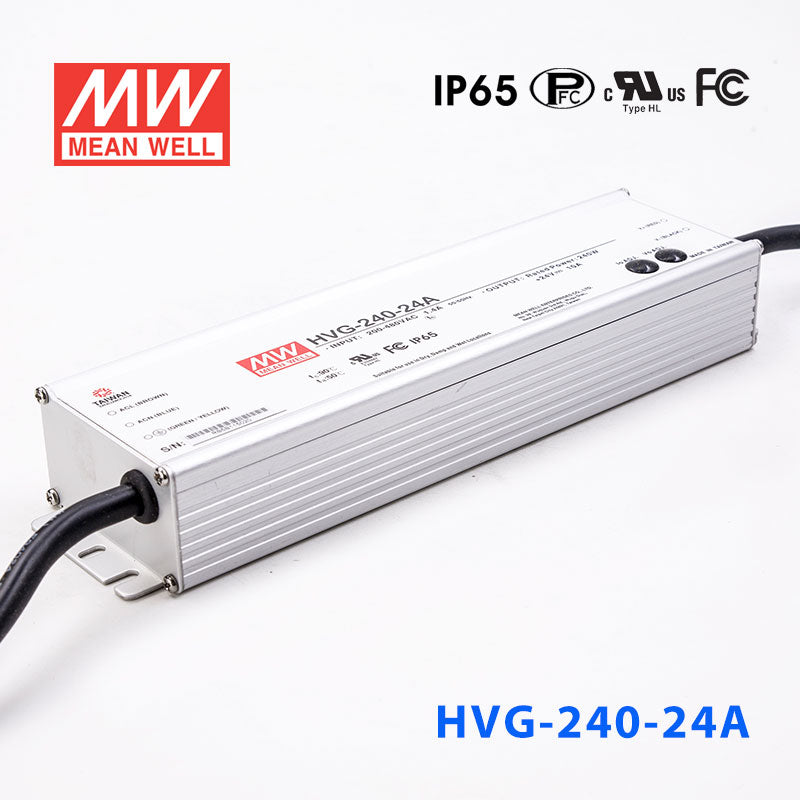

Name: Mean Well HVG-240-36AB Power Supply 240W 36V - Adjustable and Dimmable 6.7A
Brand: Mean Well
SKU: HVG-240-36AB
Price: 292.85 NZD
Availability: InStock

Overview

HVG-240-36AB is the 36V output model of this series: rated current 6.7A, rated power 241.2W, typical efficiency 93%.

HVG-240 series is a 240W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. HVG-240 operates from 180~528 VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HVG-240-36ABSpecifications from the official datasheet (2018-09-30 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.4: 18 ~ 36V
RATED CURRENT: 6.7A
RATED POWER: 241.2W
RIPPLE & NOISE (max.)^Note.2: 250mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 33.5 ~ 38.5V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer) 3.3 ~ 6.7A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms, 150ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.): 12ms/347VAC, 480VAC

INPUT

VOLTAGE RANGE^Note.5: 180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC, @ load≧60%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 0.8A / 347VAC 0.6A / 480VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=532μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT: <0.75mA / 480VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 43 ~ 49V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC Part 15 Subpart B,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) , EAC TP TC 020

OTHERS

MTBF: 114.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 254.2*68*38.8mm (L*W*H)
PACKING: 1.31Kg; 12pcs/15.7Kg/0.78CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to STATIC CHARACTERISTIC sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

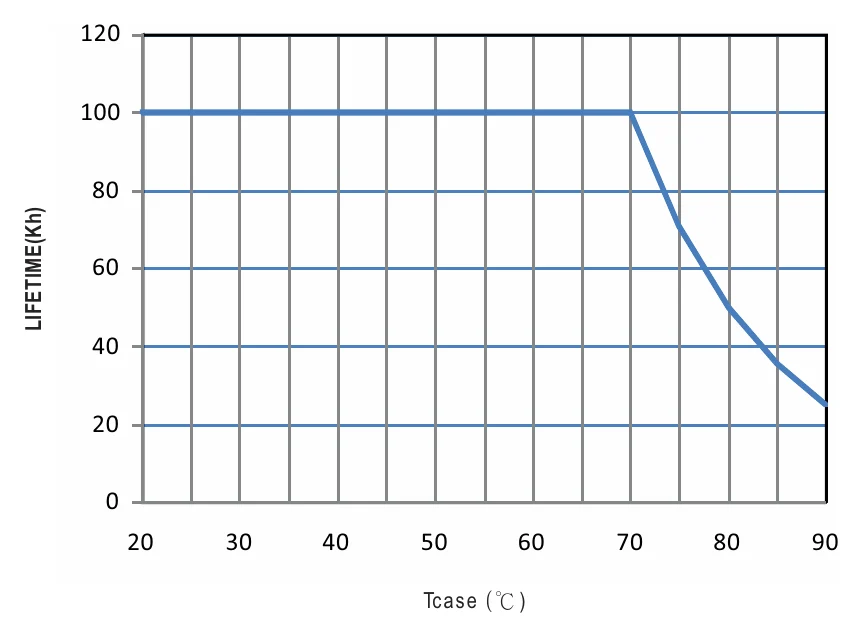

8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using.

Technical drawings

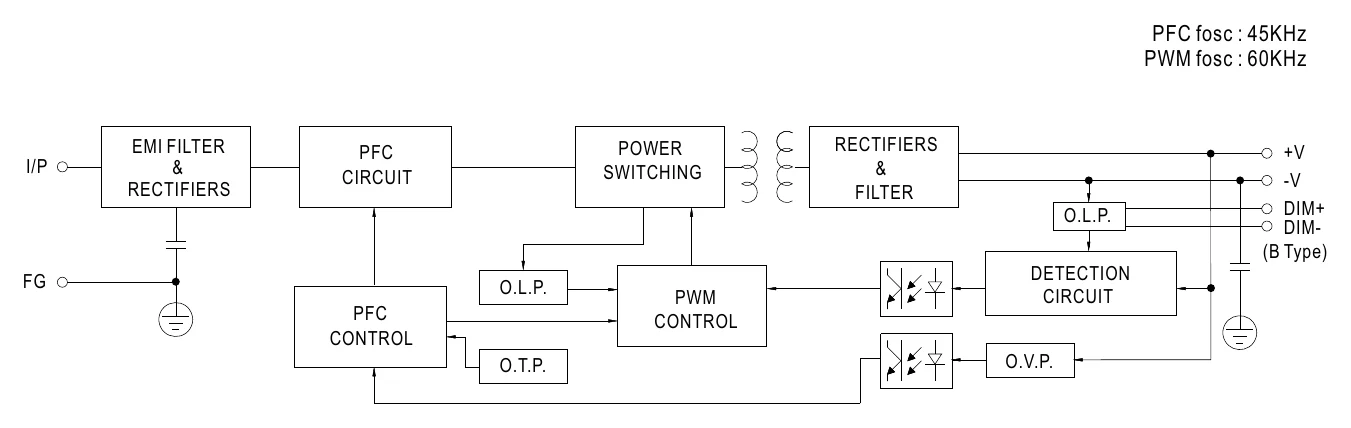

HVG-240-36AB Block Diagram — Block Diagram

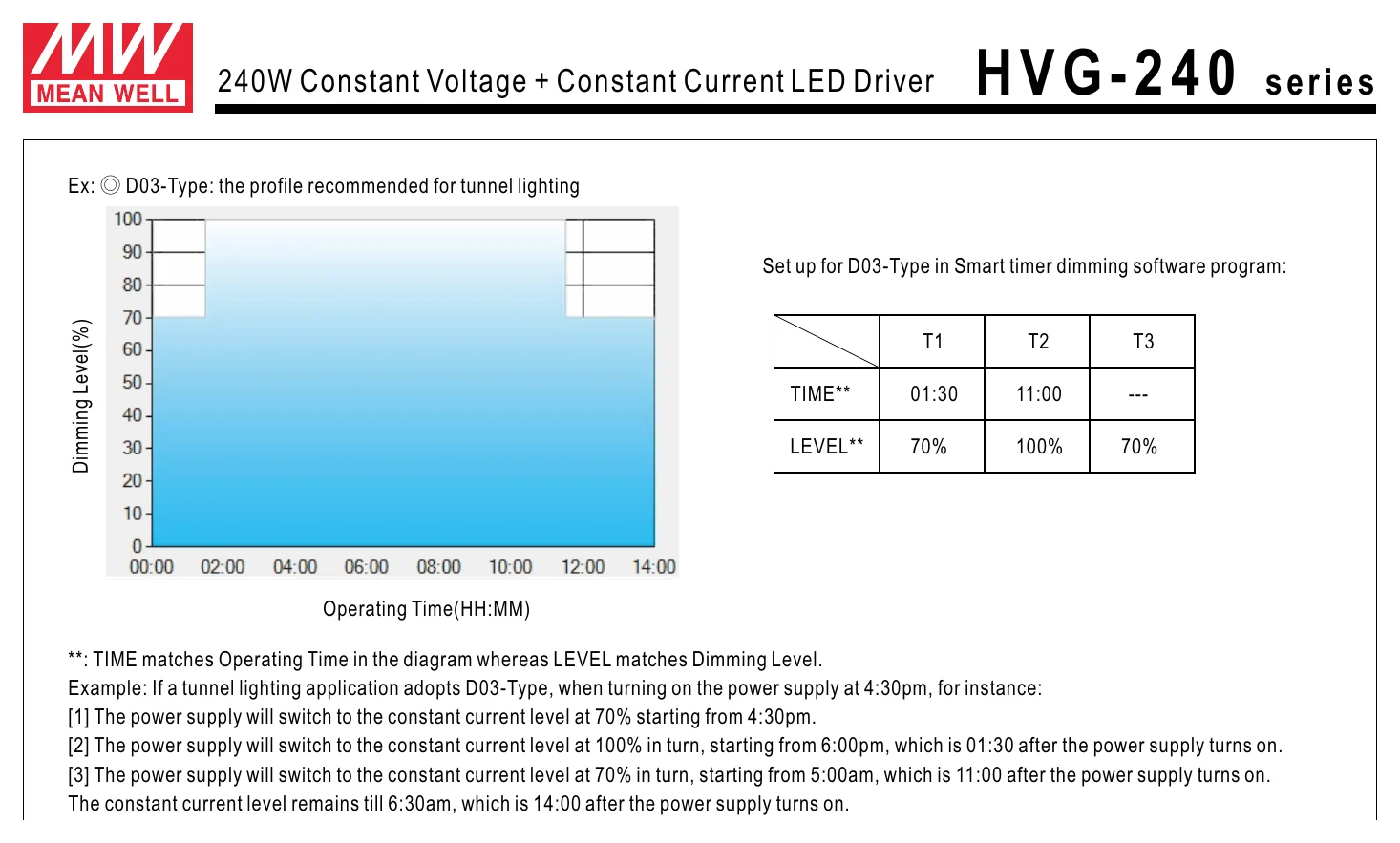

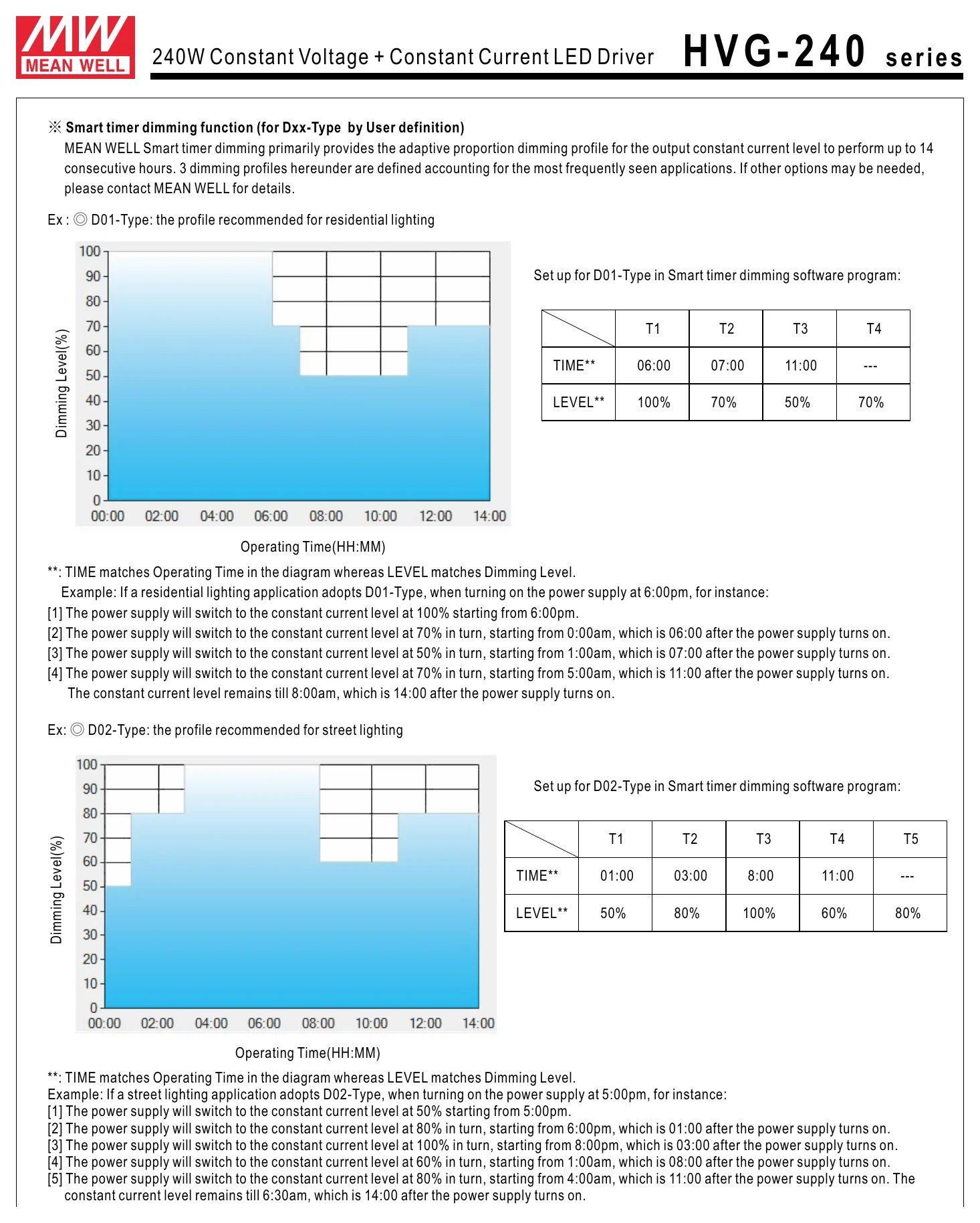

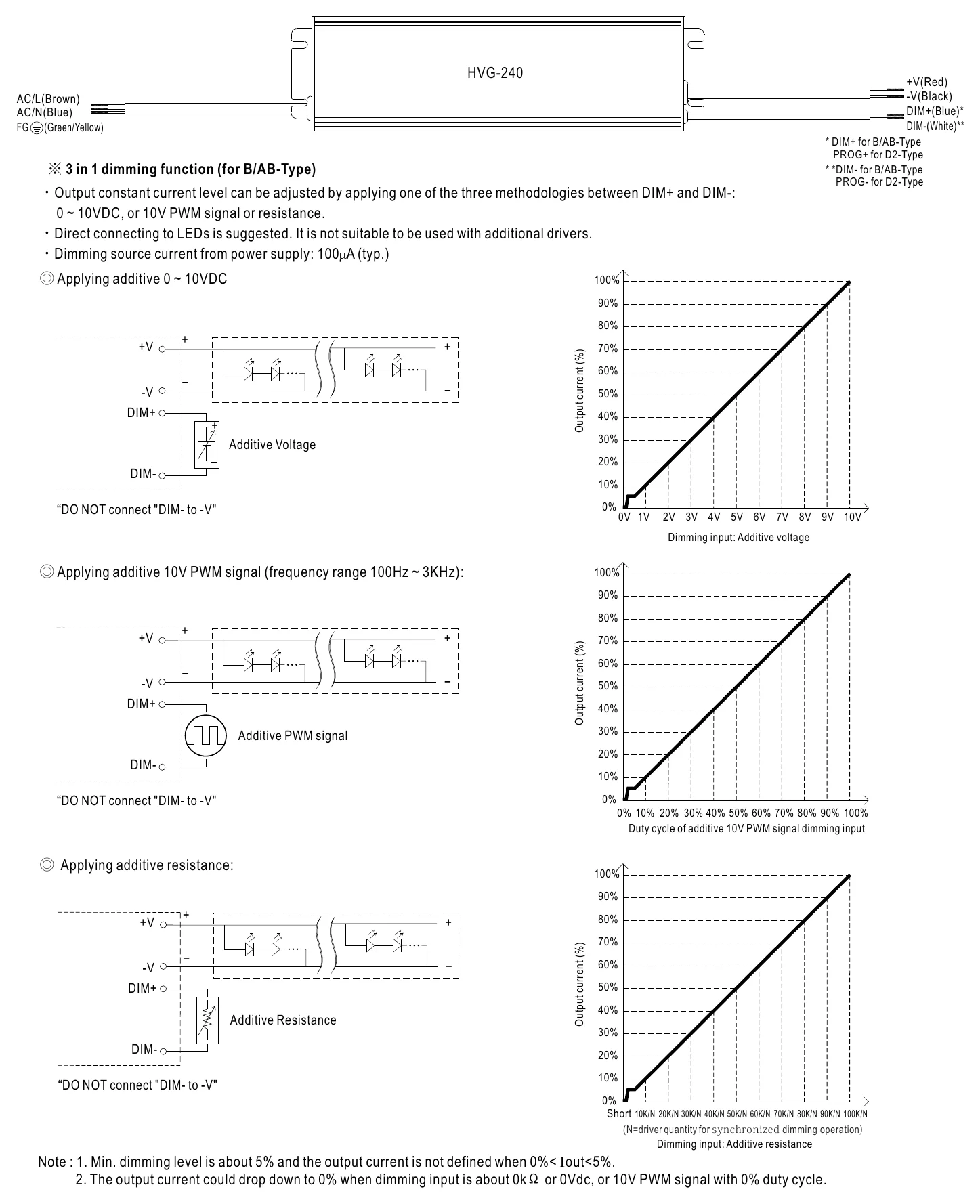

HVG-240-36AB DIMMING OPERATION — DIMMING OPERATION

HVG-240-36AB H V G - 2 4 0 series — H V G - 2 4 0 series

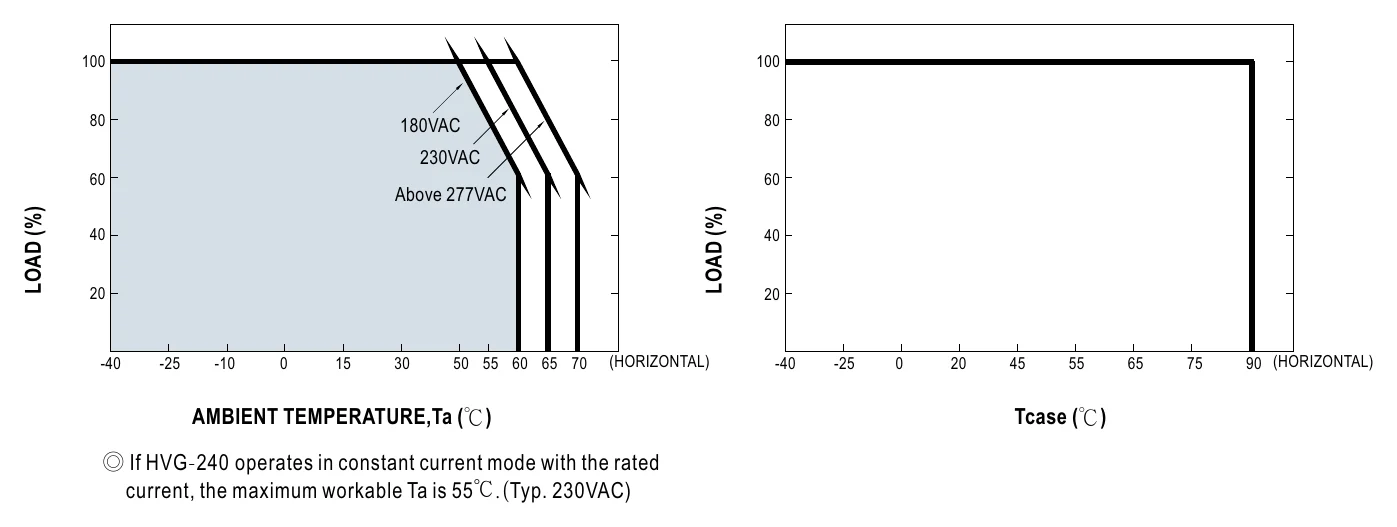

HVG-240-36AB OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

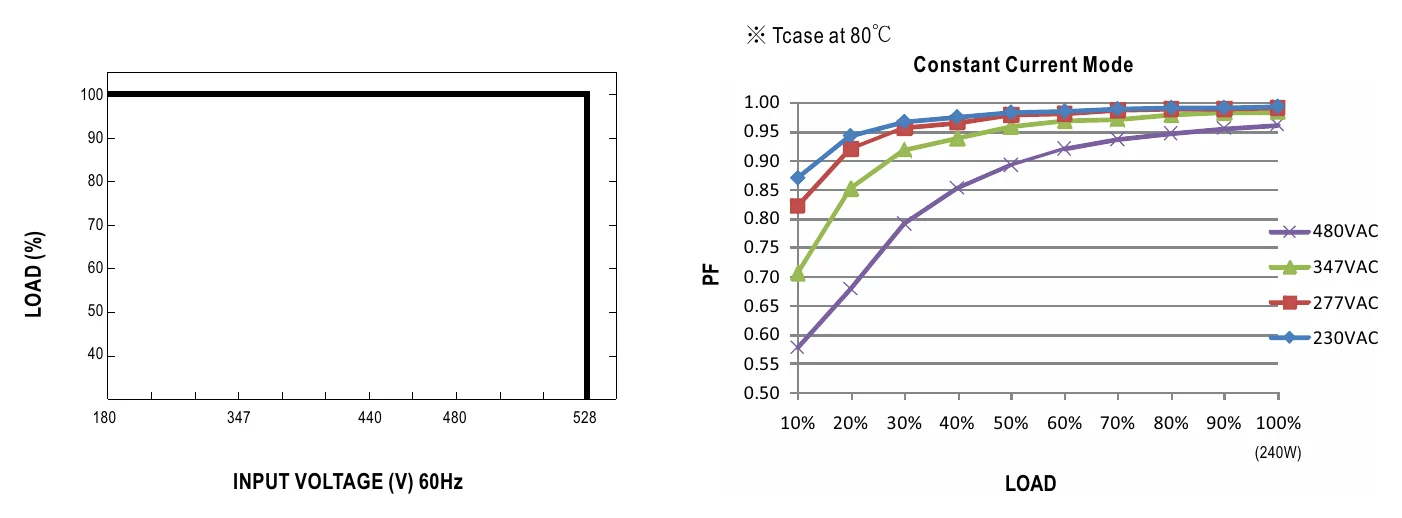

HVG-240-36AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

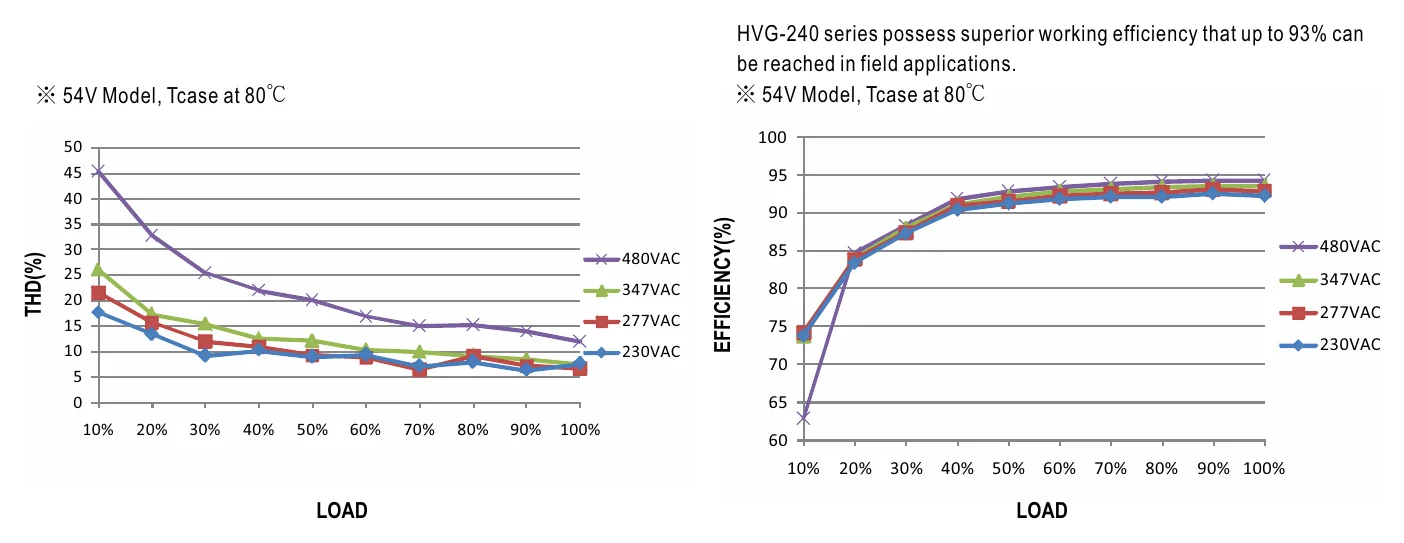

HVG-240-36AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

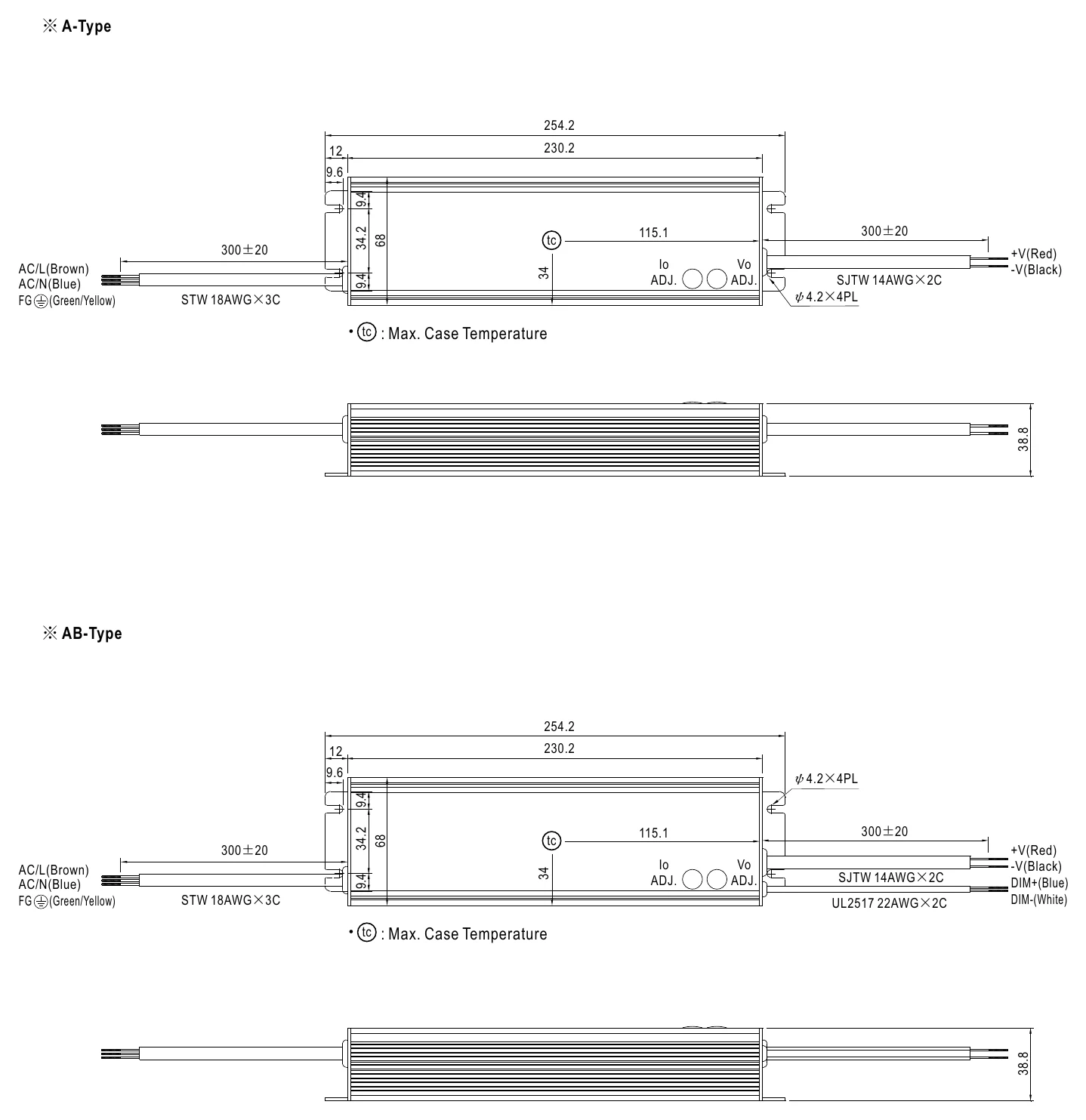

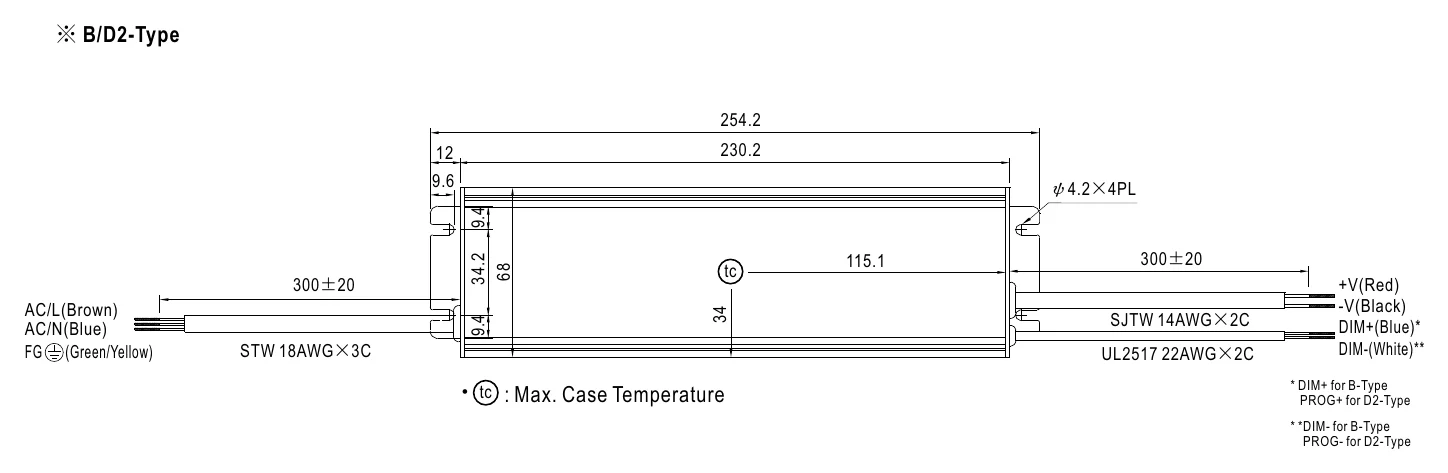

HVG-240-36AB MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

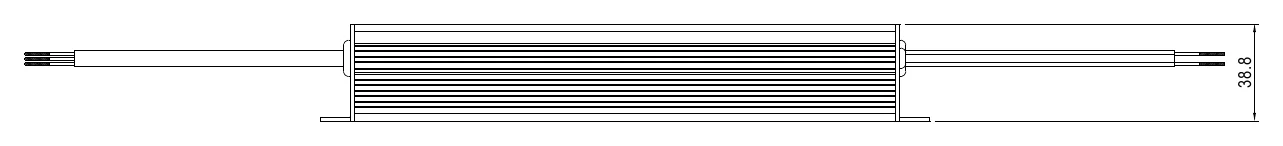

HVG-240-36AB Dimensions (mm) — Dimensions (mm)

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type HL for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HVG-240-36AB datasheethvg_240_spec.pdf · 2018-09-30 edition PDF Download

Certificates3

Mean Well HVG-240 FCC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HVG-240-36 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HVG-240-36AB for 36V dimmable LED lighting?

Yes, this model is the 36V, 241.2W, 6.7A adjustable and dimmable option in the series. It fits 36V constant current lighting loads within the 18-36V CC range when the total demand stays at or below 241.2W.

Is the HVG-240-36AB a good fit for 36V sign lighting that needs output adjustment?

It is intended for 36V constant current LED lighting loads, so it can fit sign-lighting products that match the 36V output, 6.7A current, and 241.2W maximum power. The adjustable design is relevant when the lighting product's electrical requirements fall within the listed 18-36V constant current range.

Can this model be used for 36V canopy or area lighting in damp locations?

The IP65 water-resistant enclosure supports use in damp or outdoor locations, provided the lighting load is also suitable for that environment. Electrically, the load still needs to match 36V constant current operation and remain within 241.2W and 6.7A.

Can the HVG-240-36AB power a long 36V LED strip run?

For wattage planning, use the 241.2W maximum output and divide it by the strip's rated watts per meter. For example, the formula is 241.2W ÷ strip W/m, but you should check your strip rated power per meter and verify that the strip is compatible with 36V constant current output.

Is IP65 enough for outdoor lighting projects?

IP65 means the driver is water-resistant and suited to outdoor or wet-area exposure where direct weather resistance is needed. It is not the same as the IP67 waterproof rating used on the HVG-240-36B, so the environment should be matched to the enclosure rating.

What is the difference between HVG-240-36A, 36AB, 36B, and the other HVG-240 voltages?

Within the 36V versions, HVG-240-36A, HVG-240-36AB, and HVG-240-36B are all listed at 241.2W, 36V, and 6.7A, while HVG-240-36D2 is listed at 240W. Across the HVG-240 family, the other outputs are 24V at 240W and 10A, 30V at 240W and 8A, 42V at 239.4W and 5.7A, 48V at 240W and 5A, and 54V at 243W and 4.5A.
