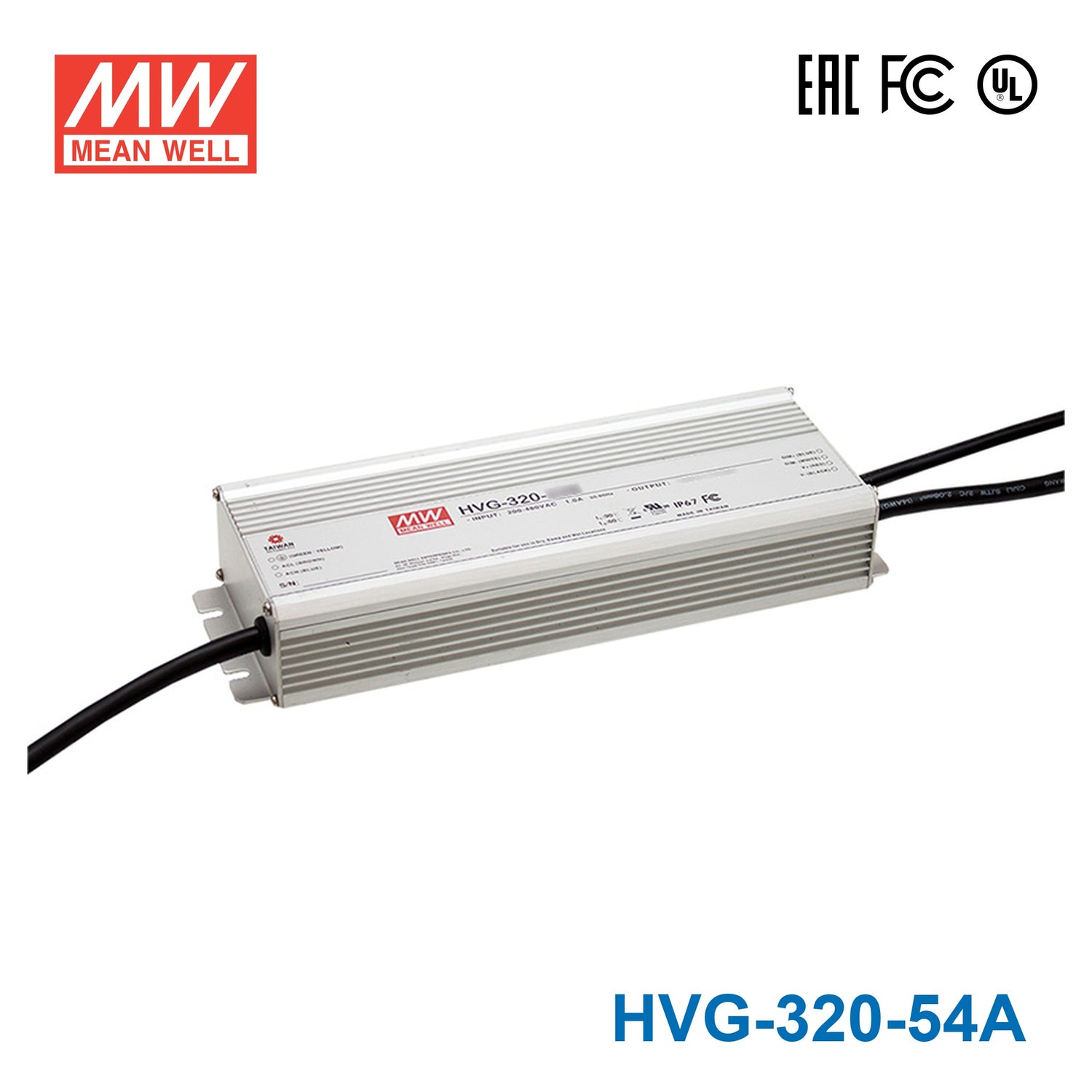

Mean Well HVG-320-54A Power Supply 320W 54V - Adjustable
Please Login for Pricing
Description
Description
The HVG-320 is a 320W Mean Well power converter (input range: 180~528VAC).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating324 Watt
-
Output Voltage54 Volt
-
Rated Current6 Ampere
-
Input Voltage180V~528V
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length26.2 cm
-
Width9 cm
-
Height4.38 cm
-
Weight2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-320-54A for a 54V LED strip or linear lighting load?
It is built for 54V lighting loads and provides up to 324W at 6A, so it can fit higher-power 54V strip or linear lighting systems that match the driver output. You should confirm the lighting load is compatible with a 54V driver and stays within the 324W limit.
Is the HVG-320-54A suitable for 54V signage lighting?
This driver can suit 54V sign-lighting loads when the total power demand is at or below 324W and the load matches the 27-54V constant-current range. The 6A output current gives it headroom for larger 54V lighting assemblies than lower-power siblings in the same series.
Can this driver be used for outdoor 54V architectural lighting?
It can be used for outdoor or damp-location 54V lighting loads because the housing is rated IP65 water-resistant. The operating temperature range of -40°C to +85°C also makes it appropriate for demanding exterior temperature conditions.
How much 54V LED strip can the HVG-320-54A support?
Use the output power for the math: maximum strip length = 324W divided by your strip's watts per meter. That gives the upper length estimate, but you should check your strip rated power per meter and verify it is compatible with a 54V driver before final sizing.
Is the HVG-320-54A meant for wet or exposed environments?
It has an IP65 water-resistant enclosure, so it is intended for lighting applications where dust and water exposure are expected. For harsher wet-location requirements, the IP67 version in the same voltage class may be the closer match, but this model still covers many outdoor and industrial lighting environments.
How does the HVG-320-54A compare with other HVG-320 outputs?
In the HVG-320 family, the available output options are 24V at 321.6W and 13.4A, 30V at 321W and 10.7A, 36V at 320.4W and 8.9A, 42V at 319.2W and 7.6A, 48V at 321.6W and 6.7A, and 54V at 324W and 6A. The HVG-320-54A is the highest-voltage fixed option in that group, while keeping essentially the same 320W class power level.
Other HVG-320 Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HVG-320-54B Power Supply 320W 54V - Dimmable | 324W | 54V | 6A | IP67 | View |
| Mean Well HVG-320-54AB Power Supply 320W 54V - Adjustable and Dimmable | 324W | 54V | 6A | IP65 | View |
