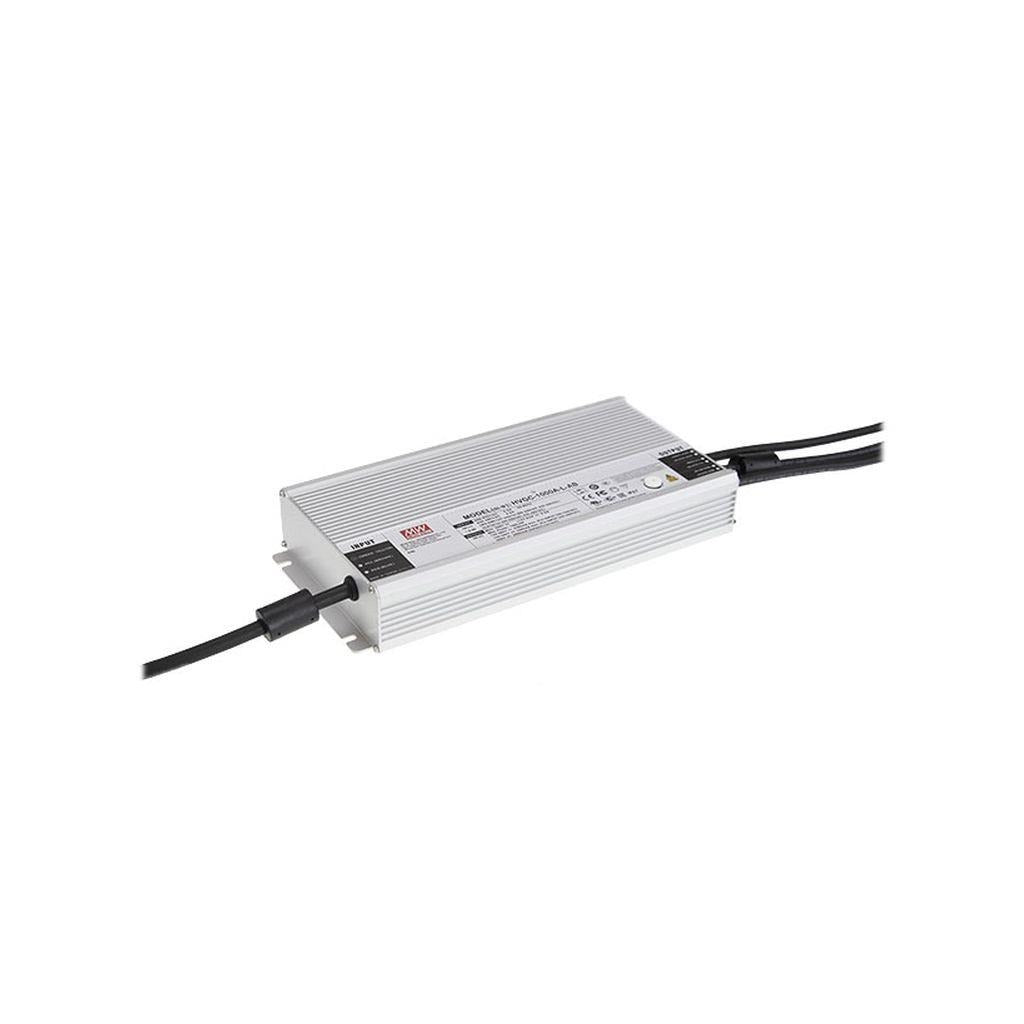

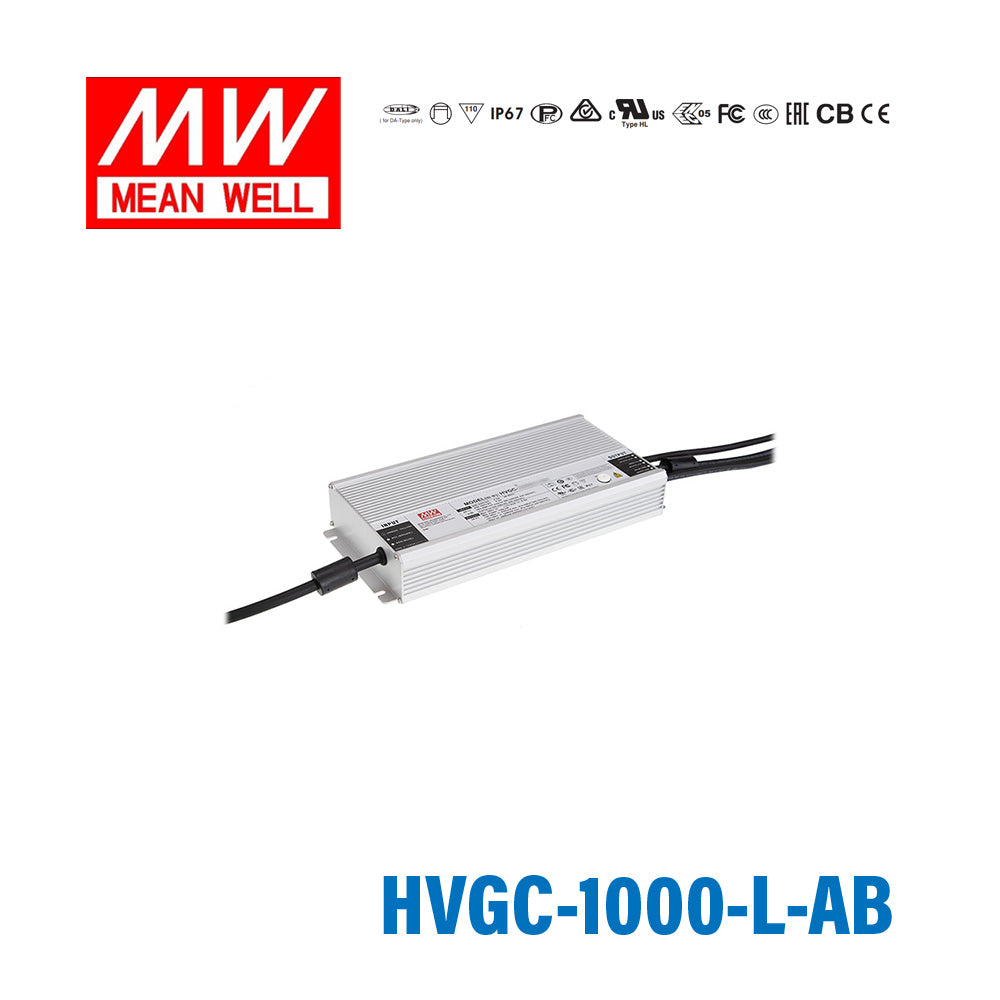

Mean Well HVGC-1000-L-AB Power Supply 1000W 2800mA - Adjustable and...
Please Login for Pricing
Description
Description
Features
| Wide input range 180 ~ 528VAC |
| Constant Current mode output |
| Metal housing with Class I design |
| Surge protection with 8KV/4KV |
| Built-in active PFC function |
| IP67 design for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming |
| Support with auxiliary DC output 12V/500mA |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC |
| AC inrush current (max.) | COLD START 40A(t =1850 s measured at 50% I ) at 480VAC; width peak Per NEMA 410 |
| Over temperature protection | Shut down output voltage, re-power on to recovery |
| Over-voltage protection | Up to 106% Shut down o/p voltage with auto-recovery or re-power on to recovery |
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+90ºC (refer to output derating curve) |
| Safety standards | UL8750(type” HL”), CAN/CSA C22.2 NO. 250. 13-17, ; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384 CCC GB19510.1,GB19510.14 EAC TP TC 004, IP67 approved |
| EMC standards | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A |
| Dimension (LxWxH)(mm) | 310 x 144 x 48.5 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating1003.2 Watt
-
Output Voltage400 Volt
-
Rated Current2.8 Ampere
-
Input Voltage180V~528V
-
Standards MetCB,CCC,CE,EAC,ENEC,FCC,RCM,TUV,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length31 cm
-
Width14.4 cm
-
Height4.85 cm
-
Weight4.2 kg
