Mean Well

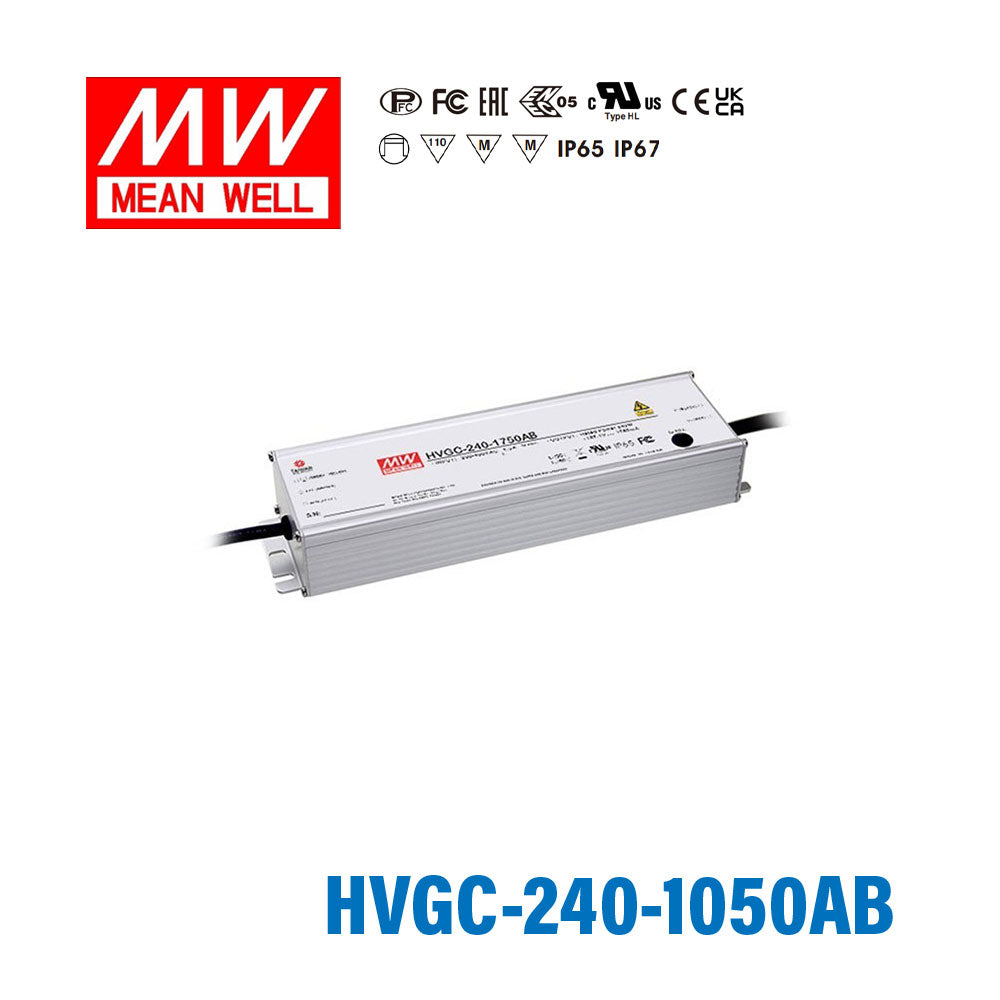

Mean Well HVGC-240-1050AB Power Supply 240W 1050mA - Adjustable and Dimmable

wide input range 180~528VACaluminium casing
SKU HVGC-240-1050AB
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

HVGC-240-1050AB is the model of this series: rated current 1050mA, rated power 240W, typical efficiency 93%. Type AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) (IP65).

HVGC-240 series is a 240W LED AC/DC LED power supply featuring the constant current mode and high voltage output. HVGC-240 operates from 180~528VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Wide input range 180 ~ 528VAC
  • Constant Current mode output
  • Metal housing with ClassⅠdesign
  • Built-in active PFC function
  • IP65 design for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

HVGC-240-1050ABSpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

RATED CURRENT
1050mA
RATED POWER
240W
CONSTANT CURRENT REGIONNote.2
114.3 ~ 228.6V
OPEN CIRCUIT VOLTAGE (max.)
235V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE
525~1050mA
CURRENT RIPPLE
5.0% max. @rated current
CURRENT TOLERANCE
±5%
SET UP TIMENote.4
500ms/230VAC, 347VAC, 480VAC

INPUT

VOLTAGE RANGENote.3
180 ~ 528VAC 254VDC ~ 747VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC, @ load≧60%/480VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.)
93%
AC CURRENT (Typ.)
0.76A / 347VAC 0.56A / 480VAC
INRUSH CURRENT(Typ.)
COLD START 50A(twidth= 532μs measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER
4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT
<0.75mA / 480VAC

PROTECTION

SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
240 ~ 263V Shut down o/p voltage with re-power on to recovery
OVER TEMPERATURE
Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(@load≧80%), BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF
1769.1K hrs min. Telcordia SR-332 (Bellcore) ; 145.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
254.2*68*38.8mm (L*W*H)
PACKING
1.35Kg; 12pcs/17.2Kg/0.78CUFT

Certifications & ratings

Type
HL

MODEL ENCODING

A
Io adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB (this model)
Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX
Built-in Smart timer dimming function by user request; IP67
D2
Built-in Smart timer dimming and programmable function; IP67
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 347VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  4. 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  5. 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  7. 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  10. 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  11. 11. For A/AB type need to consider build in using to comply with Type HL application.
  12. 12. This product is intended for North America and EU lighting equipment application. Please contact your MEAN WELL sales if you have other using.

Technical drawings

HVGC-240-1050AB Block Diagram
Block Diagram
HVGC-240-1050AB DIMMING OPERATION
DIMMING OPERATION
HVGC-240-1050AB H V G C - 2 4 0 series
H V G C - 2 4 0 series
HVGC-240-1050AB H V G C - 2 4 0 series
H V G C - 2 4 0 series
HVGC-240-1050AB OUTPUT LOAD vs TEMPERATURE(Note.7)
OUTPUT LOAD vs TEMPERATURE(Note.7)
HVGC-240-1050AB STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
HVGC-240-1050AB TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HVGC-240-1050AB LIFE TIME
LIFE TIME
HVGC-240-1050AB MECHANICAL SPECIFICATION ※ AB-Type
MECHANICAL SPECIFICATION ※ AB-Type

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HVGC-240-1050AB for high-power LED downlights?

Yes, this driver is built for constant current LED loads at 1050mA with a 114.3-228.6V constant current output range. That makes it suitable for LED downlight assemblies whose total forward voltage falls within that range, not for constant voltage products that expect a fixed 12V or 24V supply.

Is the HVGC-240-1050AB suitable for LED signage modules?

It can work for signage modules if the module string is designed for constant current operation at 1050mA and the combined forward voltage stays within 114.3-228.6V. It is not the right choice for constant voltage signage modules that are rated for fixed-voltage input.

Can this driver run a small LED array for architectural or display lighting?

Yes, if the LED array is a constant current load at 1050mA and its total forward voltage is within the 114.3-228.6V range. With 240W output power, it fits higher-power LED array builds better than low-power constant current drivers.

How do I know if my LED load is compatible with the HVGC-240-1050AB?

Match the driver to a constant current LED load that requires 1050mA, with a total forward voltage inside the 114.3-228.6V constant current range. The number of LEDs depends on the forward voltage of each LED, so compatibility is determined by total string voltage rather than a fixed LED count.

What are the main differences between the HVGC-240-1050AB and other 240W HVGC constant current models?

In the 240W HVGC range, the 700mA models use a 171.4-342.8V CC range, 1050mA models use 114.3-228.6V, 1400mA models use 85.7-171.4V, 1750mA models use 68.5-137.1V, 2100mA models use 57.2-114.3V, 2800mA models use 42.9-85.7V, and 3500mA models use 34.3-68.6V. The 1050AB shares the same 240W electrical class as the A and B versions, so the main electrical selection point is output current and matching CC voltage range.
