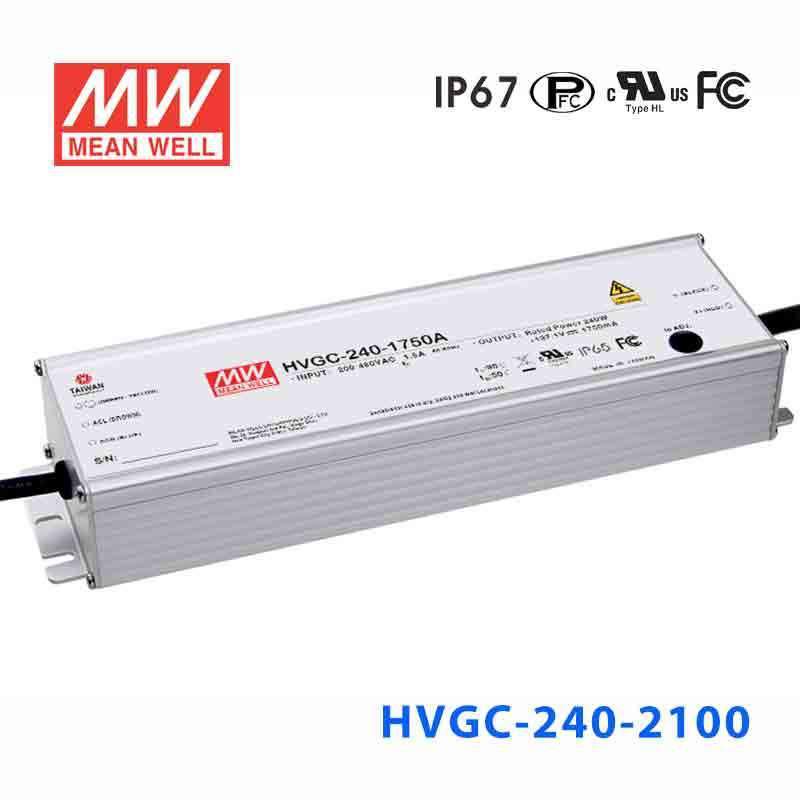

Mean Well HVGC-240-2100B Power Supply 240W 2100mA - Dimmable
Please Login for Pricing
Description
Description
Features
| Wide input range 180 ~ 528VAC |
| Constant Current mode output |
| Metal housing with Class design |
| Built-in active PFC function |
| IP67 / IP65 design for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC ; 254~747VDC |
| AC inrush current (max.) | Cold start 50A/480VAC |
| Over temperature protection | Shut down o/p voltage, recovers automatically after temperature goes down |
| Over voltage protection | 110%~140%Shut down o/p voltage with auto-recovery or re-power on to recovery |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80ºC (refer to output derating curve) |
| Safety standards | UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved |
| EMC standards | Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3,(@load¥¶0%)FCC Part 15 Subpart B |
| Dimension (LxWxH)(mm) | 189 x 61.5 x 36.8 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating240 Watt
-
Output Voltage117 Volt
-
Rated Current2.1 Ampere
-
Input Voltage180V~528V
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length25.42 cm
-
Width6.8 cm
-
Height3.88 cm
-
Weight1.35 kg
