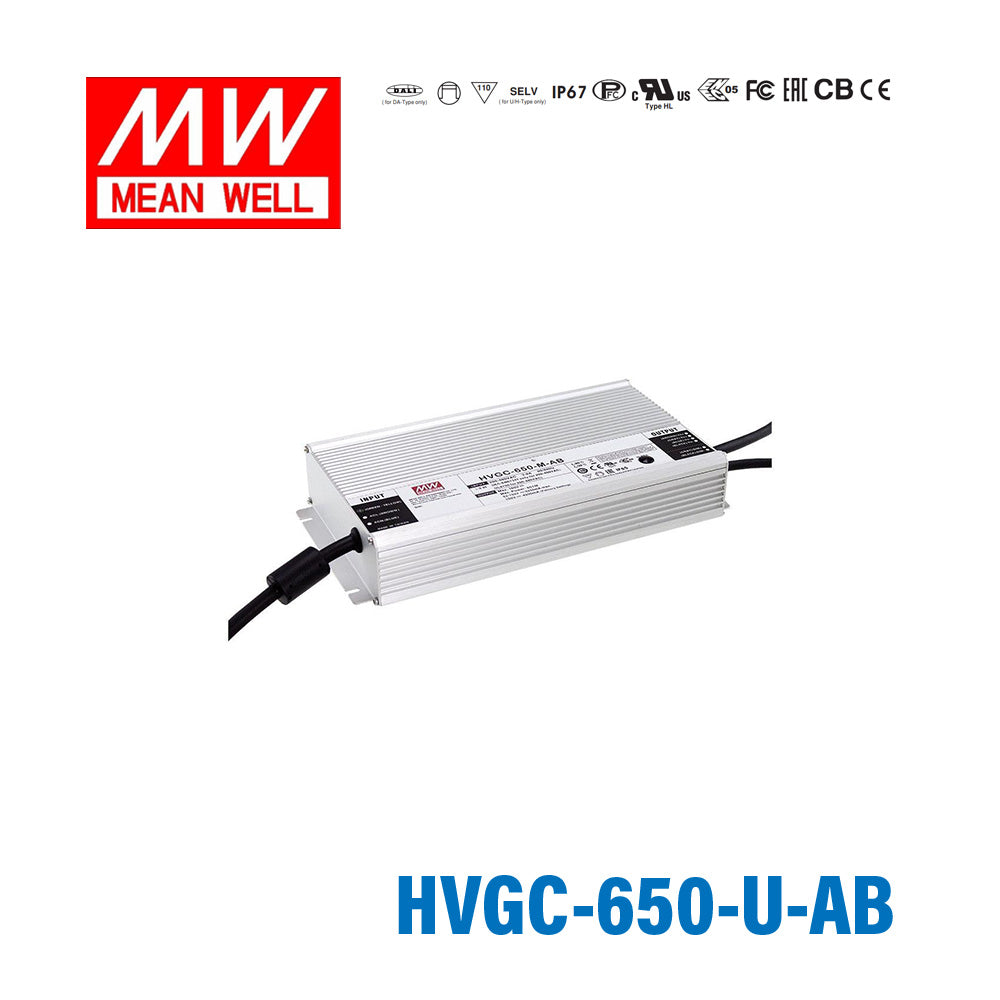

Mean Well HVGC-650-U-AB Power Supply 650W 11200mA - Adjustable and Dimmable

wide input range 180~528VAC, aluminium casing

|

Description

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with Class I design
Surge protection with 8KV/4KV
Built-in active PFC function
IP67 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming
Support with auxiliary DC output optional
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 180~528VAC | 254VDC ~ 747VDC
AC inrush current (max.) COLD START 40A(t =1250 s measured at 50% I ) at 480VAC; width peak Per NEMA 410
Over temperature protection Shut down output voltage, re-power on to recovery
Over-voltage protection Up to 107% Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage I/P-O/P:4.2KVAC I/P-FG:2.1KVAC O/P-FG:1.5KVAC
Working temperature -40~+85ºC (refer to output derating curve)
Safety standards UL8750(type” HL”), CAN/CSA C22.2 NO. 250. 13-17, ; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384 CCC GB19510.1,GB19510.14 EAC TP TC 004, IP67 approved
EMC standards Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A
Dimension (LxWxH)(mm) 280 x 144 x 48.5 mm

Specifications

  • Brand
    Mean Well
  • Series
    HVGC Series
  • Power Rating
    649.6 Watt
  • Output Voltage
    70 Volt
  • Rated Current
    11.2 Ampere
  • Input Voltage
    180V~528V
  • Standards Met
    CB,CE,EAC,ENEC,FCC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    28 cm
  • Width
    14.4 cm
  • Height
    4.85 cm
  • Weight
    3.9 kg
