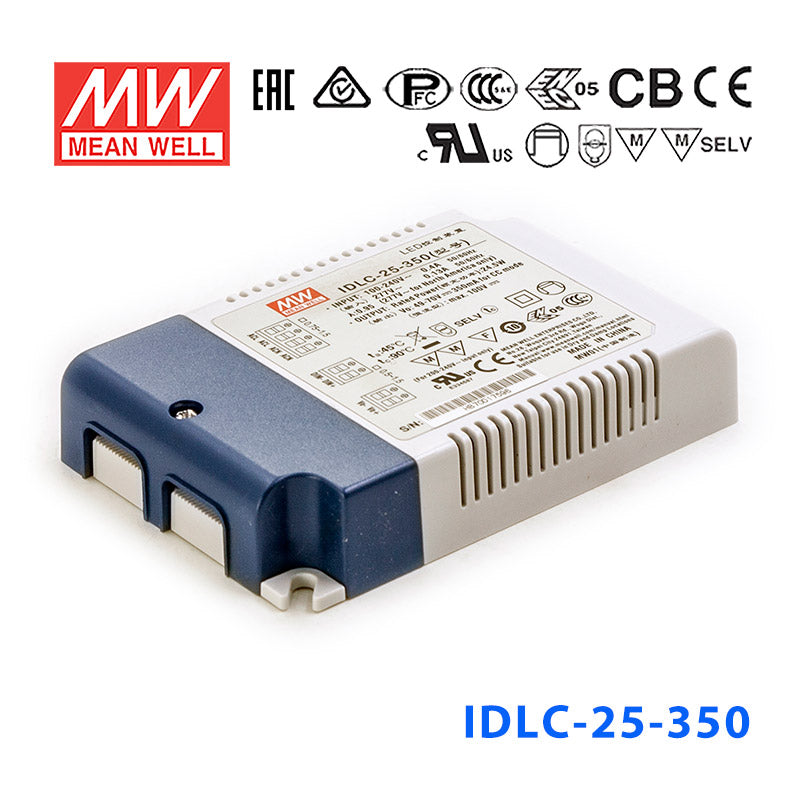

Description
Description
Features
Constant Current mode output |
Flicker-free design |
Plastic housing with class II design |
Built-in active PFC function |
No load power consumption<0.5W(Blank-Type) |
Function options: 2 in 1 dimming (dim-to-off);Auxiliary DC output |
3 years warranty |
General Specification
Short circuit | Hiccup mode recovers automatically after the fault condition is removed |
Withstand voltage | I/P-O/P:3.75KVAC |
Working temperature |
T case=-20~+90°C (Please refer to OUTPUT LOAD vs TEMPERATURE section) |
Safety standards | UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1, GB19510.14 approved |
EMC standards | Compliance to EN55015, EN61000-3-2 Class C (load) ; EN61000-3-3, GB17743, GB17625.1 |
Dimension (LxWxH)(mm) | 110 x 75 x 22 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesIDLC Series
-
Power Rating24.5 Watt
-
Output Voltage70 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~295V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~90°C
-
Warranty3 Year
-
Length11 cm
-
Width7.5 cm
-
Height2.2 cm
-
Weight0.2 kg
