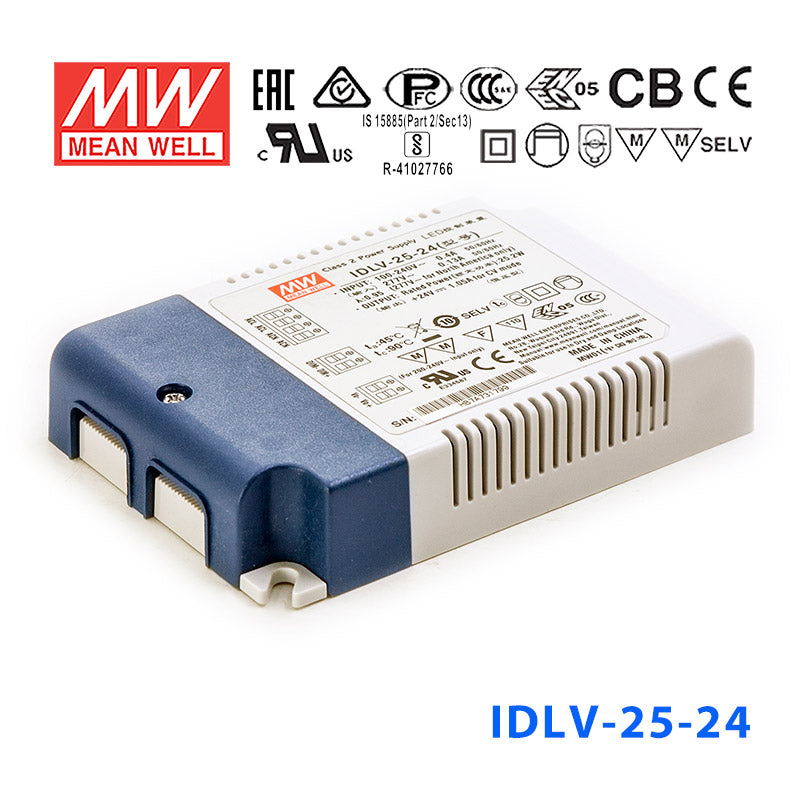

Mean Well IDLV-25-24 Power Supply 25W 24V, Dimmable


|

Description

Features

Constant voltage PWM style output with frequency 1KHz
Plastics housing with class II design
Built-in active PFC function
No load power consumption<0.5W(Blank-Type)
Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output
3 years warranty

General Specification

AC input voltage range 90~295VAC
AC inrush current (Typ.) COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection Shut down output voltage, re-power on to recover
Over current protection 105~120%
Setup time 500ms / 230VAC 1200ms/115VAC
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature Tcase=-20 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety standards UL8750,CSA C22.2 NO.250.13-12;BS EN/EN 61347-1 & BS EN/EN 61347-2-13 independent, BS EN/EN62384,BIS IS15885(for IDLV-25-12,24,48 only), EAC TP TC 004 approved
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm) 110*75*22mm
Packing 63pcs/13.6Kg

Specifications

  • Brand
    Mean Well
  • Series
    IDLV Series
  • Power Rating
    25.2 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    1.05 Ampere
  • Input Voltage
    90V~295V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,RCM,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~90°C
  • Warranty
    3 Year
  • Length
    11 cm
  • Width
    7.5 cm
  • Height
    2.2 cm
  • Weight
    0.2 kg
