Mean Well IDLV-45-12 Power Supply 45W 12V, Dimmable 3A

SKU IDLV-45-12

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

IDLV-45-12 is the 12V output model of this series: rated current 3.0A, rated power 36W, typical efficiency 84%.

IDLV-45 series is a 45W AC/DC LED driver featuring the constant voltage mode PWM style output design. IDLV-45 operates from 90～295VAC and offers models with different rated voltage ranging between 12V and 60V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -20℃~+85℃ case temperature under free air convection. IDLV-45 is equipped with various function options, such as dimming methodologies, so as to provide the design flexibility for LED lighting system.

Features

Constant Voltage PWM style output with frequency 1KHz
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(Blank-Type)
Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output
3 years warranty

Specifications

IDLV-45-12Specifications from the official datasheet (2022-04-12 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 3.0A
RATED POWER: 36W
DIMMING RANGE: 0~100%
VOLTAGE TOLERANCE: ±10%
PWM FREQUENCY (Typ.): 1KHz(±20%)
SETUP TIME^Note.3: 500ms / 230VAC 1200ms/115VAC
AUXILIARY DC OUTPUT^Note.4: Nominal 12V(deviation 11.4~12.6)@50mA for A-Type only

INPUT

VOLTAGE RANGE^Note.2: 90 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/115VAC, PF>0.92/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VAC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 84%
AC CURRENT (Typ.): 0.6A / 115VAC 0.4A / 230VAC 0.3A / 277VAC
INRUSH CURRENT(Typ.): COLD START 30A(twidth=150μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD POWER CONSUMPTION: <0.5W for Blank-Type, <1.2W for A-Type

PROTECTION

SHORT CIRCUIT: Shut down O/P voltage, re-power on to recovery
OVER CURRENT: 105 ~ 115% Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 NO.250.13-12; BS EN/EN 61347-1 & BS EN/EN 61347-2-13 independent, BS EN/EN62384,BIS IS15885(for IDLV-45-12,24,48 only), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Line:1KV), EAC TP TC 020

OTHERS

MTBF: 4229.8K hrs min. Telcordia SR-332 (Bellcore) ; 434.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 120*75*25mm (L*W*H)
PACKING: 0.22Kg;54pcs/13Kg/ 0.93CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Aux. 12V will be damaged with short circuit; It will not be available with dimming off or output no load condition.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

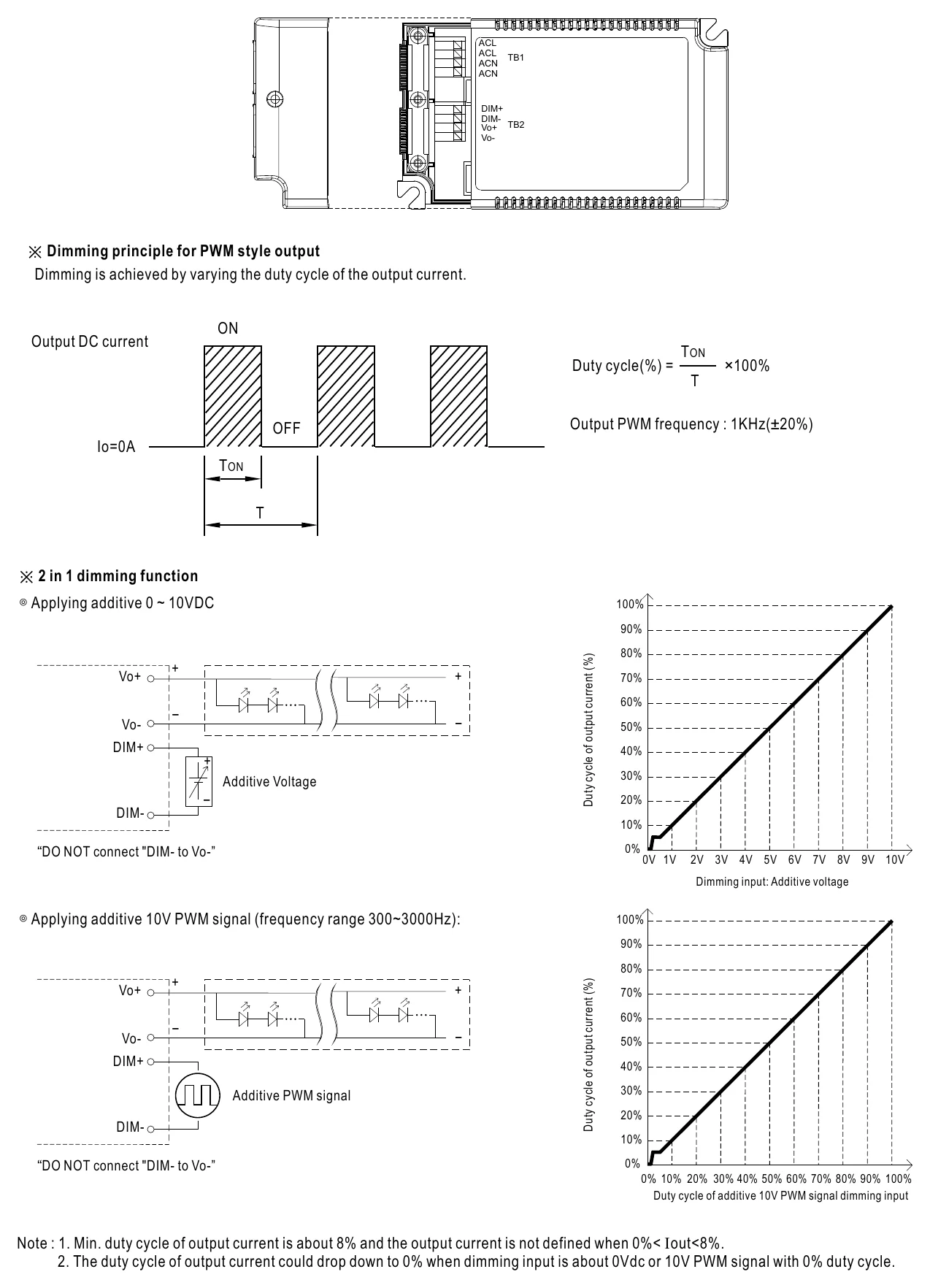

IDLV-45-12 DIMMING OPERATION — DIMMING OPERATION

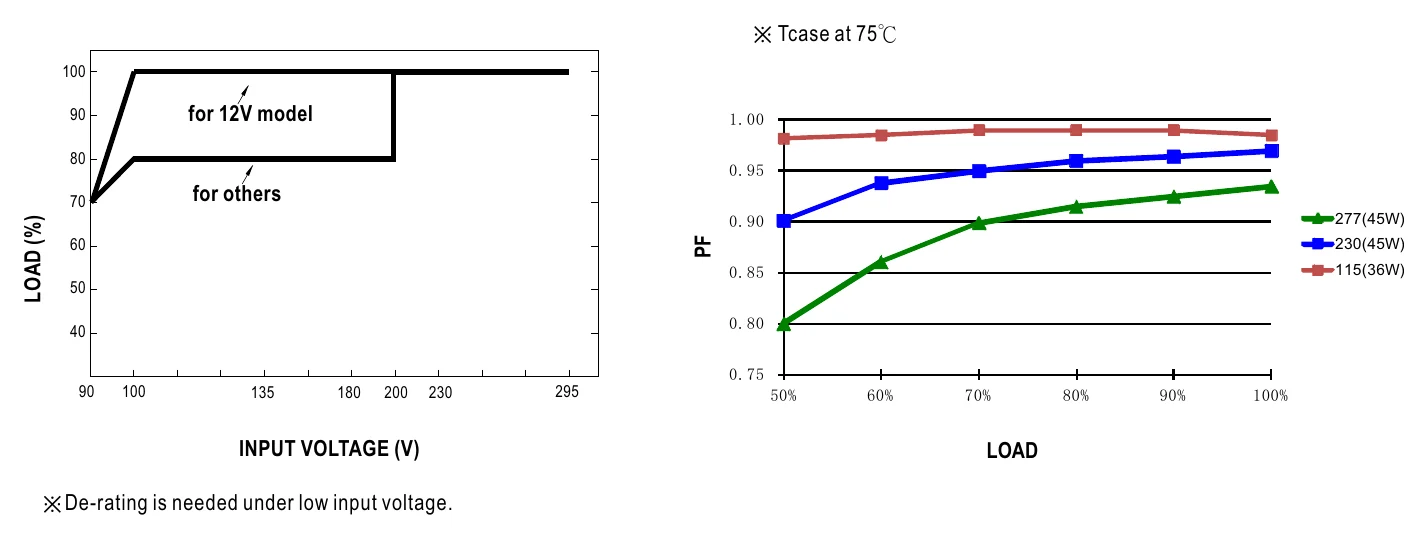

IDLV-45-12 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

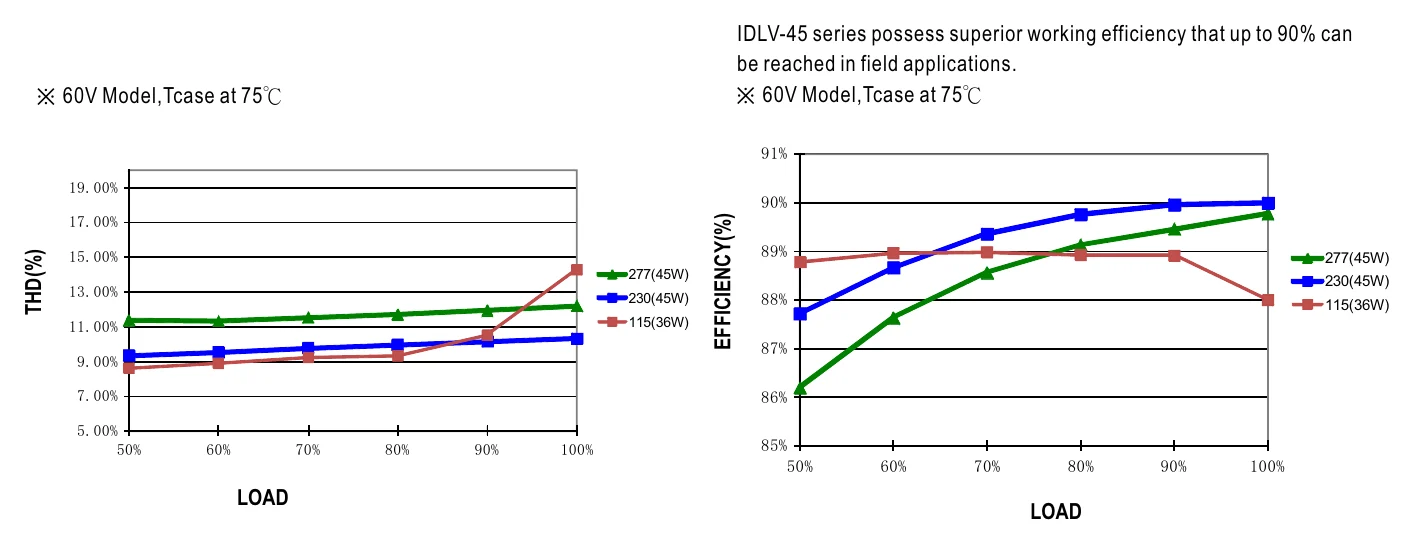

IDLV-45-12 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

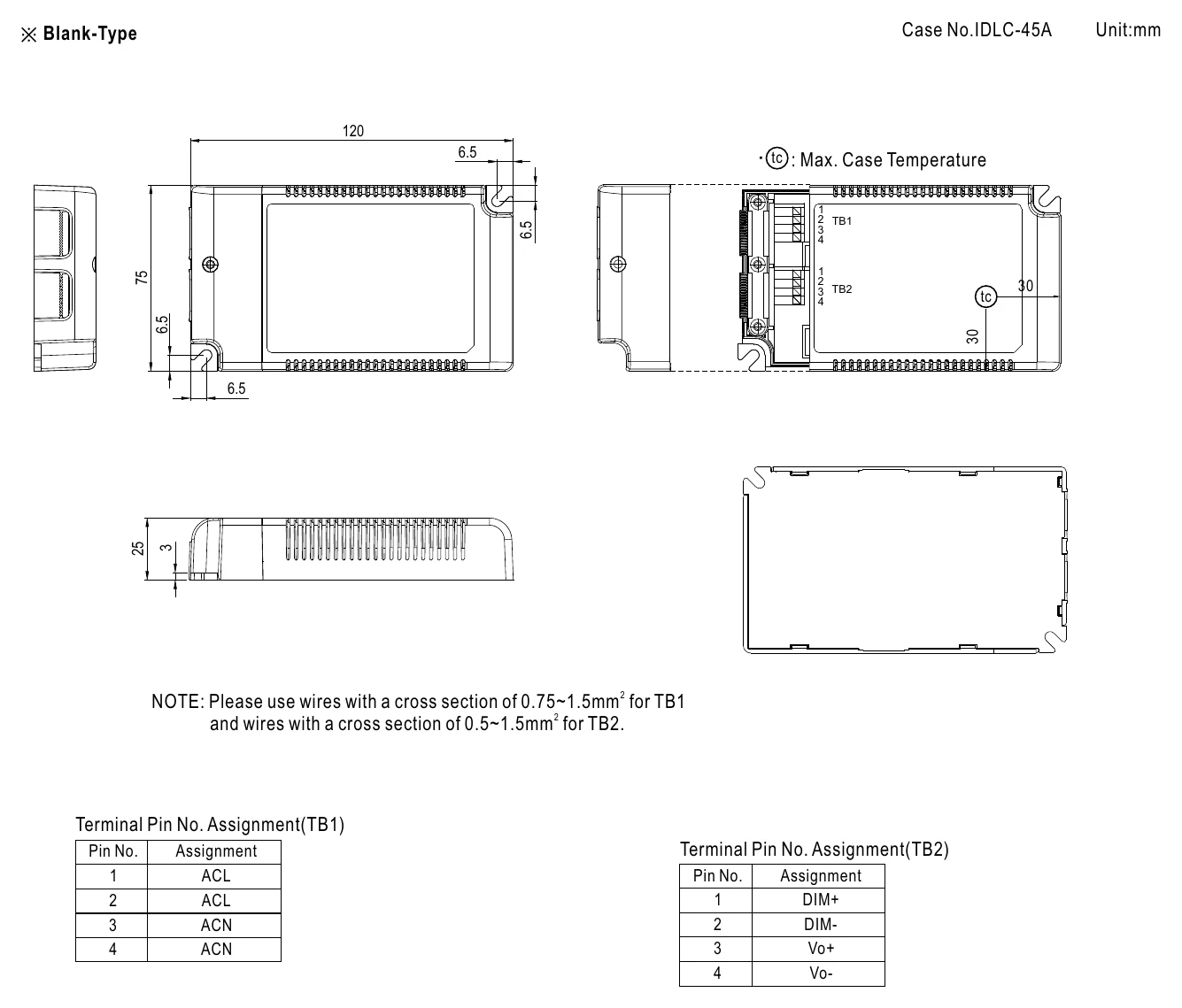

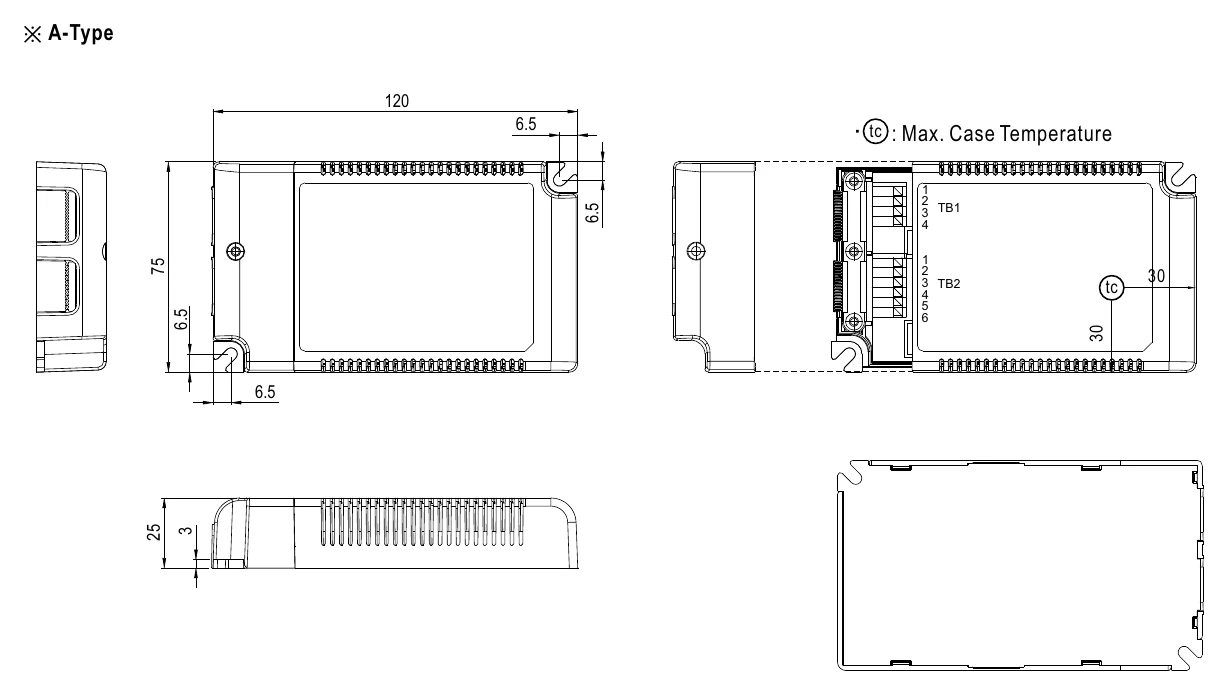

IDLV-45-12 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting
Industrial lighting

Downloads

Certificates8

Mean Well CE IDLV-45-65 Certificate PDF Download

Mean Well SAA IDLV-45 Certificate PDF Download

Mean Well CB IDLV-45 Certificate PDF Download

Mean Well ENEC IDLV-45 Certificate PDF Download

Mean Well DA IDLV-45 Certificate PDF Download

Mean Well UK IDLV-45 Certificate PDF Download

Mean Well EMC IDLV-45 Certificate PDF Download

Mean Well UL IDLV-25 Certificate PDF Download

Test reports1

Mean Well IDLV-45-12 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the IDLV-45-12 for 12V LED strip lighting in shelving, coves, or display accents?

Yes, this is a 12V PWM-output LED driver with 36W rated power and 3A rated current. It fits 12V LED strip lighting applications where the total strip load stays within 36W.

Is the IDLV-45-12 suitable for 12V LED signage or light box lighting?

It can be used for 12V LED signage or light box applications if the lighting load is designed for a 12V supply and does not exceed 36W. The 3A rated current supports moderate 12V signage loads within that power limit.

Can this driver power 12V linear lighting for cabinets or retail displays?

Yes, it has a 12V output and can support cabinet, shelf, or retail display lighting that stays within 36W. Buyers should match the fixture or strip voltage to 12V and keep the total load at or below 3A.

Is the IDLV-45-12 a good fit for short-run 12V LED strip projects?

Yes, this model is better suited to shorter or lower-power 12V strip runs because its rated output is 36W. It has a 12V output, so the strip or fixture should be designed for 12V operation.

How much 12V LED strip can the IDLV-45-12 run?

The maximum strip load is 36W, so estimated strip length is 36W divided by your strip's rated power per meter. For example, the formula is 36 ÷ watts per meter = maximum meters, and you should check your strip rated power per meter before sizing.

Can the IDLV-45-12 be used outdoors or in wet locations?

The provided specifications do not list an IP rating, so this product should not be treated as wet-location or outdoor-rated based on the available data alone. Its working case temperature (Tcase) range is -20°C to +85°C, but temperature range is not the same as water ingress protection.

How does the IDLV-45-12 compare with the other 12V IDLV series models?

This spec sheet covers only the IDLV-45 series, so ratings of other IDLV series are not confirmed here. The IDLV-45-12 delivers 36W at 3A, and its A-Type version adds a nominal 12V auxiliary output rated at 50mA.
