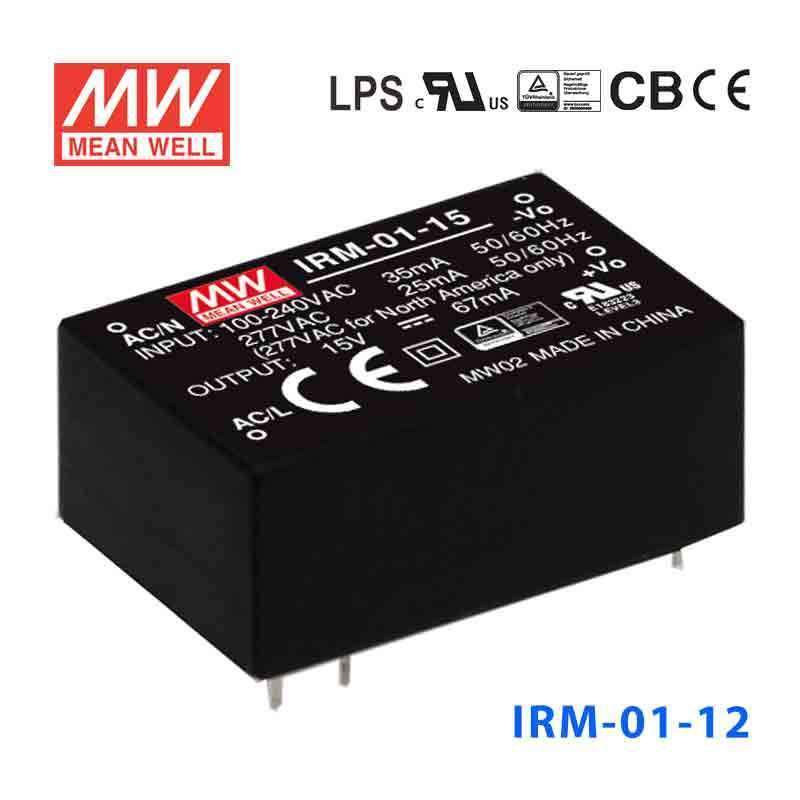

Mean Well IRM-01-12 Switching Power Supply 1W 12V 83mA - Encapsulated

miniature encapsulated type, PCB mouting style
SKU:
IRM-01-12

|

Description

Features

Universal AC input / Full range
No load power consumption < 0.075W
Protections: Short circuit / Overload / Over voltage
Compact size
Cooling by free air convection
Isolation class II
High reliability
Low cost
3 years warranty

General Specification

AC input voltage range 85~305VAC; 120~430VDC
AC inrush current (max.) Cold start, 5A at 115VAC, 10A at 230VAC
Setup, rise, hold up time 600ms, 30ms, 40ms
Overload protection ≥110% rated output voltage, hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+85°C (refer to output derating curve)
Leakage current Less than 0.25mA at 277VAC
Safety standards UL60950-1, TUV EN60950-1 approved,Design refer to IEC60601-1, EN60335-1, EN61558-1/-2-16
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN55024
Dimension (LxWxH) PCB mounting style : 33.7x 22.2x 15mm SMD style : 33.7x 22.2x 16 mm
Vibration 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes

Specifications

  • Brand
    Mean Well
  • Series
    IRM Series
  • Power Rating
    1 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    0.08 Ampere
  • Input Voltage
    85V~305V
  • Standards Met
    BSMI,CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~85°C
  • Warranty
    3 Year
  • Length
    3.37 cm
  • Width
    2.22 cm
  • Height
    1.5 cm
  • Weight
    0.02 kg
