Can I use the IRM-01-15S for a compact 15V embedded controller board?

Yes, if the board needs constant 15V DC and the load stays within 1W and 0.07A. Its SMD style and 33.7 × 22.2 × 16.0 mm size make it appropriate for low-power compact electronics rather than larger 15V assemblies.

Is this a good fit for a low-power 15V industrial monitoring module?

It can work for low-power industrial monitoring electronics that run on 15V constant voltage and remain under 0.07A. This is a board-level encapsulated supply for light auxiliary loads, not a higher-output 15V source.

Can the IRM-01-15S support a small signal-conditioning or instrumentation circuit?

It is suitable for very low-power 15V signal-conditioning or instrumentation circuits when total demand stays within 1W. The output is constant voltage, so it matches applications expecting a fixed 15V rail.

What are the main differences between IRM-01-15S and related IRM models?

The 1W IRM-01 family includes 3.3V 300A, 5V 200A, 9V 111A, 12V 0.08A, 15V 0.07A, and 24V 0.04A versions, with both standard and S variants across the range. IRM-01-15S keeps the 15V, 1W, 0.07A rating but uses SMD style with 33.7 × 22.2 × 16.0 mm dimensions, while IRM-01-15 uses PCB mounting style with 33.7 × 22.2 × 15.0 mm dimensions.

Can this 15V SMD power supply be used outdoors or in unsealed enclosures?

Its temperature rating is -30°C to +85°C, so the temperature specification is wide. No IP rating is provided, so the specs do not define protection for outdoor exposure, water, or dust.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

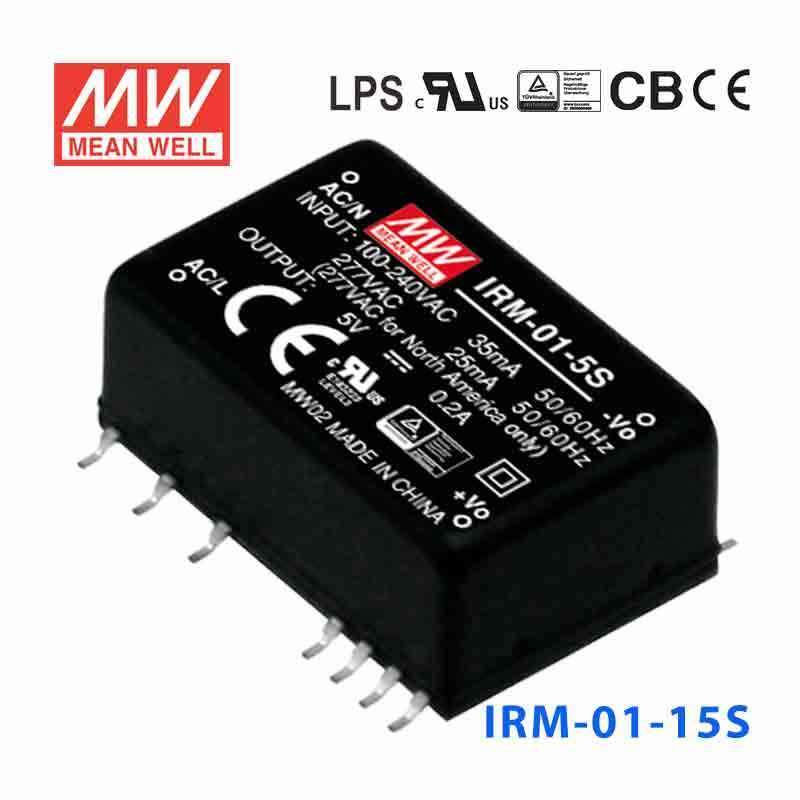

Mean Well IRM-01-15S Switching Power Supply 1W 15V 67mA - Encapsulated

miniature encapsulated typeSMD style

SKU:

IRM-01-15S

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The IRM-01 is a 1W Mean Well power converter (input range: 85~305VAC).

Key Features

✓ Input voltage range: 85~305VAC
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage
✓ 3 years warranty
