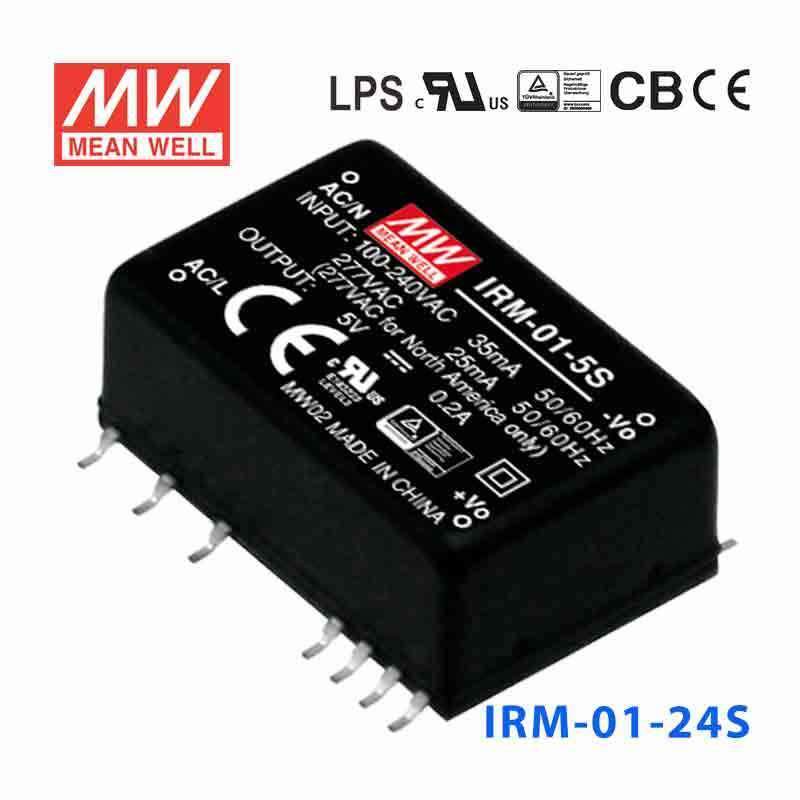

Mean Well IRM-01-24S Switching Power Supply 1W 24V 72mA - Encapsulated
Please Login for Pricing
Description
Description
The IRM-01 is a 1W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating1 Watt
-
Output Voltage24 Volt
-
Rated Current0.04 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length3.37 cm
-
Width2.22 cm
-
Height1.6 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-01-24S for a small 24V industrial sensor or interface circuit?
Yes, this model is intended for low-power 24V DC loads where 1W is sufficient. It is a constant voltage supply with a 24V output and a wide 85-305VAC input range, which fits compact industrial control or interface electronics rather than higher-draw loads.
Is the IRM-01-24S suitable for embedded 24V control electronics on a compact board?
It can fit compact embedded designs because the package is 33.7 × 22.2 × 16.0 mm and the unit is described as a miniature encapsulated type with SMD style. The 24V constant voltage output and 1W power level make it appropriate for very small onboard power sections, not larger 24V subsystems.
Can this 24V power supply be used for light automation signaling circuits?
Yes, if the automation circuit needs a regulated 24V DC source and stays within the 1W rating. This model is better suited to low-consumption signaling, sensing, or control electronics than to devices that need more output power.
Is the IRM-01-24S okay for outdoor or harsh-temperature use?
The operating temperature range is -30°C to +85°C, so it covers a wide temperature span. No IP rating is listed, so it should be treated as a protected internal power module rather than a supply for exposed outdoor or wet locations.
How does the IRM-01-24S compare with other Mean Well IRM encapsulated models?
Within the 1W IRM-01 group, related options are IRM-01-3.3 and IRM-01-3.3S at 3.3V 300A, IRM-01-5 and IRM-01-5S at 5V 200A, IRM-01-9 and IRM-01-9S at 9V 111A, IRM-01-12 and IRM-01-12S at 12V 0.08A, IRM-01-15 and IRM-01-15S at 15V 0.07A, and IRM-01-24 and IRM-01-24S at 24V 0.04A. Higher-power IRM siblings then step up through IRM-02, IRM-03, IRM-05, IRM-10, IRM-15, IRM-20, IRM-30, IRM-45, IRM-60, and IRM-90 variants, covering outputs from 3.3V to 48V and power levels from 2W to 90.2W.
