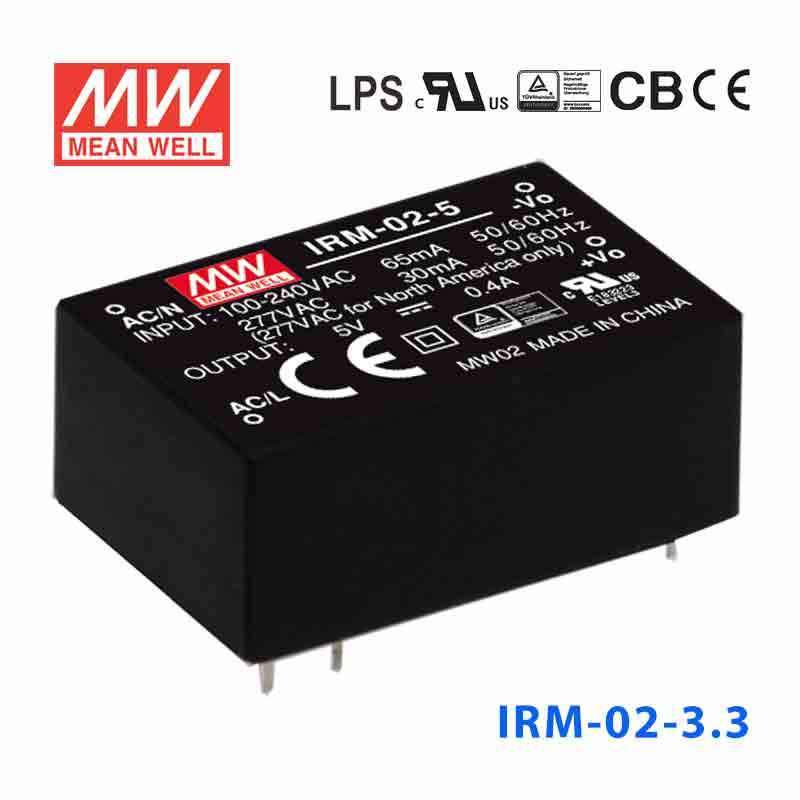

Mean Well IRM-02-3.3 Switching Power Supply 2W 3.3V 600mA - Encapsu...
Please Login for Pricing
Description
Description
The IRM-02 is a 2W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating2 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.6 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length3.37 cm
-
Width2.22 cm
-
Height1.5 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-02-3.3 to power a 3.3V microcontroller or embedded logic board from AC mains?
Yes, this model is a 3.3V constant-voltage supply rated at 2W. It fits embedded control or logic boards that require 3.3V DC and stay within the unit's 2W output capability.
Is this a good fit for a small 3.3V IoT or monitoring module inside industrial equipment?
It can be a fit for low-power 3.3V monitoring, sensing, or IoT electronics used inside larger industrial equipment. The wide 85-305VAC input range and miniature encapsulated PCB-mount format support compact internal designs.
Can the IRM-02-3.3 power low-power 3.3V communication or interface electronics on a control PCB?
Yes, it is intended for small constant-voltage 3.3V DC loads on embedded or automation boards. The 2W rating makes it more suitable for low-power interface and control electronics than for high-demand 3.3V subsystems.
Would this work for a compact 3.3V sensor-processing board in a machine or instrument?
It is appropriate for compact 3.3V electronics in instruments or machines when the board's demand stays within 2W. The 33.7 × 22.2 × 15.0 mm package helps where internal board space is limited.
Is the IRM-02-3.3 meant for outdoor or unsealed environments?
No IP rating or outdoor-use rating is listed for this unit. The specified operating range is -30°C to +85°C, but the encapsulated PCB-mount style indicates use inside protected enclosures rather than in direct outdoor exposure.
