Can I use the IRM-05-15 for a 15V industrial sensor or small actuator circuit?

Yes, if the load needs a constant 15V output and stays within 4.95W and 0.33A. That makes it suitable for low-power 15V industrial and automation electronics rather than heavier 15V loads.

Is the IRM-05-15 a good fit for a compact embedded controller that runs on 15V?

It is intended for compact PCB integration, with a 45.7 × 25.4 × 21.5 mm encapsulated body and PCB mounting style. Its 15V, 0.33A output fits small embedded subsystems that do not exceed 4.95W.

Can this model power a small 15V interface module in automation equipment?

It can, provided the module requires constant-voltage 15V DC and draws no more than 0.33A. The 85-305VAC input range also helps when the equipment may be used on different AC supply standards.

How does the IRM-05-15 compare with the other IRM-05 versions?

The IRM-05 family includes IRM-05-3.3 at 4.125W, 3.3V, 1.25A; IRM-05-5 at 5W, 5V, 1A; IRM-05-12 at 5.04W, 12V, 0.42A; IRM-05-15 at 4.95W, 15V, 0.33A; and IRM-05-24 at 5.52W, 24V, 0.23A. The main difference is the output voltage and corresponding current rating within the same compact encapsulated format.

Can the IRM-05-15 be used in cold or hot environments, and is it outdoor rated?

Its specified operating temperature range is -40°C to +85°C, which is broad for equipment installed in demanding indoor conditions. No IP rating is listed, so it is not described as an outdoor-exposed unit and is best used inside a protective enclosure.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

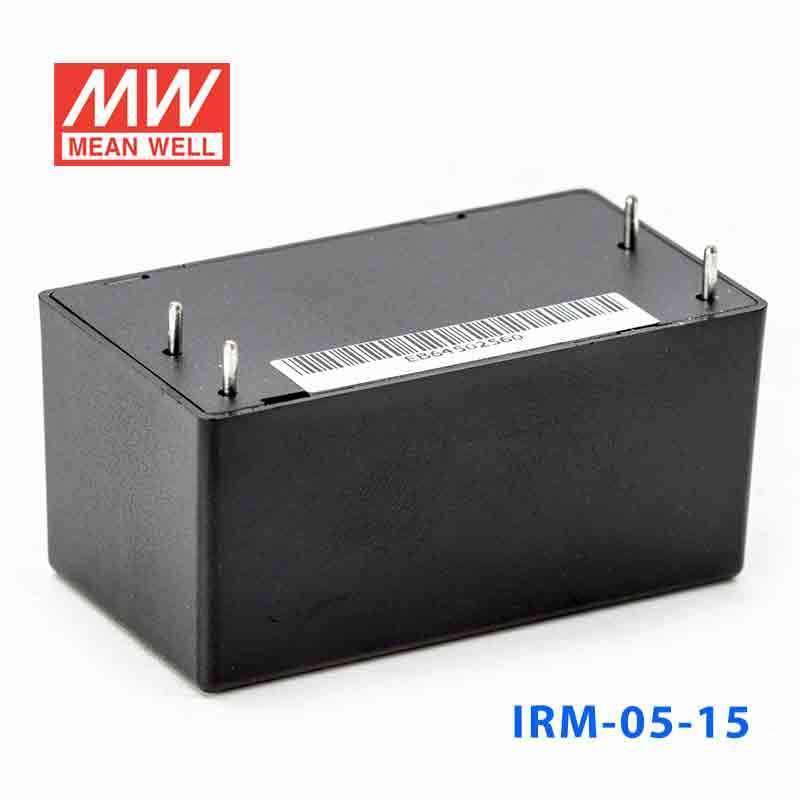

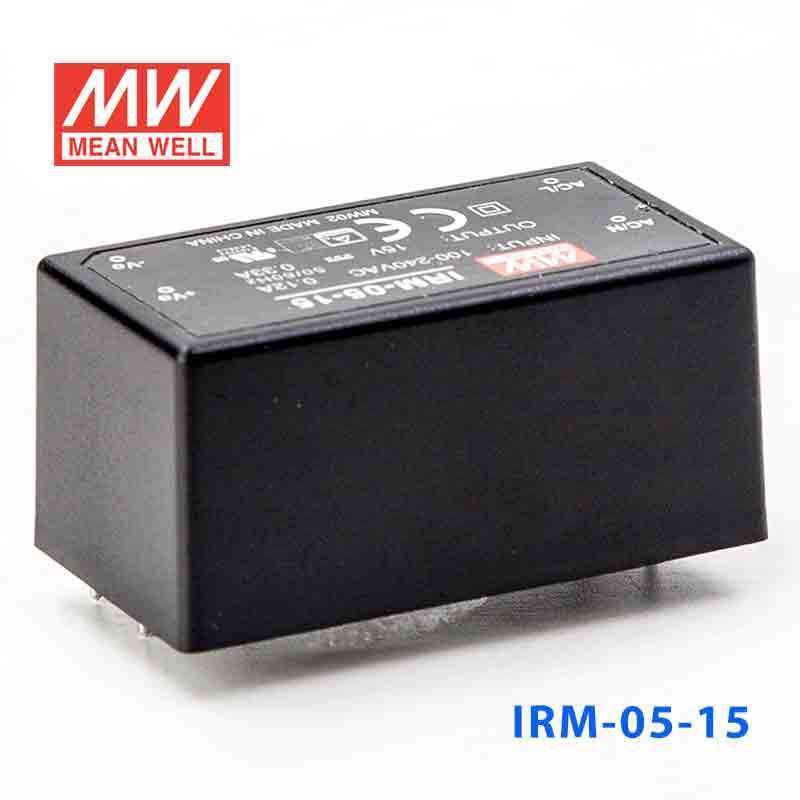

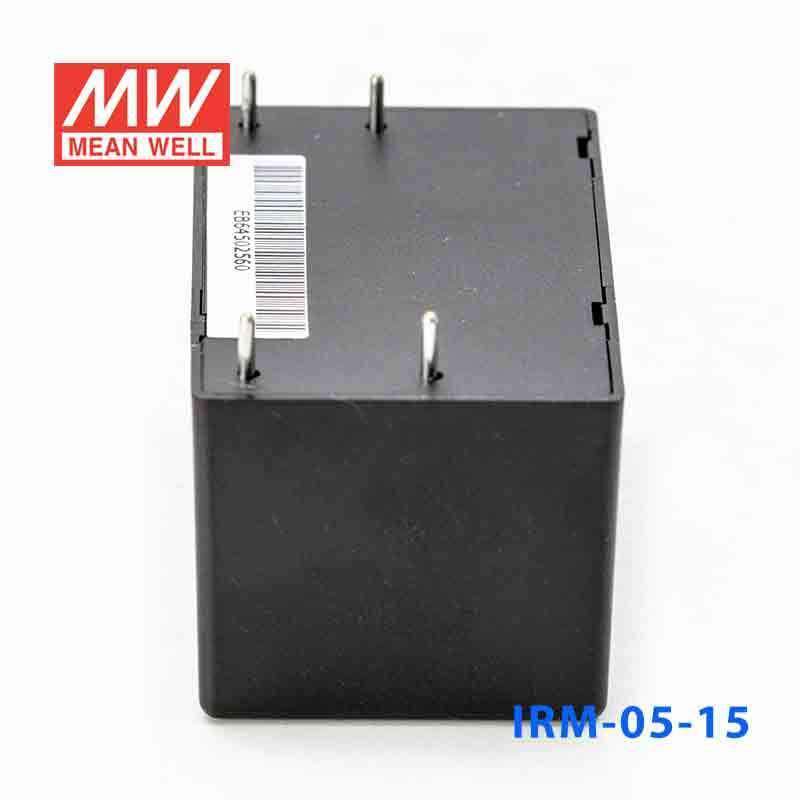

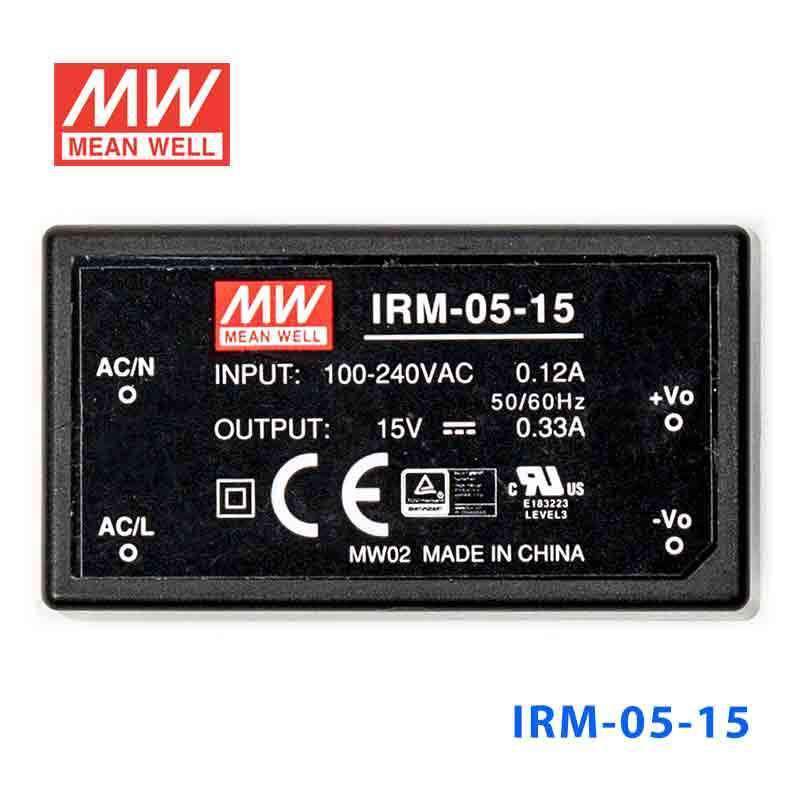

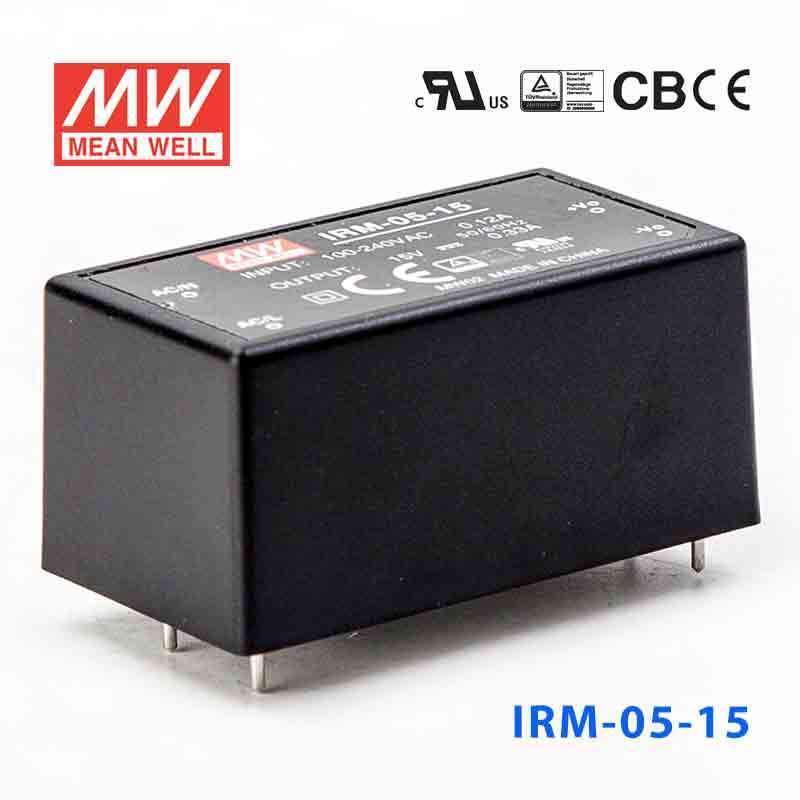

Mean Well IRM-05-15 Switching Power Supply 4.95W 15V 0.33A - Encapsulated

miniature encapsulated typePCB mouting style

SKU:

IRM-05-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The IRM-05 is a 5W Mean Well power converter (input range: 85~305VAC).

Key Features

✓ Input voltage range: 85~305VAC
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage
✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336 -1
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8430699905323, "variants" :[{ "context":"default", "variant_id": 45663644188971, "sku":"IRM-05-15", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage range: 85~305VAC

✓ 3KVAC reinforced I/O isolation

✓ Protections: Overload / Over voltage

✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336 -1

✓ 3 years warranty
