Can I use the IRM-05-24 for a small 24V PLC input, relay, or control circuit?

Yes, if the circuit needs constant-voltage 24V DC and the load stays within 5.52W and 0.23A. That suits low-power 24V industrial control and automation electronics, not higher-current 24V hardware.

Is the IRM-05-24 suitable for embedded 24V electronics inside compact industrial equipment?

It is built for compact PCB integration, measuring 45.7 × 25.4 × 21.5 mm in a miniature encapsulated package. Its output is 24V at up to 0.23A, so it fits small embedded 24V sections rather than larger field loads.

Can this model be used for a low-power 24V monitoring or signaling module?

It can be used where the module requires a regulated 24V constant-voltage source and total consumption remains within 5.52W. The wide 85-305VAC input range also supports equipment intended for varied AC input conditions.

What are the main differences between the IRM-05-24 and the other IRM-05 options?

The IRM-05 series includes IRM-05-3.3 at 4.125W, 3.3V, 1.25A; IRM-05-5 at 5W, 5V, 1A; IRM-05-12 at 5.04W, 12V, 0.42A; IRM-05-15 at 4.95W, 15V, 0.33A; and IRM-05-24 at 5.52W, 24V, 0.23A. The IRM-05-24 is the 24V version in that family, with the lowest current rating of the group because it operates at the highest output voltage.

Is the IRM-05-24 rated for outdoor use or temperature extremes?

Its operating temperature range is -40°C to +85°C, which supports use in equipment exposed to a wide temperature span. No IP rating is listed, so it should be treated as a protected internal power component rather than an outdoor-exposed supply.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

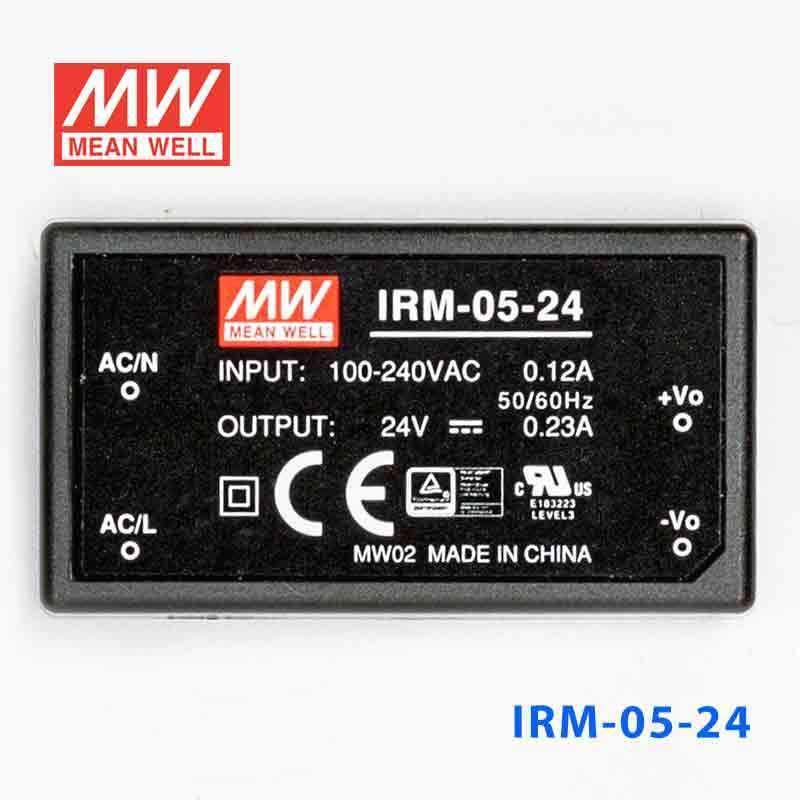

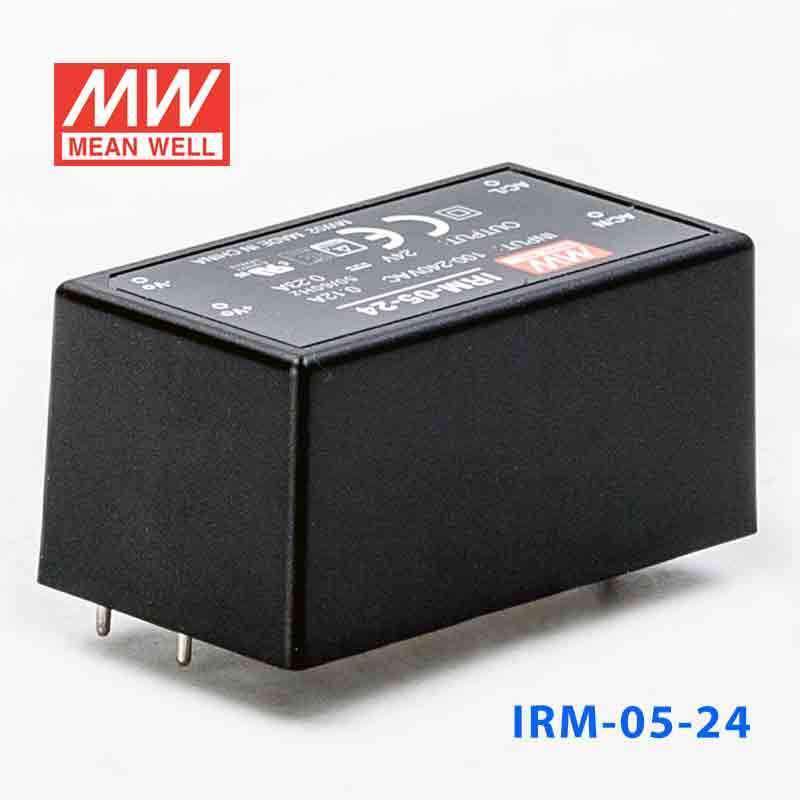

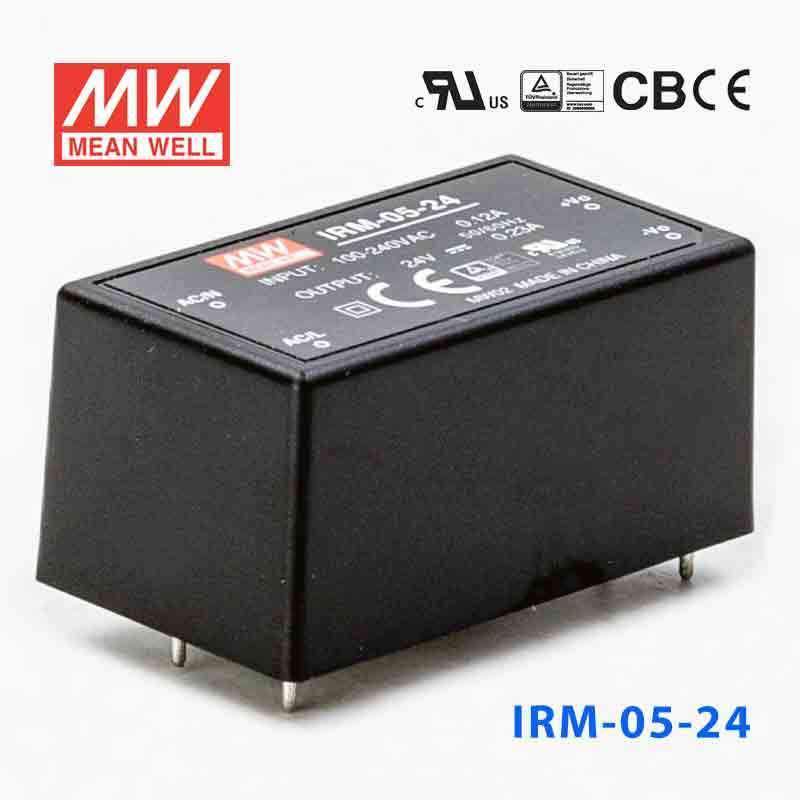

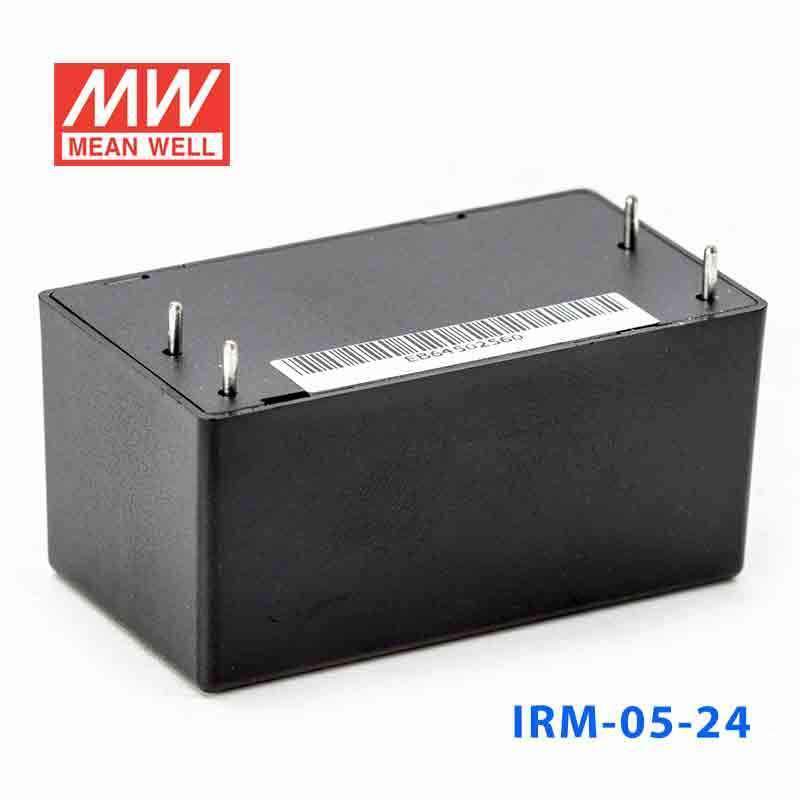

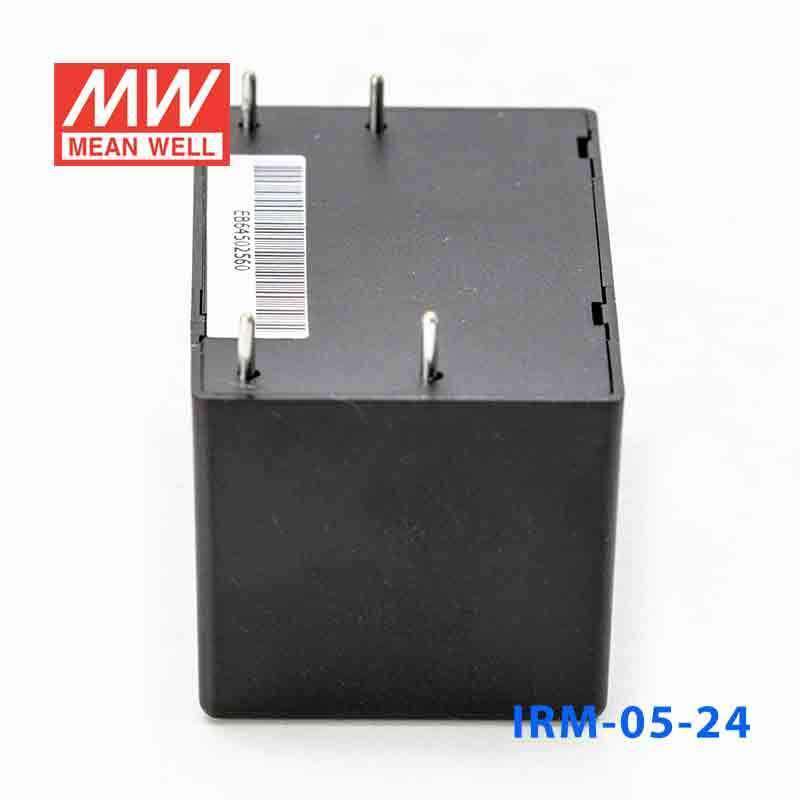

Mean Well IRM-05-24 Switching Power Supply 5.52W 24V 0.23A - Encapsulated

miniature encapsulated typePCB mouting style

SKU:

IRM-05-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The IRM-05 is a 5W Mean Well power converter (input range: 85~305VAC).

Key Features

✓ Input voltage range: 85~305VAC
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage
✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336 -1
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8430700593451, "variants" :[{ "context":"default", "variant_id": 45663646220587, "sku":"IRM-05-24", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage range: 85~305VAC

✓ 3KVAC reinforced I/O isolation

✓ Protections: Overload / Over voltage

✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336 -1

✓ 3 years warranty
