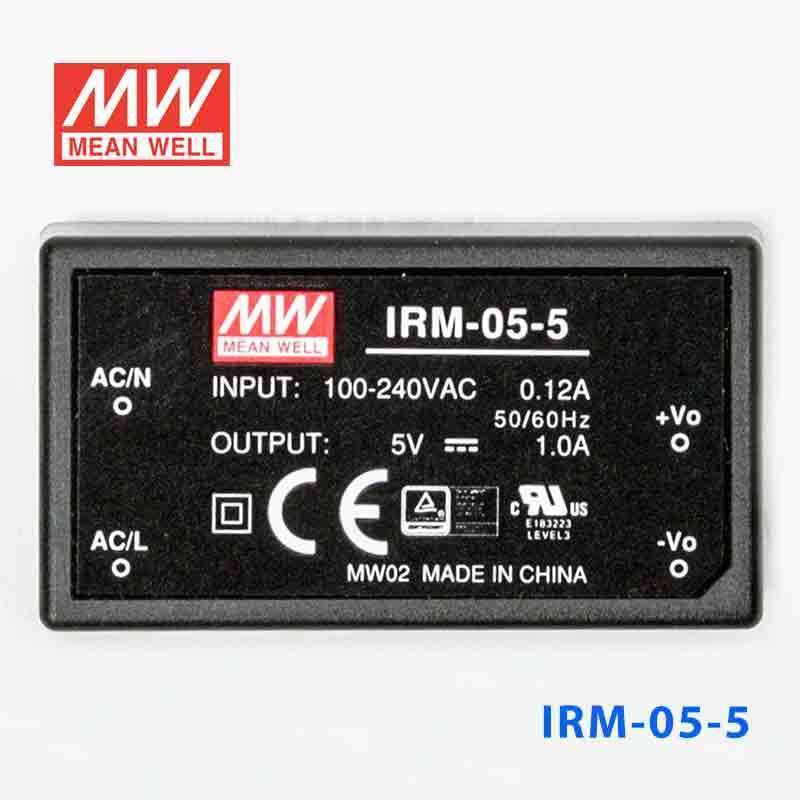

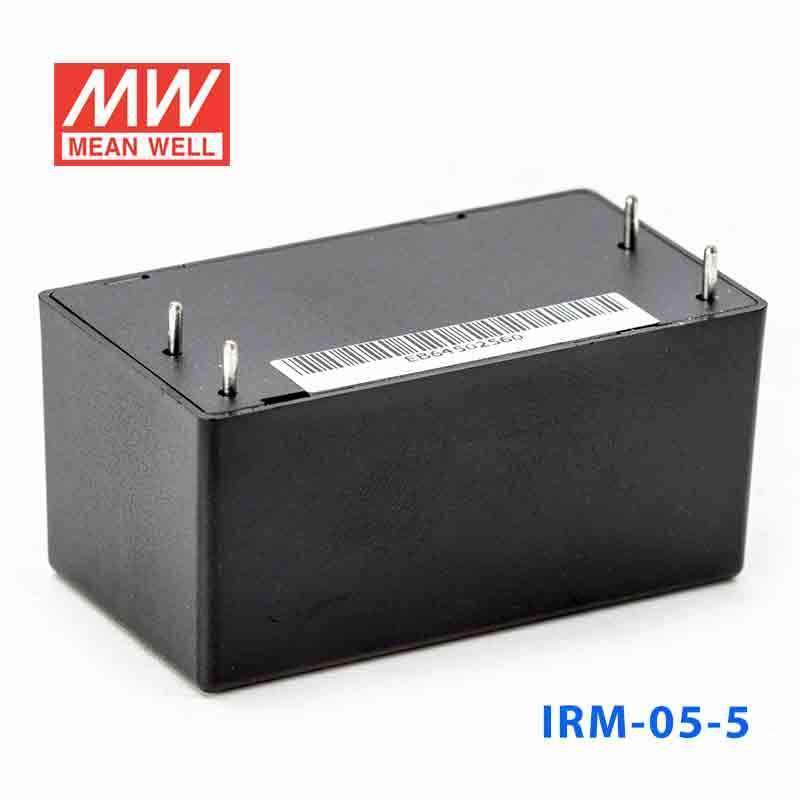

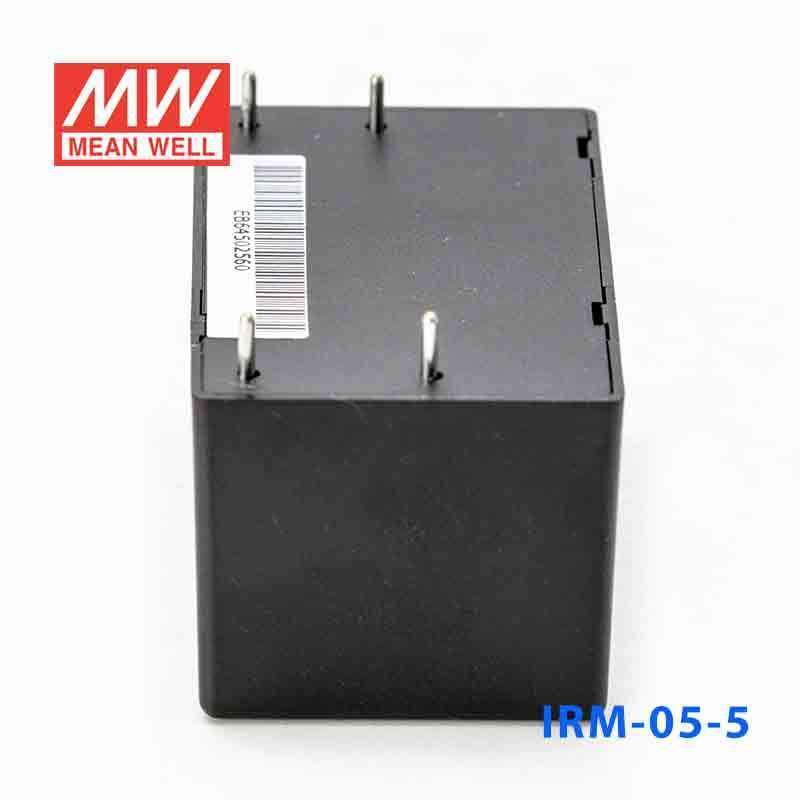

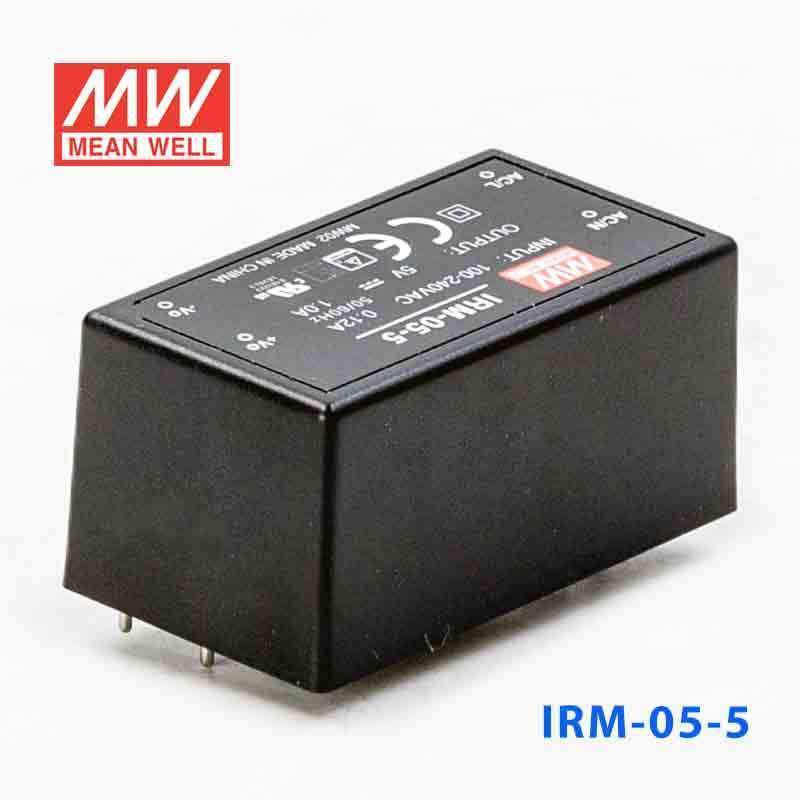

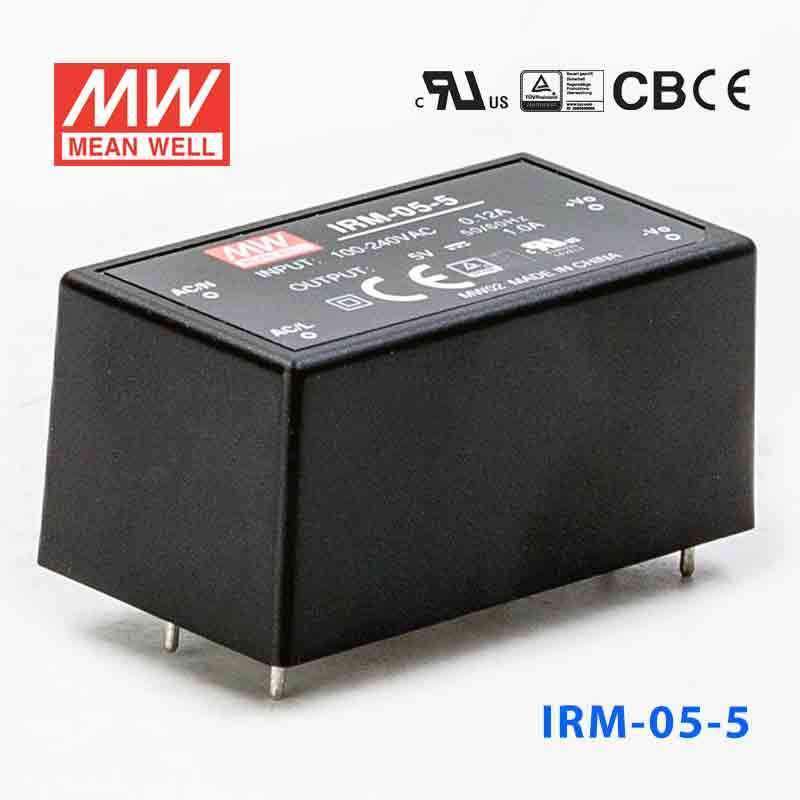

Mean Well IRM-05-5 Switching Power Supply 5W 5V 1A - Encapsulated
Please Login for Pricing
Description
Description
The IRM-05 is a 5W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336 -1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating5 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length4.57 cm
-
Width2.54 cm
-
Height2.15 cm
-
Weight0.03 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well IRM-05-5 designed for?
The IRM-05-5 is a 5W AC-DC switching power supply that provides a regulated 5V output at up to 1A. Its compact encapsulated design makes it a practical choice for space-constrained electronic equipment that needs a small internal power module.
What input voltage range does the IRM-05-5 support?
This model supports universal input from 85 to 264VAC and also accepts 120 to 370VDC. That wide range makes it suitable for products intended for different global mains environments without needing multiple input variants.
What output does the IRM-05-5 provide?
The IRM-05-5 is rated for a 5V DC output with 1A rated current and 5W total power. For buyers needing a compact fixed 5V supply, those are the key electrical output ratings for this model.
Does the IRM-05-5 include built-in protection features?
Yes. Mean Well specifies short circuit, overload, and over voltage protection for the IRM-05-5, with overload protection listed at 115% to 260% and over voltage protection at 115% to 135% of rated output voltage.
Is the IRM-05-5 suitable for demanding temperature conditions?
The product description lists a working temperature range of -30 to +70°C, with reference to the output derating curve. That makes it suitable for a broad range of industrial and enclosed equipment environments, provided the application stays within the specified thermal limits.
How does the IRM-05-5 differ from a larger enclosed power supply?
The IRM-05-5 is built for low-power 5V applications where compact size and high power density matter more than higher wattage capacity. It also has very low no-load power consumption below 0.1W, which can be an advantage in energy-sensitive equipment.
What certifications and compliance details are listed for the IRM-05-5?
This model is listed with UL60950-1 and TUV EN60950-1 safety approvals. The description also includes EMC standards such as EN55022 Class B and several EN61000 immunity and harmonic standards, which is useful for buyers evaluating compliance requirements.
