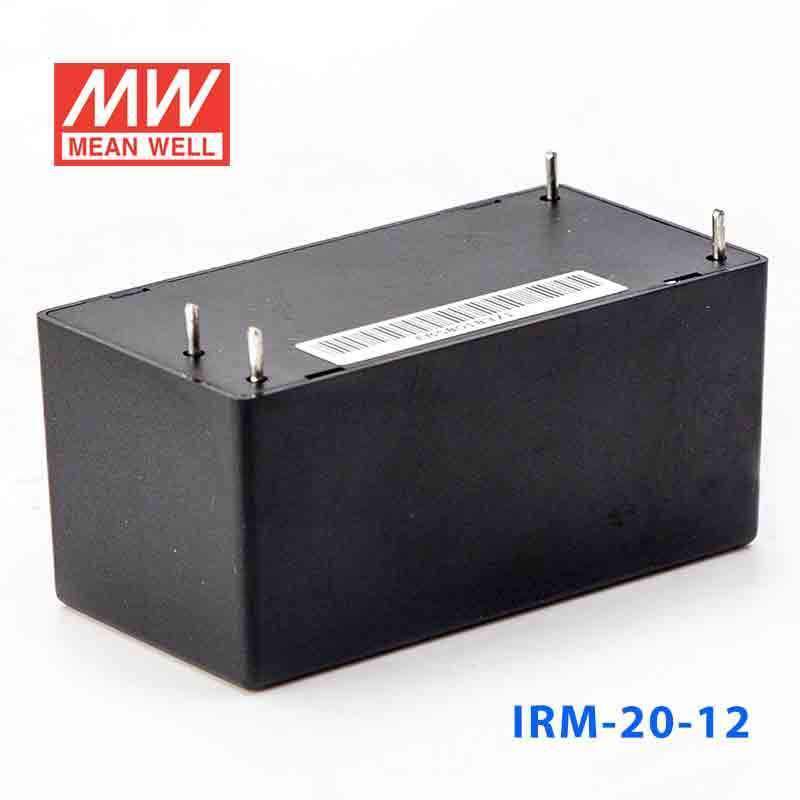

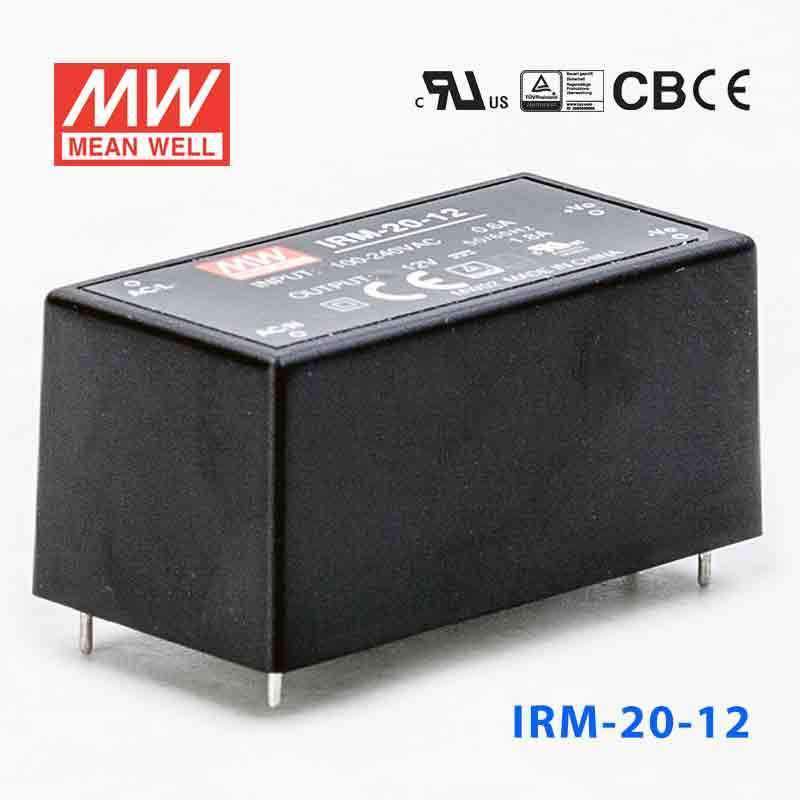

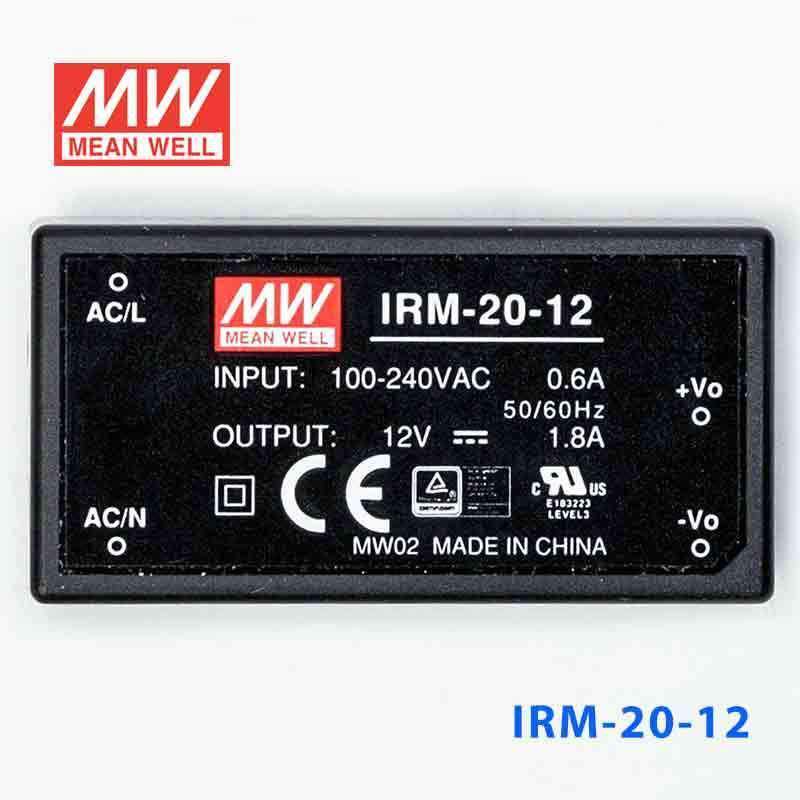

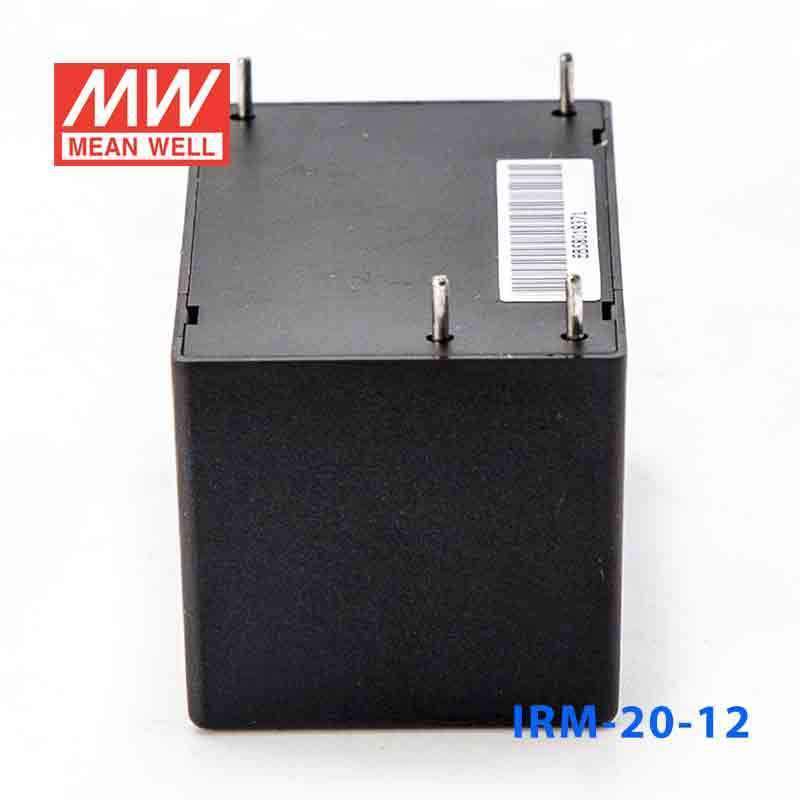

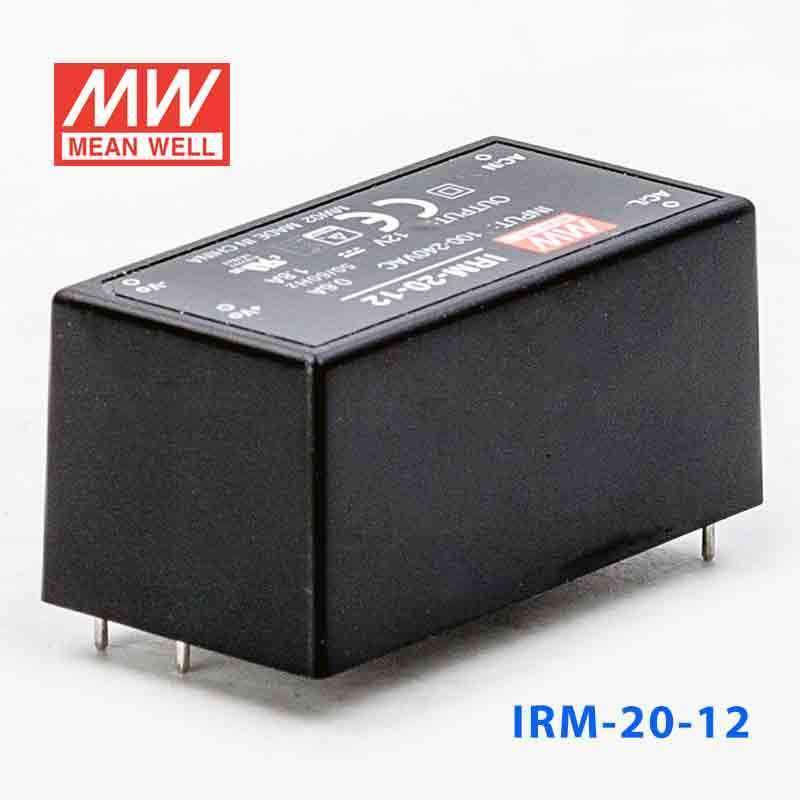

Mean Well IRM-20-12 Switching Power Supply 3W 12V 1.8A - Encapsulated

Yes, if the equipment needs a constant 12V input and the total demand stays within 1.8A and 21.6W. That fits many compact PLC accessories, control boards, and automation electronics that run on a 12V DC rail. The wide 85-305VAC input is also useful for equipment deployed across varying mains conditions.

It can be a good fit when the complete 12V load remains at or below 1.8A. That gives more current headroom than the lower-power 12V IRM models for embedded systems with several 12V subsystems. Its PCB-mount encapsulated design is aimed at internal integration inside finished equipment.

Yes, for compact 12V monitoring and panel electronics that stay within 21.6W. The 52.4 × 27.2 × 24.0 mm package keeps the supply relatively compact for board-level use. It is a better match for moderate 12V loads than for high-current motors, heaters, or other heavier 12V equipment.

The rated operating temperature is -30°C to +70°C, which supports many protected industrial environments. No IP rating is listed in the provided specs, so the specs do not verify exposed outdoor suitability. Based on the stated data, it should be treated as an enclosed internal power supply module.

The provided 12V siblings are IRM-01-12 and IRM-01-12S at 1W and 0.08A, IRM-02-12 and IRM-02-12S at 2W and 167A, IRM-03-12 and IRM-03-12S at 3W and 250A, IRM-05-12 at 5.04W and 0.42A, IRM-10-12 at 10.2W and 0.85A, IRM-15-12 at 15W and 1.25A, IRM-20-12 at 21.6W and 1.8A, IRM-30-12 and IRM-30-12ST at 30W and 2.5A, IRM-45-12 and IRM-45-12ST at 45.6W and 3.8A, IRM-60-12 and IRM-60-12ST at 60W and 5A, and IRM-90-12 and IRM-90-12ST at 80.4W and 6.7A. IRM-20-12 sits above the 15W, 1.25A model and below the 30W, 2.5A model in the 12V range.
