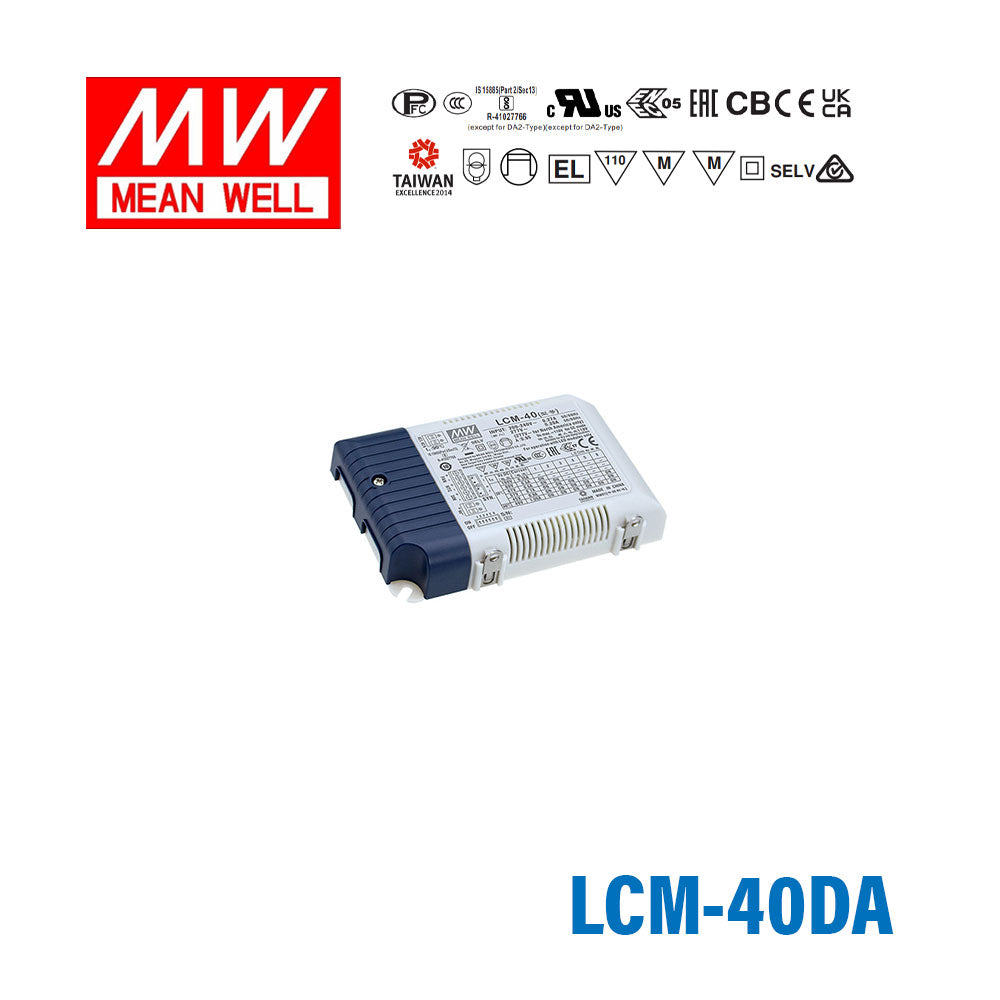

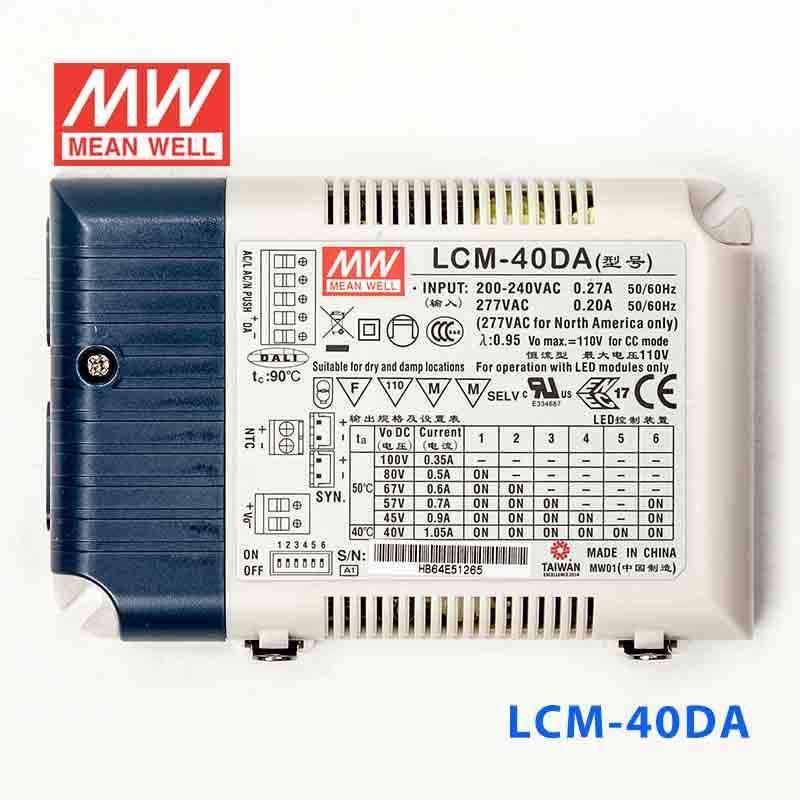

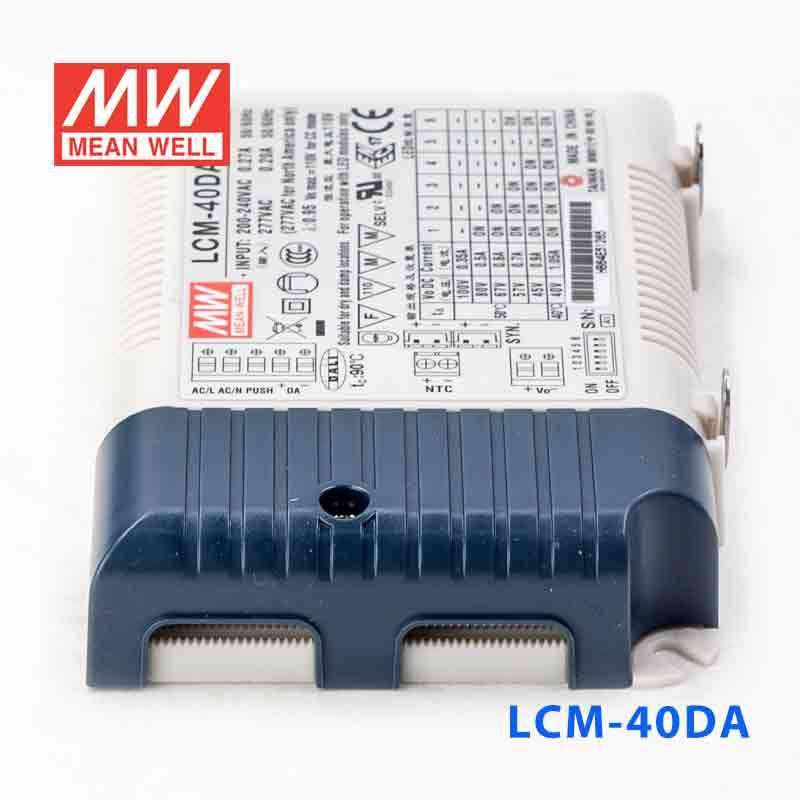

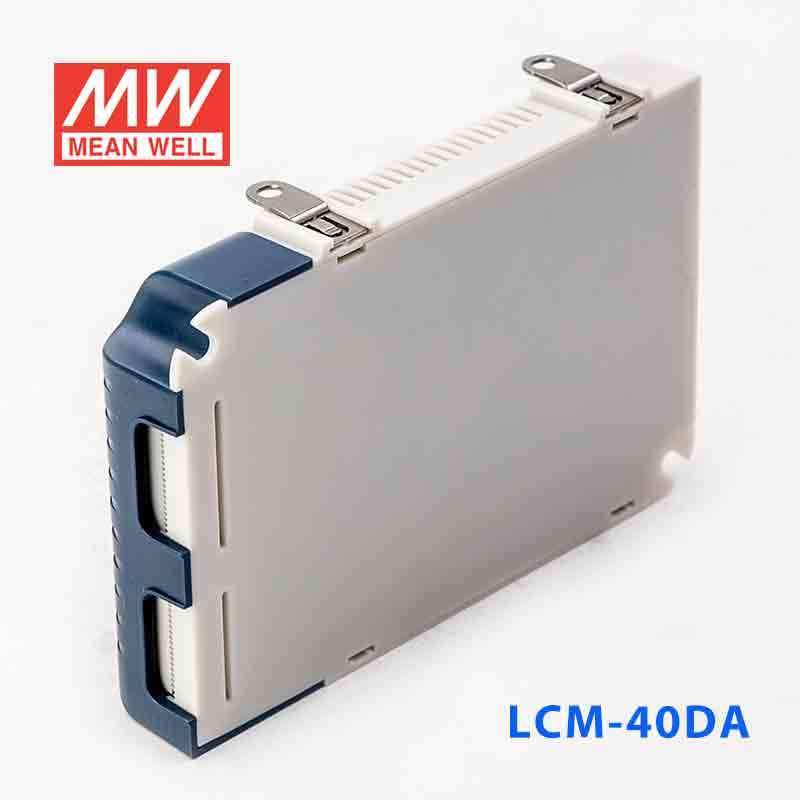

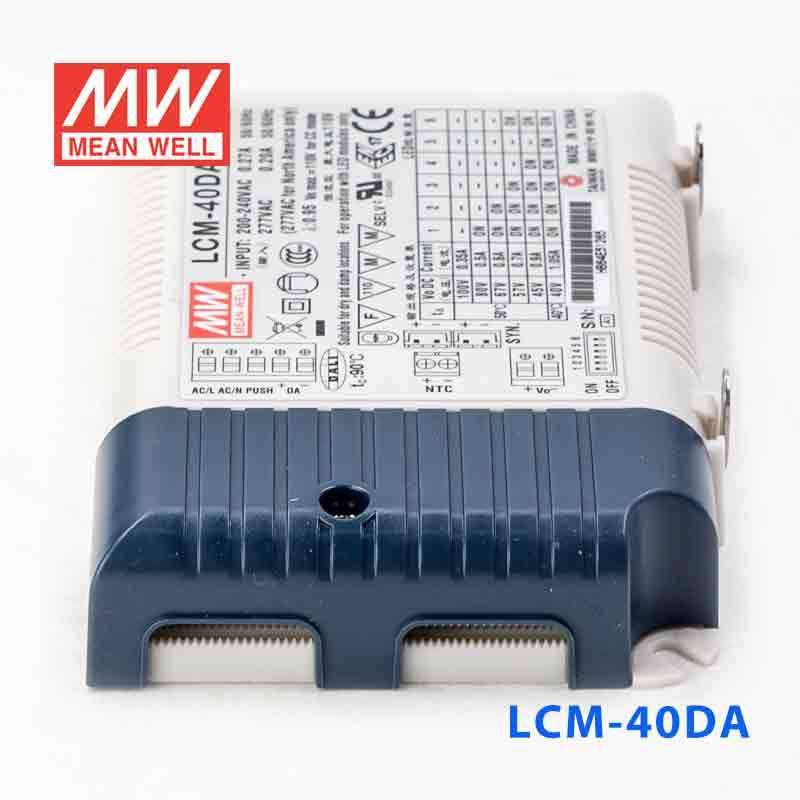

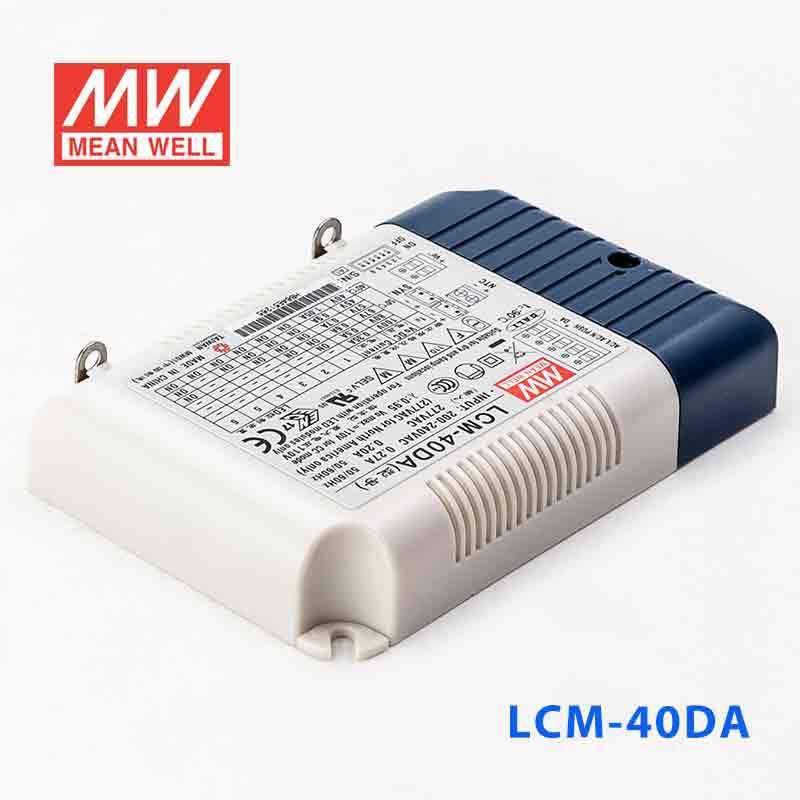

Mean Well LCM-40DA Power Supply 42W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - DALI and Push

selectable output current using dip switch, flicker-free, Class II without FG, DALI
SKU:
LCM-40DA

|

Description

Features

Constant current mode output with multiple levels selectable by dip switch
Emergency lighting application is available according to IEC61347-2-13
Built-in active PFC function and class II design
Standby power consumption <0.5W
Functions: DALI interface (logarithm or linear dimming curve selectable); push dimming synchronization up to 10 units
3 years warranty

General Specification

AC input voltage range 180~295VAC; 254~392VDC
AC inrush current (Typ.) COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection Constant current limiting, recovers automatically after the fault condition is removed
Over temperature protection Shut down o/p voltage, re-power on to recover
Setup time 500ms / 230VAC
Withstand voltage I/P-O/P:3.75KVAC;I/P-DA:1.5KVAC; O/P-DA:1.5KVAC
Working temperature Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety standards UL8750(except for DA2-Type), CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14, GB19510.1, BIS IS15885(except for DA2-Type), EAC TP TC 004 approved; According to BS EN/EN61347-2-13 appendix J suitable for emergency installations
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm) 123.5*81.5*23mm
Packing 54pcs/15Kg

Specifications

  • Brand
    Mean Well
  • Series
    LCM DALI Series
  • Power Rating
    42 Watt
  • Output Voltage
    65 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    180V~295V
  • Standards Met
    BSI,CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~90°C
  • Warranty
    3 Year
  • Length
    12.35 cm
  • Width
    8.15 cm
  • Height
    2.3 cm
  • Weight
    0.24 kg

File Downloads

::specification::
