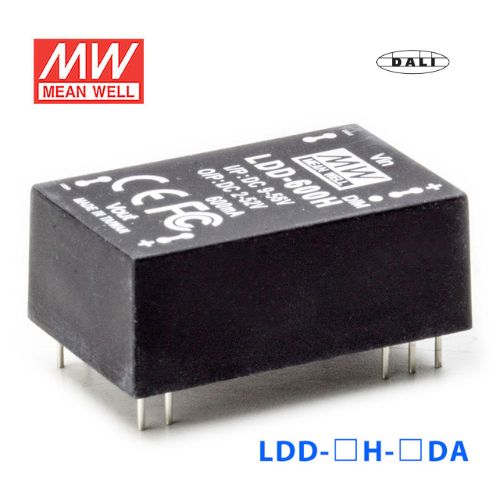

Mean Well LDD-1400H-WDA DC/DC LED Driver CC 1400mA - Step-down
Please Login for Pricing
Description
Description
Features
| DC/DC step-down converter |
| Constant current output: 350mA to 1400mA |
| Wide input voltage: 6~50VDC; Wide output LED string voltage: 3~45VDC |
| High efficiency up to 95% |
| Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors |
| Built-in PWM and remote ON/OFF control |
| Protections: Short circuit |
| Cooling by free air convection |
| Fully encapsulated with IP65 level |
| Compact size |
| Suitable for driving illumination LED |
| 3 years warranty |
General Specification
| Current accuracy | ±5% at 48VDC input |
| Over temperature protection | Protection type : Shut down, recovers automatically after temperature goes down |
| Efficiency | 95% at full load and 48VDC input |
| Short circuit protection | Regulated at rated output current |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
| Temp. Coefficient | ±0.03% / °C |
| Dimension (LxWxH) (mm) | 40.6*23.5*10.1mm or 1.6"*0.93"*0.40" inch |
| Potting material | Expoxy(UL94-V0) |
Specifications
Specifications
-
BrandMean Well
-
SeriesLDD Series
-
Power Rating50.4 Watt
-
Output Voltage36 Volt
-
Rated Current1.4 Ampere
-
Input Voltage6V~50V
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length4.06 cm
-
Width2.35 cm
-
Height1.01 cm
-
Weight0.02 kg
