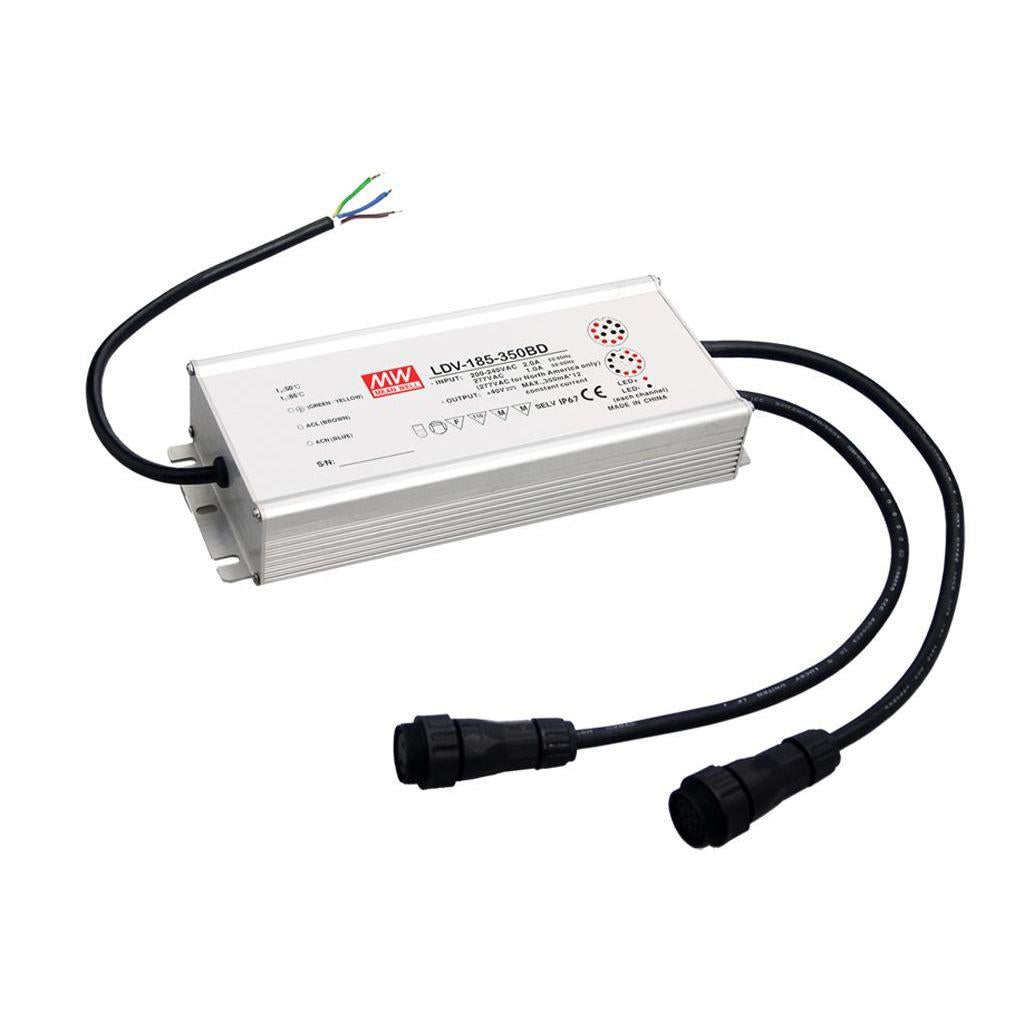

Mean Well LDV-185-700A AC-DC Multiple channel LED driver CC 147W
Log in to see priceOverview
LDV-185-350A(Standard): IP67 rated. No timer dimming function. LDV-185-350AD(Option): IP67 rated. Built-in timer dimming function,contact MEAN WELL for details. LDV-185-350A-CA(Option): Including PSU mating accessory (male waterproof connector with cable),contact MEAN WELL for details.
Features
- 180~295VAC input range
- Multiple channel with constant current output
- Meet 4KV surge immunity level(EN61000-4-5)
- Protections: Short circuit / Over voltage / Over temperature
- Built-in active PFC function
- Cooling by free air convection
- IP67 design for indoor or outdoor installations
- Optional timer dimming function
- High efficiency up to 88%
- -40°C can power on
- Suitable for LED lighting and moving sign applications
- 3 years warranty
Specifications
LDV-185-700ASpecifications from the official datasheet (2012-03-26 edition)Download datasheet PDF
OUTPUT
- SINGLE CHANNEL RATED CURRENT
- 700mA
- DC VOLTAGE RANGENote 5.
- 30~35V
- RATED POWER(max.)Note 3.
- 147W
- MAX CHANNELNote 3.
- 6CH
- SETUP, RISE TIMENote 2.
- 2500ms, 50ms
- HOLD UP TIME
- 10ms / 230VAC
- CONSTANT CURRENT ACCURACY
- ±5%
INPUT
- VOLTAGE RANGE
- 180~ 295VAC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.95/230VAC PF>0.92/277VAC at full load(please refer to "Power Factor Characteristic" Curve)
- EFFICIENCY (Typ.)Note 4.
- ≥88%
- AC CURRENT
- 1.5A/230VAC 1.0A/277VAC
- INRUSH CURRENT(max.)
- COLD START 60A/230VAC
- LEAKAGE CURRENT
- <0.75mA / 240VAC
PROTECTION
- SHORT CIRCUIT
- Channel shut down when each channel fault, re-power on to recovery
- OVER VOLTAGE
- 41~50V Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURE
- 100°C±10°C(RTH2) Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
- OTP DIMMING
- When the NTC (RTH3) temperature is higher than 90°C±10°C, PSU will enter dimming mode with decreasing output current
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70°C (Refer to "Derating curve" ) ,-40°C can power on
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80°C, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/°C (0 ~ 50°C)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- IP67 approved; Design refer to EN61347-1,EN61347-2-13,UL8750
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC 1minute
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH
- EMC EMISSION
- Compliance to EN55015,EN61000-3-2 Class C (≥75% load) ; EN61000-3-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level (surge 4KV), criteria A
OTHERS
- MTBF
- 198.2Khrs min. MIL-HDBK-217F (25°C)
- DIMENSION
- 222.2*90*38.8mm (L*W*H)
- PACKING
- 1.27 Kg; 12pcs/16.2Kg/1.02CUFT
Certifications & ratings
- IP level
- IP67
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
- 2. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 3. Please do not exceed the rated power when choosing channel quantity and voltage range(350C/700C model).
- 4. Efficiency is measured under 230VAC input with Pout>120W and each output channel connecting with the same quantity of LEDs(similar Vf sum).
- 5. DC output voltage is measured between LED+ ~ LED-.
- 6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
