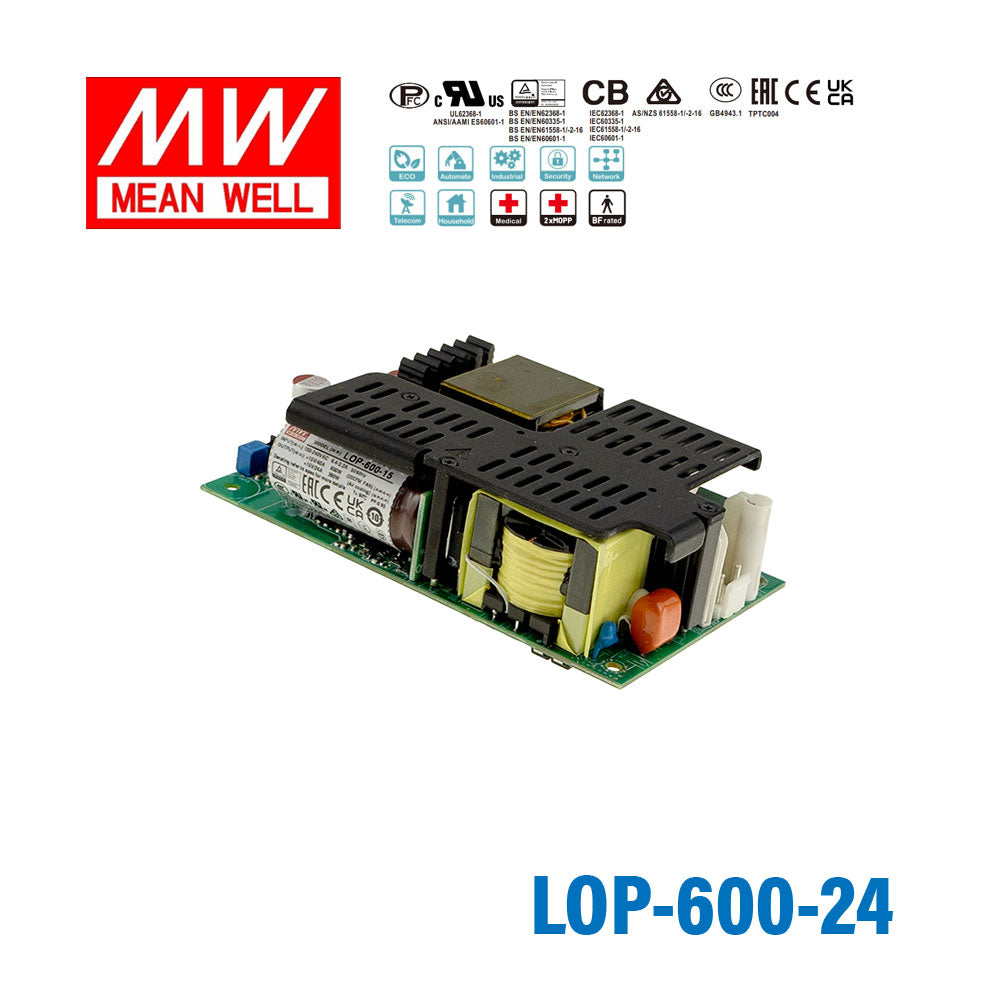

Mean Well LOP-600-24 600W 5"×3" Low Profile Open Frame Po...
Please Login for Pricing
Description
Description
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓5"x3" compact size with low profile
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields
- ✓150% peak load @ 3s
- ✓400W convection, 600W with FAN 23CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 95%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current16.7 Ampere
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length12.7 cm
-
Width7.62 cm
-
Height3.35 cm
-
Weight0.48 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the key electrical specs of the Mean Well LOP-600-24?
The Mean Well LOP-600-24 is a 600W open frame AC-DC power supply with a 24V output and rated current of 16.7A. It accepts 80 to 264VAC input, includes active PFC, and reaches efficiency up to 95%.
Is the LOP-600-24 suitable for space-constrained equipment?
Yes. This model uses a compact 5 x 3 inch footprint and a low-profile design, with a height of 33.5mm for the 24V version. That makes it a strong fit for equipment where board space and vertical clearance are limited.
Can the LOP-600-24 operate in harsh temperature environments?
This power supply is rated for operation from -40°C to +80°C, subject to the manufacturer's derating guidance. That wide operating range makes it suitable for demanding industrial and enclosed equipment environments.
Does the LOP-600-24 support medical or safety-sensitive applications?
The LOP-600-24 carries medical IEC/EN/UL 60601-1 approvals and is specified with extremely low leakage current and 2 x MOPP. Mean Well also states it is suitable for BF medical applications, in addition to ITE, household, and industrial use categories.
How does the LOP-600-24 handle peak loads and cooling conditions?
This model is rated for 400W under convection cooling and up to 600W with 23CFM forced-air cooling. It also supports 150% peak load for 3 seconds, which can help with short-duration load surges in demanding equipment.
What protection features are built into the Mean Well LOP-600-24?
The LOP-600-24 includes short circuit, overload, overvoltage, and overtemperature protection. The overload protection operates in hiccup mode after 3 seconds and recovers automatically after the fault is removed, while overvoltage and overtemperature use shutdown-based protection behavior.
