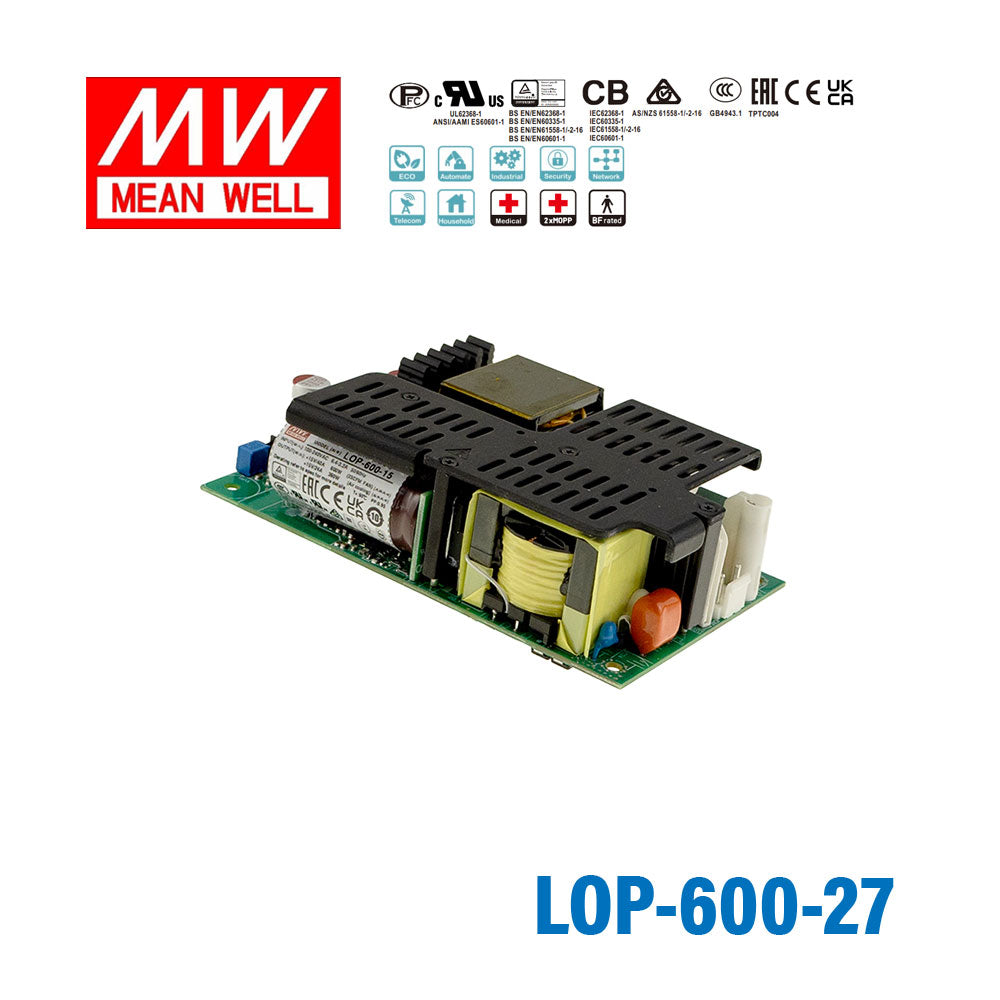

Mean Well LOP-600-27 600W 5"×3" Low Profile Open Frame Power Supply 27V

The LOP-600-27 is a 600W low profile open frame AC-DC power supply designed for applications that need a regulated 27V DC output. Its certifications and feature set make it suitable for industrial, ITE, household, and certain medical-related equipment where an internal power supply is required.

This model provides a 27V DC output with a rated current of 14.8A and a 600W power rating. It accepts a wide 80 to 264VAC input range and also supports 113 to 370VDC input.

The LOP-600-27 uses a 5 inch by 3 inch compact footprint, with dimensions of 127 x 76.2 x 33.5 mm for the 15V to 54V versions, which includes the 27V model. Its low profile design helps in space-constrained equipment where height and board area matter.

Yes. This model is rated for operation from -40°C to +80°C, subject to the manufacturer's derating guidance. That wide temperature range makes it a strong option for equipment exposed to cold starts or elevated internal temperatures.

The LOP-600-27 includes medical-related approvals under IEC60601-1 and is specified with extremely low leakage current and 2 x MOPP, making it suitable for BF medical applications. It also carries additional safety approvals for ITE, household, and industrial standards, which broadens its use across regulated equipment categories.

This series is rated for 400W under convection cooling and up to 600W with 23CFM forced-air cooling. It also supports 150% peak load for 3 seconds, which can help with short-duration load surges in demanding equipment.

The LOP-600-27 includes short circuit, overload, overvoltage, and overtemperature protection. According to the product data, overload uses hiccup protection after 3 seconds and recovers automatically after the fault is removed, while overvoltage and overtemperature protection shut down the output until conditions return to normal or power is cycled as specified.

Yes. Its universal 80 to 264VAC input range, active PFC, and multiple international safety approvals make it suitable for equipment intended for broad regional deployment. The unit is also rated for operation at altitudes up to 5000 meters, which can matter in specialized environments.
