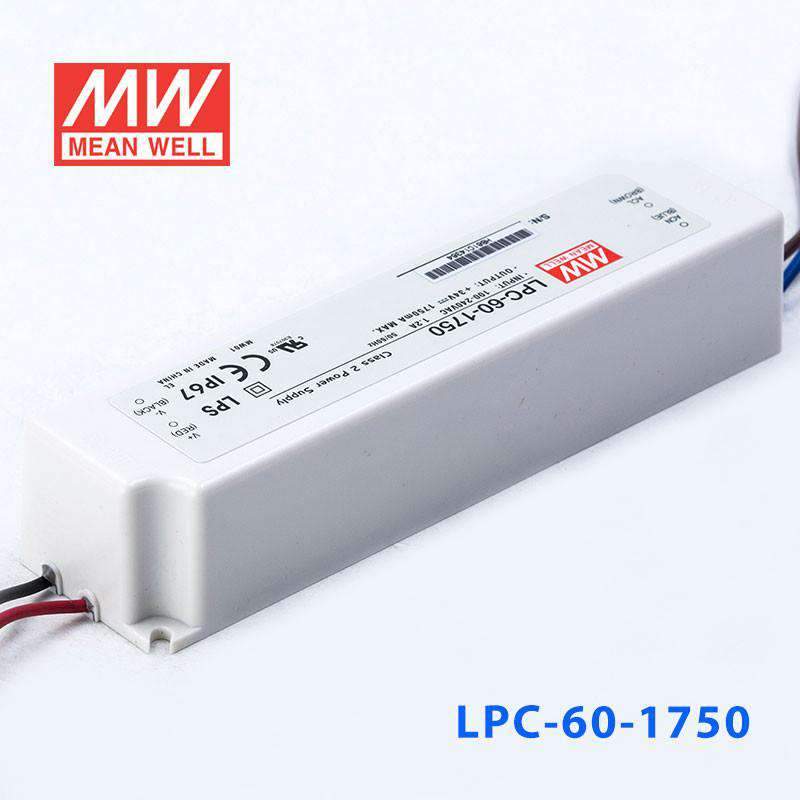

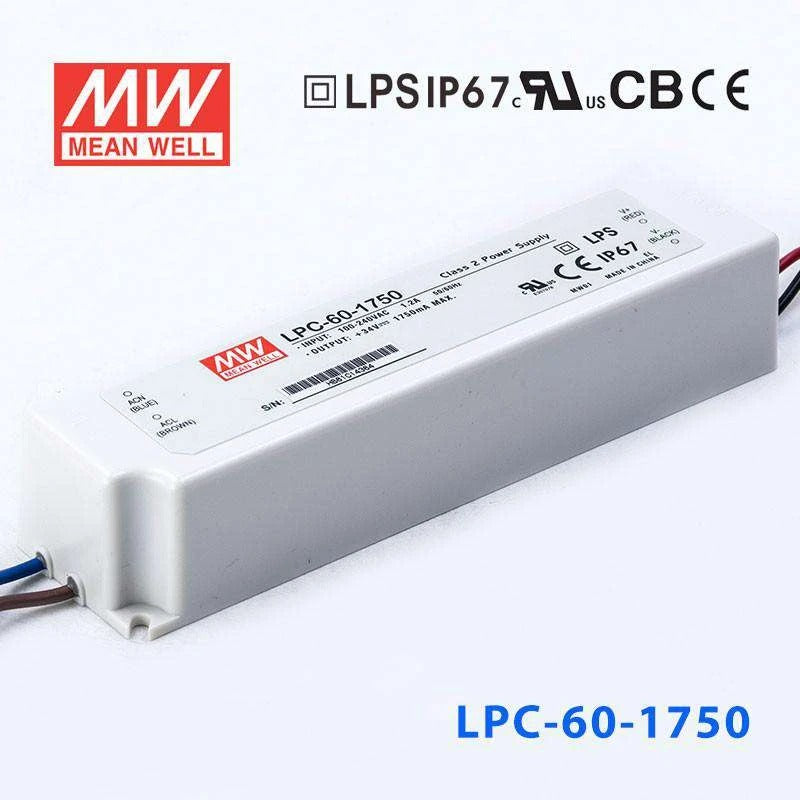

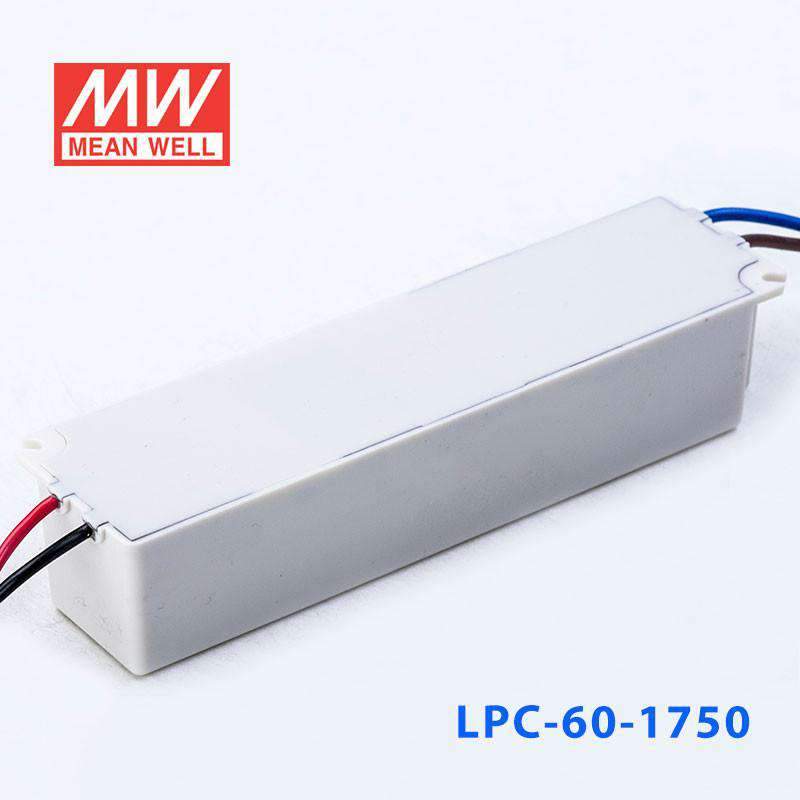

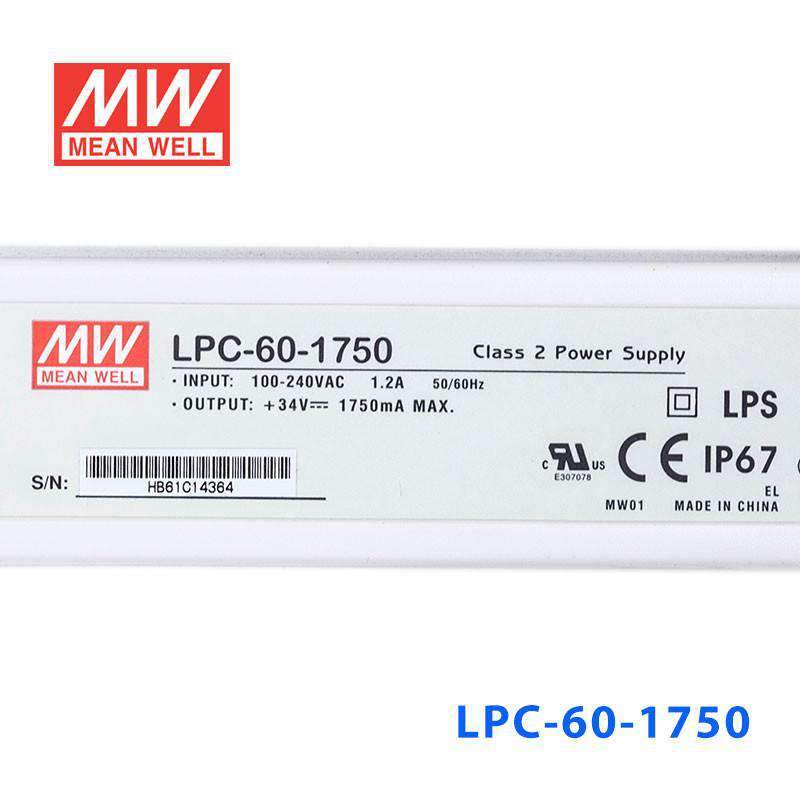

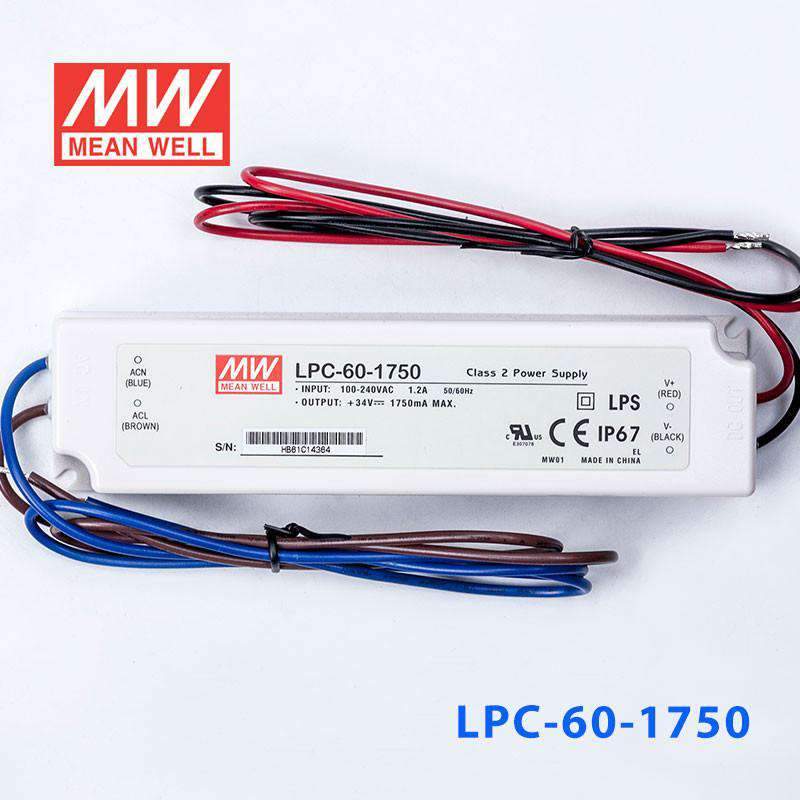

Mean Well LPC-60-1750 Power Supply 60W 1750mA

slim plastic case, economical, IP67
SKU:
LPC-60-1750

|

Description

Features

90~264VAC input
Fully encapsulated with IP67 level
Protections: Short circuit / Over voltage
Constant current design (C.C. mode)
Withstand 300VAC surge input for 5 seconds
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
2 years warranty


General Specification

AC input voltage range 90~264VAC
AC inrush current Cold start, 60A at 230VAC
Over voltage protection 105%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards LPC-20: UL1310, UL879, TUV EN60950-1 approved, LPC-35/60: UL1310 approved, LPC-150: Design refer to IEC60950-1
EMC standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input UL rated, 18AWGx2C (60cm)
Connection Output UL rated, 16AWGx2C (60cm)
Dimension (LxWxH)(mm) 162x 42x 30

Specifications

  • Brand
    Mean Well
  • Series
    LPC Series
  • Power Rating
    59.5 Watt
  • Output Voltage
    34 Volt
  • Rated Current
    1.75 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,CSA,EAC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~70°C
  • Warranty
    2 Year
  • Length
    16.25 cm
  • Width
    4.25 cm
  • Height
    3.2 cm
  • Weight
    0.4 kg
