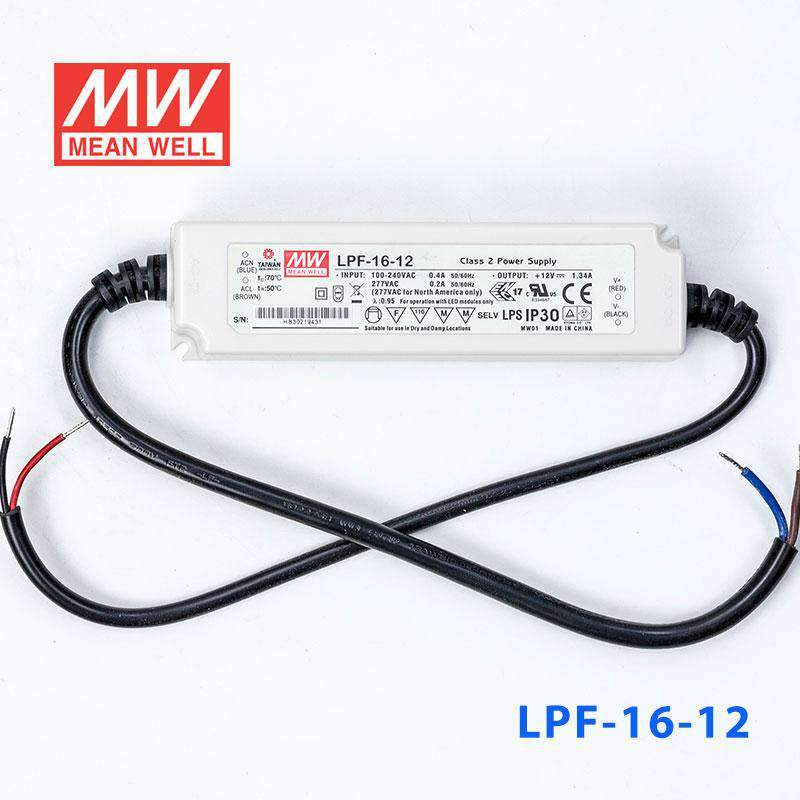

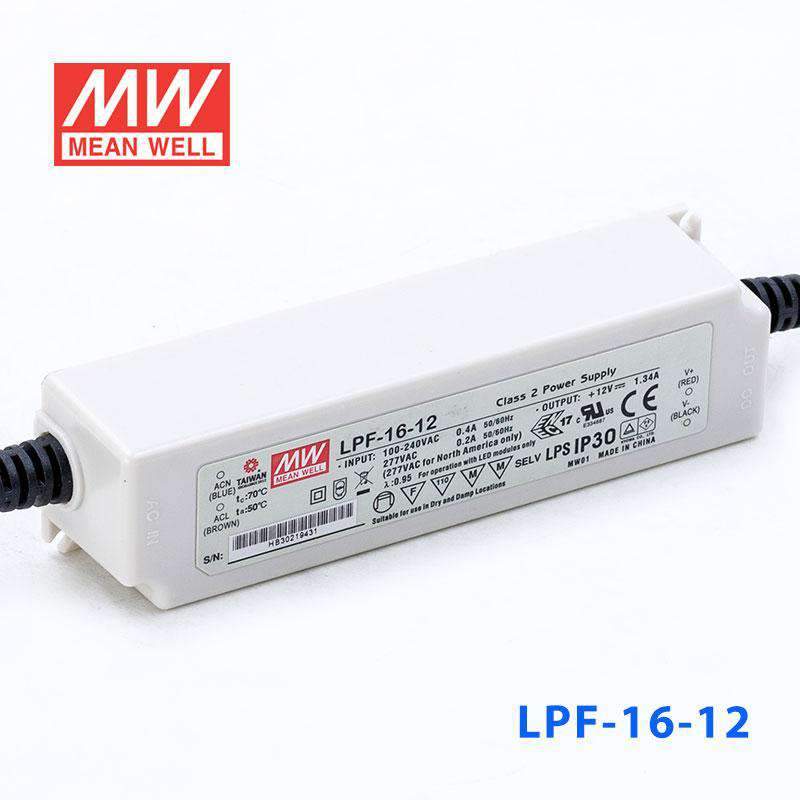

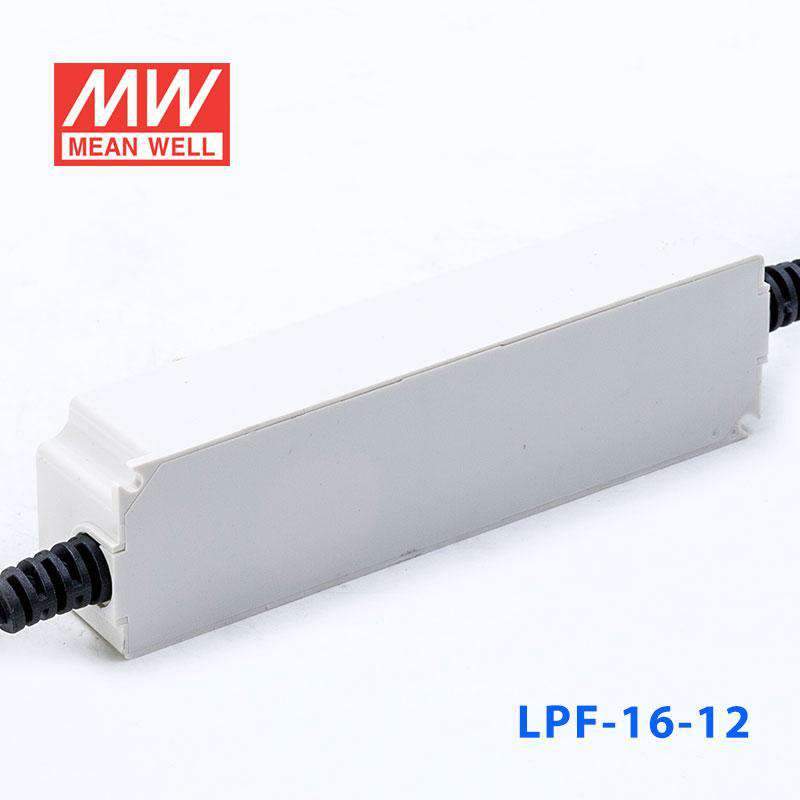

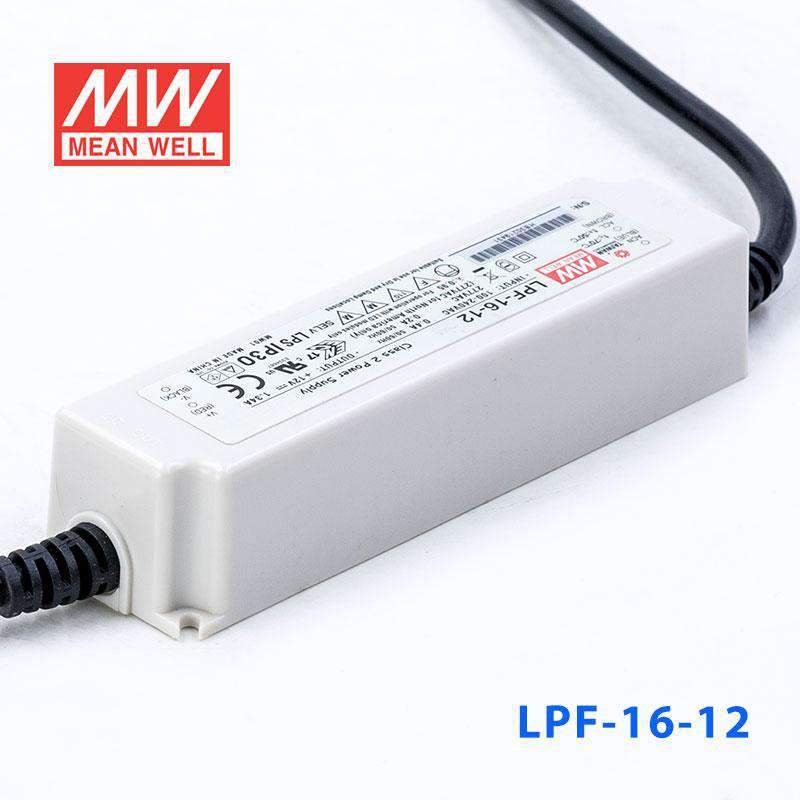

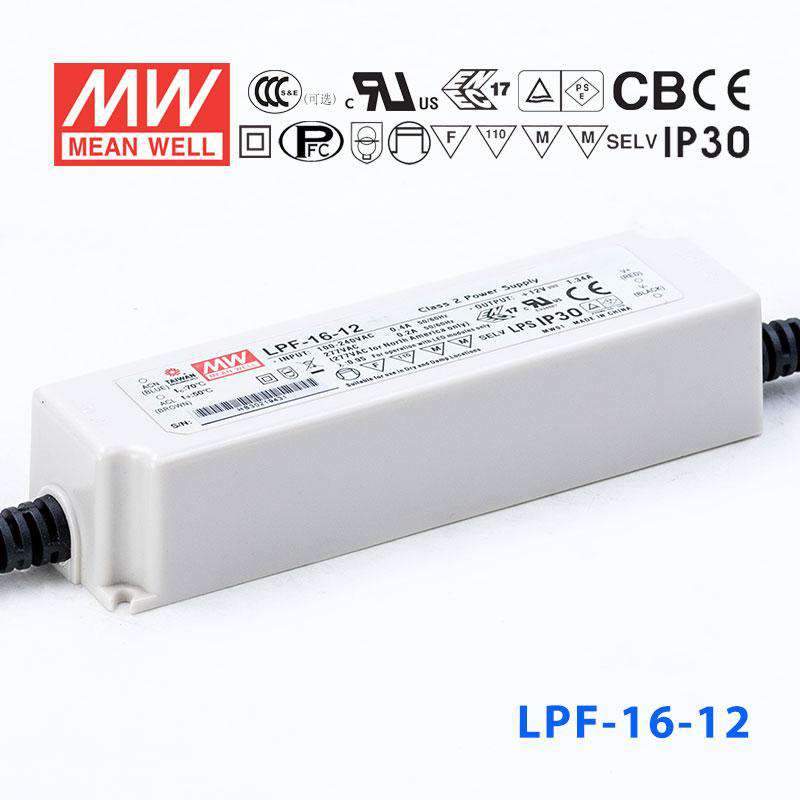

Mean Well LPF-16-12 Power Supply 16W 12V 1.34A

fully isolated plastic caseIP67Class II design without FG

SKU:

LPF-16-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 8 in this family

LPF-16-12

LPF-16-12 Fixed output Backorder

LPF-16D-12 Dimmable Low stock

LPF-25-12 Fixed output Low stock

LPF-25D-12 Dimmable Low stock

LPF-40-12 Fixed output Backorder

LPF-40D-12 Dimmable Low stock

LPF-60-12 Fixed output Backorder

LPF-60D-12 Dimmable Backorder

Product variants

Notify me when it's back in stock

The LPF-16 is a 16W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: ENEC EAC TP TC 004,GB19510.1,GB19510.14
✓ 3 years warranty

Frequently Asked Questions

Can I use the Mean Well LPF-16-12 for 12V LED strip lights outdoors?

Yes, this model is built for 12V lighting loads and has a 12V output with up to 16.08W available. Its IP67 rating and operating temperature range of -35°C to +70°C make it suitable for outdoor or wet-location LED strip lighting, as long as your total load stays within 16.08W.

Is the LPF-16-12 a good fit for a small 12V LED sign or channel letter project?

It can be a fit for small 12V LED signage where the total power draw does not exceed 16.08W. The unit is IP67 rated, uses a fully isolated plastic case, and has a Class II design without FG, which makes it suitable for signage environments that need a sealed driver.

Can this power supply be used for 12V architectural or accent lighting in damp areas?

Yes, it is intended for 12V LED lighting loads and is rated IP67 for wet or dusty environments. With 16.08W output capacity and an operating temperature range of -35°C to +70°C, it is suitable for low-power accent or architectural lighting where environmental sealing matters.

How much 12V LED strip can the LPF-16-12 run?

The maximum output power is 16.08W, so the strip length depends on your strip's rated power per meter. Use this formula: 16.08W ÷ your strip watts per meter = maximum estimated length, and check your strip rated power per meter before sizing.

Is the Mean Well LPF-16-12 waterproof and suitable for outdoor conditions?

Yes, it has an IP67 waterproof rating, which makes it suitable for outdoor and wet-location use. It is also rated to operate from -35°C to +70°C and uses a fully isolated plastic case for added environmental protection.

What is the difference between the LPF-16-12 and the other LPF-16 series models?

The LPF-16-12 is the 12V version rated at 1.34A and 16.08W. Other LPF-16 fixed-output models are LPF-16-15 at 15V 1.07A 16.05W, LPF-16-20 at 20V 0.8A 16W, LPF-16-24 at 24V 0.67A 16.08W, LPF-16-30 at 30V 0.54A 16.2W, LPF-16-36 at 36V 0.45A 16.2W, LPF-16-42 at 42V 0.39A 16.38W, LPF-16-48 at 48V 0.34A 16.32W, and LPF-16-54 at 54V 0.3A 16.2W. The LPF-16D versions mirror the same voltage and current options under model numbers LPF-16D-12 through LPF-16D-54.
