Can I use the LPF-16-15 for a small 15V LED sign or channel letter application?

Yes, if the sign lighting is designed for a 15V constant current driver and the total load stays within 16.05W and 1.07A. The driver operates in constant current mode with an 8-15V range, so the LED load needs to match that output behavior.

Is this driver suitable for a 15V architectural accent light?

It can be used for a 15V accent lighting load when the fixture is specified for constant current operation and does not exceed 16.05W. With IP67 protection and an operating range of -35°C to +70°C, it fits enclosed or exposed lighting locations where moisture and temperature matter.

Can this power a short 15V LED strip run?

Only if the LED strip is designed to work with a 15V constant current driver up to 1.07A within the 8-15V range. Many LED strips are matched by voltage and load type, so the strip datasheet needs to agree with this driver's constant current output.

How much 15V LED strip can the LPF-16-15 support?

Its maximum output power is 16.05W, so the strip length estimate is 16.05W divided by your strip's rated power per meter. Check your strip rated power per meter and confirm the strip is intended for a 15V constant current driver, not just a 15V source.

Is the LPF-16-15 okay for outdoor or wet locations?

Yes, its IP67 waterproof rating means it is built for wet and outdoor exposure. It is also rated for -35°C to +70°C operation, which supports use in cold and hot environments within that stated range.

Mean Well LPF-16-15 Power Supply 16W 15V | Auckland Distributor

☎ 0800 88 87 86

Apply Wholesale and Trade Account Contact us

The LPF-16 is a 16W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: ENEC EAC TP TC 004,GB19510.1,GB19510.14
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8423840776491, "variants" :[{ "context":"default", "variant_id": 45635983114539, "sku":"LPF-16-15", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Mean Well

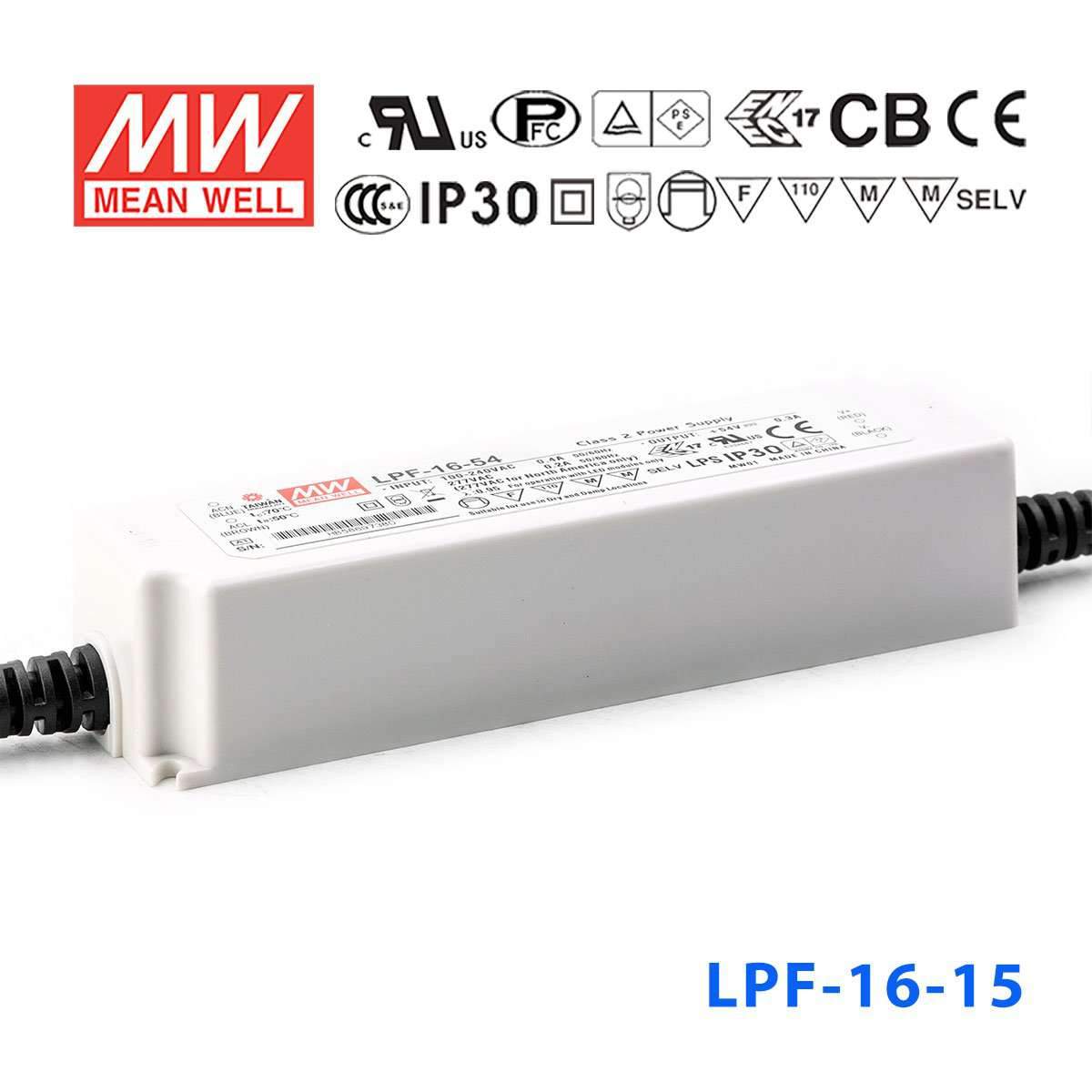

Mean Well LPF-16-15 Power Supply 16W 15V 1.07A

The LPF-16 is a 16W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: ENEC EAC TP TC 004,GB19510.1,GB19510.14
✓ 3 years warranty

Model

16W 15V
16W 15V Dimmable
25W 15V
25W 15V Dimmable
40W 15V
40W 15V Dimmable
60W 15V
60W 15V Dimmable
75W 15V
75W 15V Dimmable
