Can I use the LPF-16-20 for a 20V LED signage module?

Yes, if the signage module is designed for constant current operation at 20V and does not draw more than 0.8A or 16W. This model regulates current and works across an 11-20V constant current range, so the load has to match that specification.

Is this a good fit for a compact 20V display or cabinet light?

It can be, provided the light engine is specified for a 20V constant current driver and stays within 16W. The IP67 housing also makes it suitable where the lighting may be exposed to dust or water.

Can the LPF-16-20 be used for a short 20V LED strip in a damp area?

It can only be used if the LED strip is designed for constant current operation up to 0.8A in the 11-20V range. With an IP67 waterproof rating, the driver itself is appropriate for damp or outdoor environments, but the strip must be rated for the same conditions.

What LED strip length can this 20V driver handle?

The power limit is 16W, so the estimated strip length is 16W divided by your strip's rated watts per meter. Check your strip rated power per meter and make sure the strip is compatible with a 20V constant current driver before sizing the run.

Can this driver stay outside year-round?

The driver is rated IP67 waterproof and has an operating temperature range of -35°C to +70°C. That makes it suitable for outdoor or wet-location service when the rest of the lighting system is also rated for those conditions.

Mean Well LPF-16-20 Power Supply 16W 20V - LPF Series - LED Driver

☎ 0800 88 87 86

Apply Wholesale and Trade Account Contact us

The LPF-16 is a 16W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: ENEC EAC TP TC 004,GB19510.1,GB19510.14
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8423840940331, "variants" :[{ "context":"default", "variant_id": 45635983638827, "sku":"LPF-16-20", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Mean Well

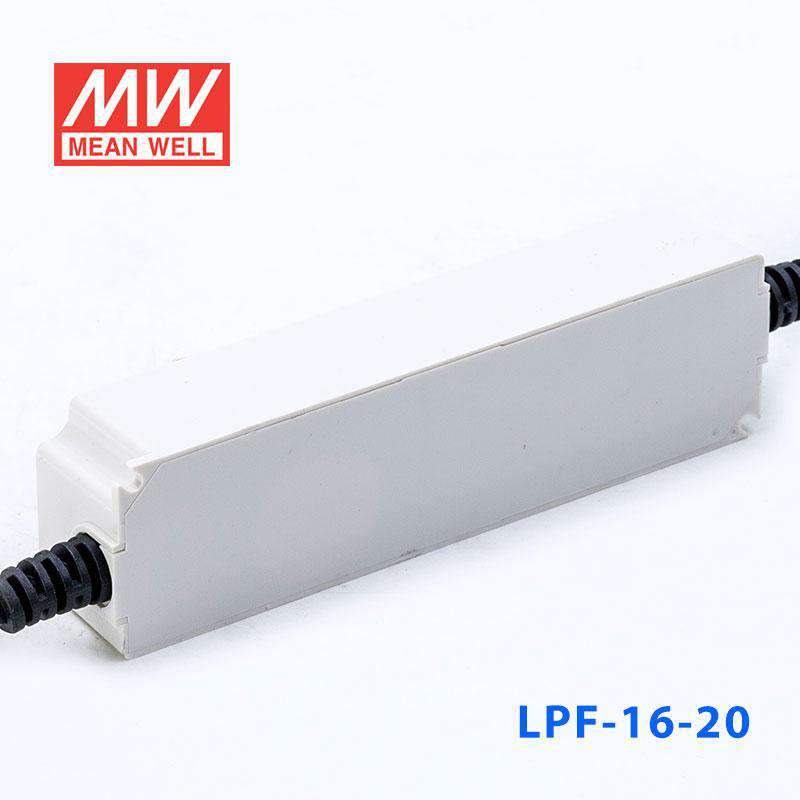

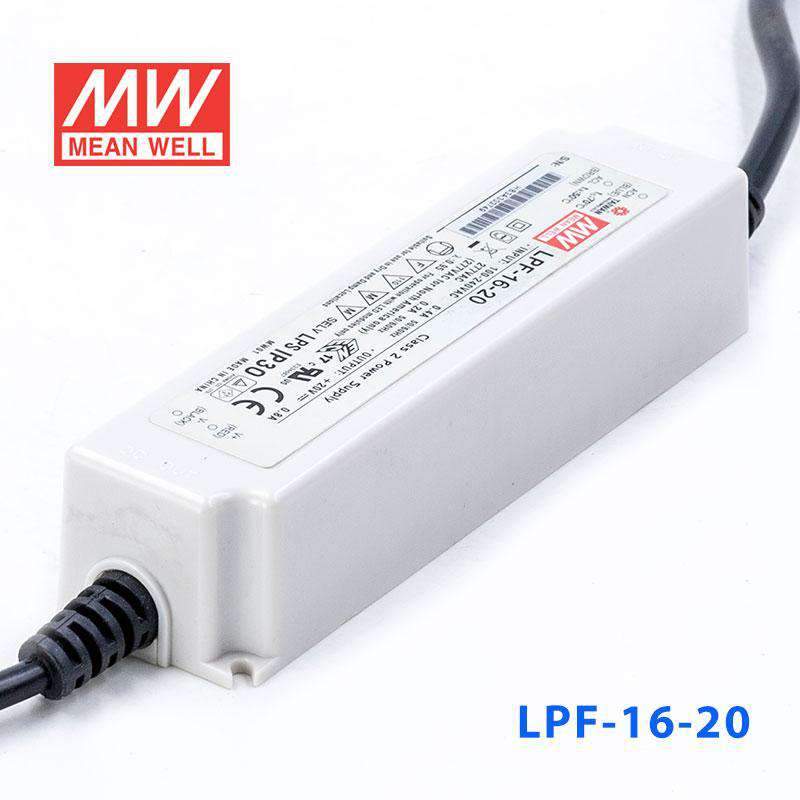

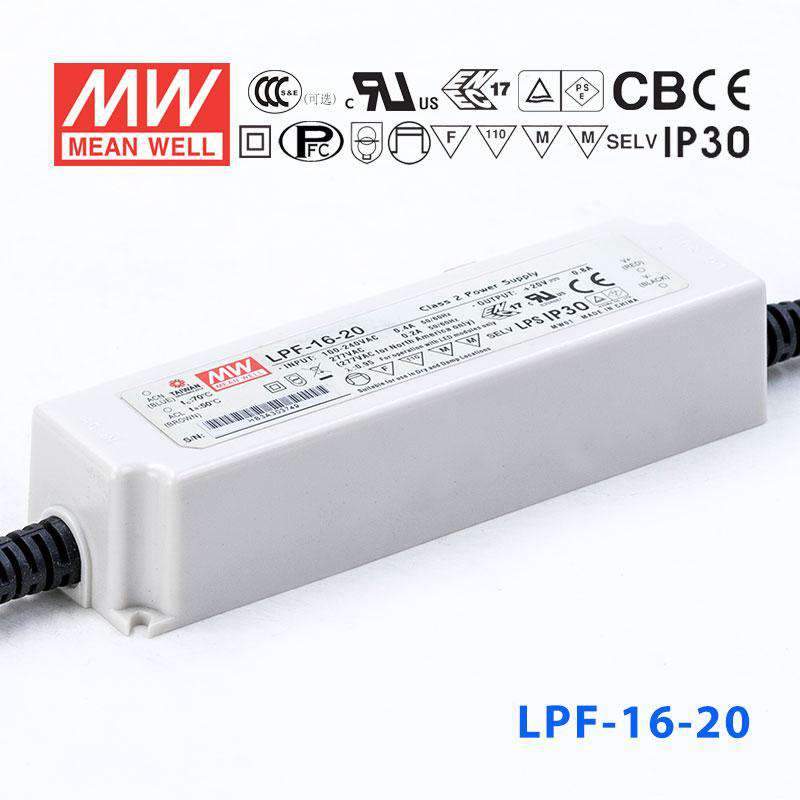

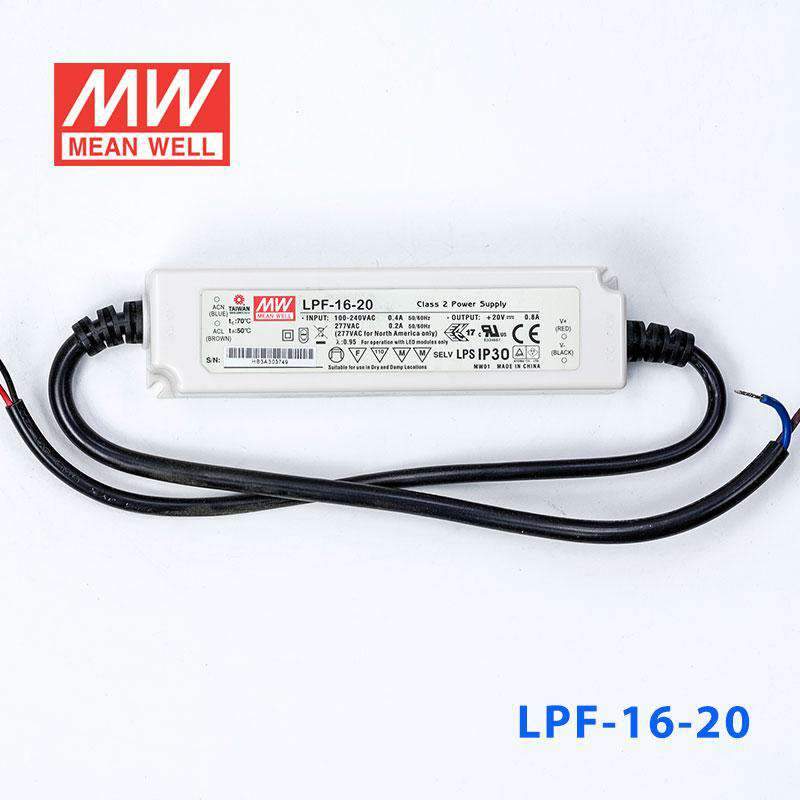

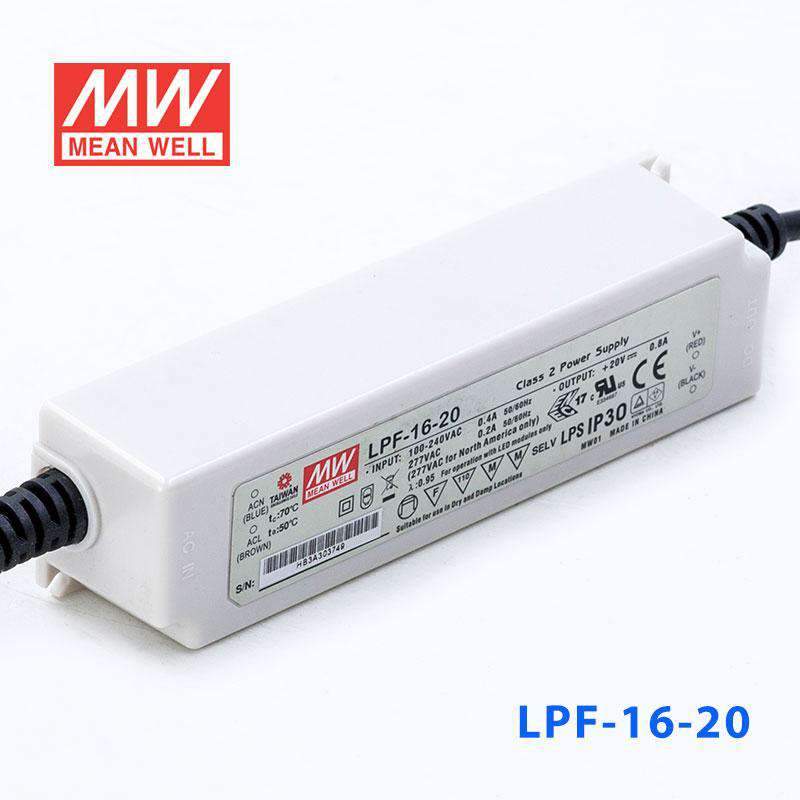

Mean Well LPF-16-20 Power Supply 16W 20V 800mA

The LPF-16 is a 16W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: ENEC EAC TP TC 004,GB19510.1,GB19510.14
✓ 3 years warranty

Model

16W 20V
16W 20V Dimmable
25W 20V
25W 20V Dimmable
40W 20V
40W 20V Dimmable
60W 20V
60W 20V Dimmable
90W 20V
90W 20V Dimmable
