Can I use the LPF-16-24 for a 24V LED light box or sign face?

Yes, if the LED load is built for 24V constant current operation and stays within 16.08W and 0.67A. This driver works in constant current mode across a 13-24V range, so the connected light source has to match that output type.

Is this driver suitable for a small 24V outdoor accent lighting project?

It is suitable when the fixture requires a 24V constant current driver and the total load does not exceed 16.08W. The IP67 waterproof enclosure supports outdoor or wet-location use, and the operating range is -35°C to +70°C.

Can the LPF-16-24 run a short 24V LED strip for display lighting?

Only if the strip is specifically designed for constant current operation in the 13-24V range and does not exceed 0.67A. The 24V rating alone is not enough, because this is a constant current LED driver rather than a generic fixed-voltage supply.

How do I estimate the maximum 24V LED strip length for this model?

Use the driver's 16.08W maximum output and divide it by your strip's rated power per meter. Check your strip rated power per meter and verify that the strip is intended for a 24V constant current driver before using that estimate.

Is the LPF-16-24 rated for rain, splash, or washdown areas?

Yes, the driver carries an IP67 waterproof rating, so it is intended for wet and outdoor environments. Its stated operating temperature range of -35°C to +70°C also supports use across a wide range of weather conditions.

Mean Well LPF-16-24 Power Supply | 16W 24V LED Driver - Auckland, NZ Distributor

☎ 0800 88 87 86

Apply Wholesale and Trade Account Contact us

The LPF-16 is a 16W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: ENEC EAC TP TC 004,GB19510.1,GB19510.14
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8423841038635, "variants" :[{ "context":"default", "variant_id": 45635983737131, "sku":"LPF-16-24", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Mean Well

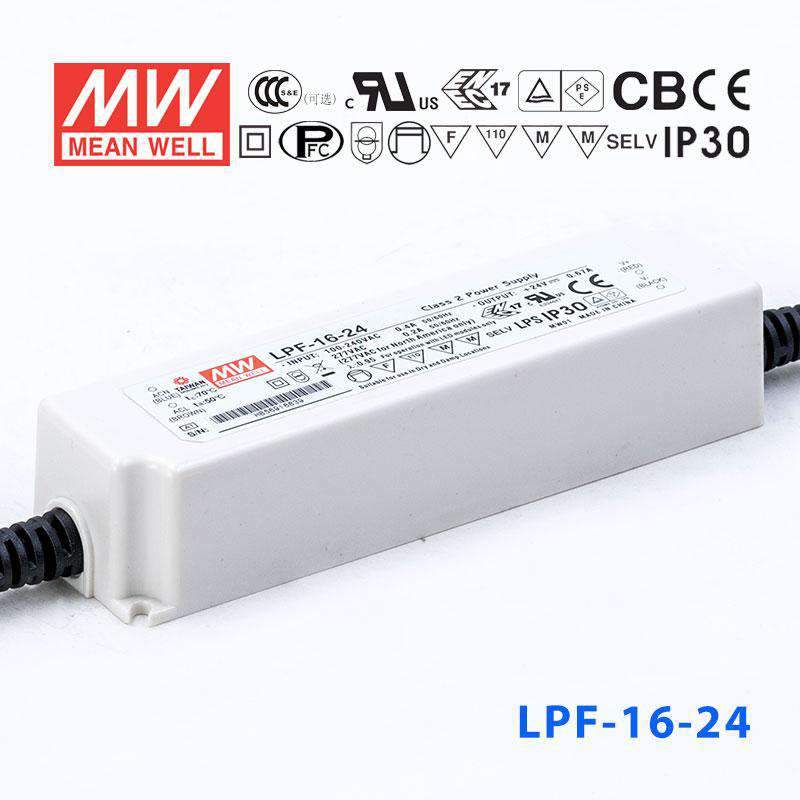

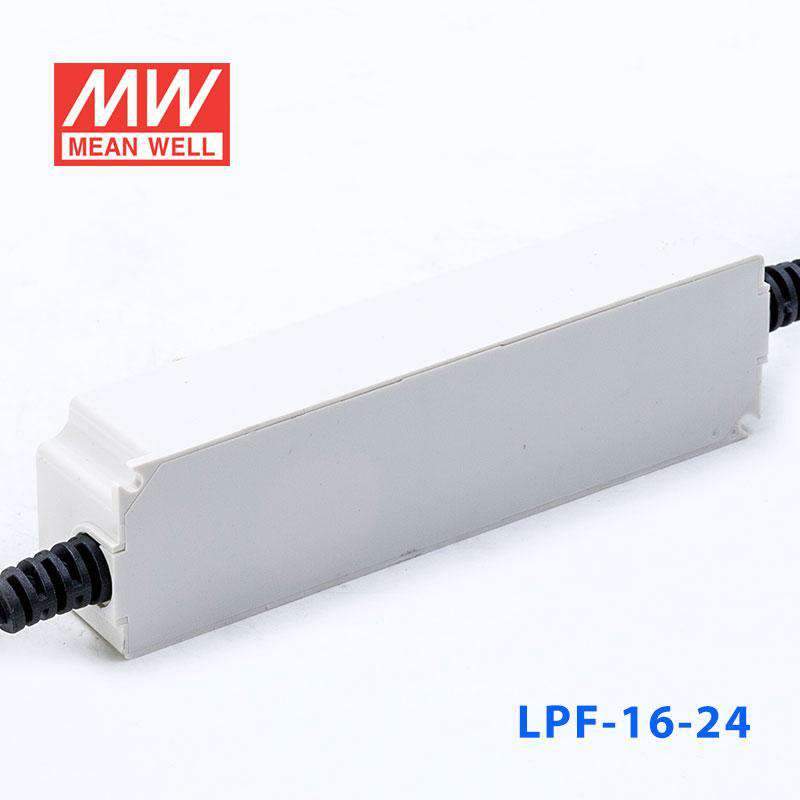

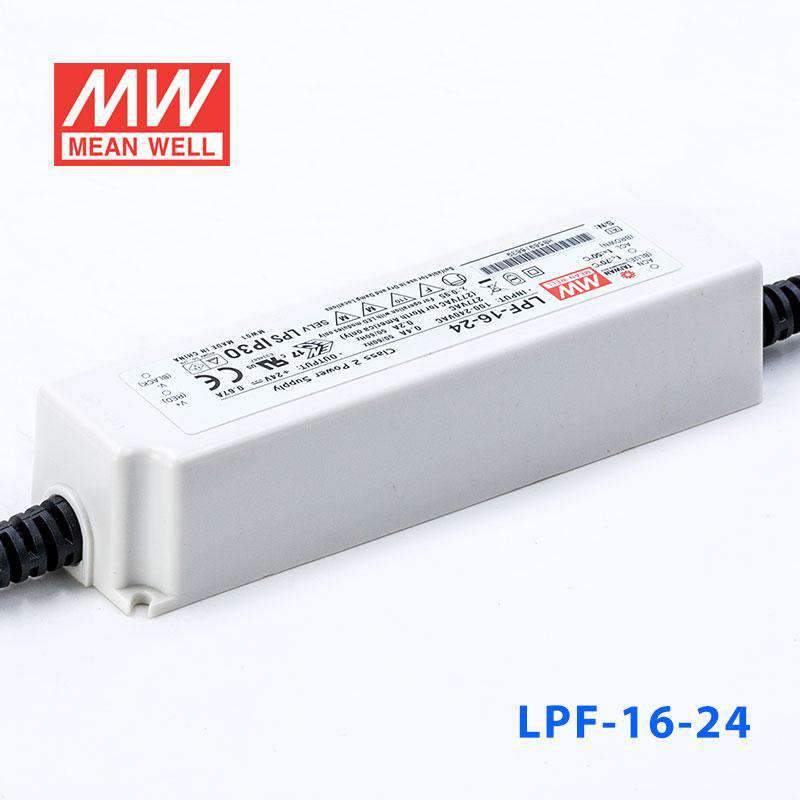

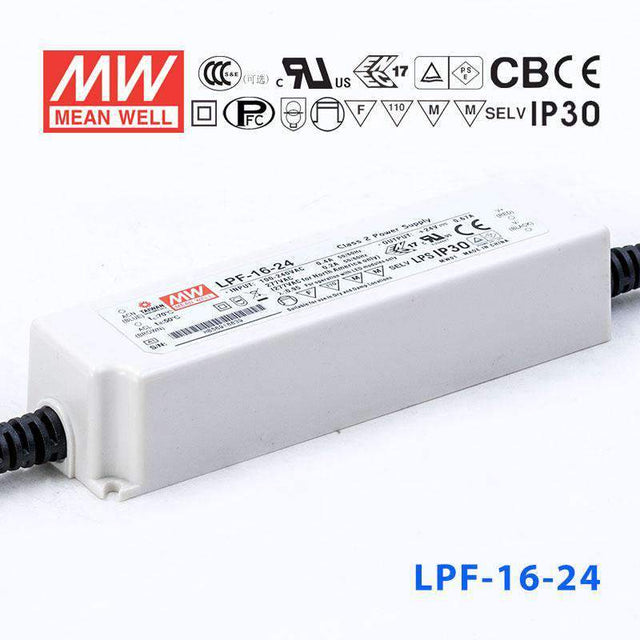

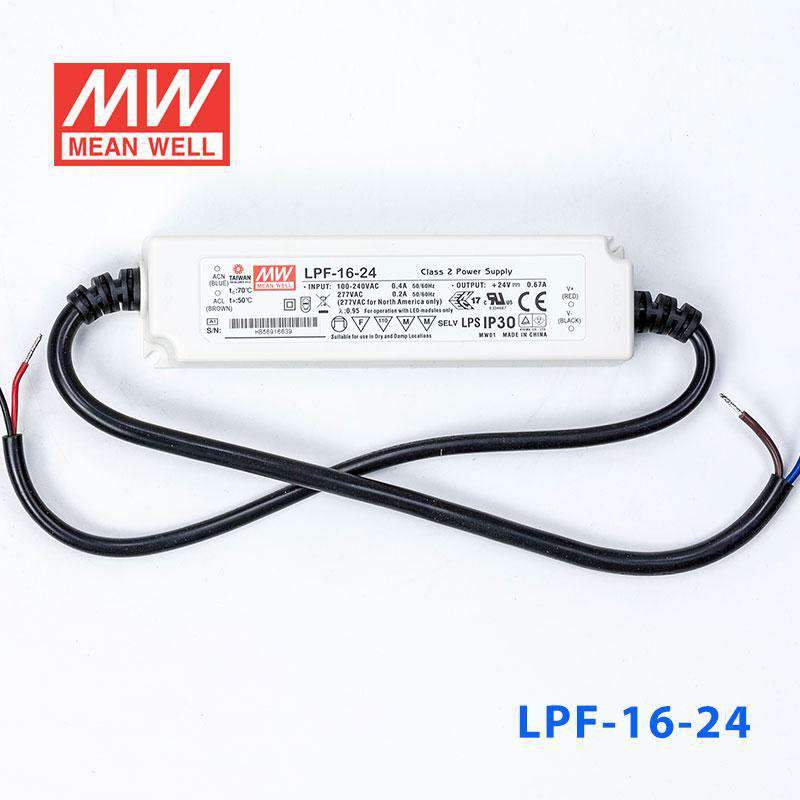

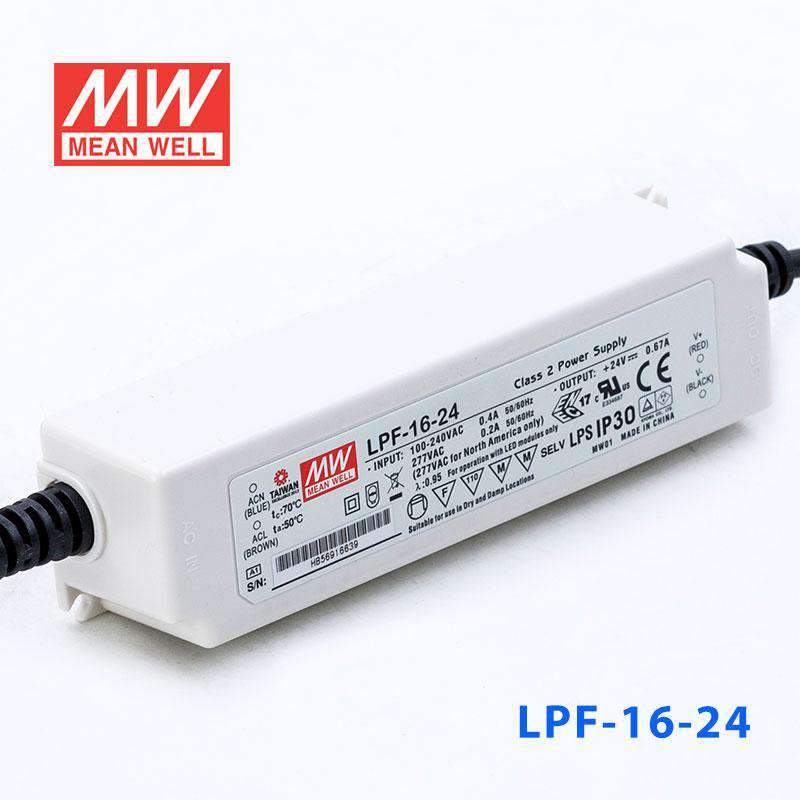

Mean Well LPF-16-24 Power Supply 16W 24V 670mA

The LPF-16 is a 16W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: ENEC EAC TP TC 004,GB19510.1,GB19510.14
✓ 3 years warranty
