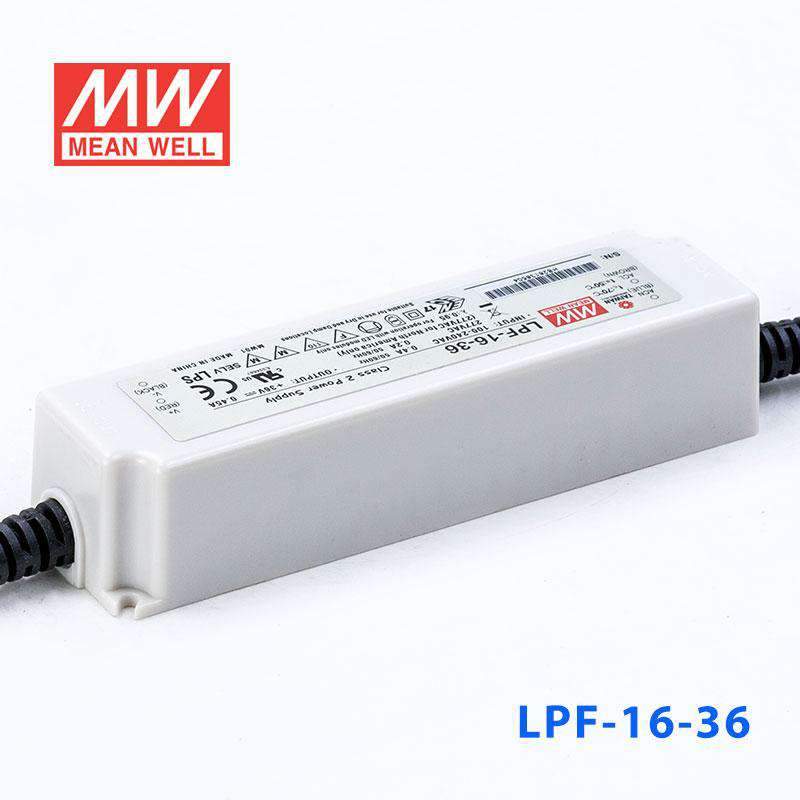

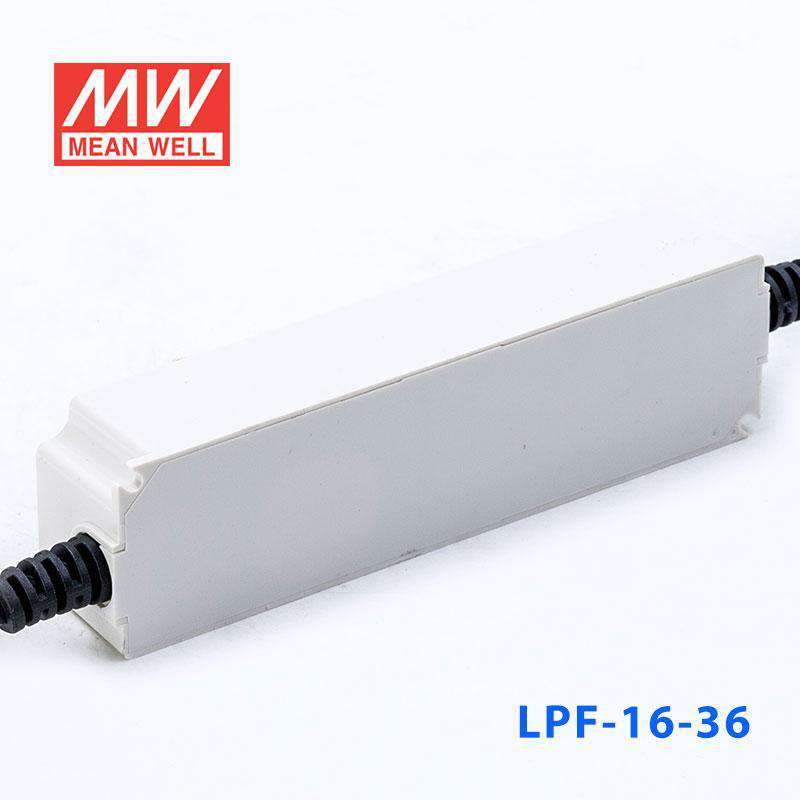

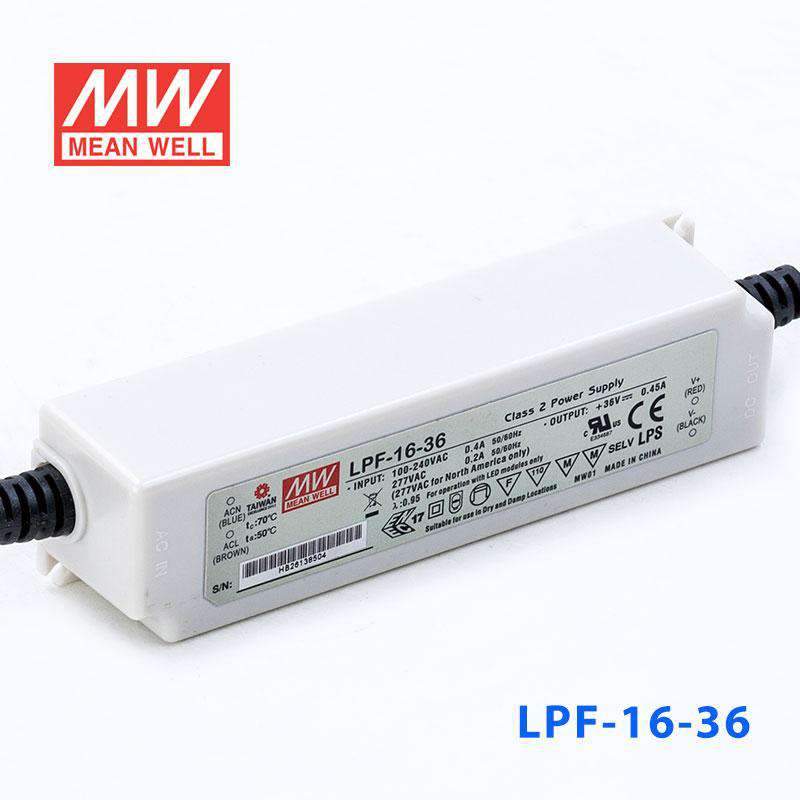

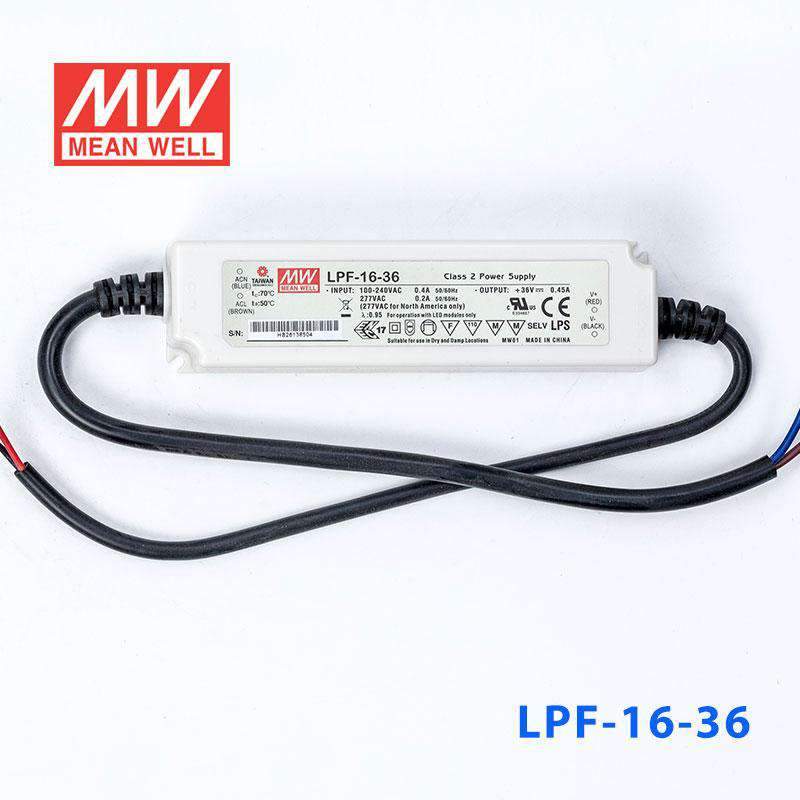

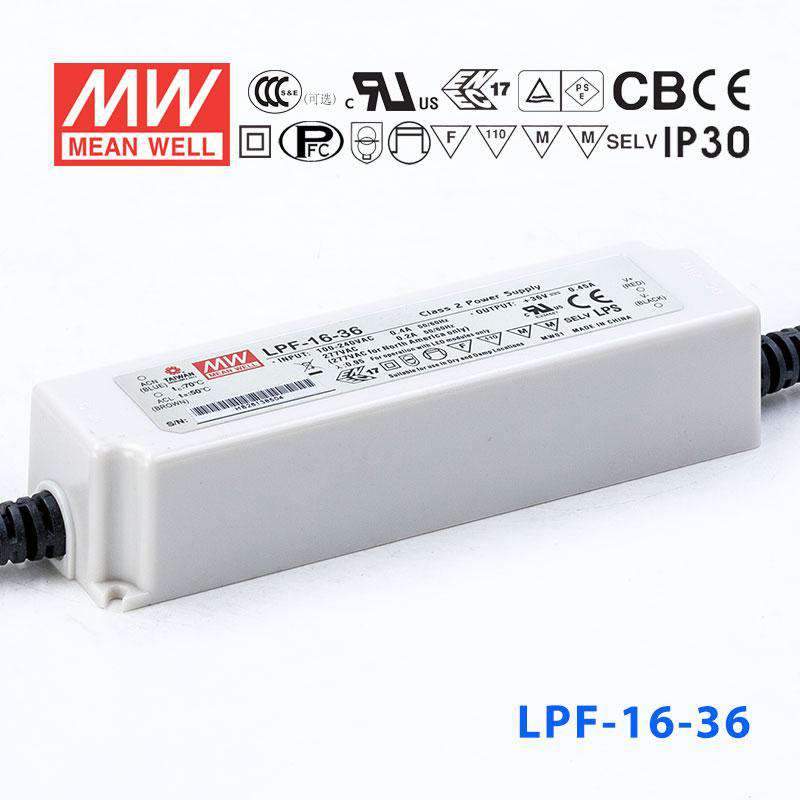

Mean Well LPF-16-36 Power Supply 16W 36V
Please Login for Pricing
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| IP30 |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 45A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -35~+70ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 148x 40x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating16.2 Watt
-
Output Voltage36 Volt
-
Rated Current0.45 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length14.8 cm
-
Width4 cm
-
Height3.2 cm
-
Weight0.21 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-16-36 for a 36V LED sign or illuminated panel?
Yes, if the LED load is built for constant current operation and stays within 36V, 0.45A, and 16.2W. This driver's constant current range is 19-36V, so the sign or panel has to match that operating window.
Is this driver a fit for a small 36V commercial lighting fixture?
It can be used with a 36V fixture that requires constant current output up to 0.45A and does not exceed 16.2W. The IP67 waterproof housing also makes it practical for fixtures placed in exposed or damp areas.
Can the LPF-16-36 run a short 36V LED strip for accent or display lighting?
Only if the strip is intended for constant current operation in the 19-36V range. The driver is not just a 36V source, so the strip's electrical requirements need to match the driver's 0.45A constant current behavior.
How much 36V LED strip can this driver support?
The available power is 16.2W, so estimated strip length is 16.2W divided by your strip's rated power per meter. Check your strip rated power per meter and confirm the strip is specified for a 36V constant current driver before sizing the run.
Can this 36V driver be used outdoors?
Yes, the LPF-16-36 is IP67 waterproof, so it is designed for outdoor and wet-location use. It is also rated to operate from -35°C to +70°C, which covers a wide environmental range within those stated limits.
