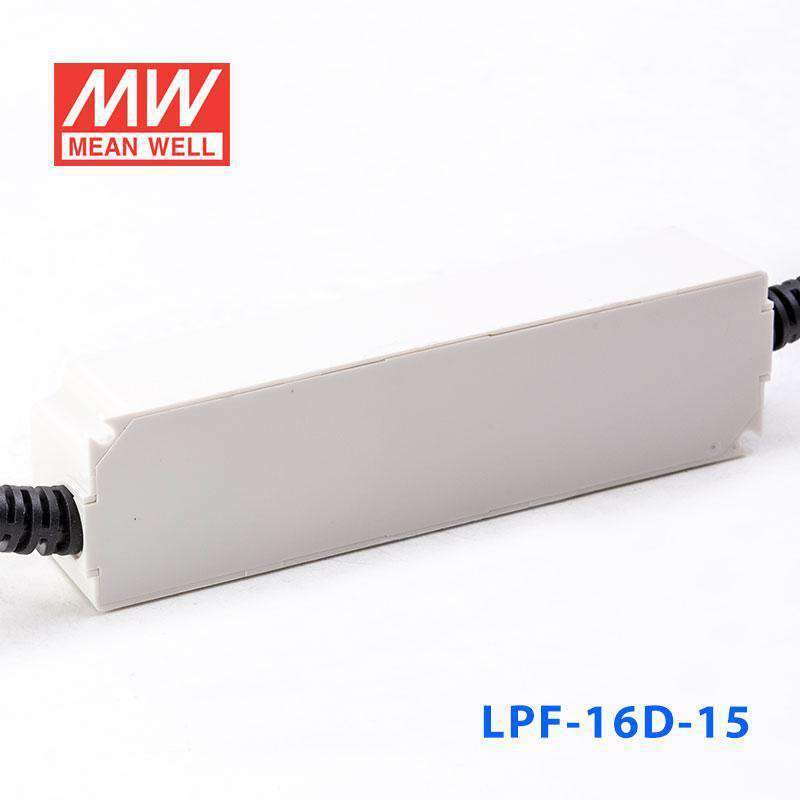

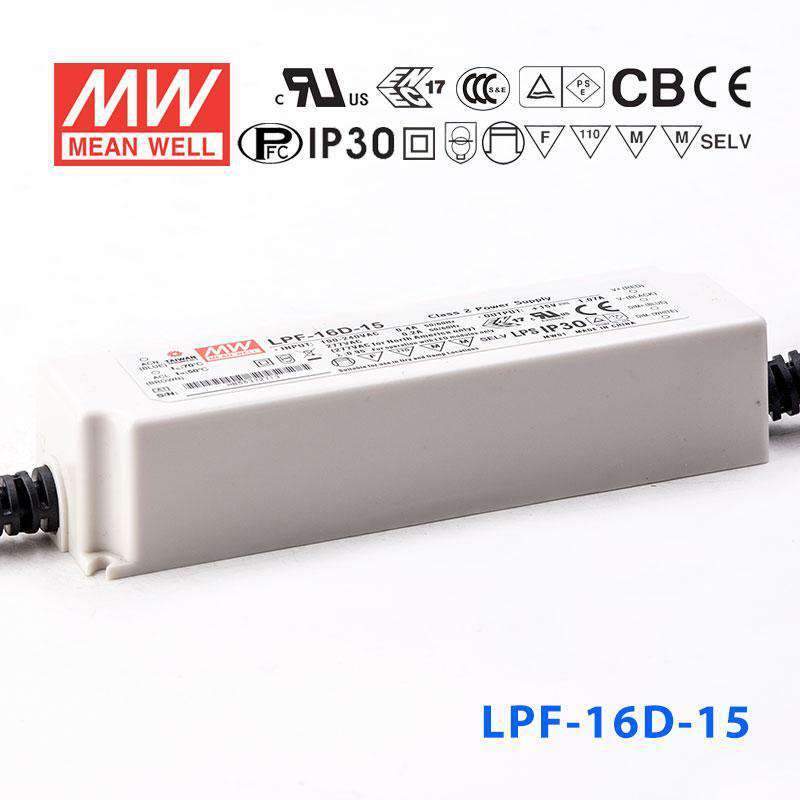

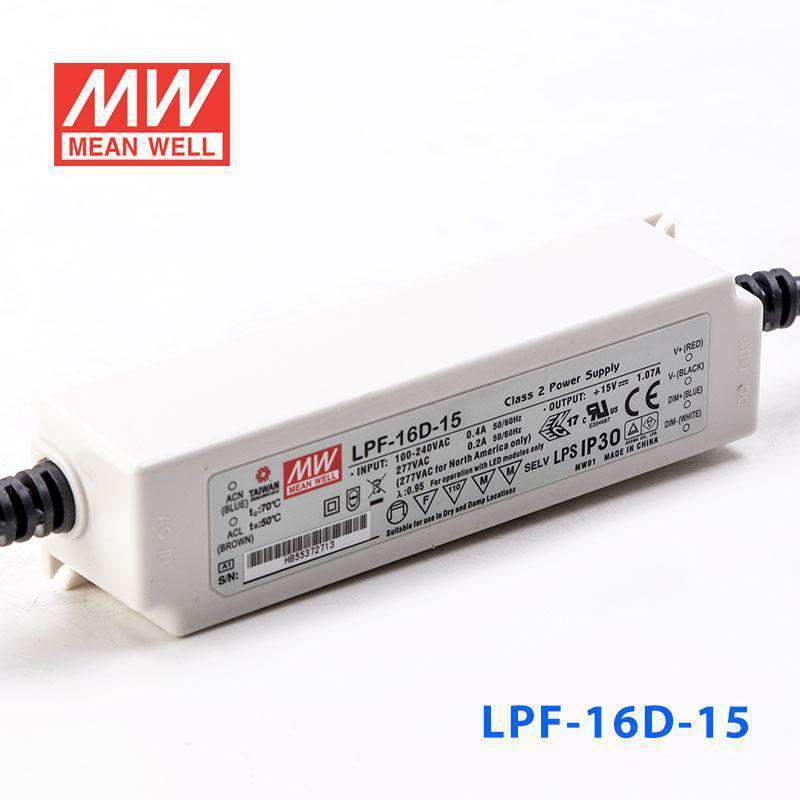

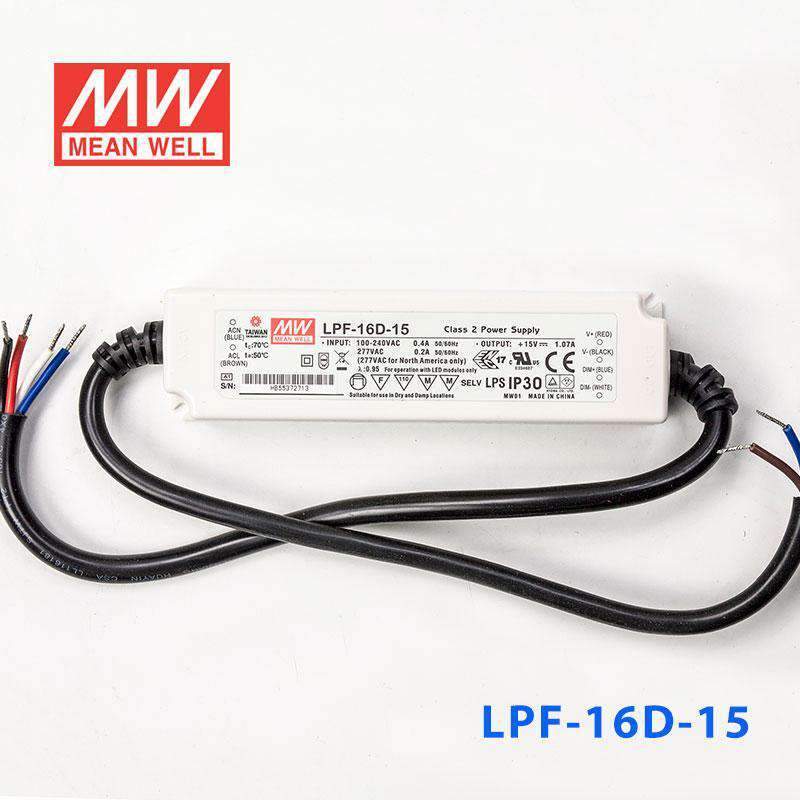

Mean Well LPF-16D-15 Power Supply 16W 15V - Dimmable

fully isolated plastic case, IP67, Class II design without FG, built-in 3 in 1 dimming
SKU:
LPF-16D-15

|

Description

Features

Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
Fully isolated plastic case
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type
IP30
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Protections: Short circuit / Over current / Over voltage / Over temperature
Suitable for LED lighting and moving sign applications
Suitable for dry, damp, and wet location
Cooling by free air convection
5 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 45A
Over current protection 95% ~108% constant current, auto-recovery
Over voltage protection 110%~150% rated output voltage
Withstand voltage I/P - O/P: 3.75kVAC
Working temperature -35~+70ºC
Safety standards UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D)
EMC standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input UL rated, SJTW 18AWGx2C (30cm)
Connection Output UL rated, SJTW 18AWGx4C (30cm)
Dimension (LxWxH)(mm) 148x 40x 32

Specifications

  • Brand
    Mean Well
  • Series
    LPF Series
  • Power Rating
    16.05 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    1.07 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CE,EAC,ENEC,PSE,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -35°C~70°C
  • Warranty
    5 Year
  • Length
    14.8 cm
  • Width
    4 cm
  • Height
    3.2 cm
  • Weight
    0.21 kg

File Downloads
