Can I use the LPF-16D-36 for a 36V LED sign or light engine?

Yes, if the sign or light engine is a constant-current load that requires 0.45A and operates within the 19-36V constant-current range. Keep the total load at or below 16.2W.

Is this model appropriate for a dimmable 36V linear fixture?

It can be, as long as the fixture is designed for 0.45A constant current and runs within 19V to 36V. The built-in 3 in 1 dimming also makes it suitable for dimmable low-power linear lighting up to 16.2W.

Can this driver run a sealed outdoor accent light?

Yes, when the accent light is a compatible constant-current 0.45A load within the 19-36V range. The IP67 rating and -35°C to +70°C operating temperature are suited to outdoor and wet-location use.

How much 36V LED strip can I size from this power rating?

Only use it with a 36V constant-current strip or module that matches 0.45A and the 19-36V range. The maximum strip length is 16.2W divided by the strip's watts per meter, so check your strip rated power per meter before calculating length.

Is the LPF-16D-36 suitable for damp, dusty, or cold locations?

Yes, the IP67 enclosure is intended for wet and dusty environments, and the operating range is -35°C to +70°C. The connected LED load still needs to match the 0.45A constant-current output and 19-36V range.

Mean Well LPF-16D-36 Power Supply 16W 36V - Dimmable | Auckland Distributor

☎ 0800 88 87 86

Apply Wholesale and Trade Account Contact us

The LPF-16D is a 16W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 PROTECTION ENVIRONMENT SAFETY & EMC
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-16D-48 Power Supply 16W 48V - Dimmable 340mA	16.32W	48V	0.34A	IP67	View

Please log in to write a review.

{ "id":8423842480427, "variants" :[{ "context":"default", "variant_id": 45636006904107, "sku":"LPF-16D-36", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Mean Well

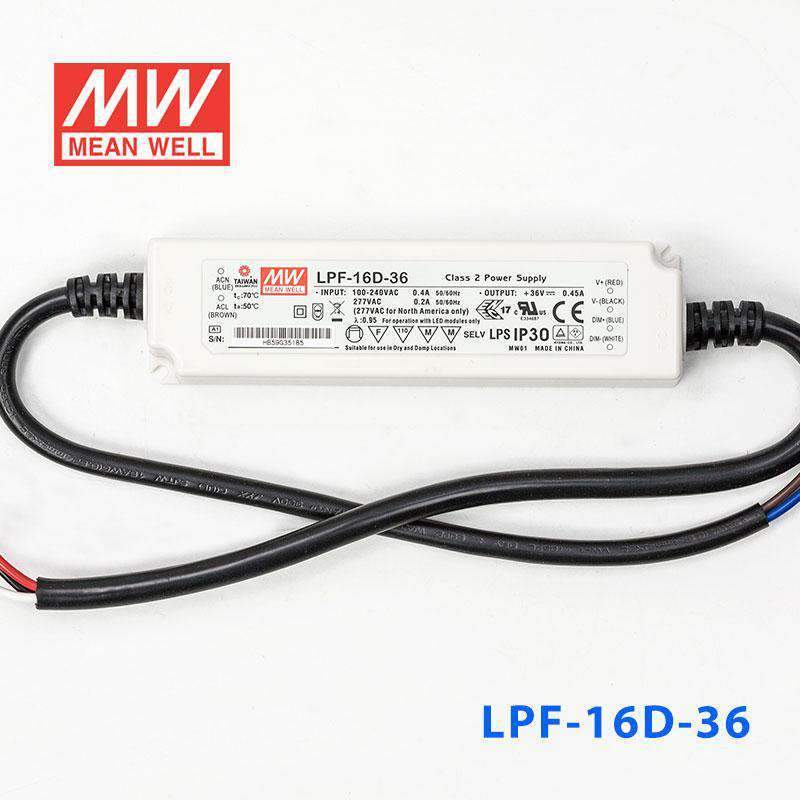

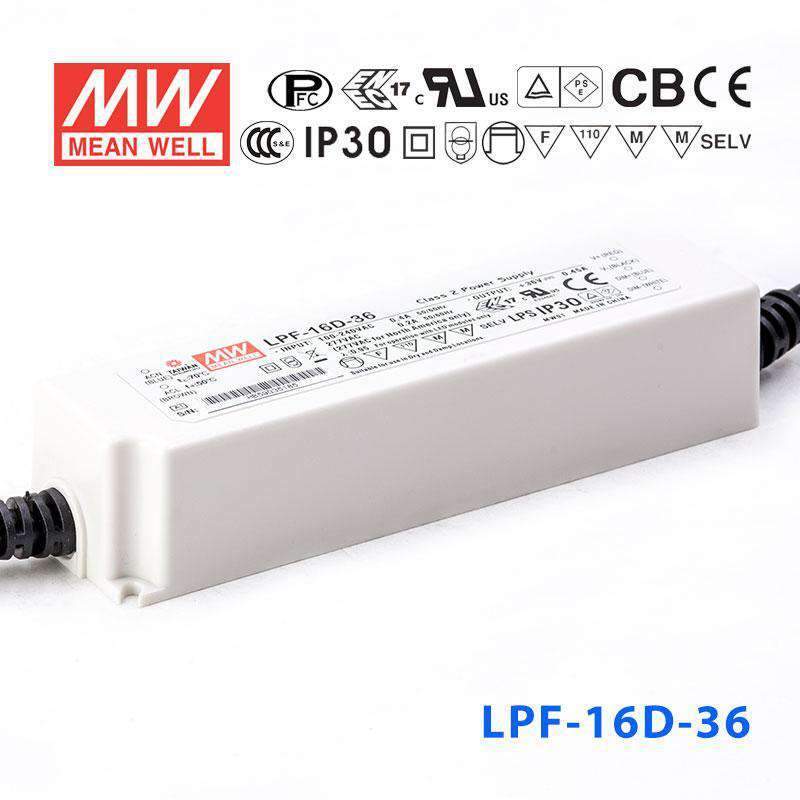

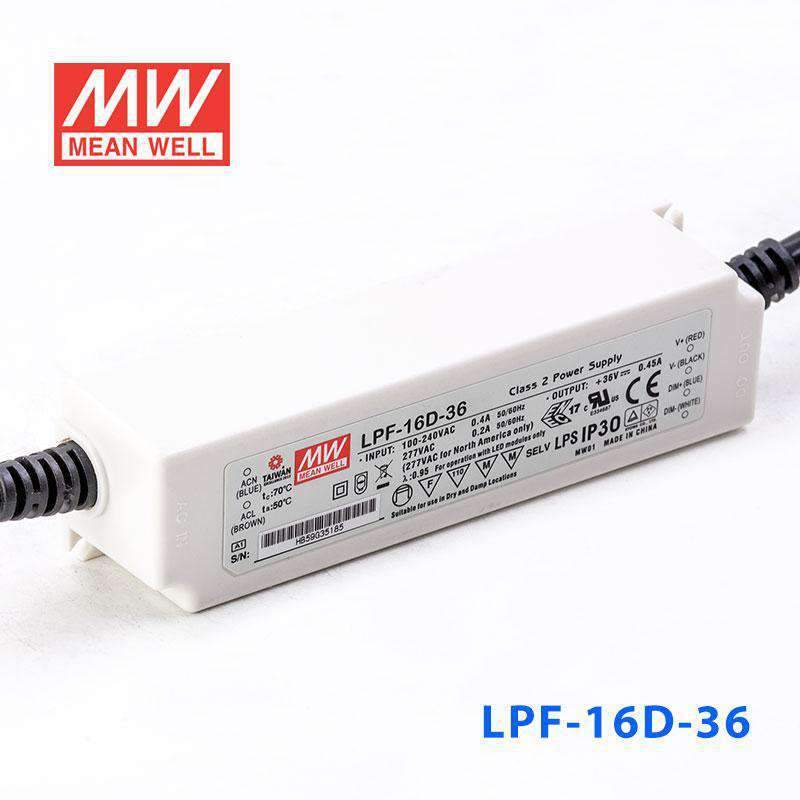

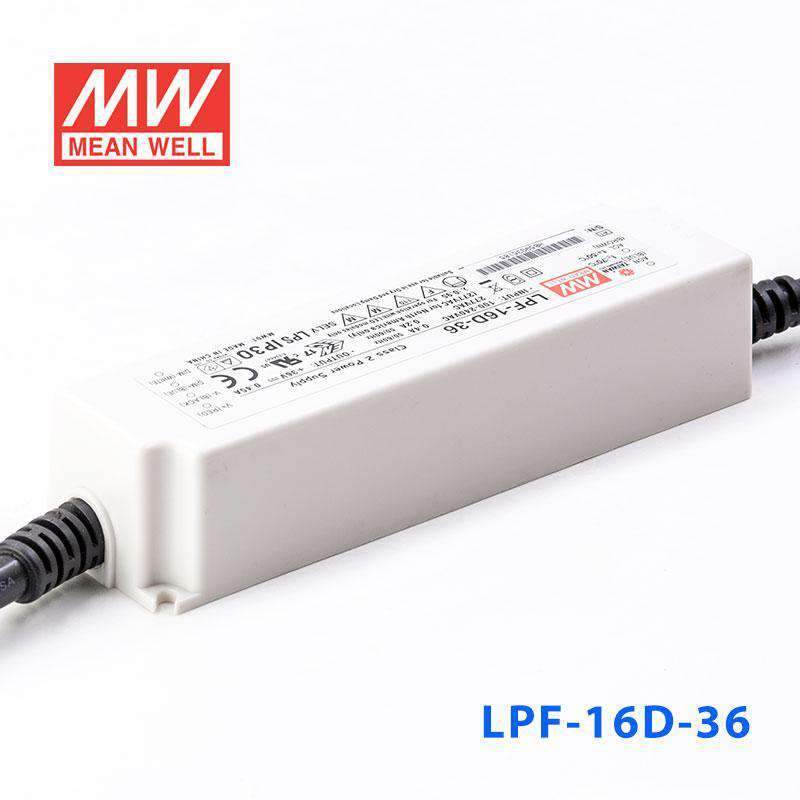

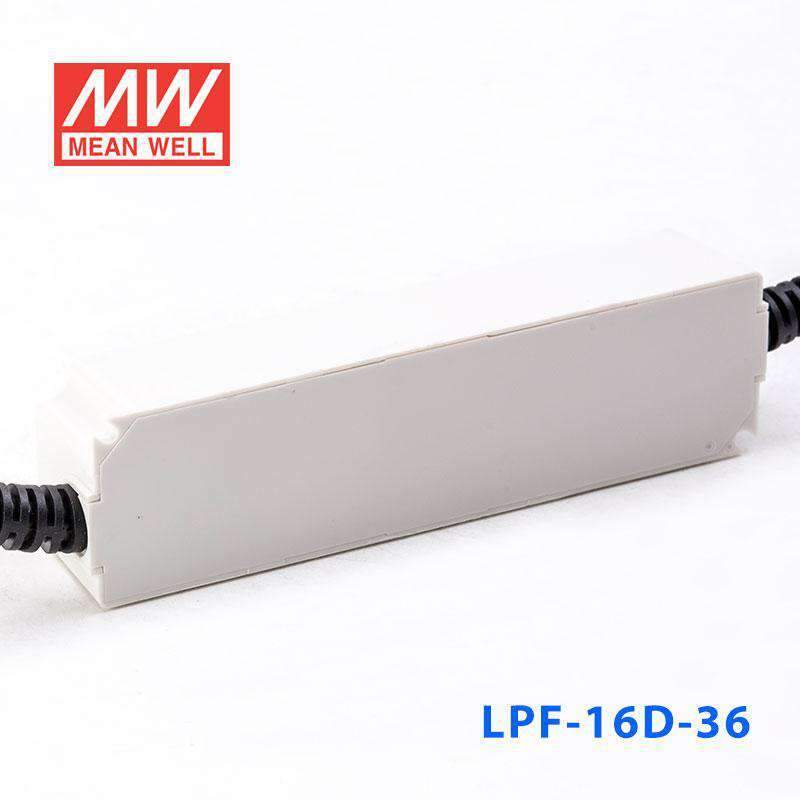

Mean Well LPF-16D-36 Power Supply 16W 36V - Dimmable 450mA

The LPF-16D is a 16W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 PROTECTION ENVIRONMENT SAFETY & EMC
✓ 3 years warranty

Model

16W 36V
16W 36V Dimmable
25W 36V
25W 36V Dimmable
40W 36V
40W 36V Dimmable
60W 36V
60W 36V Dimmable
90W 36V
90W 36V Dimmable

View product
