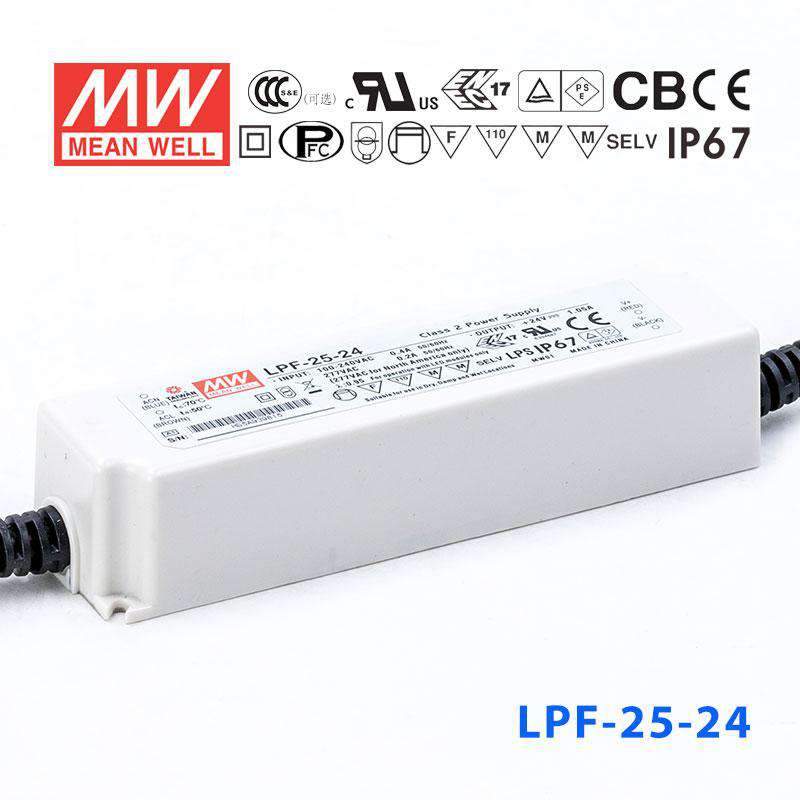

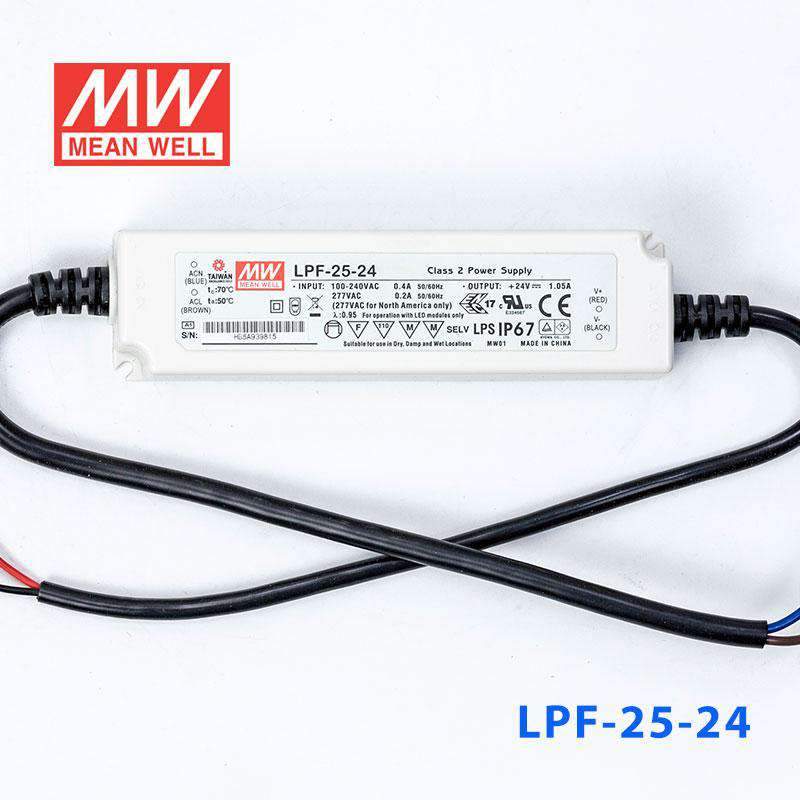

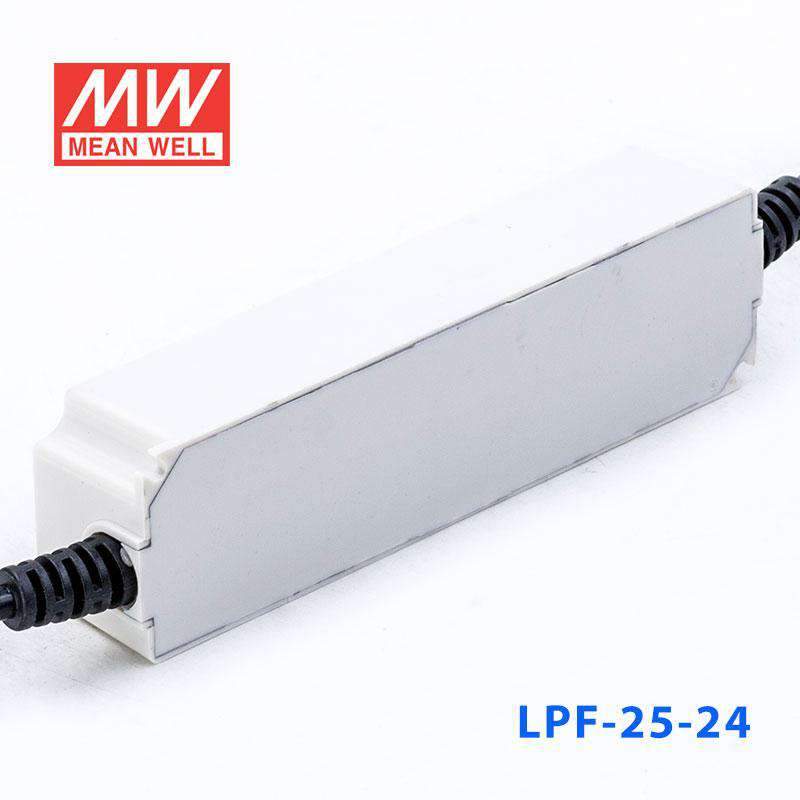

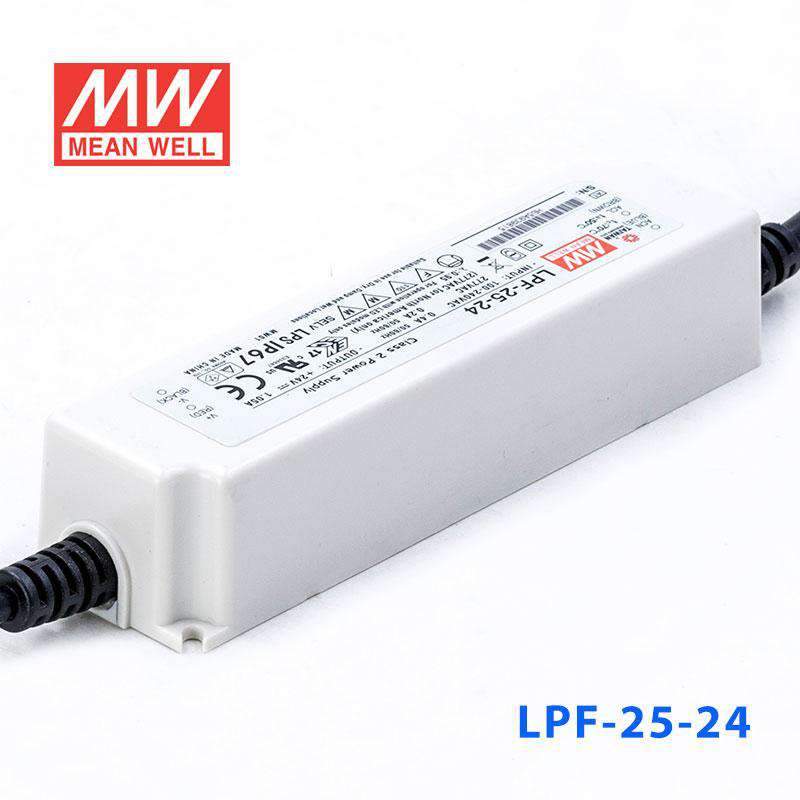

Mean Well LPF-25-24 Power Supply 25W 24V
Please Login for Pricing
Description
Description
The LPF-25 is a 25W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating25.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length14.8 cm
-
Width4 cm
-
Height3.2 cm
-
Weight0.21 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-25-24 for a small 24V LED sign?
Yes, if the sign uses a 24V constant-current LED load that matches the driver’s 1.05A output and stays within the 13-24V constant-current range. The driver is rated for 25.2W total output, so the connected sign load needs to stay at or below 25.2W.
Is the LPF-25-24 suitable for 24V architectural accent lighting?
It can be used for 24V accent lighting when the fixture is designed for constant-current operation at 1.05A and falls within the 13-24V range. Its IP67 housing also makes it a fit for locations where the driver may be exposed to water and dust.
Can this driver run a 24V LED strip for display or retail lighting?
It can only be used if the 24V strip is specified to work with a constant-current 1.05A driver and the total load stays within 25.2W. Check the strip’s electrical rating carefully, because the driver operates in constant-current mode over 13-24V.
Would the LPF-25-24 work for outdoor low-power lighting applications?
Yes, the IP67 rating means the driver is built for wet and dusty environments, and the operating temperature range is -35°C to +70°C. The connected light still needs to be a 24V constant-current load within 25.2W and 1.05A.
How much 24V LED strip can this driver support?
The maximum output is 25.2W, so the estimated strip length is 25.2W divided by your strip’s rated watts per meter. Check your strip rated power per meter and keep the total strip load at or below 25.2W.
Can the LPF-25-24 be used in wet or outdoor locations?
The driver is rated IP67, so it is intended for wet and outdoor environments where water and dust resistance are required. It is also specified to operate from -35°C to +70°C.
