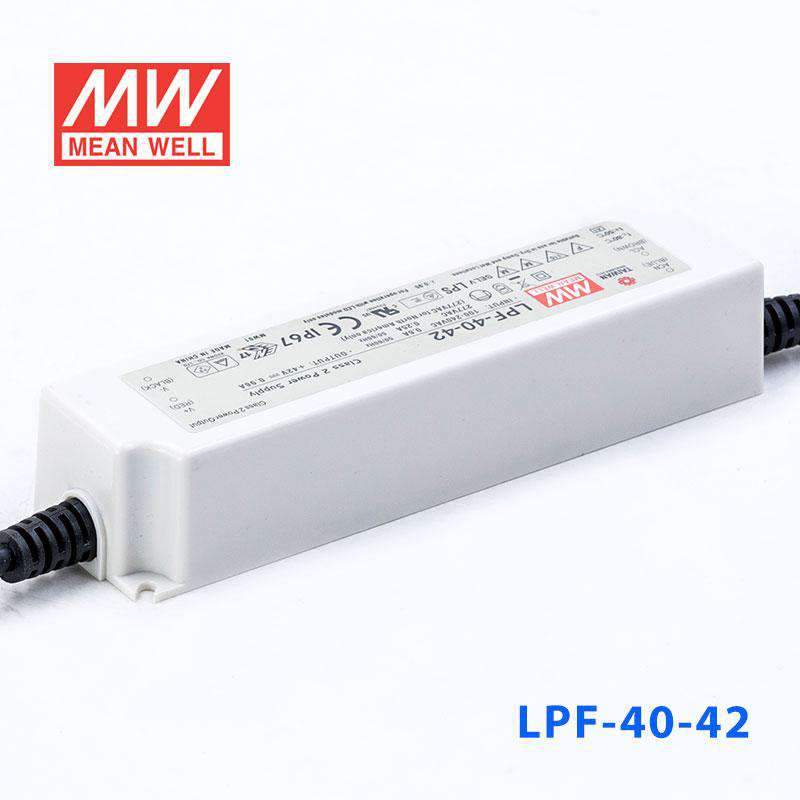

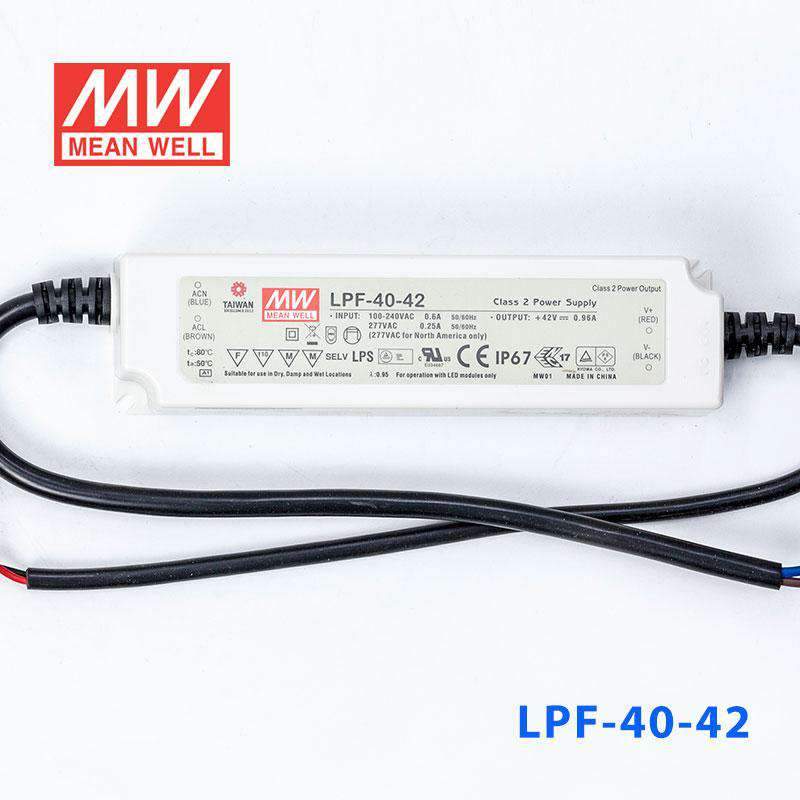

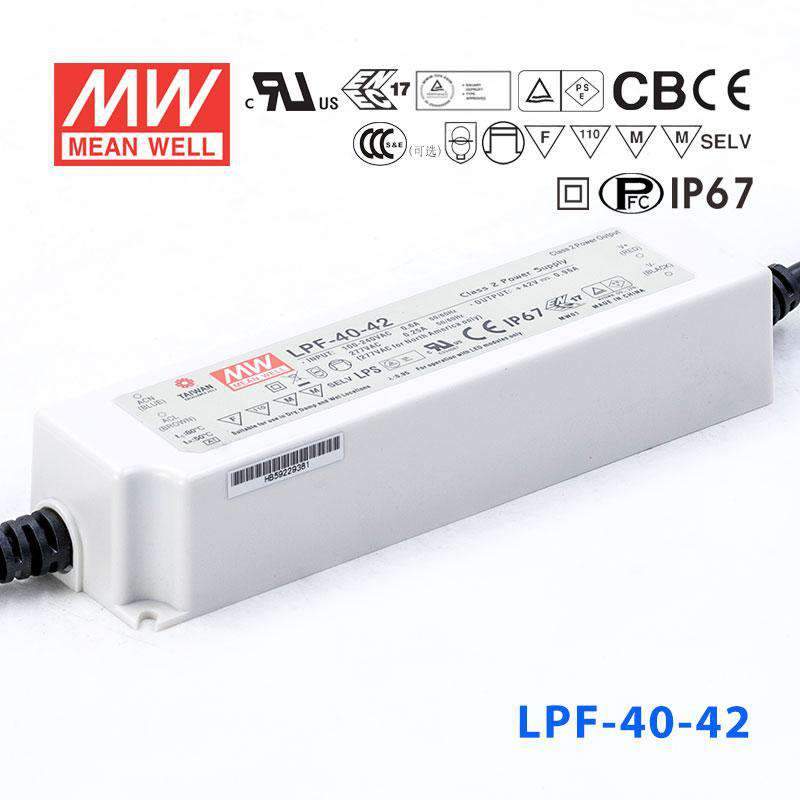

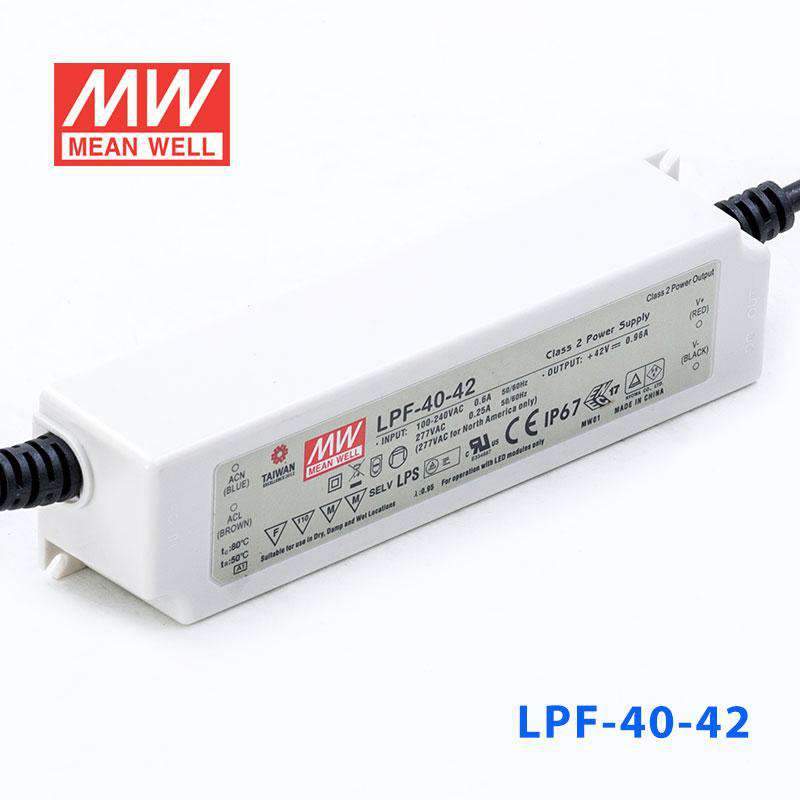

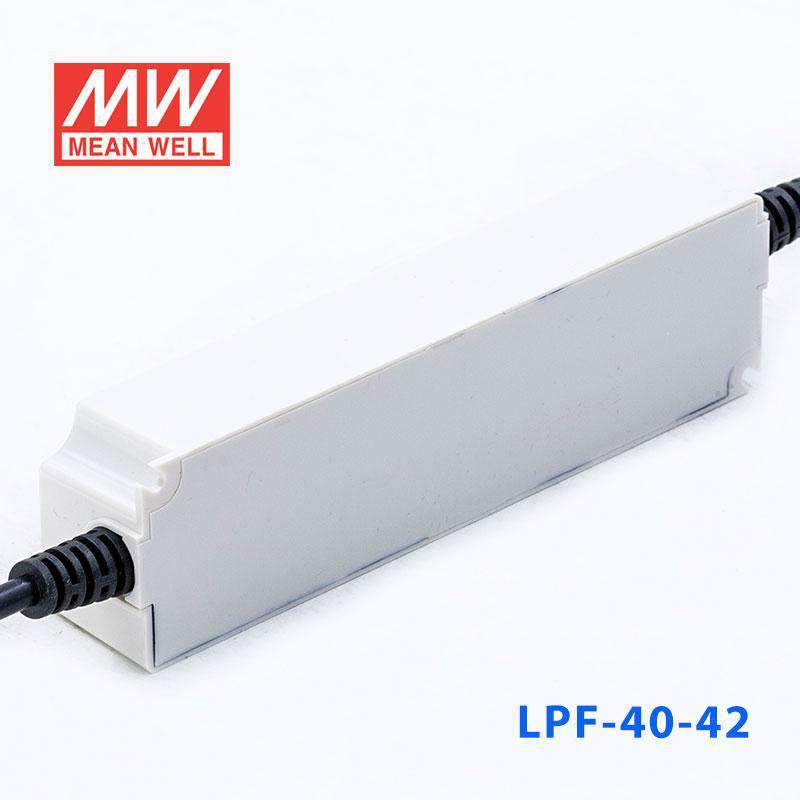

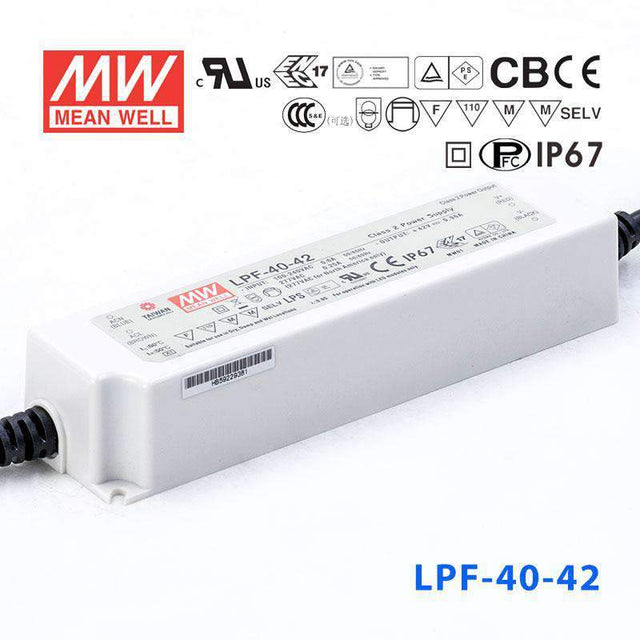

Mean Well LPF-40-42 Power Supply 40W 42V
Please Login for Pricing
Description
Description
The LPF-40 is a 40W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating40.32 Watt
-
Output Voltage42 Volt
-
Rated Current0.96 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length16.25 cm
-
Width4.3 cm
-
Height3.2 cm
-
Weight0.44 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-40-42 for a 42V LED signage application?
Yes, if the sign uses a 42V constant-current LED load within the driver’s 25-42V constant-current range. The LPF-40-42 provides up to 40.32W at 42V and 0.96A.
Is the LPF-40-42 a good choice for 42V linear lighting fixtures?
It can be used with 42V constant-current linear lighting loads that stay within 0.96A and 40.32W. Its IP67 enclosure also makes it suitable where a waterproof driver is needed.
Can this model power a 42V LED strip for display lighting?
Only if the strip is built for 42V constant-current operation and falls inside the 25-42V range. This driver outputs up to 40.32W and 0.96A, so the strip load must match those limits.
What strip length can I estimate from the LPF-40-42?
The driver’s maximum output power is 40.32W. Estimated strip length = 40.32W divided by your strip’s rated watts per meter, so check your strip rated power per meter before deciding run length.
Can the LPF-40-42 be used outdoors in rain or washdown areas?
This model is rated IP67 Waterproof, so it is intended for wet and outdoor conditions where that level of protection is required. Its operating temperature range is -40°C to +80°C.
What are the 42V alternatives in the LPF series if I need more or less power?
For 42V models in this series, LPF-16-42 is 16.38W at 0.39A, LPF-25-42 is 25.2W at 0.6A, LPF-40-42 is 40.32W at 0.96A, LPF-60-42 is 60.06W at 1.43A, and LPF-90-42 is 90.3W at 2.15A. Dimmable siblings are LPF-16D-42, LPF-25D-42, LPF-40D-42, LPF-60D-42, and LPF-90D-42 with the same listed voltage and output ratings.
Other LPF-40 Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPF-40-24 Power Supply 40W 24V | 40.08W | 24V | 1.67A | IP67 | View |
| Mean Well LPF-40-54 Power Supply 40W 54V | 41.04W | 54V | 0.76A | IP67 | View |
| Mean Well LPF-40-48 Power Supply 40W 48V | 40.32W | 48V | 0.84A | IP67 | View |
