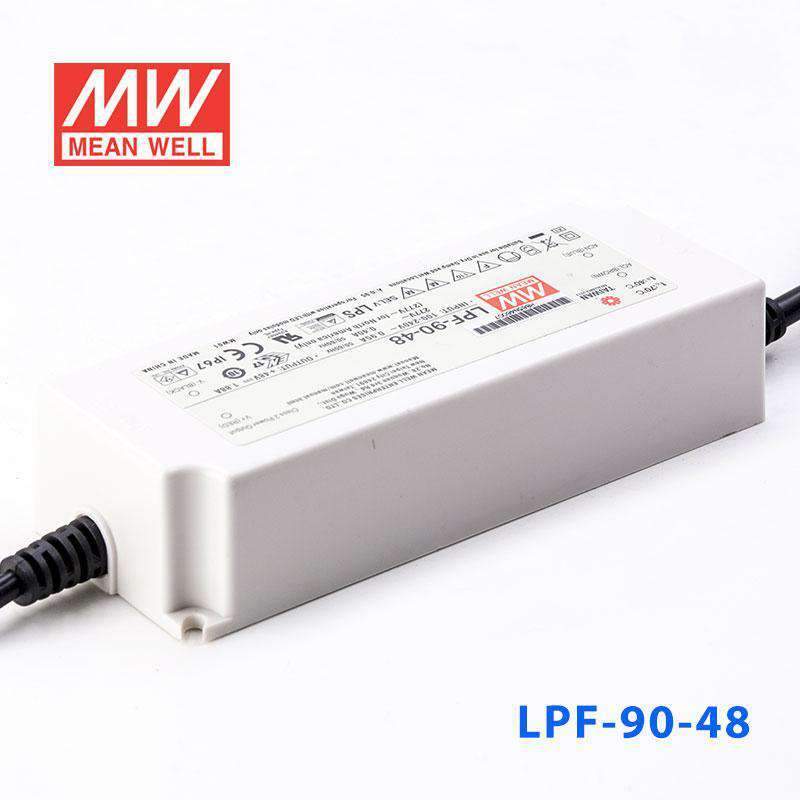

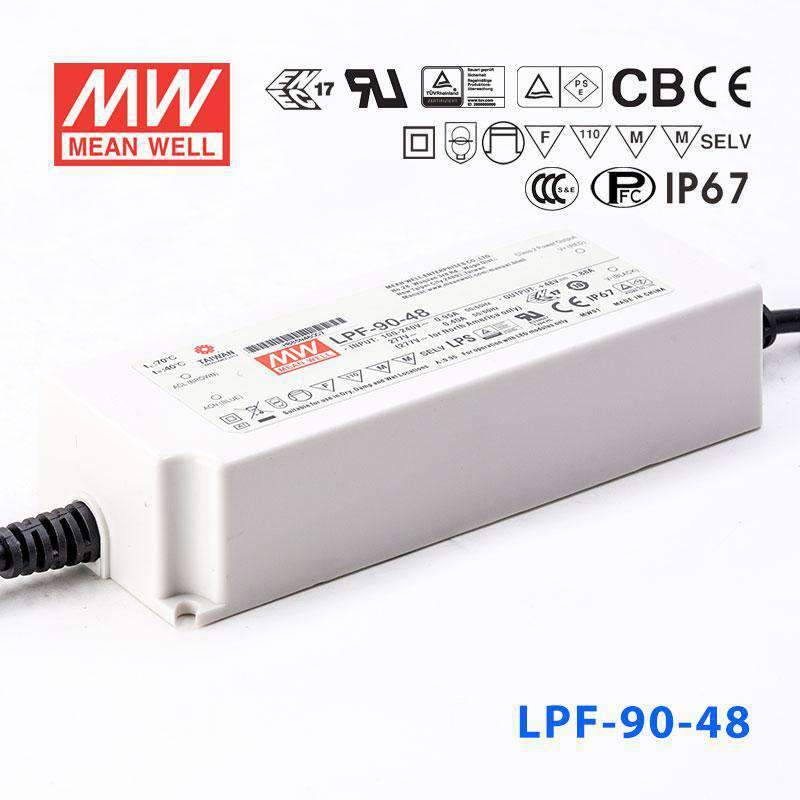

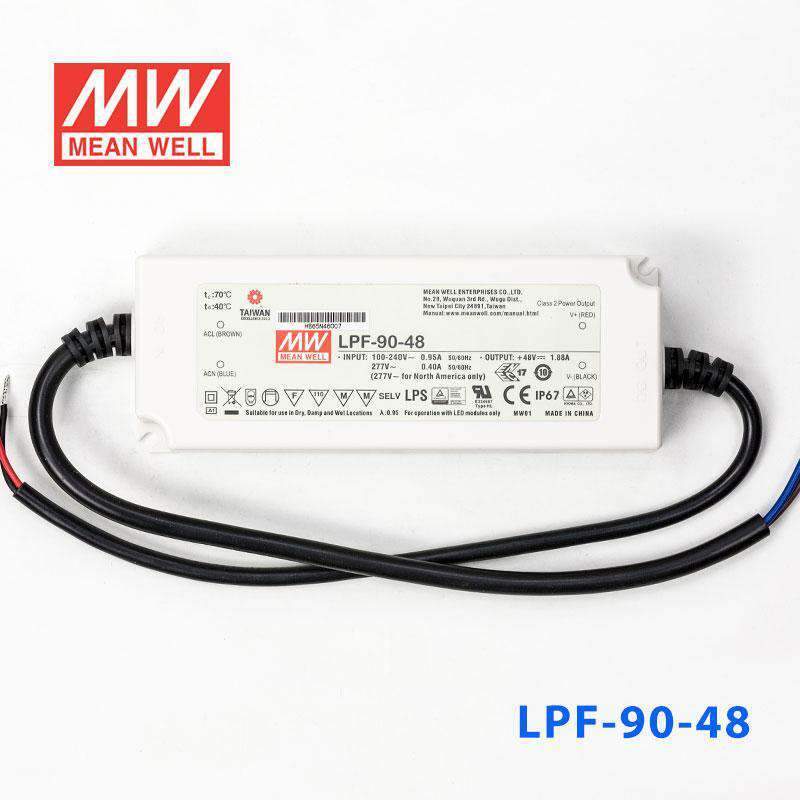

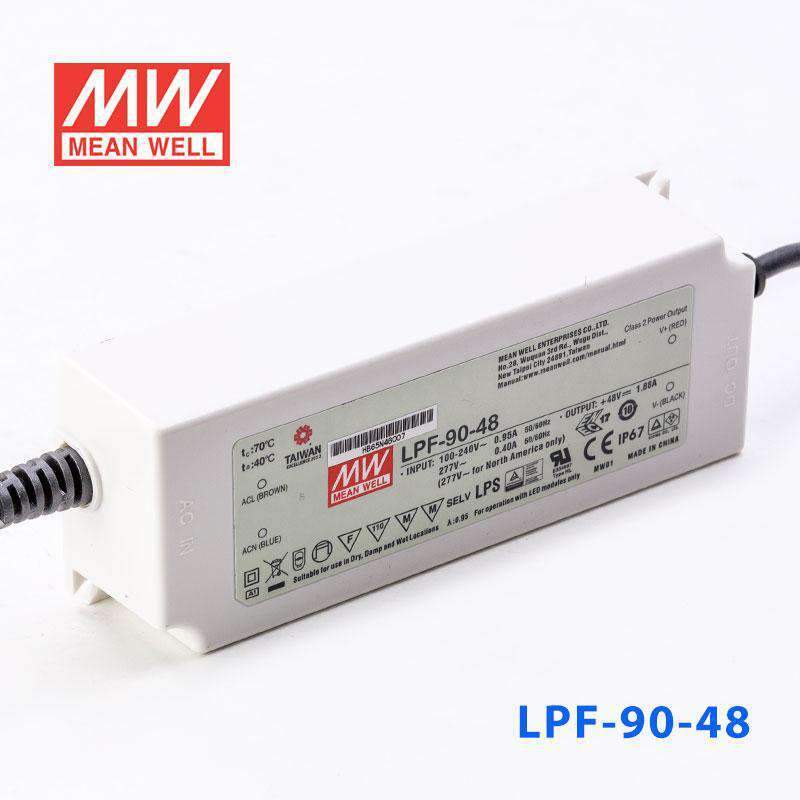

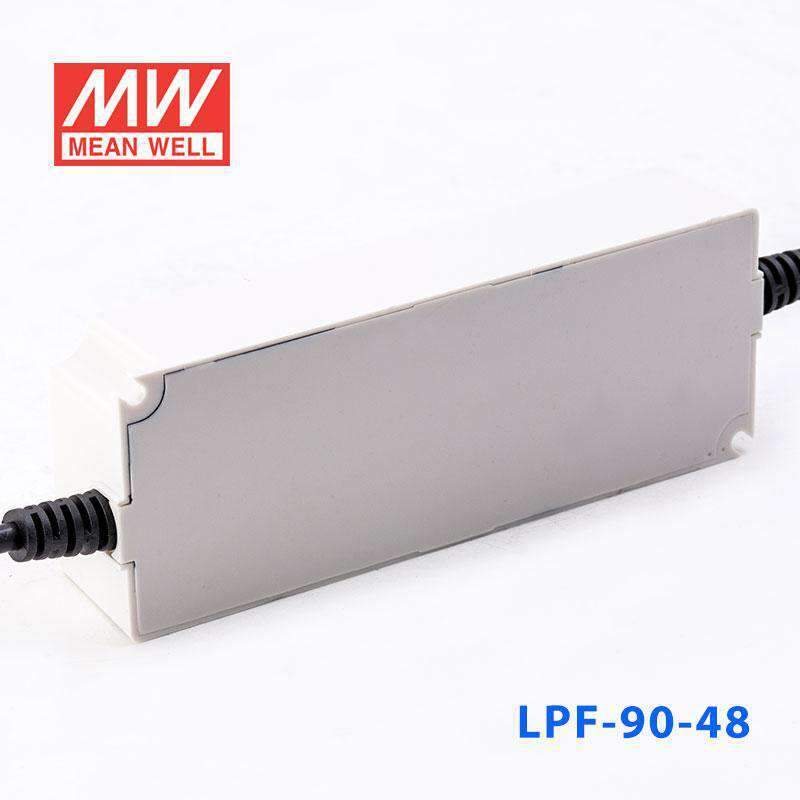

Mean Well LPF-90-48 Power Supply 90W 48V
Please Login for Pricing
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| Fully encapsulated with IP67 level |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 161x 61x 36 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating90.24 Watt
-
Output Voltage48 Volt
-
Rated Current1.88 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length16.1 cm
-
Width6.1 cm
-
Height3.6 cm
-
Weight0.7 kg
