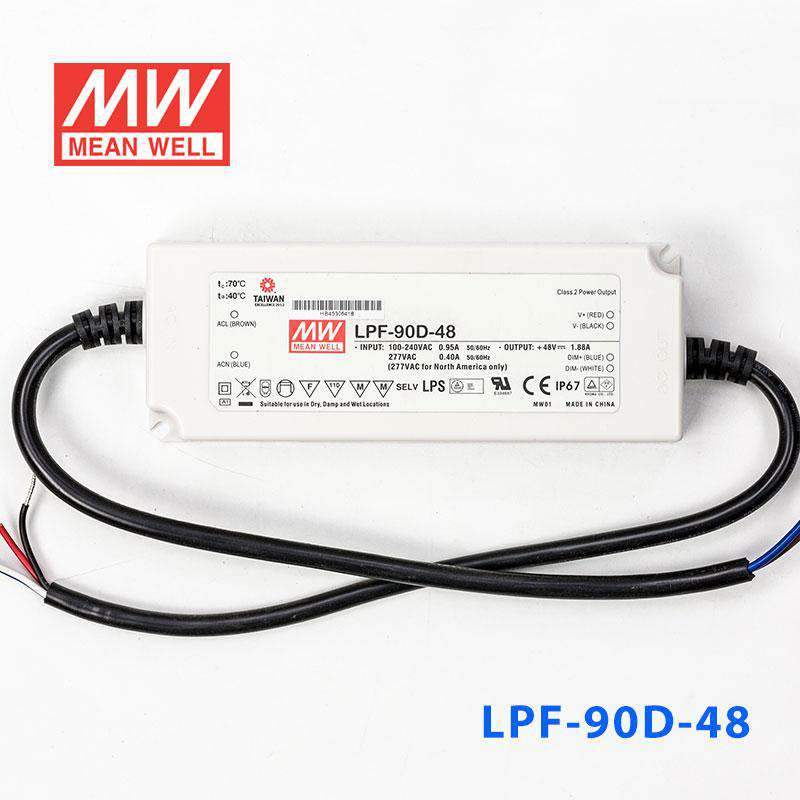

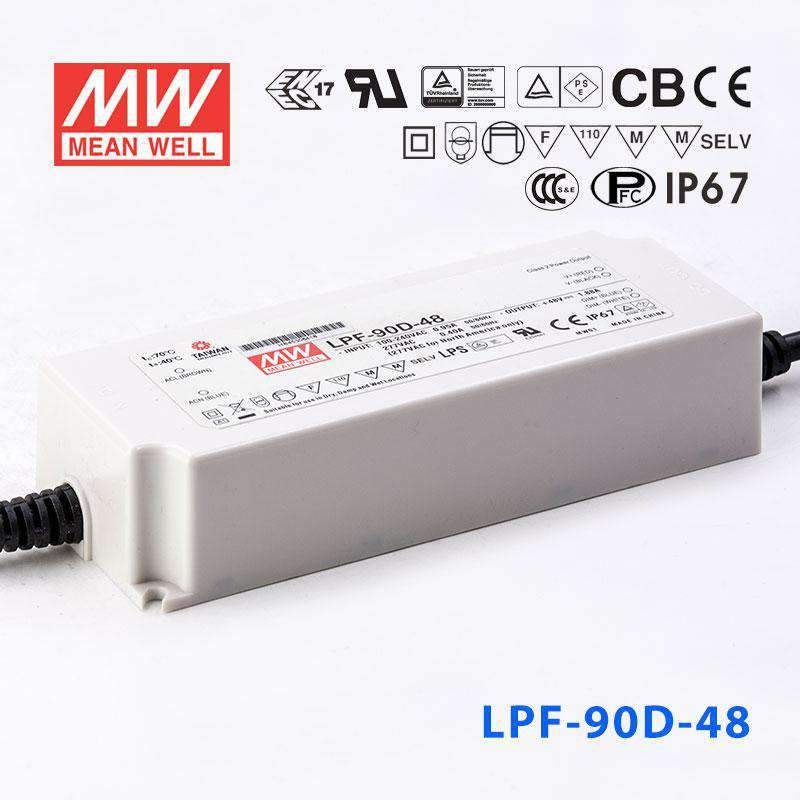

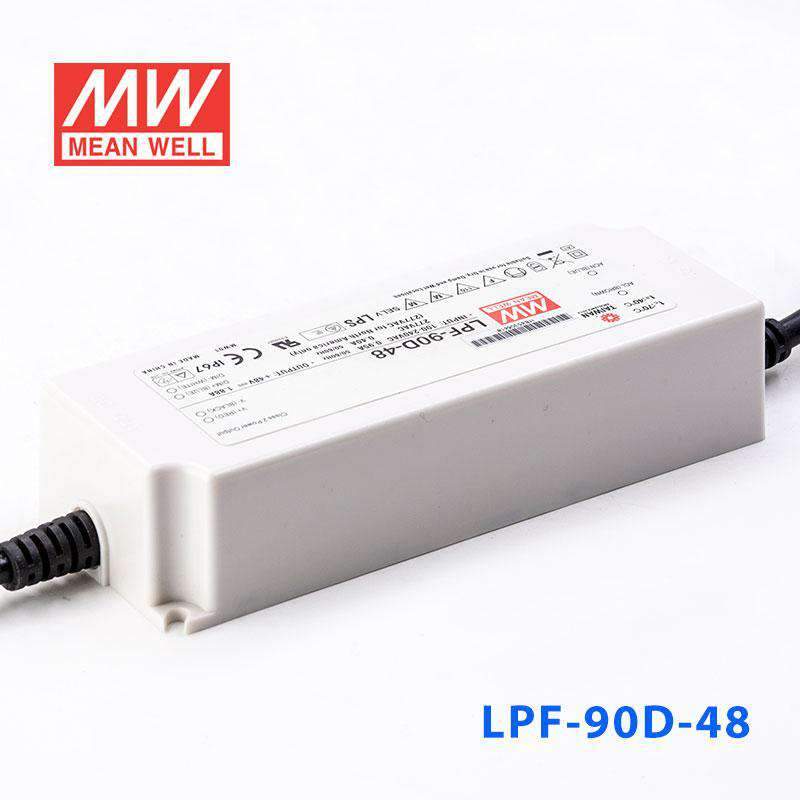

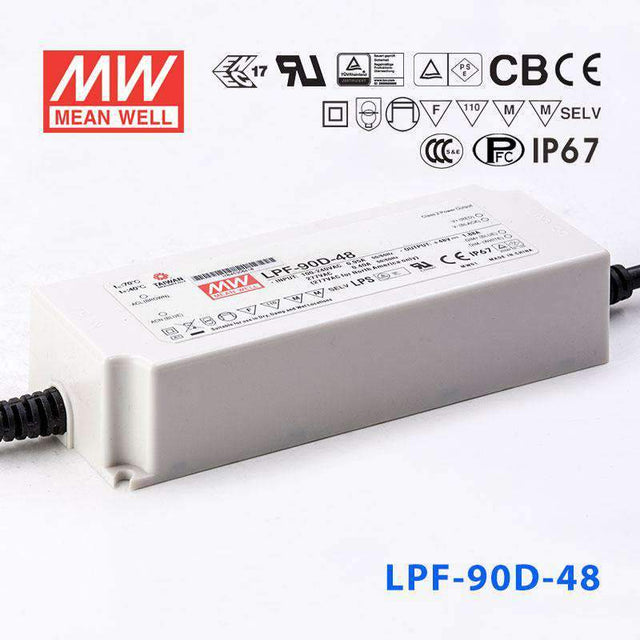

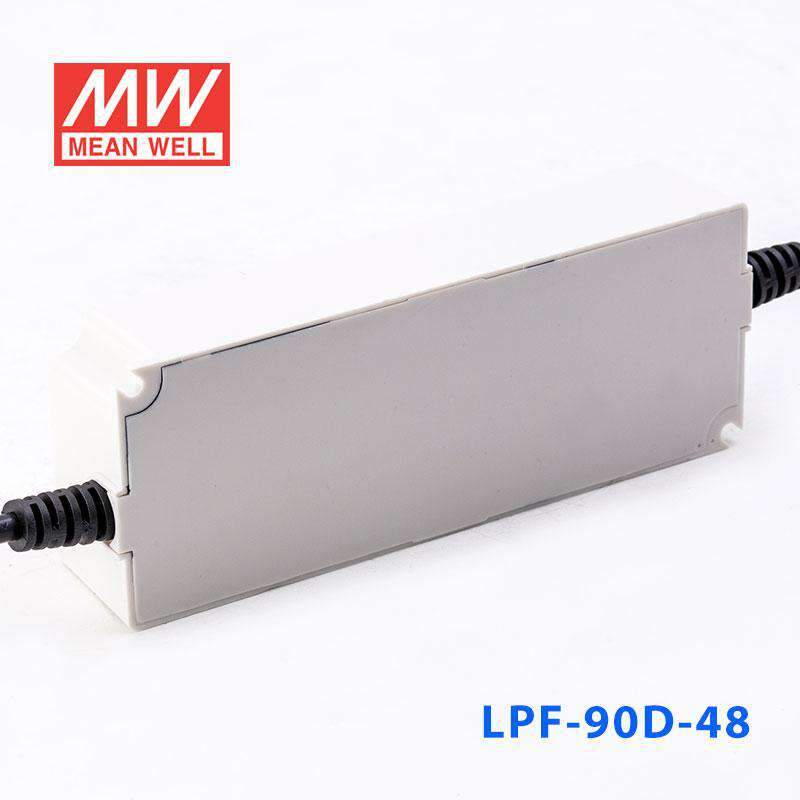

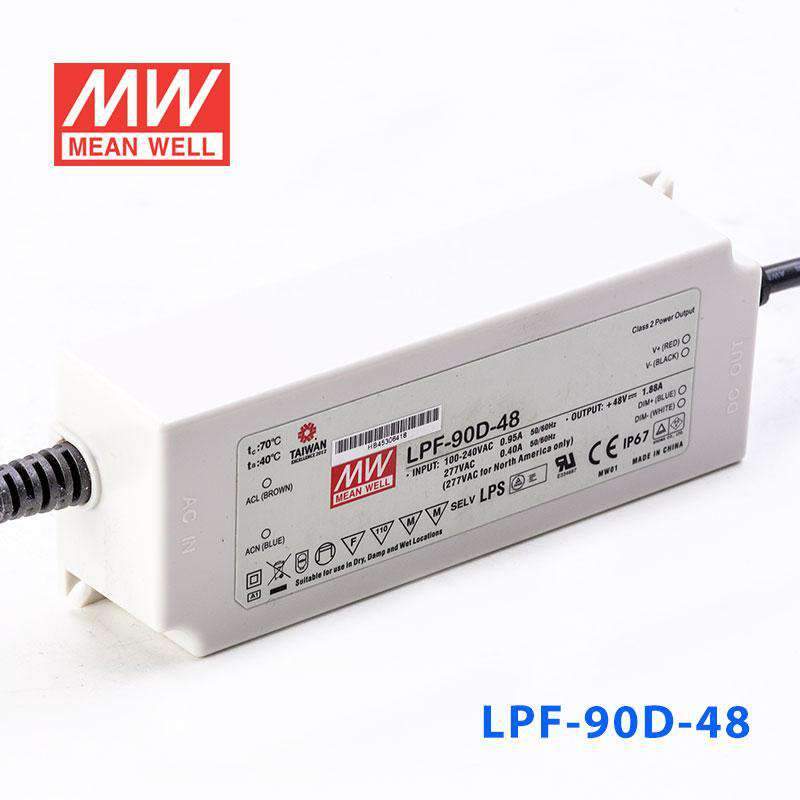

Mean Well LPF-90D-48 Power Supply 90W 48V - Dimmable

fully isolated plastic case, IP67, Class II design without FG, built-in 3 in 1 dimming

|

Description

Features

Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
Fully isolated plastic case
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type
Fully encapsulated with IP67 level
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Protections: Short circuit / Over current / Over voltage / Over temperature
Suitable for LED lighting and moving sign applications
Suitable for dry, damp, and wet location
Cooling by free air convection
5 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 55A at 230VAC
Over current protection 95% ~108% constant current, auto-recovery
Over voltage protection 110%~150% rated output voltage
Withstand voltage I/P - O/P: 3.75kVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved
EMC standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input UL rated, SJTW 18AWGx2C (30cm)
Connection Output UL2464 18AWGx4C (30cm)
Dimension (LxWxH)(mm) 161x 61x 36

Specifications

  • Brand
    Mean Well
  • Series
    LPF Series
  • Power Rating
    90.24 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    1.88 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CE,EAC,PSE,TUV,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    5 Year
  • Length
    16.1 cm
  • Width
    6.1 cm
  • Height
    3.6 cm
  • Weight
    0.7 kg

File Downloads

::specification::
