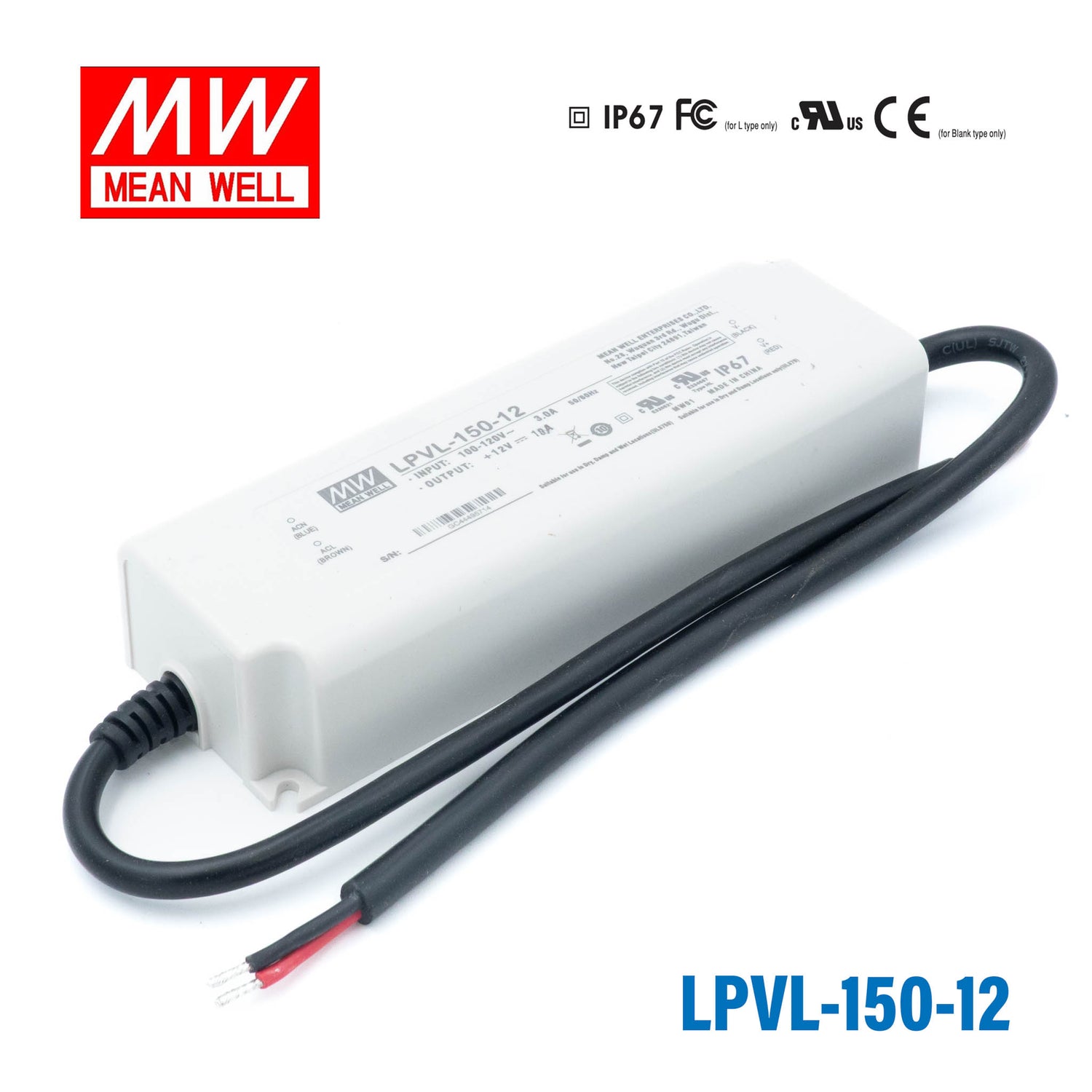

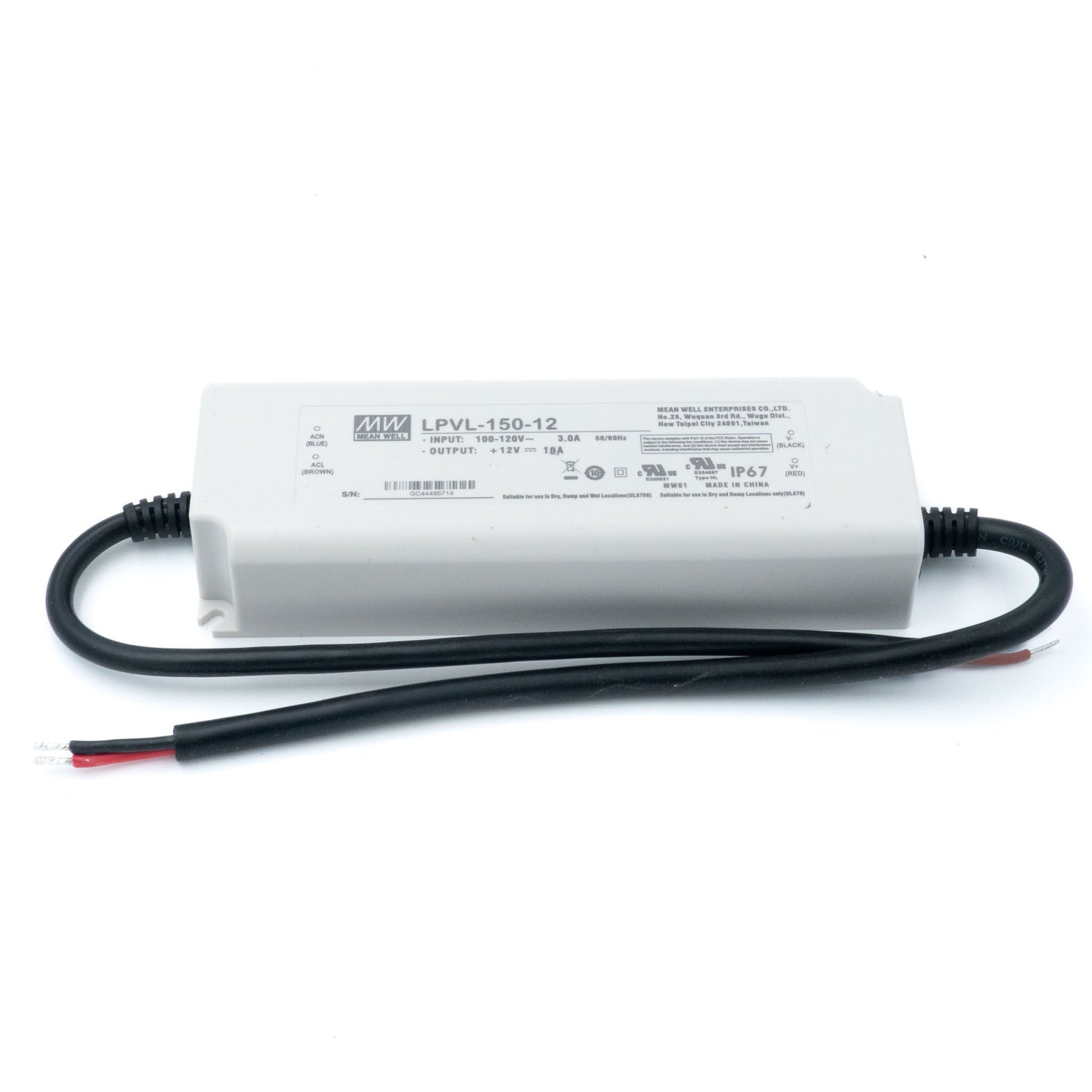

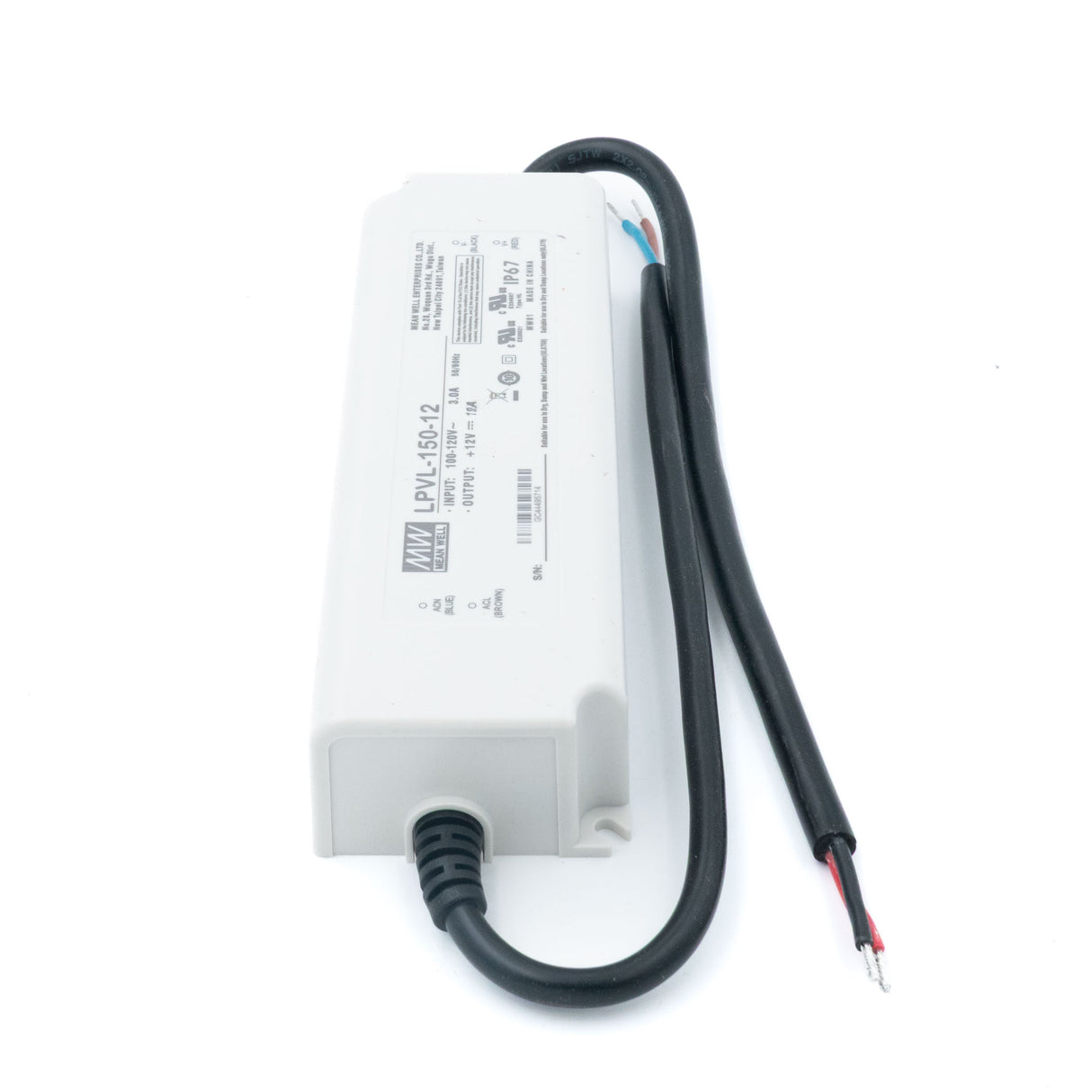

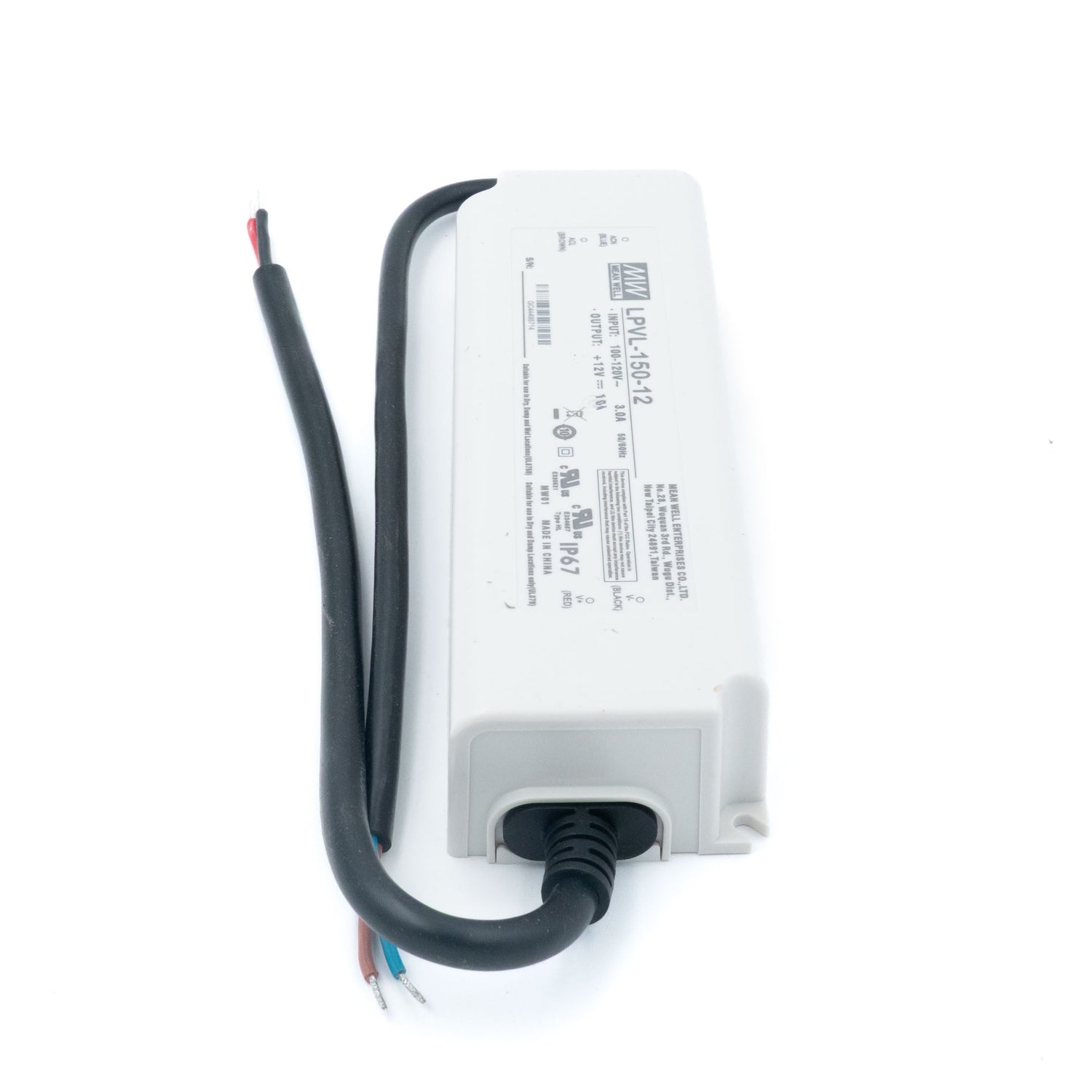

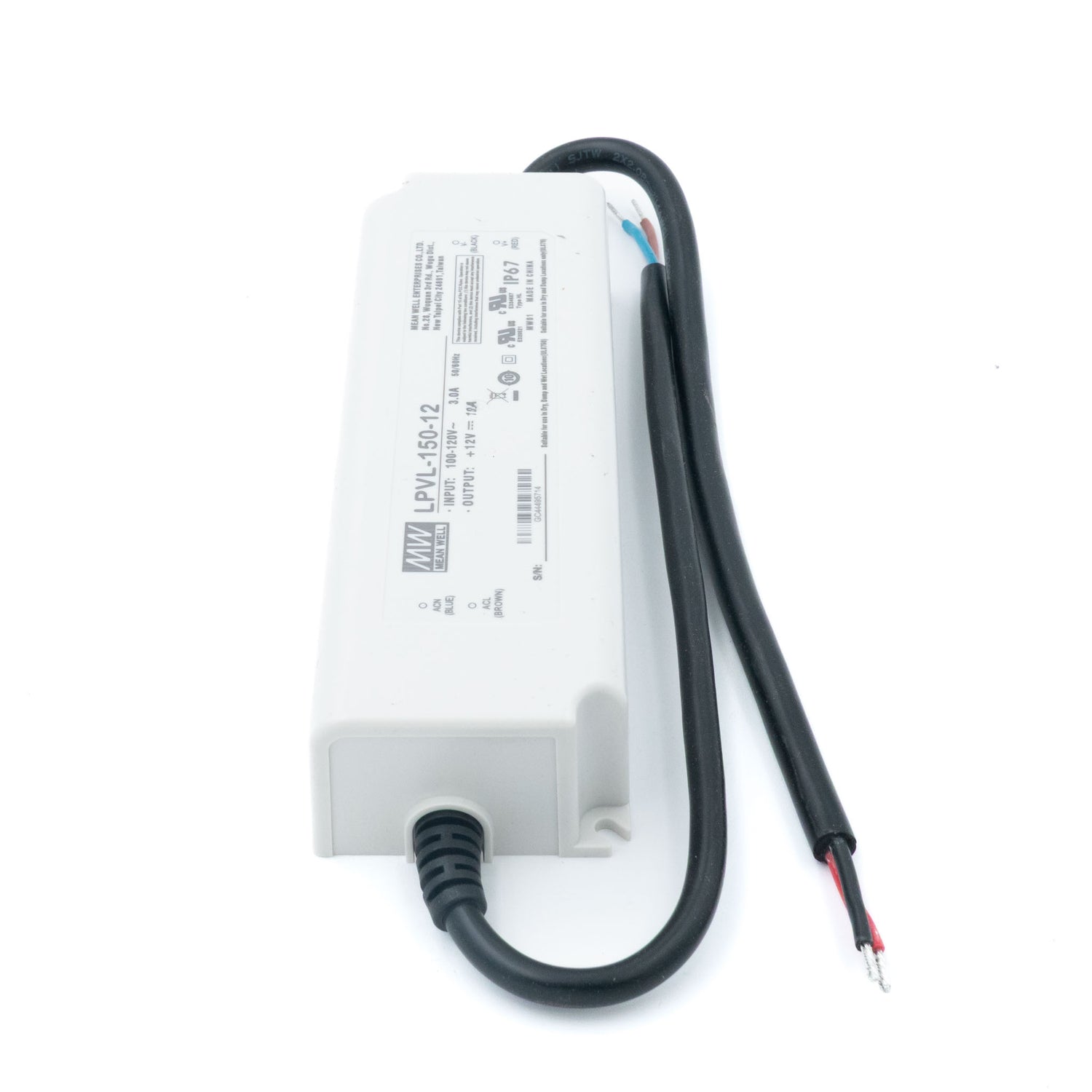

Mean Well LPVL-150-12 Power Supply 150W 12V

slim plastic case, economical, IP67

|

Description

Features

90~132VAC input only
Fully encapsulated with IP67 level
Protections: Short circuit / Overload / Over voltage / Over temperature
Constant voltage design (C.V. mode)
Class 2 power unit
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
2 years warranty


General Specification

AC input voltage range 90~132VAC
AC inrush current Cold start, 75A at 115VAC
Overload protection 110%~150% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -25~+70°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards UL8750(type"HL")
EMC standards Compliance to FCC part 15
Connection Input UL rated, SJTW 18AWGx2C (30cm)
Connection Output UL rated, SJTW 14AWGx2C (30cm)
Dimension (LxWxH)(mm) 190x 63x 37.5

Specifications

  • Brand
    Mean Well
  • Series
    LP Series
  • Power Rating
    120 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    10 Ampere
  • Input Voltage
    90V~132V
  • Standards Met
    CE,EAC,FCC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~65°C
  • Warranty
    2 Year
  • Length
    19.1 cm
  • Width
    6.3 cm
  • Height
    3.75 cm
  • Weight
    0.74 kg
