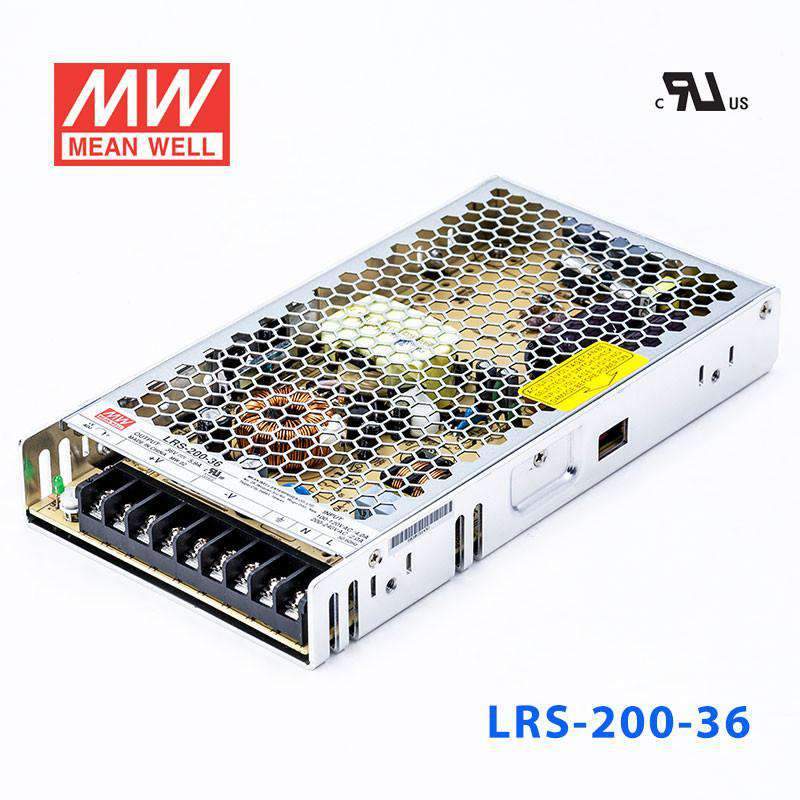

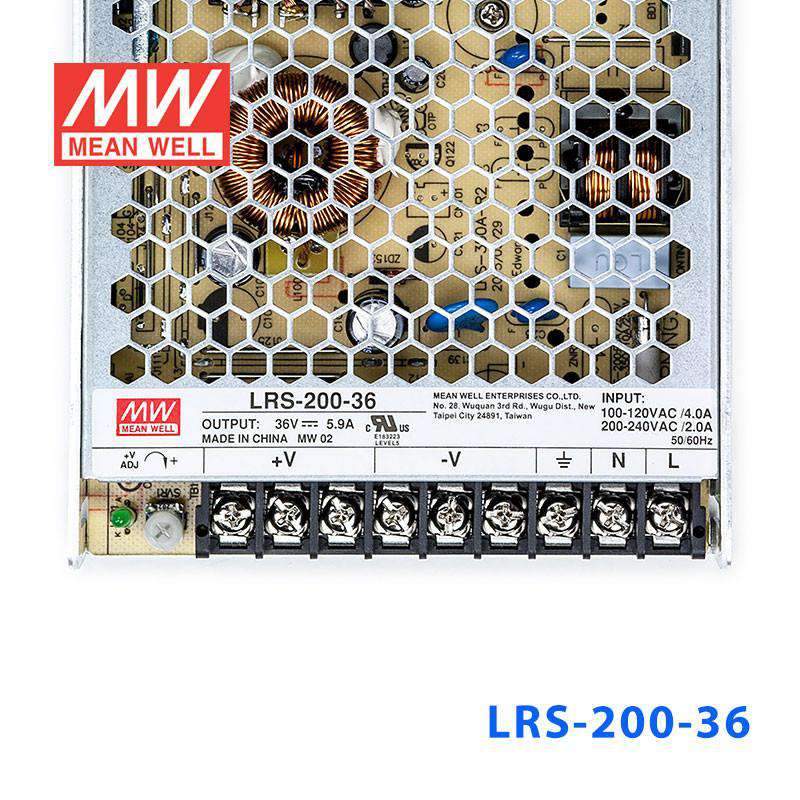

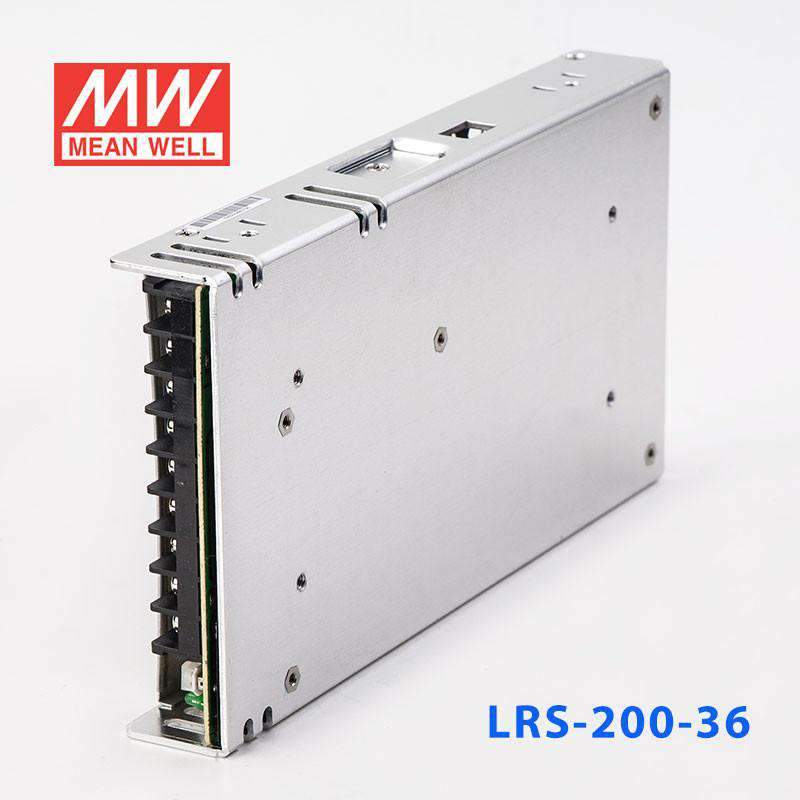

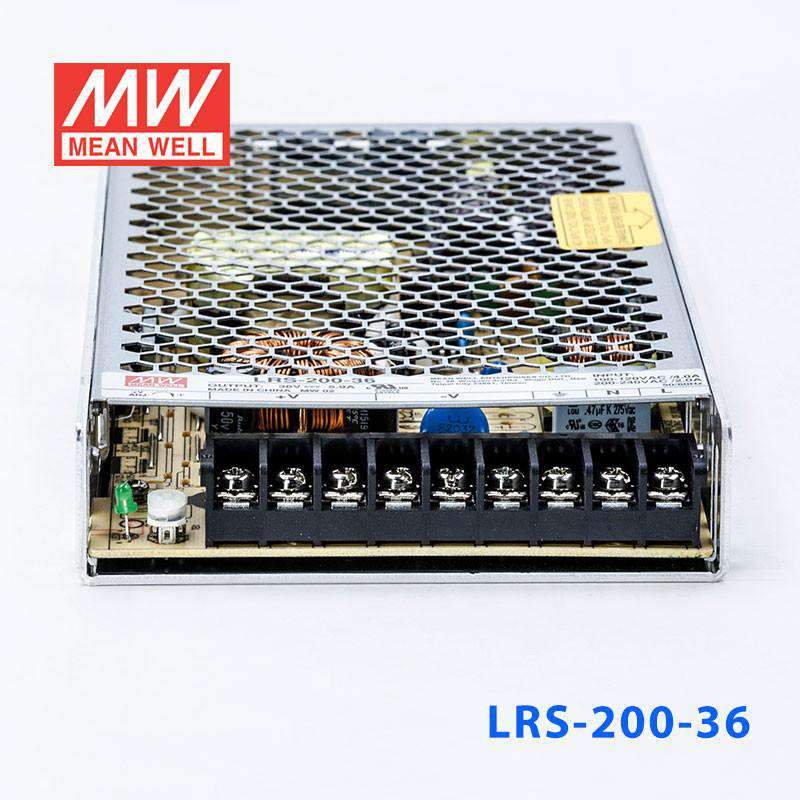

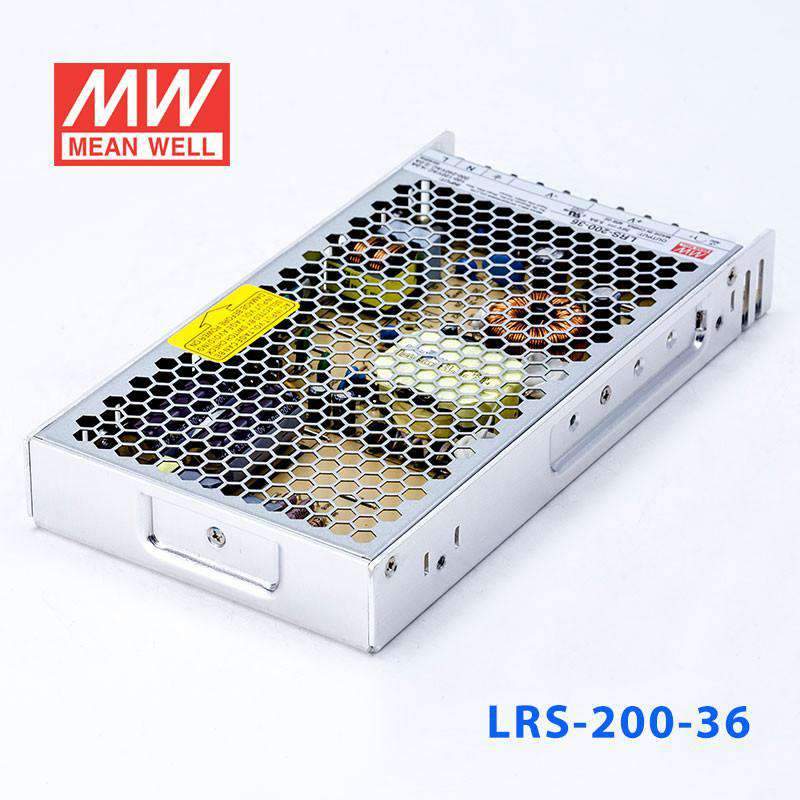

Mean Well LRS-200-36 Power Supply 200W 36V

Name: Mean Well LRS-200-36 Power Supply 200W 36V
Brand: Mean Well
SKU: LRS-200-36
Price: 88.55 NZD
Availability: InStock

most economical model, ultra compact and 1U low profile, withstand 5G vibration and 70°C operation

SKU:

LRS-200-36

Please for Pricing

Notify me when it's back in stock

Description

Features:

No load power consumption <0.5W for 150W; <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty

General Specification

AC input voltage range	115 / 230VAC by switch
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% by potentiometer
Overload protection Range	110%~140%
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	115%~145% rated output voltage
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-25~+70°C (refer to output derating curve)
Safety standards	UL60950-1 approved
EMC standards	Design refer to EN55022 class A
Connection	9P/9.5mm pitch terminal block
Dimension (LxWxH)	215x 115x 30

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

212.4 Watt
Output Voltage

36 Volt
Rated Current

5.9 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,CQC,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

21.5 cm
Width

11.5 cm
Height

3 cm
Weight

0.66 kg
