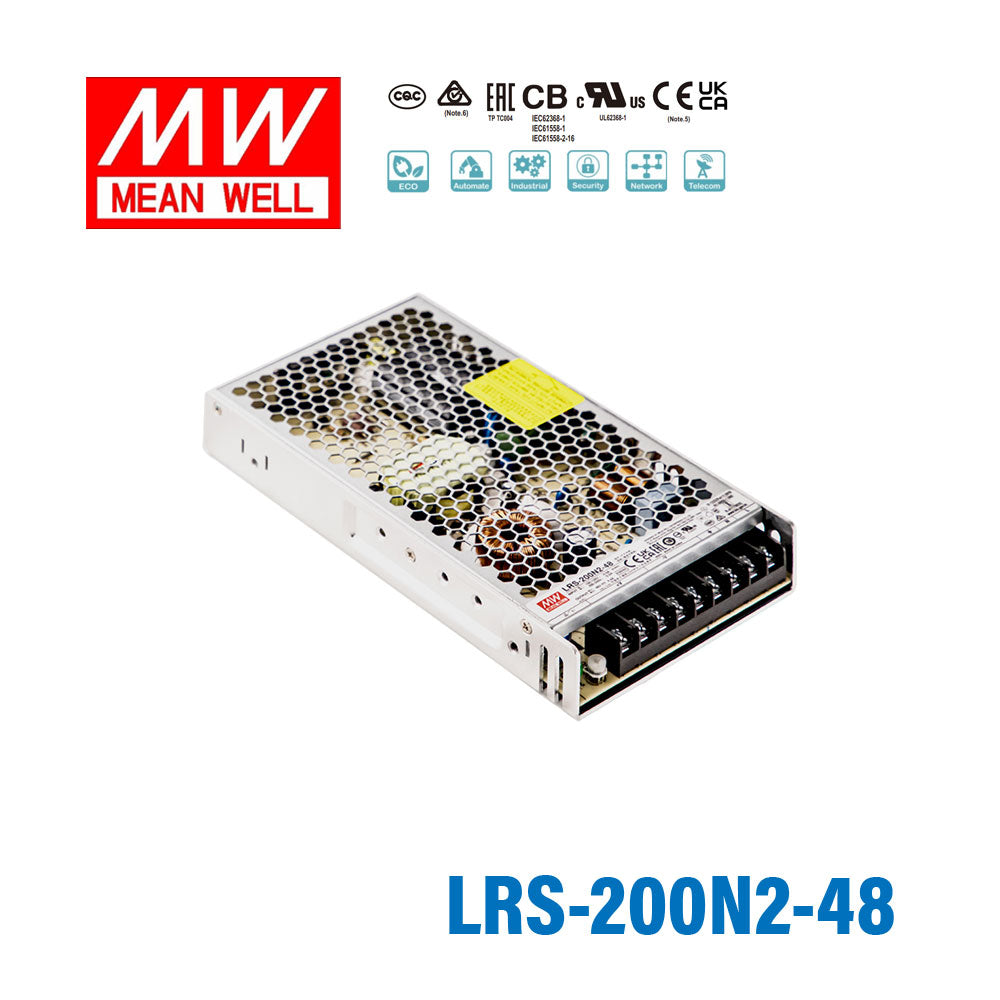

Mean Well LRS-200N2-48 Single Output High Peak Power Supply 211.2W ...
Please Login for Pricing
Description
Description
Key Features
- ✓AC input range selectable by switch
- ✓Withstand 300VAC surge input for 5 second
- ✓Up to 200% peak power capability
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Compliance to IEC/BS EN/EN61558-1 and 62368-1
- ✓Withstand 5G vibration test
- ✓LED indicator for power ON
- ✓No load power consumption<1W
- ✓Overvoltage category III(OVC III)
- ✓High operating temperature up to 70℃
- ✓Operating altitude up to 2000 meters
- ✓High efficiency, long life, and high reliability
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating211.2 Watt
-
Output Voltage48 Volt
-
Rated Current4.4 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.66 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What higher-power 48V systems can the LRS-200N2-48 support?
The LRS-200N2-48 supplies 48V DC at 4.4A, suitable for distributed 48V power bus architectures, high-power PoE switch arrays, brushless DC motor drivers, and telecommunications rectifier systems. Its 211.2W output allows it to drive larger 48V loads without requiring parallel operation.
Is the LRS-200N2-48 suitable for use in high-temperature environments?
The LRS-200N2-48 is rated for operation from -25°C to +70°C, allowing continuous use in demanding industrial environments without forced-air cooling up to the rated temperature ceiling. The unit is designed for indoor installation in ventilated enclosures; it does not carry an IP rating for outdoor or wet-location use.
How does the LRS-200N2-48 compare to other voltage options in the LRS-200N2 series?
The LRS-200N2 series offers multiple output voltages to match different system requirements. The available variants (with rated power, voltage, and current) are: LRS-200N2-12: 204W, 12V, 17A; LRS-200N2-24: 211.2W, 24V, 8.8A; LRS-200N2-36: 212.4W, 36V, 5.9A. The LRS-200N2-48 itself is rated at 211.2W, 48V, 4.4A. All share the same universal input range of 90-264VAC and operating temperature of -25°C to +70°C.
Does the LRS-200N2-48 meet any vibration resistance requirements?
Yes, the LRS-200N2-48 is rated to withstand 5G vibration, making it appropriate for equipment installed in environments subject to mechanical vibration such as factory floors or mobile industrial platforms. It also operates continuously up to 70°C, covering most harsh industrial ambient conditions.
How do I determine if the LRS-200N2-48 has enough headroom for my load?
The LRS-200N2-48 is rated at 211.2W output. Best practice is to keep continuous load at or below 80% of rated capacity, which for this unit is approximately 169W sustained draw. The 48V output at 4.4A gives the total current budget across all loads sharing this supply.
Other LRS-200N2 Models
3 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well LRS-200N2-36 Single Output High Peak Power Supply 212.4W 36V, 2 Times Peak Power 5.9A | 212.4W | 36V | 5.9A | View |
| Mean Well LRS-200N2-24 Single Output High Peak Power Supply 211.2W 24V, 2 Times Peak Power 8.8A | 211.2W | 24V | 8.8A | View |
| Mean Well LRS-200N2-12 Single Output High Peak Power Supply 204W 12V, 2 Times Peak Power 17A | 204W | 12V | 17A | View |
