Description
Description
Features:
No load power consumption <0.5W for 150W; <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty
General Specification
AC input voltage range | 115 / 230VAC by switch |
AC inrush current (max.) | Cold start, 60A at 230VAC |
DC adjustment range | ±10% by potentiometer |
Overload protection Range | 110%~140% |
Overload protection Type | Hiccup mode, auto-recovery |
Over voltage protection Range | 115%~145% rated output voltage |
Over voltage protection Type | Shut down o/p voltage, re-power on to recover |
Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
Working temperature | -25~+70°C (refer to output derating curve) |
Safety standards | UL60950-1 approved |
EMC standards | Design refer to EN55022 class A |

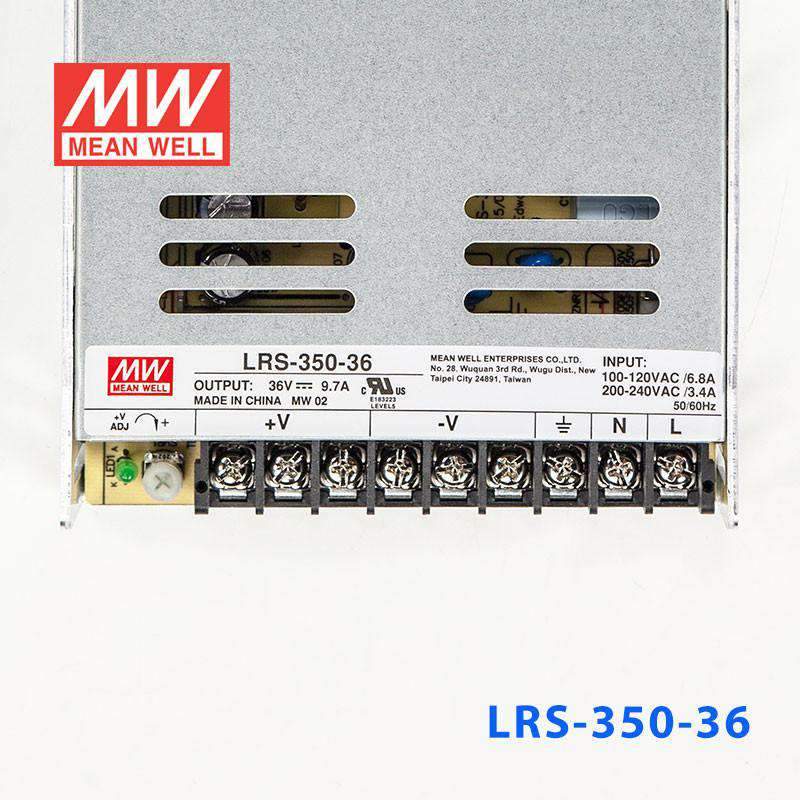

Connection | 9P/9.5mm pitch terminal block |
Dimension (LxWxH) | 215x 115x 30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating349.2 Watt
-
Output Voltage36 Volt
-
Rated Current9.7 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.76 kg
