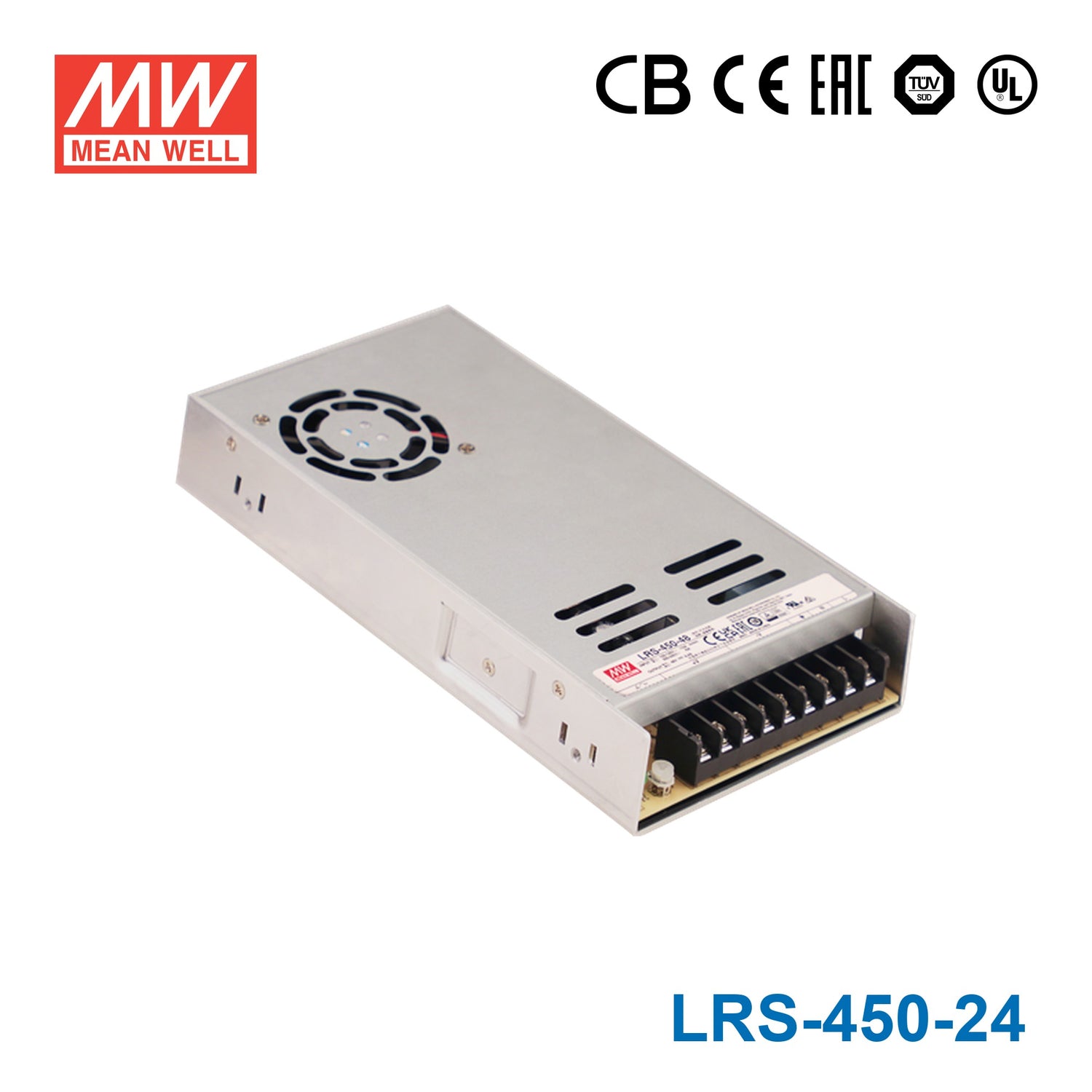

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well LRS-450-24 Power Supply 450W 24V

Name: Mean Well LRS-450-24 Power Supply 450W 24V
Brand: Mean Well
SKU: LRS-450-24
Price: 200.75 NZD
Availability: InStock

most economical model, ultra compact and 1U low profile, withstand 5G vibration and 70°C operation

SKU:

LRS-450-24

Model

35W 24V

SKU: LRS-35-24

50W 24V

SKU: LRS-50-24

75W 24V

SKU: LRS-75-24

100W 24V

SKU: LRS-100-24

150W 24V

SKU: LRS-150-24

200W 24V

SKU: LRS-200-24

350W 24V

SKU: LRS-350-24

450W 24V

SKU: LRS-450-24

600W 24V

SKU: LRS-600-24

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Features:

Brand MEANWELL

AC input voltage range: 90 ~ 132VAC

Rated power: 450W

AC input range selectable by switch

Withstand 300VAC surge input for 5 second

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC fan

Built-in cooling Fan ON-OFF control

1U low profile

Withstand 5G vibration test

LED indicator for power on

No load power consumption < 0.75W

100% full load burn-in test

High operating temperature up to 70℃

Operating altitude up to 5000 meters (Note.8)

High efficiency, long life and high reliability

3 years warranty

General Specification

AC input voltage range	180 / 264VAC by switch
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% by potentiometer
Overload protection Range	105%~150%
Overload protection Type	Constant current limiting, unit will shutdown after 3 sec, re-power on to recover
Over voltage protection Range	5.75 ~ 6.75V, 13.8 ~ 16.2V, 18 ~ 21V, 27.6 ~ 32.4V, 41.4 ~ 48.6V, 55.2 ~ 64.8V
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-20 ~ +70℃ (Refer to "Derating Curve")
Safety standards	BS IEC/UL 62368-1, EAC TP TC 004,AS/NZS62368.1 approved
Dimension (LxWxH)	22512435mm (LWH)

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

451.2 Watt
Output Voltage

24 Volt
Rated Current

18.8 Ampere
Input Voltage

90V~132V
Standards Met

CB,CE,CQC,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~70°C
Warranty

3 Year
Length

22.5 cm
Width

12.4 cm
Height

3.5 cm
Weight

0.85 kg
