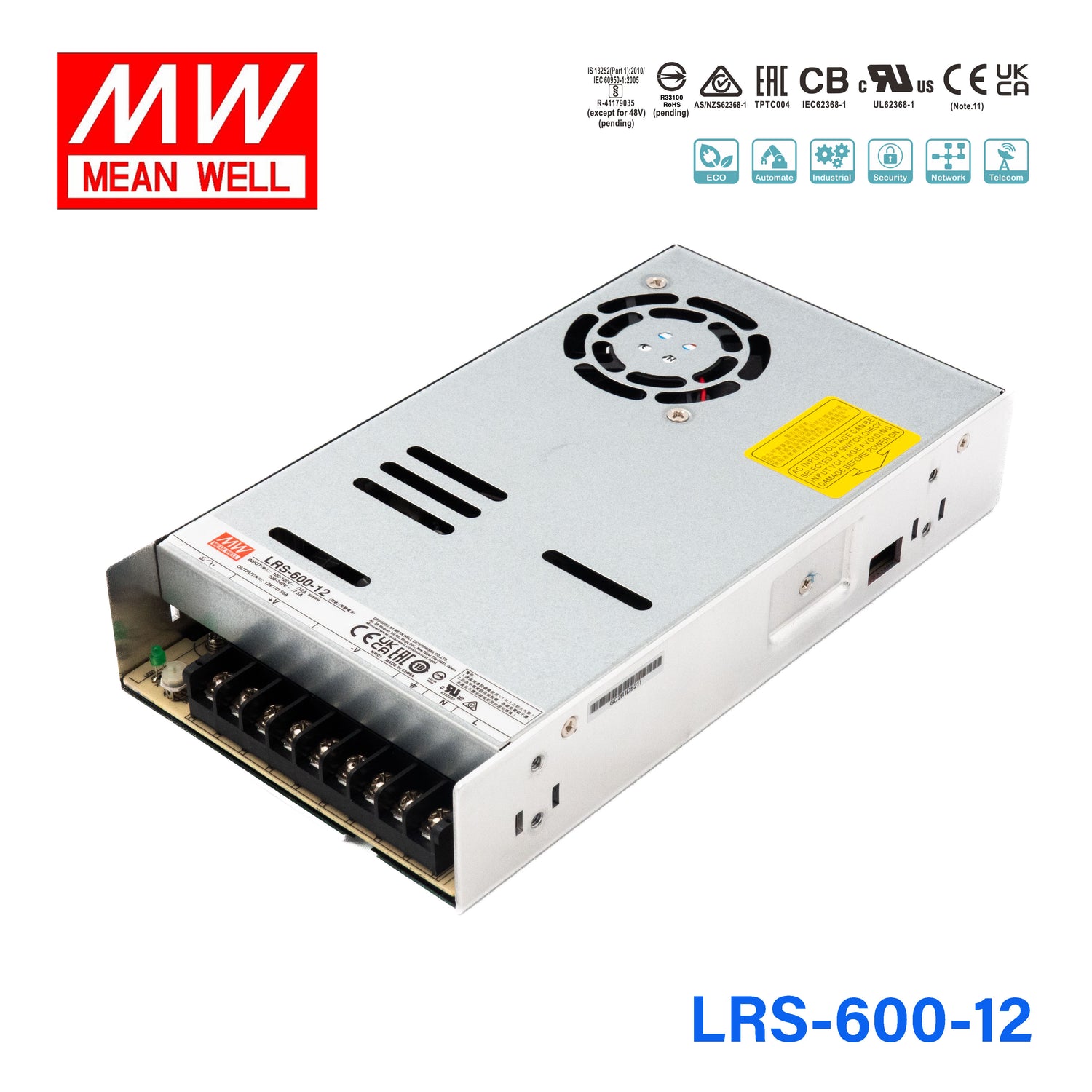

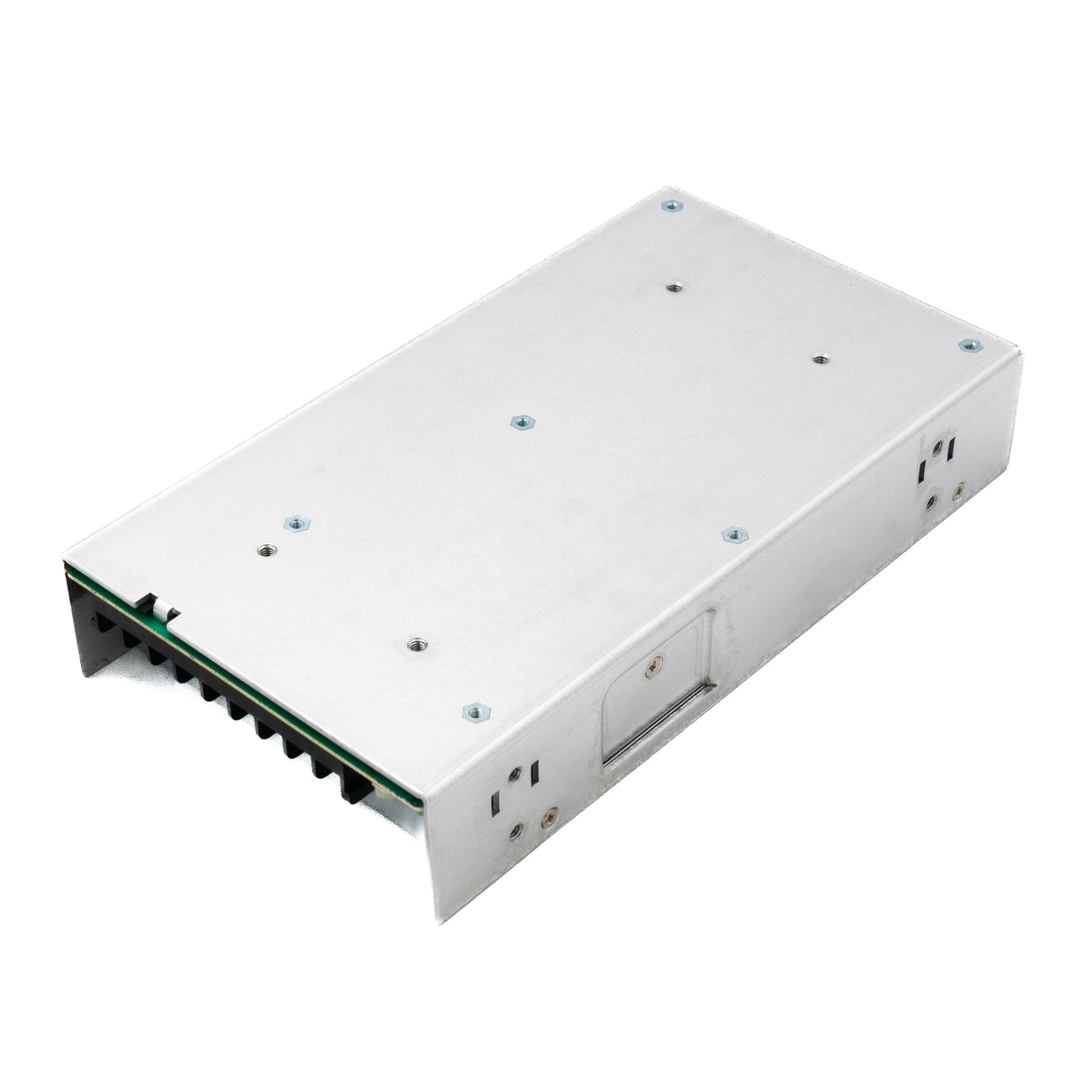

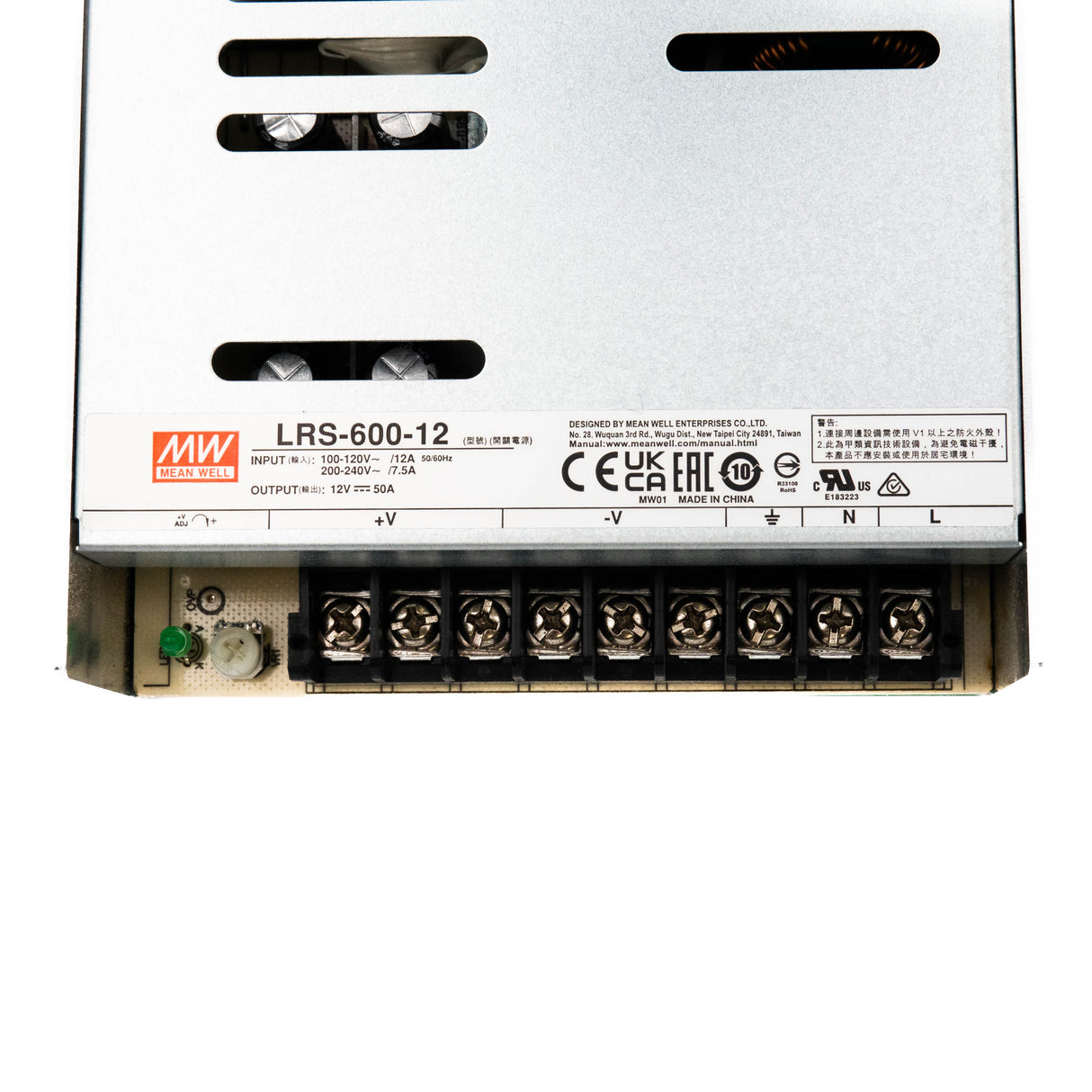

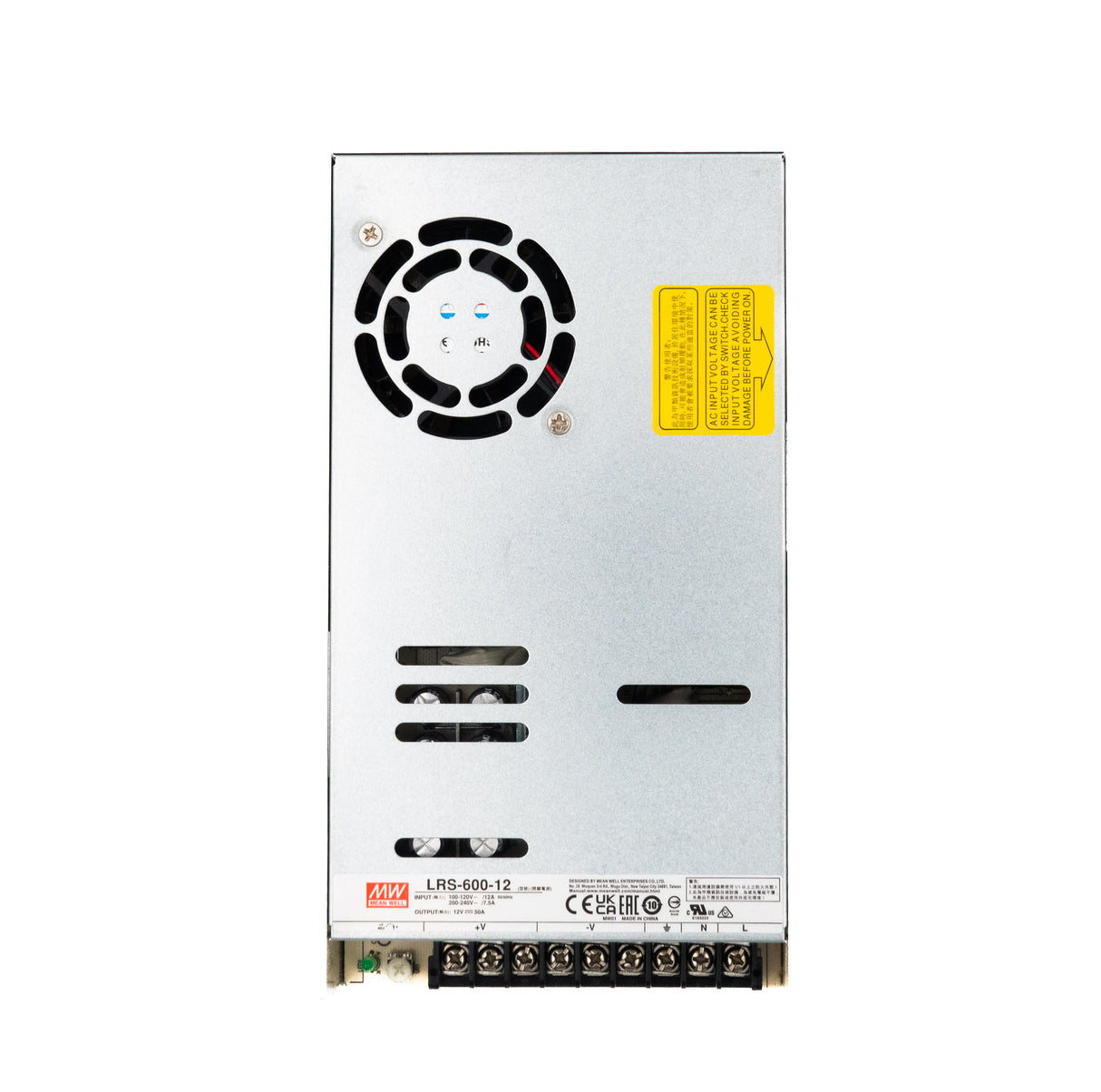

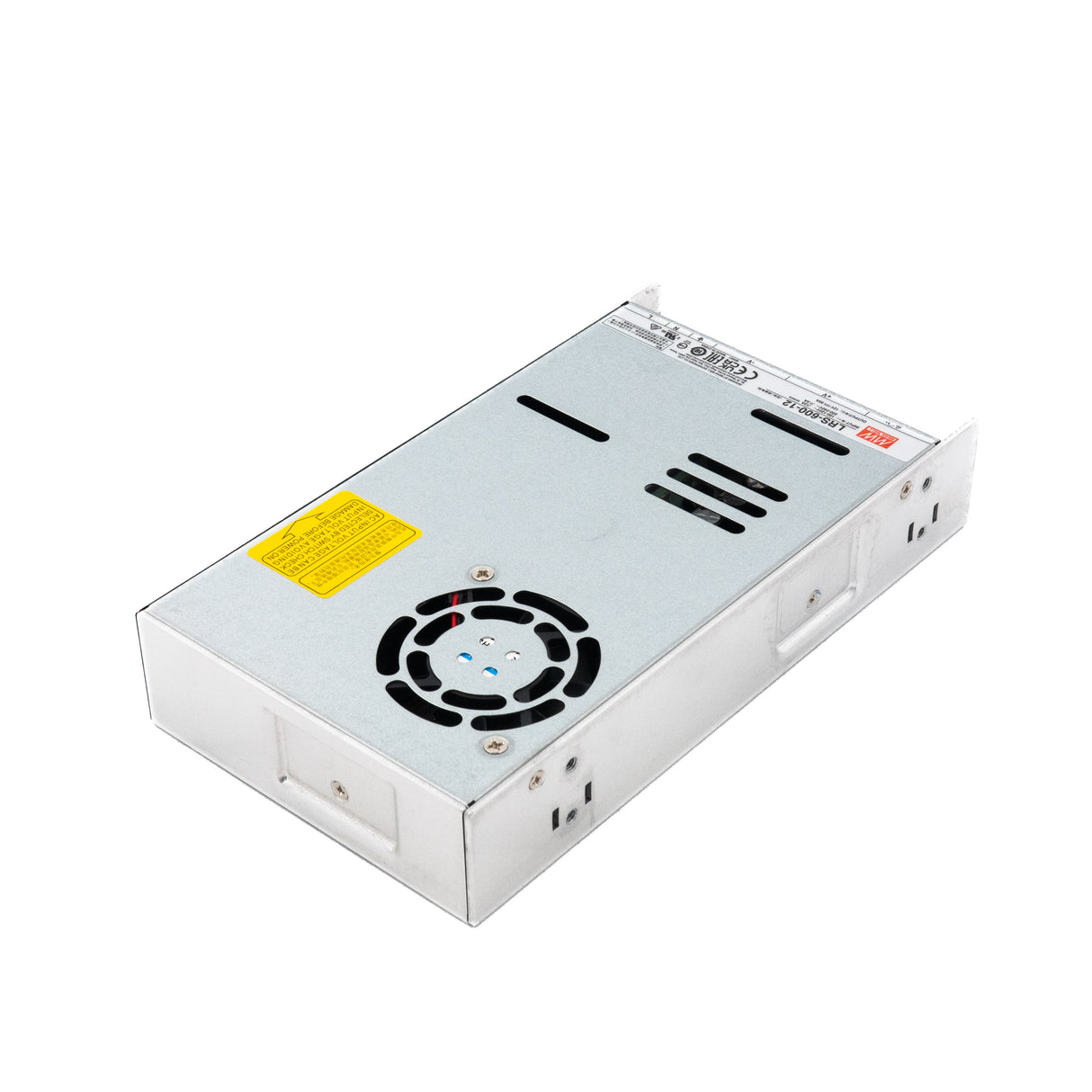

Mean Well LRS-600-12 Power Supply 600W 12V

Name: Mean Well LRS-600-12 Power Supply 600W 12V
Brand: Mean Well
SKU: LRS-600-12
Price: 234.3 NZD
Availability: InStock

most economical model, ultra compact and 1U low profile, withstand 5G vibration and 70°C operation

SKU:

LRS-600-12

Please for Pricing

Notify me when it's back in stock

Description

Features:

Brand MEANWELL

AC input voltage range: 90 ~ 132VAC

Rated power: 600W

AC input range selectable by switch

Withstand 300VAC surge input for 5 second

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC fan

Built-in cooling Fan ON-OFF control

1U low profile

Withstand 5G vibration test

LED indicator for power on

No load power consumption < 0.75W

100% full load burn-in test

High operating temperature up to 70℃

Operating altitude up to 5000 meters (Note.8)

High efficiency, long life and high reliability

3 years warranty

General Specification

AC input voltage range	90 ~ 132VAC / 180 ~ 264VAC by switch
AC inrush current (max.)	Cold start, 60A at 230VAC
Overload protection Range	105 ~ 150% rated output power
Overload protection Type	Constant current limiting, unit will shutdown after 3 sec. re-power on to recover
Over voltage protection Range	5.75 ~ 6.75V, 13.8 ~ 16.2V, 18 ~ 21V, 27.6 ~ 32.4V, 31 ~ 36.5V, 41.4 ~ 48.6V, 55.2 ~ 64.8V
Over voltage protection Type	Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-20 ~ +65℃ (Refer to "Derating Curve")
Safety standards	BS IEC/UL 62368-1, EAC TP TC 004,AS/NZS62368.1 approved
Dimension (LxWxH)	22512441mm (LWH)

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

600 Watt
Output Voltage

12 Volt
Rated Current

50 Ampere
Input Voltage

90V~132V
Standards Met

CB,CE,CQC,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~65°C
Warranty

3 Year
Length

22.5 cm
Width

12.4 cm
Height

4.1 cm
Weight

0.95 kg
