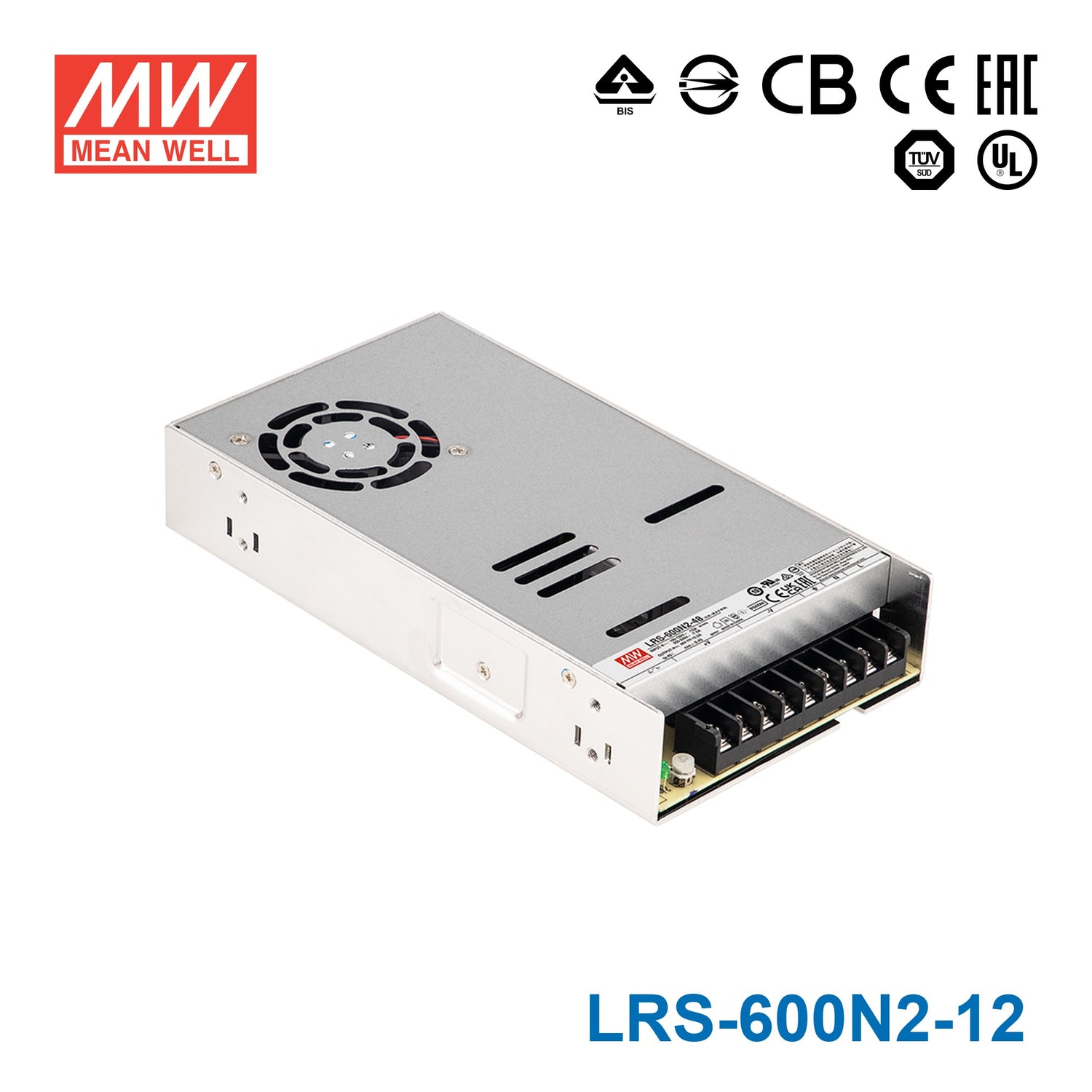

Mean Well LRS-600N2-12 Single Output High Peak Power Supply 600W 12V, 2 Times Peak Power 50A

most economical modelwithstand 5G vibration and 65°C operationup to 200% peak power capability

SKU LRS-600N2-12

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

LRS-600N2-12 is the 12V output model of this series: rated current 50A, rated power 600W, typical efficiency 90%.

LRS-600N2 series is a 600W single-output enclosed type power supply with 41mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 12V, 24V, 36V and 48V.In addition to the high efficiency up to 92%, with the built-in long life fan LRS-600N2 can work under -20~+65℃ with full load. LRS-600N2 has the complete protection functions and 5G anti-vibration capability; It is complied with complete international safety regulations. LRS-600N2 series serves as a high price-performance power supply solution for various industrial applications. Moreover, LRS-600N2 can provide 200% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.

Features

AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Up to 200% peak power capability
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling
Built-in cooling Fan ON-OFF control
Compliance to IEC/BS EN/EN61558-1 and 62368-1
Withstand 5G vibration test
Over voltage category Ⅲ(OVC Ⅲ)
High operating temperature up to 65℃
Operating altitude up to 2000 meters
3 years warranty

Specifications

LRS-600N2-12Specifications from the official datasheet (2025-09-12 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 50A
CURRENT RANGE: 0 ~ 50A
RATED POWER: 600W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE^Note.3: 11.4 ~ 13.2V
VOLTAGE TOLERANCE: ±1.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.4: 1300ms, 50ms/230VAC 1300ms,50ms/115VAC at full load
HOLD UP TIME (Typ.): 20ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (swith on 230VAC)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 12A/115VAC 7.5A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 60A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVER LOAD: Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover Constant current limiting for output power >200% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

FUNCTION

FAN ON/OFF CONTROL (Typ.): RTH3≧50℃ FAN ON, ≦40℃ FAN OFF

ENVIRONMENT

WORKING TEMP.: -20 ~ +65℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY: Ⅲ:According to EN61558,EN50178,EN60664-1,EN62477-1;altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS: BS IEC/UL 62368-1, EAC TP TC 004, BIS IS13252(Part1):2010/IEC60950-1:2005(except for 48V), BSMI CNS15598-1,GB 4943.1, BS EN/EN61558-1,BS EN/EN61558-2-16, design refer to AS/NZS61558.1/2.16,AS/NZS62368.1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EAC TP TC 020, BSMI CNS15936
EMC IMMUNITY: Compliance to EAC TP TC 020

OTHERS

MTBF: 1336.2K hrs min. Telcordia SR-332(Bellcore) ; 230.8 K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 225*124*41mm (L*W*H)
PACKING: 0.95Kg/12pcs/12.4Kg/0.77CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Voltage adjustment can only be operated within the input range of 100~120VAC or 200-240VAC. If the voltage adjustment is performed outside this range, it may cause abnormal output.
4. Length of set up time is measured at cold start. Turning the power supply on/off frequently may lead to increase of the set up time.
5. Once protections are triggered, 4min(Typ.) of cold down time is required before restart.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. This power supply does not meet the harmonic current requirements outlined by EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W
8. RCM is on voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1

Technical drawings

LRS-600N2-12 Block Diagram — Block Diagram

LRS-600N2-12 Derating Curve — Derating Curve

LRS-600N2-12 L R S - 6 0 0 N 2 series — L R S - 6 0 0 N 2 series

LRS-600N2-12 PeakPower/RatedPower — PeakPower/RatedPower

LRS-600N2-12 Mechanical Specification — Mechanical Specification

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
For Inductive and capacitive load

Downloads

Datasheet1

LRS-600N2-12 datasheetLRS_600N2_spec_sheet.pdf · 2025-09-12 edition PDF Download

FAQ

What is the peak power capability of the LRS-600N2-12 and when does it activate?

The LRS-600N2-12 can deliver up to 200% of its rated 600W output (approximately 1200W) for peaks of up to 5 seconds, at a duty cycle of no more than 35% and with average power kept within the 600W rating; the available peak level depends on input voltage (see the peak-power curve). This covers short surges such as motor startup, capacitor charging, or solenoid engagement without requiring a larger continuous-rated supply.

How does the LRS-600N2-12 compare to the other LRS-600N2 voltage variants?

All LRS-600N2 models share the same 225 × 124 × 41 mm case, 0.95 kg weight, 90–132VAC / 180–264VAC switch-selectable input, and 200% peak power capability. Output ratings: LRS-600N2-12 (600W, 50A at 12V), LRS-600N2-24 (600W, 25A at 24V), LRS-600N2-36 (597.6W, 16.6A at 36V), LRS-600N2-48 (600W, 12.5A at 48V).

What temperature range does the LRS-600N2-12 support?

The LRS-600N2-12 operates from -20°C to +65°C ambient, with output derated at higher temperatures according to the derating curve; enclosures should be designed with adequate airflow to keep the unit within its derated load limits. The -20°C lower limit supports operation in most industrial indoor environments.

Is the LRS-600N2-12 appropriate for motor-driven automation systems with frequent start-stop cycles?

Yes, within its peak limits. The combination of 50A continuous output and 200% peak power for up to 5 seconds (duty cycle ≤35%, average power within the 600W rating) makes the LRS-600N2-12 well-matched for 12V DC motor systems with startup inrush. The peak feature absorbs short startup surges that would otherwise require oversizing to a higher-wattage supply.
