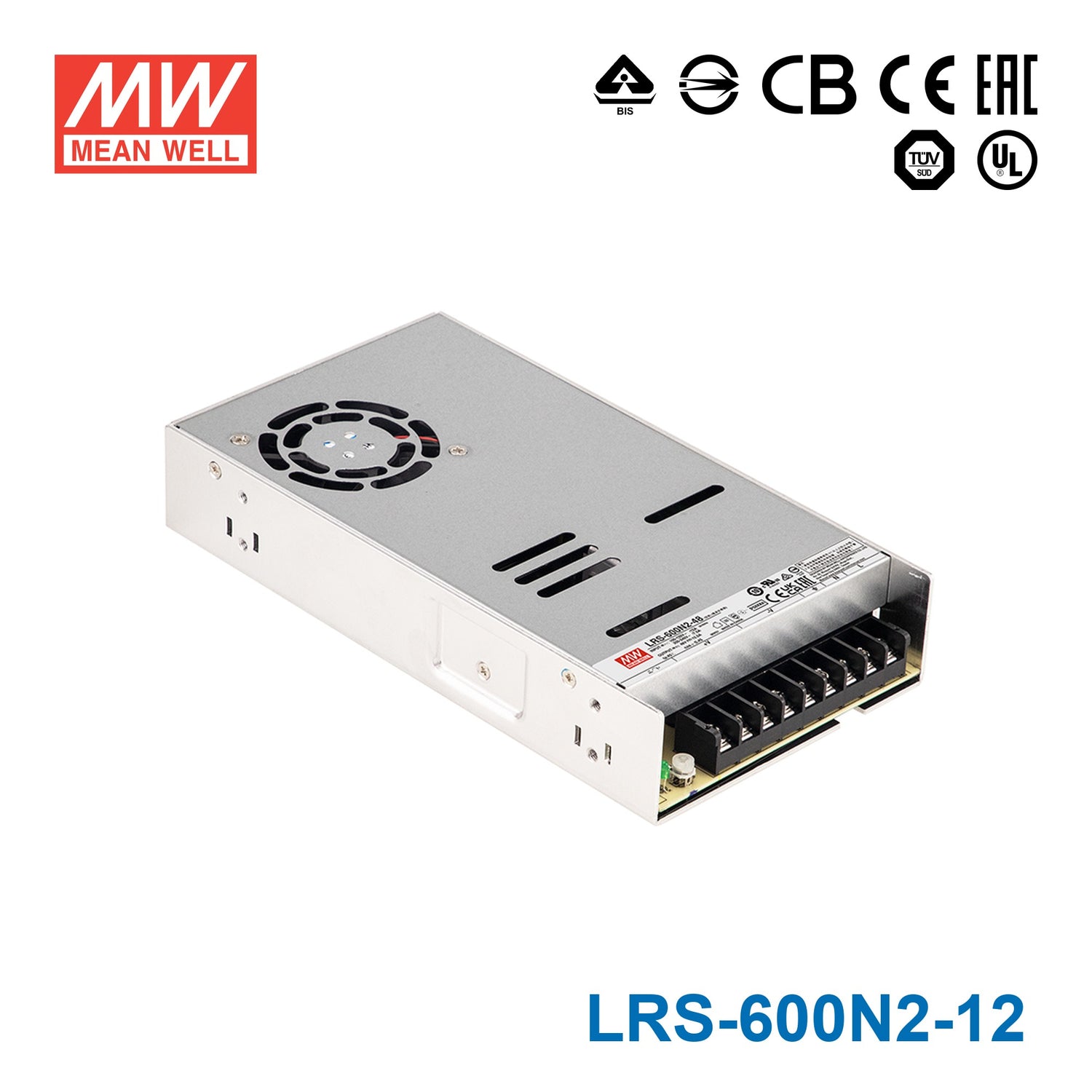

Mean Well LRS-600N2-12 Single Output High Peak Power Supply 600W 12...
Please Login for Pricing
Description
Description
Key Features
- ✓AC input range selectable by switch
- ✓Withstand 300VAC surge input for 5 second
- ✓Up to 200% peak power capability
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Forced air cooling
- ✓Built-in cooling Fan ON-OFF control
- ✓Compliance to IEC/BS EN/EN61558-1 and 62368-1
- ✓Withstand 5G vibration test
- ✓Overvoltage category III(OVC III)
- ✓High operating temperature up to 65℃
- ✓Operating altitude up to 2000 meters
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating600 Watt
-
Output Voltage12 Volt
-
Rated Current50 Ampere
-
Input Voltage90V~264V
-
Standards MetBIS,BSMI,CB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~65°C
-
Warranty3 Year
-
Length22.5 cm
-
Width12.4 cm
-
Height4.1 cm
-
Weight0.95 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the peak power capability of the LRS-600N2-12 and when does it activate?
The LRS-600N2-12 supports up to 200% of its rated 600W output for brief transient periods, providing approximately 1200W momentarily. This activates during inrush events such as motor startup, capacitor charging, or solenoid engagement, preventing nuisance overcurrent shutdown without requiring a larger continuous-rated supply.
How does the LRS-600N2-12 differ from the LRS-600-12?
Both supply 12V at 50A (600W) in the same 225 × 124 × 41 mm, 0.95 kg package. The LRS-600N2-12 accepts 90–264VAC (universal input) while the LRS-600-12 is limited to 90–132VAC. The LRS-600N2-12 also includes 200% peak power support and additional BIS and BSMI certifications not present on the LRS-600-12.
How does the LRS-600N2-12 compare to the other LRS-600N2 voltage variants?
All LRS-600N2 models share the same 225 × 124 × 41 mm case, 0.95 kg weight, 90–264VAC input, and 200% peak power capability. Output ratings: LRS-600N2-12 (600W, 50A at 12V), LRS-600N2-24 (600W, 25A at 24V), LRS-600N2-36 (597.6W, 16.6A at 36V), LRS-600N2-48 (600W, 12.5A at 48V).
What temperature range does the LRS-600N2-12 support?
The LRS-600N2-12 operates from -25°C to +65°C. The +65°C upper limit is lower than smaller LRS models; enclosures should be designed to keep ambient below 65°C for continuous full-rated operation. The -25°C lower limit supports cold-start in most industrial indoor environments.
Is the LRS-600N2-12 appropriate for motor-driven automation systems with frequent start-stop cycles?
Yes. The combination of 50A continuous output and 200% peak power capability makes the LRS-600N2-12 well-matched for 12V DC motor systems with high inrush during frequent start cycles. The peak feature absorbs startup surges that would otherwise require oversizing to a higher-wattage supply.
Other LRS-600N2 Models
3 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well LRS-600N2-48 Single Output High Peak Power Supply 600W 48V, 2 Times Peak Power | 600W | 48V | 12.5A | View |
| Mean Well LRS-600N2-36 Single Output High Peak Power Supply 597.6W 36V, 2 Times Peak Power | 597.6W | 36V | 16.6A | View |
| Mean Well LRS-600N2-24 Single Output High Peak Power Supply 600W 24V, 2 Times Peak Power | 600W | 24V | 25A | View |
