Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

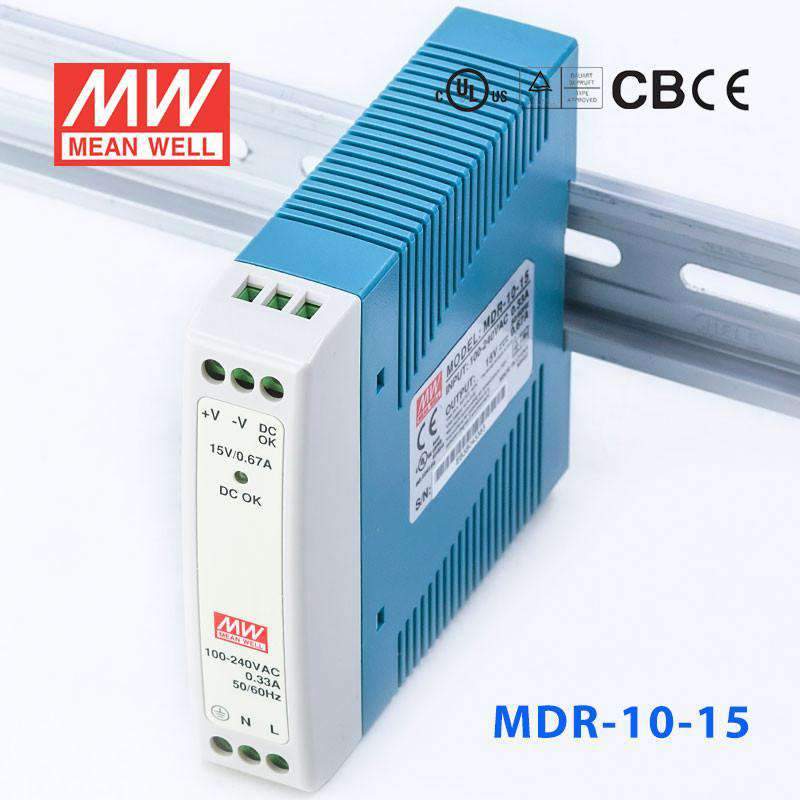

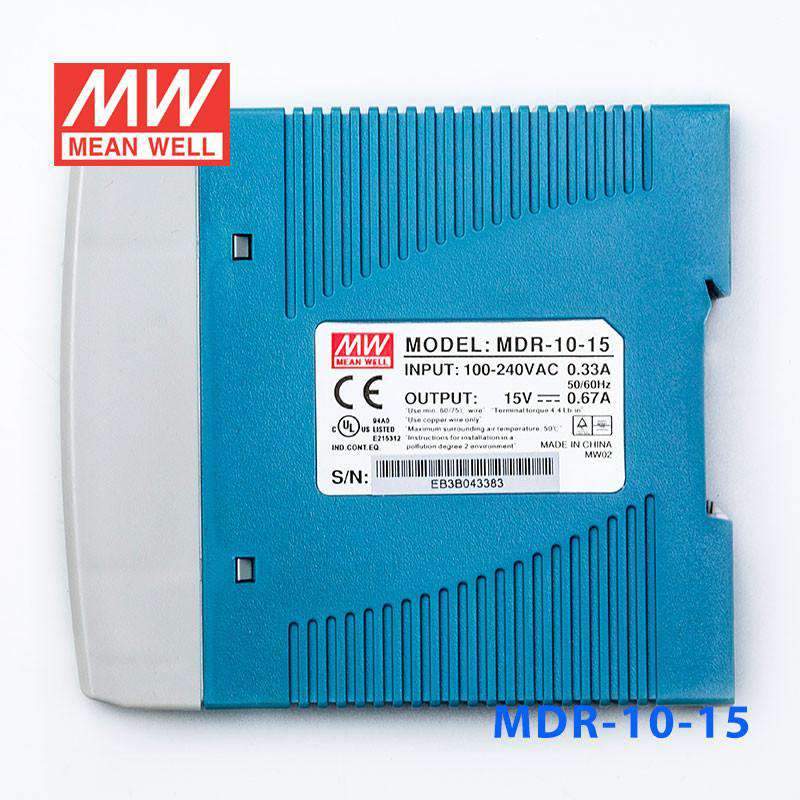

Mean Well MDR-10-15 Single Output Industrial Power Supply 10W 15V 0.67A - DIN Rail

ultra slimbuilt-in active PFC function
SKU MDR-10-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 2 in this family

MDR-10-15
Available to order
|

Overview

MDR-10-15 is the 15V output model of this series: rated current 0.67A, rated power 10W, typical efficiency 81%.

Features

  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage

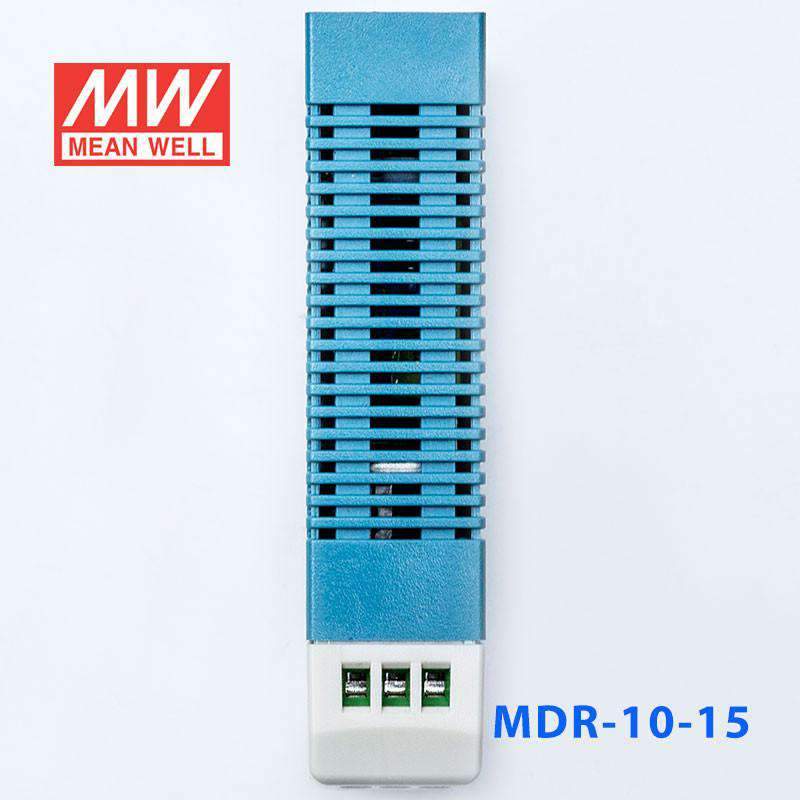

  • Cooling by free air convection

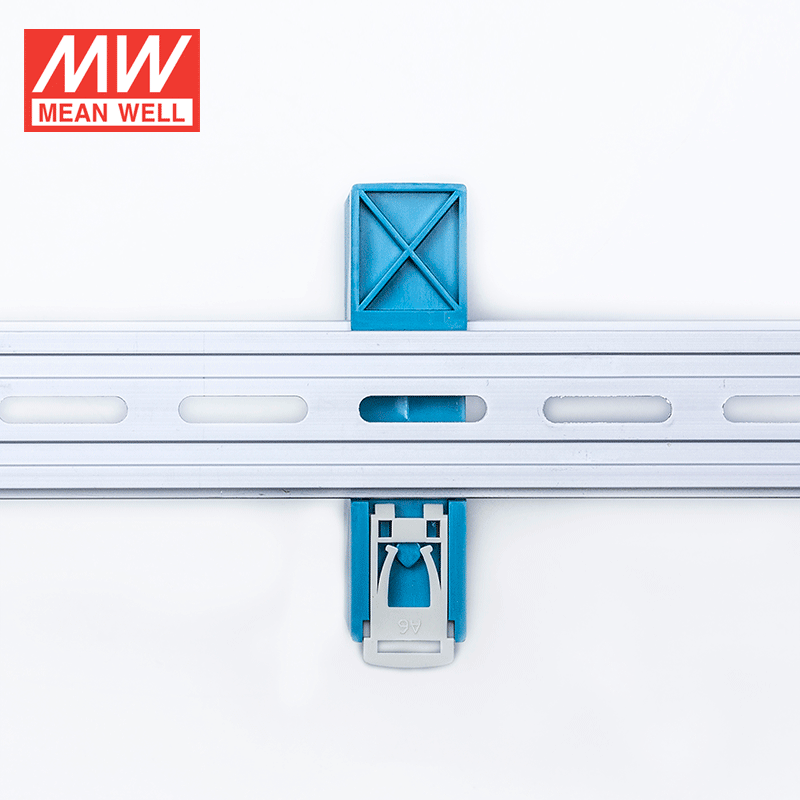

  • Can be installed on DIN rail TS-35/7.5 or 15

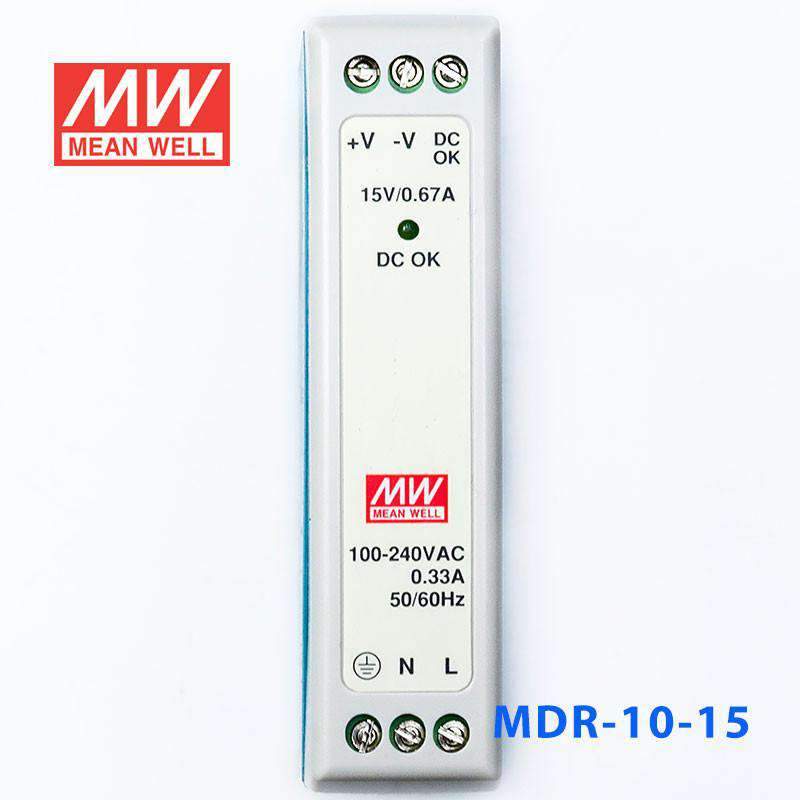

  • Built in DC OK active signal
  • LED indicator for power on
  • No load power consumption<0.75W
  • 100% full load burn-in test
  • 3 years warranty

Specifications

MDR-10-15Specifications from the official datasheet (2024-08-20 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
0.67A
CURRENT RANGE
0 ~ 0.67A
RATED POWER
10W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE TOLERANCENote.3
±3.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±3.0%
SETUP, RISE TIMENote.5
500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
120ms/230VAC 25ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
81%
AC CURRENT (Typ.)
0.33A/115VAC 0.21A/230VAC
INRUSH CURRENT (Typ.)
COLD START 35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK ACTIVE SIGNAL (max.)
11.5 ~ 16.5V / 40mA

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃ )
VIBRATION
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC

SAFETY STANDARDS
Ul508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1, AS/NZS 62368.1, IS13252(Part1)/IEC60950-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035,BS EN/EN61000-6-1,BS EN/EN61204-3, light industry level, EAC TP TC 020

OTHERS

MTBF
3334.7K hrs min. Telcordia SR-332 (Bellcore) ; 584.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
22.5*90*100mm (W*H*D)
PACKING
0.15Kg; 72pcs/11.8Kg/1.04CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MDR-10-15 Mechanical Specification
Mechanical Specification
MDR-10-15 Block Diagram
Block Diagram
MDR-10-15 Application of DC OK Active Signal
Application of DC OK Active Signal
MDR-10-15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MDR-10-15 in a PLC or small industrial control panel that needs 15V DC?

Yes, this model is suited to low-power 15V DC loads in PLC cabinets, control panels, and industrial automation enclosures as long as the load stays within 10W and 0.67A. Its DIN rail form factor and 22.5 mm slim width also help when panel space is limited.

Is the MDR-10-15 a good fit for building management or control cabinet power distribution?

It can be a fit for building management and control cabinet applications that require a 15V DC supply up to 10W. The unit accepts 85-264VAC input and is built as a DIN rail industrial power supply with a 100.0 x 90.0 x 22.5 mm housing.

Can this 15V DIN rail power supply be used in a narrow enclosure with limited rail space?

Yes, the slim 22.5 mm profile is one of the main reasons to choose this unit for compact DIN rail layouts. Its overall size is 100.0 x 90.0 x 22.5 mm, so it is well suited to tight control cabinets with limited rail space.

Would the MDR-10-15 work for light-duty industrial automation loads that need a regulated 15V output?

Yes, for light-duty automation loads that specifically require 15V DC and stay within 0.67A and 10W, this model is the right size class. It is part of Mean Well's DIN rail industrial power supply range and includes a built-in DC OK active signal.

How does the MDR-10-15 compare with other MDR DIN rail models?

Within the small MDR-10 group, the MDR-10-5 is 10W at 5V and 2A, the MDR-10-12 is 10W at 12V and 0.84A, the MDR-10-15 is 10W at 15V and 0.67A, and the MDR-10-24 is 10W at 24V and 0.42A. All four share the same 22.5 mm DIN rail housing and 85-264VAC input, so the main difference is output voltage and current.

Can the MDR-10-15 be used in exposed or outdoor locations?

The listed specs show an operating temperature range of -20°C to +70°C, which supports use across a wide temperature range inside equipment. The provided specs do not list an IP rating, so it is better treated as a power supply for installation inside a control cabinet or enclosure rather than an exposed location.
